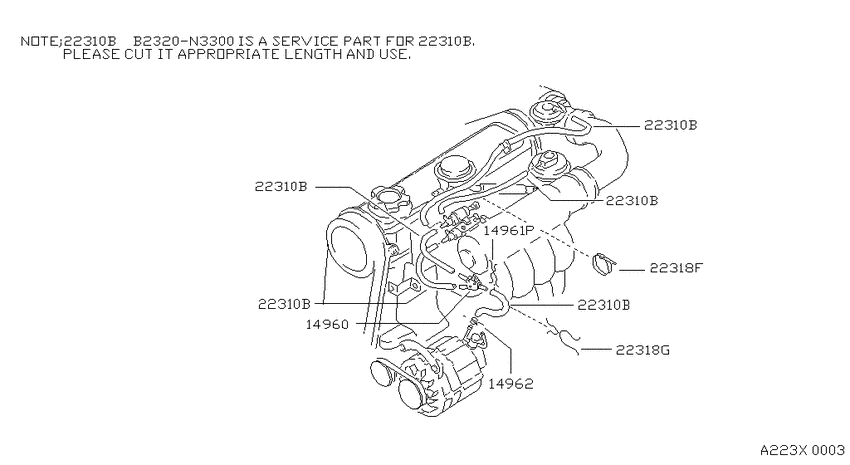

Vacuum piping (1982-02-01 ~ ; CD17) Diagram Nissan SENTRA/200SX
- Year
- 1982 - 1983
- Sales region
- U.S.A.
- Engine
- CD17
- transmission
- AT
- body
- W
- trim lvl
- DX
- emission
- CAL
- gears/shift type
- F3
- save gas
- NORMAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14960
|
14960
14961-W1300 Connector, A1982-08-01 ~ 1988-05-01; CD17; , |
14961-W1300 |
US $3.46 |
||
|
14961P
|
14961P
0155200191 BAND-HOSE,A1982-08-01 ~ 1988-05-01; CD17; , |
0155200191 |
US $2.21 |
||
|
14962
|
14962
01558-00041 CLAMP-HOSE1982-08-01 ~ 1988-05-01; CD17; , |
01558-00041 |
US $0.86 |
||
|
14962
|
14962
16439-U6801
Clamp-Hose, B
1982-08-01 ~ 1988-05-01; CD17; , |
16439-U6801 |
— | ||
| replacement | |||||
|
14962
|
14962
16439U680B Clamp-Hose1982-08-01 ~ 1988-05-01; CD17; , |
16439U680B |
US $0.82 |
||
|
22310B
|
22310B
02143-307W0
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=70 S/#B2318-N3300 |
02143-307W0 |
— | ||
|
22310B
|
22310B
02143-323W0
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=230 S/#B2318-N3300 |
02143-323W0 |
— | ||
|
22310B
|
22310B
02143-326W0
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=260 S/#B2318-N3300 |
02143-326W0 |
— | ||
|
22310B
|
22310B
02143-346W0
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=460 S/#B2318-N3300 |
02143-346W0 |
— | ||
|
22310B
|
22310B
B2320-N3300
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=5000 CUT USE |
B2320-N3300 |
— | ||
|
22310B
|
22310B
02143-307W0
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=70 S/#B2318-N3300 |
02143-307W0 |
— | ||
|
22310B
|
22310B
02143-323W0
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=230 S/#B2318-N3300 |
02143-323W0 |
— | ||
|
22310B
|
22310B
02143-326W0
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=260 S/#B2318-N3300 |
02143-326W0 |
— | ||
|
22310B
|
22310B
02143-346W0
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=460 S/#B2318-N3300 |
02143-346W0 |
— | ||
|
22310B
|
22310B
B2320-N3300
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=5000 CUT USE |
B2320-N3300 |
— | ||
|
22310B
|
22310B
02143-307W0
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=70 S/#B2318-N3300 |
02143-307W0 |
— | ||
|
22310B
|
22310B
02143-323W0
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=230 S/#B2318-N3300 |
02143-323W0 |
— | ||
|
22310B
|
22310B
02143-326W0
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=260 S/#B2318-N3300 |
02143-326W0 |
— | ||
|
22310B
|
22310B
02143-346W0
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=460 S/#B2318-N3300 |
02143-346W0 |
— | ||
|
22310B
|
22310B
B2320-N3300
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=5000 CUT USE |
B2320-N3300 |
— | ||
|
22310B
|
22310B
02143-307W0
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=70 S/#B2318-N3300 |
02143-307W0 |
— | ||
|
22310B
|
22310B
02143-323W0
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=230 S/#B2318-N3300 |
02143-323W0 |
— | ||
|
22310B
|
22310B
02143-326W0
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=260 S/#B2318-N3300 |
02143-326W0 |
— | ||
|
22310B
|
22310B
02143-346W0
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=460 S/#B2318-N3300 |
02143-346W0 |
— | ||
|
22310B
|
22310B
B2320-N3300
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=5000 CUT USE |
B2320-N3300 |
— | ||
|
22310B
|
22310B
02143-307W0
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=70 S/#B2318-N3300 |
02143-307W0 |
— | ||
|
22310B
|
22310B
02143-323W0
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=230 S/#B2318-N3300 |
02143-323W0 |
— | ||
|
22310B
|
22310B
02143-326W0
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=260 S/#B2318-N3300 |
02143-326W0 |
— | ||
|
22310B
|
22310B
02143-346W0
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=460 S/#B2318-N3300 |
02143-346W0 |
— | ||
|
22310B
|
22310B
B2320-N3300
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=5000 CUT USE |
B2320-N3300 |
— | ||
|
22310B
|
22310B
02143-307W0
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=70 S/#B2318-N3300 |
02143-307W0 |
— | ||
|
22310B
|
22310B
02143-323W0
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=230 S/#B2318-N3300 |
02143-323W0 |
— | ||
|
22310B
|
22310B
02143-326W0
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=260 S/#B2318-N3300 |
02143-326W0 |
— | ||
|
22310B
|
22310B
02143-346W0
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=460 S/#B2318-N3300 |
02143-346W0 |
— | ||
|
22310B
|
22310B
B2320-N3300
Hose-Vacuum Control
1982-08-01 ~ 1988-05-01; CD17; L=5000 CUT USE |
B2320-N3300 |
— | ||
|
22318F
|
22318F
01552-00043
CLIP
1982-08-01 ~ 1988-05-01; CD17; , |
01552-00043 |
— | ||
| replacement | |||||
|
22318F
|
22318F
2421610Y80 Clamp1982-08-01 ~ 1988-05-01; CD17; , |
2421610Y80 |
from US $4.42 |
||
|
22318F
|
22318F
01552-00411
CLAMP-HOSE
1982-08-01 ~ 1988-05-01; CD17; , |
01552-00411 |
— | ||
| replacement | |||||
|
22318F
|
22318F
2421610Y80 Clamp1982-08-01 ~ 1988-05-01; CD17; , |
2421610Y80 |
from US $4.42 |
||
|
22318G
|
22318G
18762H7900 Clip-Hose1982-08-01 ~ 1982-10-01; CD17; , |
18762H7900 |
US $3.66 |
||
|
22318G
|
22318G
24220-E4101
Clamp-Hose
1982-08-01 ~ 1982-10-01; CD17; , |
24220-E4101 |
— | ||
| replacement | |||||
|
22318G
|
22318G
18762H7900 Clip-Hose1982-08-01 ~ 1982-10-01; CD17; , |
18762H7900 |
US $3.66 |
||
|
22318G
|
22318G
49724-W1400 Clamp-Hose1982-10-01 ~ 1988-05-01; CD17; , |
49724-W1400 |
US $3.31 |
||
