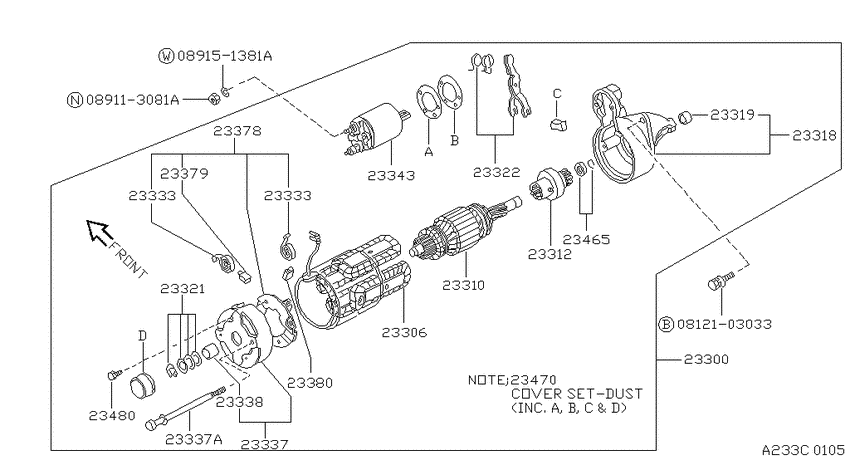

Starter motor (1986-01-01 ~ 1988-07-01; HITACHI; CAL.E16S.MT+CAL.2WD.E16I.MT) Diagram Nissan SENTRA/200SX
- Year
- 1986 - 1987
- Sales region
- U.S.A.
- Engine
- E16S
- drive
- 2WD
- transmission
- MT
- body
- 2S
- trim lvl
- E
- emission
- CAL
- gears/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812103033
|
0812103033
08121-03033
Bolt-hexagon
|
08121-03033 |
— | ||
|
089113081A
|
089113081A
08911-3081A
Nut-Wiper Arm
|
08911-3081A |
— | ||
|
23300
|
23300
23300-M8200 Motor Assy-Starter1986-01-01 ~ 1988-07-01; 'CAL.E16S.MT.F5 +CAL.2WD.E16I.MT.(F4+F5); HITACHI |
23300-M8200 |
US $758.98 |
||
| replacement | |||||
|
23300
|
23300
23300-M8202 Motor Assy-Starter1986-01-01 ~ 1988-07-01; 'CAL.E16S.MT.F5 +CAL.2WD.E16I.MT.(F4+F5); HITACHI |
23300-M8202 |
US $836.86 |
||
|
23306
|
23306
23306-M8200 Coil Assy-Field1986-01-01 ~ 1988-07-01; 'CAL.E16S.MT.F5 +CAL.2WD.E16I.MT.(F4+F5); HITACHI |
23306-M8200 |
US $141.70 |
||
|
23310
|
23310
23310-M8200 Armature Assy1986-01-01 ~ 1988-07-01; 'CAL.E16S.MT.F5 +CAL.2WD.E16I.MT.(F4+F5); HITACHI |
23310-M8200 |
US $356.83 |
||
|
23312
|
23312
23312-M8000 Pinion Assy1986-01-01 ~ 1988-07-01; 'CAL.E16S.MT.F5 +CAL.2WD.E16I.MT.(F4+F5); HITACHI |
23312-M8000 |
US $332.76 |
||
| replacement | |||||
|
23312
|
23312
23312-73C00 Pinion Assy1986-01-01 ~ 1988-07-01; 'CAL.E16S.MT.F5 +CAL.2WD.E16I.MT.(F4+F5); HITACHI |
23312-73C00 |
US $359.66 |
||
|
23318
|
23318
23318-M8200 Case Assy-Gear1986-01-01 ~ 1988-07-01; 'CAL.E16S.MT.F5 +CAL.2WD.E16I.MT.(F4+F5); HITACHI |
23318-M8200 |
US $93.31 |
||
|
23319
|
23319
23338N3300 Metal-Rear Cover1986-01-01 ~ 1988-07-01; 'CAL.E16S.MT.F5 +CAL.2WD.E16I.MT.(F4+F5); HITACHI |
23338N3300 |
US $5.18 |
||
|
23321
|
23321
23321-N3300 Washer Set-Thrust1986-01-01 ~ 1988-07-01; 'CAL.E16S.MT.F5 +CAL.2WD.E16I.MT.(F4+F5); HITACHI |
23321-N3300 |
US $4.18 |
||
|
23322
|
23322
23322-M8100 Lever Set-Shift1986-01-01 ~ 1988-07-01; 'CAL.E16S.MT.F5 +CAL.2WD.E16I.MT.(F4+F5); HITACHI |
23322-M8100 |
US $12.67 |
||
|
23333
|
23333
23333-M8000 Spring-Brush1986-01-01 ~ 1988-07-01; 'CAL.E16S.MT.F5 +CAL.2WD.E16I.MT.(F4+F5); HITACHI |
23333-M8000 |
US $6.48 |
||
|
23333
|
23333
23333-M8000 Spring-Brush1986-01-01 ~ 1988-07-01; 'CAL.E16S.MT.F5 +CAL.2WD.E16I.MT.(F4+F5); HITACHI |
23333-M8000 |
US $6.48 |
||
|
23337
|
23337
23337-U0100 Cover Assy-Rear1986-01-01 ~ 1988-07-01; 'CAL.E16S.MT.F5 +CAL.2WD.E16I.MT.(F4+F5); HITACHI |
23337-U0100 |
US $43.06 |
||
|
23337
|
23337
23340-M4900 Bolt-Through1986-01-01 ~ 1988-07-01; 'CAL.E16S.MT.F5 +CAL.2WD.E16I.MT.(F4+F5); HITACHI |
23340-M4900 |
US $4.18 |
||
|
23337A
|
23337A
23340-M4900 Bolt-Through1986-01-01 ~ 1988-07-01; 'CAL.E16S.MT.F5 +CAL.2WD.E16I.MT.(F4+F5); HITACHI |
23340-M4900 |
US $4.18 |
||
|
23338
|
23338
23338N3300 Metal-Rear Cover1986-01-01 ~ 1988-07-01; 'CAL.E16S.MT.F5 +CAL.2WD.E16I.MT.(F4+F5); HITACHI |
23338N3300 |
US $5.18 |
||
|
23343
|
23343
23343-M8003 Switch Assy-Magnetic1986-01-01 ~ 1988-07-01; 'CAL.E16S.MT.F5 +CAL.2WD.E16I.MT.(F4+F5); HITACHI |
23343-M8003 |
US $151.20 |
||
| replacement | |||||
|
23343
|
23343
23343-20P00 Switch Assy-Magnetic1986-01-01 ~ 1988-07-01; 'CAL.E16S.MT.F5 +CAL.2WD.E16I.MT.(F4+F5); HITACHI |
23343-20P00 |
US $126.43 |
||
|
23378
|
23378
23378-M8100 Holder Assy-Brush1986-01-01 ~ 1988-07-01; 'CAL.E16S.MT.F5 +CAL.2WD.E16I.MT.(F4+F5); HITACHI |
23378-M8100 |
US $17.57 |
||
|
23379
|
23379
23379-M0101 Brush-Minus1986-01-01 ~ 1988-07-01; 'CAL.E16S.MT.F5 +CAL.2WD.E16I.MT.(F4+F5); HITACHI |
23379-M0101 |
US $5.62 |
||
|
23380
|
23380
23380-M0100 Brush-Plus1986-01-01 ~ 1988-07-01; 'CAL.E16S.MT.F5 +CAL.2WD.E16I.MT.(F4+F5); HITACHI |
23380-M0100 |
US $5.62 |
||
|
23465
|
23465
23465-N3300 Stopper Set-Pinion1986-01-01 ~ 1988-07-01; 'CAL.E16S.MT.F5 +CAL.2WD.E16I.MT.(F4+F5); HITACHI |
23465-N3300 |
US $6.48 |
||
|
23470
|
23470
23470-M8001 Cover Set-Dust1986-01-01 ~ 1988-07-01; '(CAL.2S+CAL.4S+CAL.HB+CAL.W).E16S.MT.F5; HITACHI |
23470-M8001 |
US $10.08 |
||
|
23480
|
23480
23480-M0100 Screw Set1986-01-01 ~ 1988-07-01; 'CAL.E16S.MT.F5 +CAL.2WD.E16I.MT.(F4+F5); HITACHI |
23480-M0100 |
US $4.18 |
||
