Component List SENTRA/200SX
Carburetor (1986-01-01 ~ ; COMPONENT PARTS(PART 1); FED.E16S)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
16011	16011 16011-61A13 Chamber Assy-Choke 1986-01-01 ~ 1987-07-01; $(FED.2S+FED.4S+FED.HB+FED.W).E16S.AT; ,	16011-61A13	—
16011	16011 16453-H9510 Washer 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16453-H9510	—
16011	16011 17160-C0610 Packing 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	17160-C0610	—
16054	16054 16055-H7200 Jet-Slow 1986-01-01 ~ 1987-07-01; $(FED.2S+FED.4S+FED.HB+FED.W).E16S.AT; ,	16055-H7200	US $23.04
16054	16054 16286-H7200 Plug 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16286-H7200	US $3.32
16054	16054 16055-33M70 Jet-Slow 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16055-33M70	—
16054G	16054G 16286-H7200 Plug 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16286-H7200	US $3.32
16054G	16054G 16286-H7200 Plug 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16286-H7200	US $3.32
16054G	16054G 16286-H7200 Plug 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16286-H7200	US $3.32
16054M	16054M 16055-33M70 Jet-Slow 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16055-33M70	—
16061	16061 16061-33M12 Float 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16061-33M12	—
16061	16061 16066-33M12 Shaft-Float 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16066-33M12	—
16061A	16061A 16066-33M12 Shaft-Float 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16066-33M12	—
16069	16069 16068-33M20 Orifice-Outer Vent 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16068-33M20	—
16071	16071 16171-11M00 Weight-Injector 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16171-11M00	US $2.08
16071	16071 16069-11M00 Spring-Injector 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16069-11M00	US $2.08
16071	16071 16171-11M00 Weight-Injector 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16171-11M00	US $2.08
16071	16071 16069-11M00 Spring-Injector 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16069-11M00	US $2.08
16071J	16071J 16069-11M00 Spring-Injector 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16069-11M00	US $2.08
16098	16098 16098-01B00 Filter 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16098-01B00	US $9.43
16101	16101 16101-33M12 Valve-Needle 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16101-33M12	US $20.66
16102	16102 A6197-61A03 Mixture Control Solenoid Valve 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	A6197-61A03	—
	replacement
16102	16102 16197-61A03 Mixture control solenoid valve 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16197-61A03	—
16143	16143 16143-61A03 Rod-Pump 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16143-61A03	—
16148	16148 16148-H1000 Spring-Return, Piston 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16148-H1000	US $6.66
16151	16151 16151-61A03 Piston 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16151-61A03	—
16196H	16196H 16184-33M12 Holder 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16184-33M12	—
16204	16204 16204-34M13 Bleed-Slow Air 1986-01-01 ~ 1987-07-01; $(FED.2S+FED.4S+FED.HB+FED.W).E16S.AT; ,	16204-34M13	—
16208	16208 16036-33M12 Bleed-Main Air 1986-01-01 ~ 1987-07-01; $(FED.2S+FED.4S+FED.HB+FED.W).E16S.AT; ,	16036-33M12	—
16209	16209 16036-34M13 Bleed-Main Air 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16036-34M13	—
16213	16213 16204-33M13 Bleed-Slow Air 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16204-33M13	—
16267N	16267N 16267-34M13 Pipe-Rubber 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16267-34M13	—
16302	16302 16302-61A03 Lever-Pump 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16302-61A03	—
16302	16302 16198-11M04 Pin-Cotter 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16198-11M04	US $4.16
16302	16302 16198-33M12 Pin-Clip 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16198-33M12	—
16302H	16302H 16198-11M04 Pin-Cotter 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16198-11M04	US $4.16
16302H	16302H 16198-33M12 Pin-Clip 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16198-33M12	—
16305	16305 16305-M4960 Shaft-Pump Lever 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16305-M4960	US $4.03
16305	16305 16453-H1000 Washer 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16453-H1000	—
16305	16305 16116-11M05 Collar-Throttle, 1St 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16116-11M05	US $3.02
16305C	16305C 16453-H1000 Washer 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16453-H1000	—
16307	16307 16307-04000 Cover-Pump 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16307-04000	—
	replacement
16307	16307 16307-77A00 Cover-Pump 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16307-77A00	US $6.79
16388E	16388E 16199-33M12 Piston-Choke 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16199-33M12	—
16452	16452 16452-31M10 Spring-Pump Lever 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16452-31M10	—
16464	16464 16033-12M11 Jet-Richer 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16033-12M11	—
16464	16464 16033-33M12 Jet-Main 1986-01-01 ~ 1987-07-01; !(FED.2S+FED.4S+FED.HB+FED.W).E16S; ,	16033-33M12	US $9.22

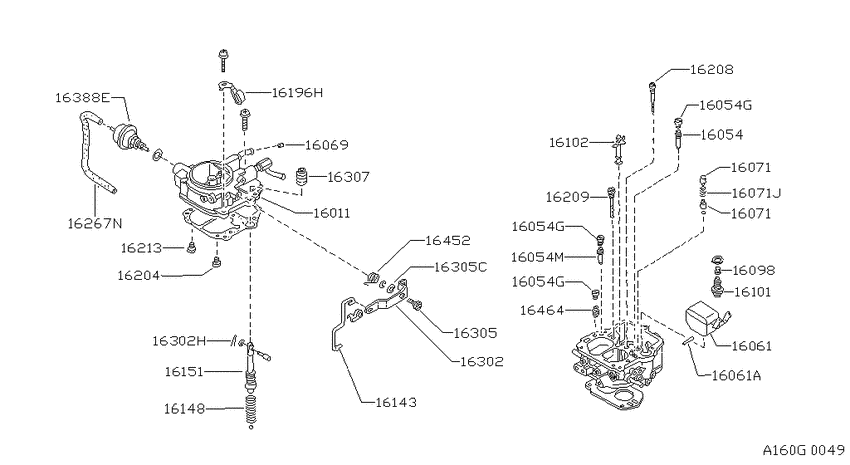

Carburetor (1986-01-01 ~ ; COMPONENT PARTS(PART 1); FED.E16S) Diagram Nissan SENTRA/200SX U.S.A. 2296330-181585

Carburetor (1986-01-01 ~ ; COMPONENT PARTS(PART 1); FED.E16S) Diagram Nissan SENTRA/200SX U.S.A. 2296330-181585
