Component List SENTRA/200SX
Governor,power train & planetary gear (1986-01-01 ~ ; RN/L3F01A; AT)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
0816061600	0816061600 08160-61600 Bolt-hexagon	08160-61600	—
31420	31420 31420-01X02 Carrier Assy-Front Planet 1986-01-01 ~ ; AT; ,	31420-01X02	US $180
31429	31429 31434-01X01 Race-Bearing, Sun Gear 1986-01-01 ~ ; AT; ,	31434-01X01	US $5.90
31431	31431 31430-01X01 Gear-Internal 1986-01-01 ~ 1989-10-01; AT; ,	31430-01X01	US $97.34
31431	31431 31430-01X02 Gear-Internal 1989-10-01 ~ ; AT; ,	31430-01X02	US $97.34
31431	31431 31508-01X01 Washer-Thrust 1989-02-01 ~ 1989-12-01; AT; ,	31508-01X01	US $2.45
31431	31431 31508-01X02 Washer-Thrust 1989-12-01 ~ ; AT; ,	31508-01X02	US $2.45
31431	31431 31557-01X01 Washer-Thrust 1986-01-01 ~ 1989-02-01; AT; ,	31557-01X01	US $2.45
31431D	31431D 31508-01X01 Washer-Thrust 1989-02-01 ~ 1989-12-01; AT; ,	31508-01X01	US $2.45
31431D	31431D 31508-01X02 Washer-Thrust 1989-12-01 ~ ; AT; ,	31508-01X02	US $2.45
31431D	31431D 31557-01X01 Washer-Thrust 1986-01-01 ~ 1989-02-01; AT; ,	31557-01X01	US $2.45
31435	31435 31435-01X00 Bearing-Needle, Thrust 1986-01-01 ~ ; AT; ,	31435-01X00	US $20.30
31435	31435 31408-01X00 Bearing-Roller, Output Shaft 1988-05-01 ~ ; AT; ,	31408-01X00	—
31435	31435 31488-01X00 Bearing-Roller, Output Shaft 1986-01-01 ~ 1988-05-01; AT; ,	31488-01X00	US $31.54
31435	31435 31435-01X01 Bearing-Needle, Thrust 1989-12-01 ~ ; AT; ,	31435-01X01	US $4.18
31435Q	31435Q 31435-01X01 Bearing-Needle, Thrust 1989-12-01 ~ ; AT; ,	31435-01X01	US $4.18
31436	31436 31436-01X01 Race-Bearing 1986-01-01 ~ ; AT; ,	31436-01X01	US $5.90
31436	31436 31439-01X00 Race-Bearing 1986-01-01 ~ ; AT; ,	31439-01X00	US $5.90
31436	31436 31436-01X01 Race-Bearing 1986-01-01 ~ ; AT; ,	31436-01X01	US $5.90
31436M	31436M 31439-01X00 Race-Bearing 1986-01-01 ~ ; AT; ,	31439-01X00	US $5.90
31436P	31436P 31436-01X01 Race-Bearing 1986-01-01 ~ ; AT; ,	31436-01X01	US $5.90
31437	31437 31437-01X01 Washer-Thrust 1986-01-01 ~ ; AT; ,	31437-01X01	US $15.55
31437	31437 31437-01X01 Washer-Thrust 1986-01-01 ~ ; AT; ,	31437-01X01	US $15.55
31437M	31437M 31437-01X01 Washer-Thrust 1986-01-01 ~ ; AT; ,	31437-01X01	US $15.55
31438	31438 31407-01X00 Bearing-Needle, Thrust 1987-03-01 ~ ; AT;	31407-01X00	US $15.98
31438	31438 31438-X0100 Bearing-Needle, Thrust 1986-01-01 ~ 1987-03-01; AT; ,	31438-X0100	US $13.10
31438	31438 31489-01X00 Bearing-Roller, Output Shaft 1986-01-01 ~ ; AT; ,	31489-01X00	—
31440	31440 31440-01X02 Carrier Assy-Rear Planet 1986-01-01 ~ ; AT; ,	31440-01X02	US $167.04
31450	31450 31450-01X02 Gear Assy-Internal 1986-01-01 ~ ; AT; ,	31450-01X02	US $264.96
31460	31460 31460-01X01 Gear Assy-Sun 1986-01-01 ~ 1990-05-01; AT; ,	31460-01X01	US $122.83
31460	31460 31460-01X03 Gear Assy-Sun 1990-05-01 ~ ; AT; ,	31460-01X03	US $122.83
31465	31465 31465-01X02 Shell-Connecting 1986-01-01 ~ ; AT; ,	31465-01X02	US $26.50
31467	31467 31467-01X00 Ring-Snap 1986-01-01 ~ 1986-12-01; AT; ,	31467-01X00	US $1.73
31467	31467 31506-01X01 Ring-Snap 1986-12-01 ~ ; AT; ,	31506-01X01	US $1.73
31467	31467 31467-01X00 Ring-Snap 1986-01-01 ~ 1986-12-01; AT; ,	31467-01X00	US $1.73
31467	31467 31506-01X01 Ring-Snap 1986-12-01 ~ ; AT; ,	31506-01X01	US $1.73
31473	31473 31473-01X02 Clutch Assy-One Way 1986-01-01 ~ ; AT; ,	31473-01X02	US $201.60
31476	31476 31389-01X00 Ring-Snap 1986-01-01 ~ ; AT; ,	31389-01X00	US $5.18
31499M	31499M 31484-01X00 Shim-Adjust, Idler Gear 1986-01-01 ~ ; AT; SELECT T=0.3	31484-01X00	US $5.33
31499M	31499M 31484-01X01 Shim-Adjust, Idler Gear 1986-01-01 ~ ; AT; SELECT T=0.5	31484-01X01	US $5.33
31499M	31499M 31484-01X02 Shim-Adjust, Idler Gear 1986-01-01 ~ ; AT; SELECT T=0.7	31484-01X02	US $5.33
31499M	31499M 31484-01X03 Shim-Adjust, Idler Gear 1986-01-01 ~ ; AT; SELECT T=0.9	31484-01X03	US $5.33
31499M	31499M 31484-01X04 Shim-Adjust, Idler Gear 1986-01-01 ~ ; AT; SELECT T=1.1	31484-01X04	US $5.33
31499M	31499M 31484-01X05 Shim-Adjust, Idler Gear 1986-01-01 ~ ; AT; SELECT T=1.3	31484-01X05	US $5.33
31499M	31499M 31484-01X06 Shim-Adjust, Idler Gear 1986-01-01 ~ ; AT; SELECT T=1.5	31484-01X06	US $5.33
31499M	31499M 31484-01X07 Shim-Adjust, Idler Gear 1986-01-01 ~ ; AT; SELECT T=1.7	31484-01X07	US $5.33
31652	31652 31376-01X00 Ring-Snap 1986-01-01 ~ ; AT; ,	31376-01X00	US $5.18
31662	31662 31662-01X01 Plate Assy-Drive 1986-01-01 ~ ; AT; ,	31662-01X01	US $31.54
31662	31662 31662-01X01 Plate Assy-Drive 1986-01-01 ~ ; AT; ,	31662-01X01	US $31.54
31662	31662 31662-01X01 Plate Assy-Drive 1986-01-01 ~ ; AT; ,	31662-01X01	US $31.54
31662	31662 31662-01X01 Plate Assy-Drive 1986-01-01 ~ ; AT; ,	31662-01X01	US $31.54
31666	31666 31666-01X00 Plate-Driven 1986-01-01 ~ 1987-03-01; AT; ,	31666-01X00	—
31666	31666 31666-01X00 Plate-Driven 1986-01-01 ~ ; AT; ,	31666-01X00	—
31666	31666 31666-01X00 Plate-Driven 1986-01-01 ~ 1987-03-01; AT; ,	31666-01X00	—
31666	31666 31666-01X00 Plate-Driven 1986-01-01 ~ ; AT; ,	31666-01X00	—
31666M	31666M 31666-01X00 Plate-Driven 1986-01-01 ~ ; AT; ,	31666-01X00	—
31666M	31666M 31666-01X00 Plate-Driven 1986-01-01 ~ ; AT; ,	31666-01X00	—
31666M	31666M 31666-01X00 Plate-Driven 1986-01-01 ~ ; AT; ,	31666-01X00	—
31667	31667 31667-01X02 Plate-Retaining 1986-01-01 ~ 1987-03-01; AT; ,	31667-01X02	US $38.59
31667	31667 31667-01X00 Plate-Retaining 1986-01-01 ~ ; AT; SELECT T=3.6	31667-01X00	US $38.59
31667	31667 31667-01X01 Plate-Retaining 1986-01-01 ~ ; AT; SELECT T=3.8	31667-01X01	US $38.59
31667	31667 31667-01X02 Plate-Retaining 1986-01-01 ~ ; AT; SELECT T=4.0	31667-01X02	US $38.59
31667	31667 31667-01X03 Plate-Retaining 1986-01-01 ~ ; AT; SELECT T=4.2	31667-01X03	US $38.59
31667	31667 31667-01X04 Plate-Retaining 1986-01-01 ~ ; AT; SELECT T=4.4	31667-01X04	US $38.59
31667M	31667M 31667-01X00 Plate-Retaining 1986-01-01 ~ ; AT; SELECT T=3.6	31667-01X00	US $38.59
31667M	31667M 31667-01X01 Plate-Retaining 1986-01-01 ~ ; AT; SELECT T=3.8	31667-01X01	US $38.59
31667M	31667M 31667-01X02 Plate-Retaining 1986-01-01 ~ ; AT; SELECT T=4.0	31667-01X02	US $38.59
31667M	31667M 31667-01X03 Plate-Retaining 1986-01-01 ~ ; AT; SELECT T=4.2	31667-01X03	US $38.59
31667M	31667M 31667-01X04 Plate-Retaining 1986-01-01 ~ ; AT; SELECT T=4.4	31667-01X04	US $38.59
31668	31668 31664-01X02 Plate-Dished 1986-01-01 ~ ; AT; ,	31664-01X02	US $30.38
31860	31860 31860-01X04 Governor Assy 1987-01-01 ~ 1988-07-01; AT; ,	31860-01X04	US $86.83
31860	31860 31860-01X13 Governor Assy 1986-01-01 ~ 1987-01-01; AT; ,	31860-01X13	US $86.83
31860	31860 31896-01X02 Screw 1986-01-01 ~ ; AT; ,	31896-01X02	US $1.73
31860	31860 31897-01X00 Washer-Seal 1986-01-01 ~ ; AT; ,	31897-01X00	US $1.73
31860A	31860A 31896-01X02 Screw 1986-01-01 ~ ; AT; ,	31896-01X02	US $1.73
31860C	31860C 31897-01X00 Washer-Seal 1986-01-01 ~ ; AT; ,	31897-01X00	US $1.73
31863	31863 31863-01X00 Spring-Primary, Governor 1986-01-01 ~ ; AT; ,	31863-01X00	US $0.86
31864	31864 31864-01X00 Plate-Retainer 1986-01-01 ~ ; AT; ,	31864-01X00	US $0.86
31872	31872 31872-01X00 Valve-Secondary, Governor 1987-01-01 ~ 1988-07-01; AT; ,	31872-01X00	US $9.94
31872	31872 31872-01X03 Valve-Secondary, Governor 1986-01-01 ~ 1987-01-01; AT; ,	31872-01X03	US $9.94
31873	31873 31873-01X00 Spring-Governor 1986-01-01 ~ ; AT; ,	31873-01X00	US $1.73
31874	31874 31874-01X00 Guide-Spring Governor 1986-01-01 ~ ; AT; ,	31874-01X00	US $1.73
31876	31876 31875-01X00 Cap-Governor 1986-01-01 ~ 1986-05-01; AT; ,	31875-01X00	US $10.80
31876	31876 31876-01X04 Cap-Governor 1986-01-01 ~ 1986-05-01; AT; ,	31876-01X04	US $10.80
31876	31876 31876-01X05 Cap-Governor 1986-06-01 ~ ; AT; ,	31876-01X05	—
31877	31877 3187701X01 Seal-Ring, Governor 1986-01-01 ~ ; AT; ,	3187701X01	US $14.68
31878	31878 31506-01X00 Retainer-Snap, Governor 1986-01-01 ~ ; AT; ,	31506-01X00	—
31891	31891 31891-01X03 Shaft Assy-Governor 1986-01-01 ~ ; AT; ,	31891-01X03	US $52.70
31891	31891 01523-00041 PIN-SPRING 1986-01-01 ~ ; AT; ,	01523-00041	US $2.49
31891J	31891J 01523-00041 PIN-SPRING 1986-01-01 ~ ; AT; ,	01523-00041	US $2.49
31894	31894 31894-01X02 Gear-Governor 1986-01-01 ~ ; AT; ,	31894-01X02	—

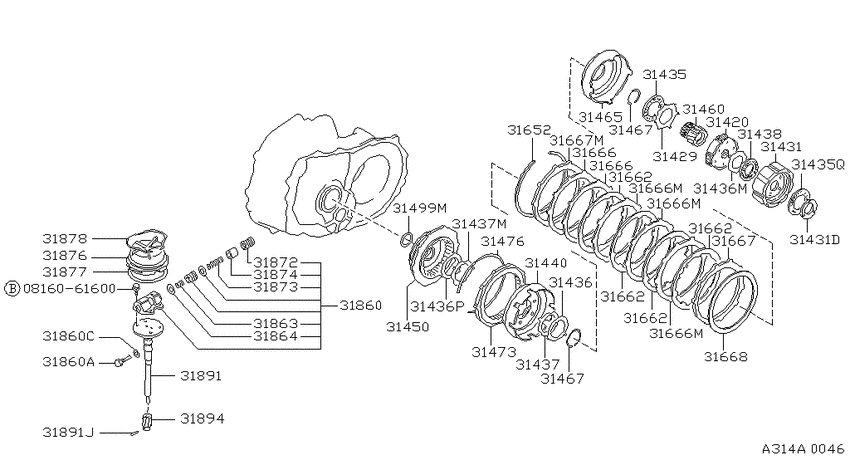

Governor,power train & planetary gear (1986-01-01 ~ ; RN/L3F01A; AT) Diagram Nissan SENTRA/200SX U.S.A. 2296442-181596

Governor,power train & planetary gear (1986-01-01 ~ ; RN/L3F01A; AT) Diagram Nissan SENTRA/200SX U.S.A. 2296442-181596
