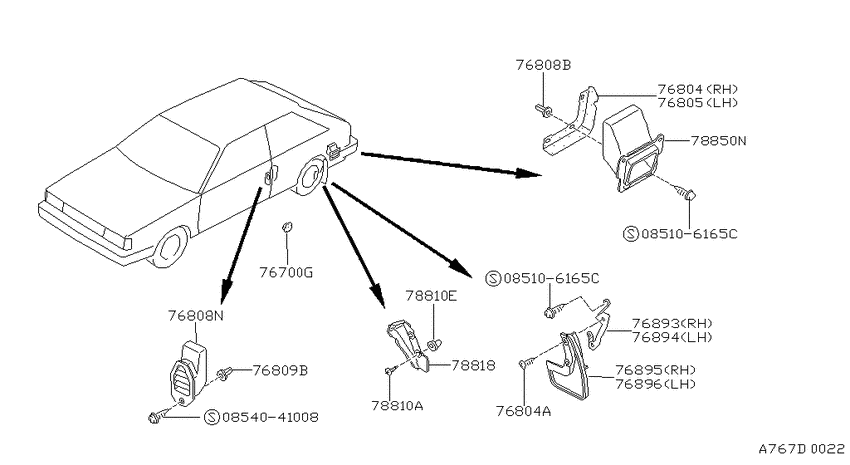

Body side fitting (1986-01-01 ~ ; HB) Diagram Nissan SENTRA/200SX
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Engine
- E16I
- drive
- 2WD
- transmission
- MT
- body
- HB
- trim lvl
- E
- emission
- CAL
- gears/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
085106165C
|
085106165C
08510-6165C SCREWTAPPING |
08510-6165C |
US $0.57 |
||
|
085106165C
|
085106165C
08510-6165C SCREWTAPPING |
08510-6165C |
US $0.57 |
||
|
0854041008
|
0854041008
08540-41008
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08540-41008 |
— | ||
|
76700G
|
76700G
0165801361 PLUG-RUBBER1986-01-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
0165801361 |
US $3.18 |
||
|
76804
|
76804
76806-69A00
Rubber-drafter,rh
1986-01-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
76806-69A00 |
— | ||
|
76804
|
76804
01431-00173
SCREW
1986-01-01 ~ 1988-07-01; *FED.HB +*CAL.HB; F/SPLASH GUARD |
01431-00173 |
— | ||
|
76804
|
76804
01431-00201 SCREW1986-01-01 ~ 1988-07-01; *FED.HB +*CAL.HB; F/SPLASH GUARD |
01431-00201 |
US $1.73 |
||
|
76804A
|
76804A
01431-00173
SCREW
1986-01-01 ~ 1988-07-01; *FED.HB +*CAL.HB; F/SPLASH GUARD |
01431-00173 |
— | ||
|
76804A
|
76804A
01431-00201 SCREW1986-01-01 ~ 1988-07-01; *FED.HB +*CAL.HB; F/SPLASH GUARD |
01431-00201 |
US $1.73 |
||
|
76805
|
76805
76807-69A00
Rubber-drafter,lh
1986-01-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
76807-69A00 |
— | ||
|
76808B
|
76808B
01281-00601
GROMMET-SCREW
1986-01-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
01281-00601 |
— | ||
| replacement | |||||
|
76808B
|
76808B
0128101231 GROMMET-SCREW1986-01-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
0128101231 |
from US $2.24 |
||
|
76808N
|
76808N
76842-56A00
Valve-Ventilator, Rh
1986-01-01 ~ 1987-04-01; FED.HB +CAL.HB; RH & LH |
76842-56A00 |
— | ||
|
76809B
|
76809B
01281-00201 GROMMET-SCREW1986-01-01 ~ 1987-04-01; FED.HB +CAL.HB; , |
01281-00201 |
US $2.45 |
||
|
76893
|
76893
78814-69A00
Bracket-mudguard,rh
1986-01-01 ~ 1988-07-01; *FED.HB +*CAL.HB; F/SPLASH GUARD |
78814-69A00 |
— | ||
|
76894
|
76894
78815-69A00
Bracket-mudguard,lh
1986-01-01 ~ 1988-07-01; *FED.HB +*CAL.HB; F/SPLASH GUARD |
78815-69A00 |
— | ||
|
76895
|
76895
78812-69A25
Mudguard set-rear,rh
1986-01-01 ~ 1988-07-01; *FED.HB +*CAL.HB; F/SPLASH GUARD |
78812-69A25 |
— | ||
|
76896
|
76896
78813-69A25
Mudguard set-rear,lh
1986-01-01 ~ 1988-07-01; *FED.HB +*CAL.HB; F/SPLASH GUARD |
78813-69A25 |
— | ||
|
78810A
|
78810A
01461-00271 SCREW1986-01-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
01461-00271 |
from US $2.08 |
||
|
78810E
|
78810E
0128100111 GROMMET-SCREW1986-01-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
0128100111 |
from US $0.85 |
||
|
78818
|
78818
78818-50A00 Extension-Rear Fender, Rh1986-01-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
78818-50A00 |
US $6.91 |
||
|
78850N
|
78850N
76804-56A00 Duct-Drafter1986-01-01 ~ 1988-07-01; FED.HB +CAL.HB; , |
76804-56A00 |
US $41.76 |
||
