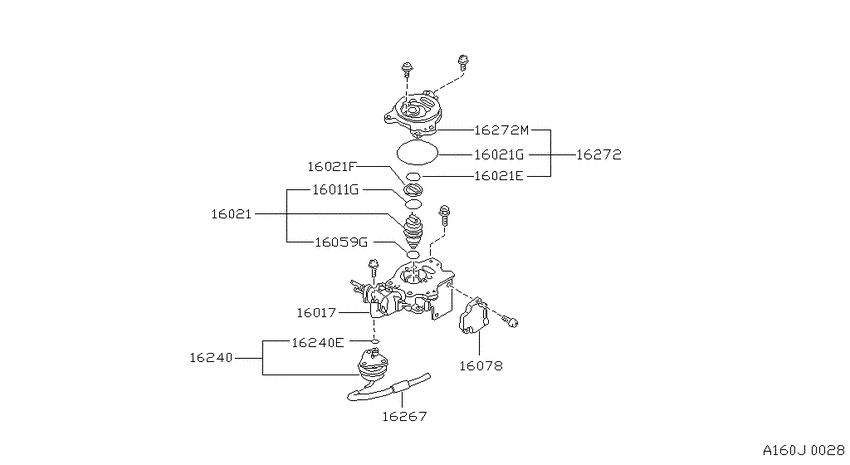

Carburetor (1986-01-01 ~ ; COMPONENT PARTS(PART 1); E16I) Diagram Nissan SENTRA/200SX
- Year
- 1987 - 1988
- Sales region
- U.S.A.
- Engine
- E16I
- drive
- 2WD
- transmission
- MT
- body
- HB
- trim lvl
- E
- emission
- CAL
- gears/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16011G
|
16011G
16328-D4402
Seal-O Ring
1986-01-01 ~ 1986-06-01; E16I; , |
16328-D4402 |
— | ||
|
16011G
|
16011G
16328-D4406 Seal-O Ring1986-06-01 ~ 1988-07-01; E16I; , |
16328-D4406 |
US $8.78 |
||
|
16017
|
16017
16017-61A70 Chamber Assy-Venturi, Sub1986-02-01 ~ 1988-07-01; E16I; , |
16017-61A70 |
US $477.19 |
||
|
16017
|
16017
16017-69A00
Chamber Assy-Venturi
1986-01-01 ~ 1986-02-01; E16I; , |
16017-69A00 |
— | ||
|
16017
|
16017
16017-D4405 Chamber Assy-Venturi, Sub1986-02-01 ~ 1987-07-01; E16I; , |
16017-D4405 |
US $380.90 |
||
|
16021
|
16021
16021-69A00
Injector-S.p.i
1986-01-01 ~ 1986-02-01; 2WD.E16I; , |
16021-69A00 |
— | ||
|
16021
|
16021
16021-69A05
Injector-S.p.i
1986-02-01 ~ 1988-07-01; 2WD.E16I; , |
16021-69A05 |
— | ||
|
16021
|
16021
A6021-69A00
Injector-S.p.i
1986-01-01 ~ 1986-02-01; 2WD.E16I; , |
A6021-69A00 |
— | ||
|
16021
|
16021
16328-D4403 Seal-O Ring1986-01-01 ~ 1988-07-01; E16I; , |
16328-D4403 |
US $4.03 |
||
|
16021
|
16021
16349-D4400 Seal-O Ring1986-01-01 ~ 1988-07-01; E16I; , |
16349-D4400 |
US $4.18 |
||
|
16021
|
16021
16328-D4404 Seal-O Ring1986-01-01 ~ 1988-07-01; E16I; , |
16328-D4404 |
US $4.03 |
||
|
16021E
|
16021E
16328-D4403 Seal-O Ring1986-01-01 ~ 1988-07-01; E16I; , |
16328-D4403 |
US $4.03 |
||
|
16021F
|
16021F
16349-D4400 Seal-O Ring1986-01-01 ~ 1988-07-01; E16I; , |
16349-D4400 |
US $4.18 |
||
|
16021G
|
16021G
16328-D4404 Seal-O Ring1986-01-01 ~ 1988-07-01; E16I; , |
16328-D4404 |
US $4.03 |
||
|
16059G
|
16059G
16328-D4401 Seal-O Ring1986-01-01 ~ 1988-07-01; E16I; , |
16328-D4401 |
US $3.46 |
||
|
16078
|
16078
16078-69A00
Modulator-Hot Wire
1986-01-01 ~ 1986-02-01; E16I; , |
16078-69A00 |
— | ||
|
16078
|
16078
16078-69A05
Modulator-Hot Wire
1986-02-01 ~ 1988-07-01; E16I; , |
16078-69A05 |
— | ||
|
16240
|
16240
16240-D4400
Regulator-Pressure
1986-01-01 ~ 1986-02-01; 2WD.E16I; , |
16240-D4400 |
— | ||
|
16240
|
16240
16240-D4405 Regulator-Pressure1986-02-01 ~ 1988-07-01; 2WD.E16I; , |
16240-D4405 |
US $214.56 |
||
|
16240
|
16240
A6240-D4400
Regulator-Pressure
1986-01-01 ~ 1986-02-01; 2WD.E16I; , |
A6240-D4400 |
— | ||
|
16240
|
16240
16328-D4405 Seal-O Ring1986-01-01 ~ 1988-07-01; E16I; , |
16328-D4405 |
US $4.03 |
||
|
16240E
|
16240E
16328-D4405 Seal-O Ring1986-01-01 ~ 1988-07-01; E16I; , |
16328-D4405 |
US $4.03 |
||
|
16267
|
16267
16267-D4400 Hose-Connector1986-01-01 ~ 1986-06-01; E16I; , |
16267-D4400 |
US $5.04 |
||
|
16267
|
16267
16267-D4401 Hose-Connector1986-06-01 ~ 1988-07-01; E16I; , |
16267-D4401 |
US $3.46 |
||
|
16272
|
16272
16610-D4405 Cover-Plate1986-01-01 ~ 1988-07-01; E16I; , |
16610-D4405 |
US $41.04 |
||
|
16272
|
16272
16610-D4400
Cover
1986-01-01 ~ 1988-07-01; E16I; , |
16610-D4400 |
— | ||
|
16272M
|
16272M
16610-D4400
Cover
1986-01-01 ~ 1988-07-01; E16I; , |
16610-D4400 |
— |
