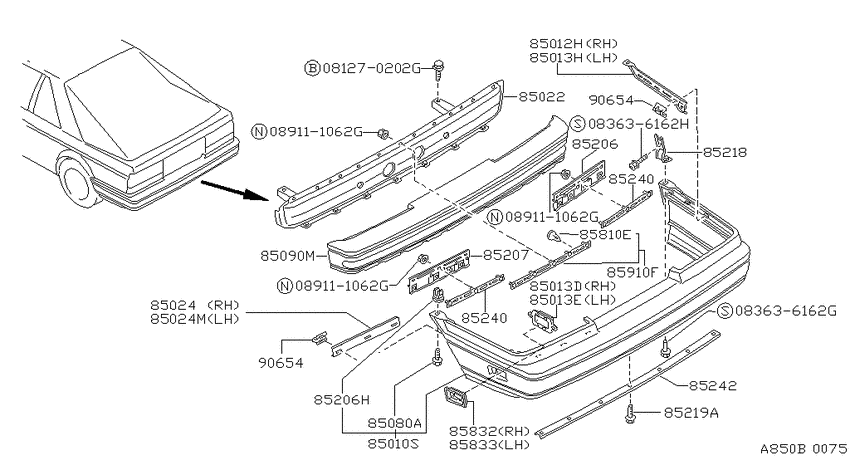

Rear bumper (1986-01-01 ~ ; C) Diagram Nissan SENTRA/200SX
- Year
- 1988 - 2011
- Sales region
- U.S.A.
- Engine
- GA16I
- drive
- 2WD
- transmission
- MT
- body
- C
- trim lvl
- XE
- emission
- CAL
- gears/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081270202G
|
081270202G
08127-0202G
Bolt-hexagon
|
08127-0202G |
— | ||
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.34 |
||
|
083636162H
|
083636162H
083636162H SCREWMACHINE |
083636162H |
US $2.21 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
85010S
|
85010S
85022-65A28
Fascia kit-rear bumper
1986-01-01 ~ ; FED.C +CAL.C; , |
85022-65A28 |
— | ||
|
85012H
|
85012H
85220-65A00 Bracket-Rear Bumper Side, Rh1986-01-01 ~ ; FED.C +CAL.C; , |
85220-65A00 |
US $13.68 |
||
|
85013H
|
85013H
85221-65A00 Bracket-Rear Bumper Side, Lh1986-01-01 ~ ; FED.C +CAL.C; , |
85221-65A00 |
US $13.68 |
||
|
85022
|
85022
85030-65A30 Reinforce-Inner, Rear Bumper Center1986-01-01 ~ ; FED.C +CAL.C; , |
85030-65A30 |
US $938.81 |
||
|
85024
|
85024
85058-65A00 Reinforce-Side, Rear Bumper Rh1986-01-01 ~ ; FED.C +CAL.C; , |
85058-65A00 |
US $25.06 |
||
|
85024
|
85024
85059-65A00 Reinforce-Side, Rear Bumper Lh1986-01-01 ~ ; FED.C +CAL.C; , |
85059-65A00 |
US $25.06 |
||
|
85024M
|
85024M
85059-65A00 Reinforce-Side, Rear Bumper Lh1986-01-01 ~ ; FED.C +CAL.C; , |
85059-65A00 |
US $25.06 |
||
|
85080A
|
85080A
01461-00271 SCREW1986-01-01 ~ ; FED.C +CAL.C; , |
01461-00271 |
from US $2.08 |
||
|
85090M
|
85090M
85090-65A00 Absorber Assy-Energy, Rear Bumper1986-01-01 ~ ; FED.C +CAL.C; , |
85090-65A00 |
US $201.60 |
||
|
85206
|
85206
85040-65A01 Bracket-Rear Bumper, Rh1986-01-01 ~ ; FED.C +CAL.C; , |
85040-65A01 |
US $35.28 |
||
|
85206
|
85206
0128100111 GROMMET-SCREW1986-01-01 ~ 1986-06-01; FED.C +CAL.C; , |
0128100111 |
from US $0.85 |
||
|
85206
|
85206
0128100701 GROMMET-SCREW1986-06-01 ~ ; FED.C +CAL.C; |
0128100701 |
US $2.36 |
||
|
85206H
|
85206H
0128100111 GROMMET-SCREW1986-01-01 ~ 1986-06-01; FED.C +CAL.C; , |
0128100111 |
from US $0.85 |
||
|
85206H
|
85206H
0128100701 GROMMET-SCREW1986-06-01 ~ ; FED.C +CAL.C; |
0128100701 |
US $2.36 |
||
|
85207
|
85207
85041-65A01 Bracket-Rear Bumper, Lh1986-01-01 ~ ; FED.C +CAL.C; , |
85041-65A01 |
US $35.28 |
||
|
85218
|
85218
8527061A00 Stay-Rear Bumper, Side Rh1986-01-01 ~ ; FED.C +CAL.C; , |
8527061A00 |
US $8.93 |
||
|
85219A
|
85219A
0111100033 BOLT1988-07-01 ~ ; FED.C +CAL.C; |
0111100033 |
US $1.73 |
||
|
85219A
|
85219A
01125-00761 BOLT1986-01-01 ~ 1986-08-01; FED.C +CAL.C; , |
01125-00761 |
US $2.45 |
||
|
85219A
|
85219A
01125-01101 BOLT1986-08-01 ~ 1988-07-01; FED.C +CAL.C; |
01125-01101 |
US $2.45 |
||
|
85240
|
85240
85290-65A01 Retainer-Rear Bumper, Upper1986-01-01 ~ ; FED.C +CAL.C; , |
85290-65A01 |
US $10.94 |
||
|
85240
|
85240
85290-65A01 Retainer-Rear Bumper, Upper1986-01-01 ~ ; FED.C +CAL.C; , |
85290-65A01 |
US $10.94 |
||
|
85242
|
85242
8524261A00 Retainer-Rear Bumper, Lower1986-01-01 ~ ; FED.C +CAL.C; , |
8524261A00 |
US $36.66 |
||
|
85810E
|
85810E
66919H1001 Clip1986-01-01 ~ ; FED.C +CAL.C; , |
66919H1001 |
from US $0.81 |
||
|
85832
|
85832
85834-65A00
Finish-rear bumper,rh
1986-01-01 ~ ; FED.C +CAL.C; , |
85834-65A00 |
— | ||
|
85833
|
85833
85835-65A00
Finish-rear bumper,lh
1986-01-01 ~ ; FED.C +CAL.C; , |
85835-65A00 |
— | ||
|
85910F
|
85910F
85298-65A01 Fastener1986-01-01 ~ ; FED.C +CAL.C; CENTER |
85298-65A01 |
US $13.82 |
||
|
90654
|
90654
6222861A00 Clip1986-01-01 ~ ; FED.C +CAL.C; , |
6222861A00 |
from US $1.15 |
||
|
90654
|
90654
6222861A00 Clip1986-01-01 ~ ; FED.C +CAL.C; , |
6222861A00 |
from US $1.15 |
