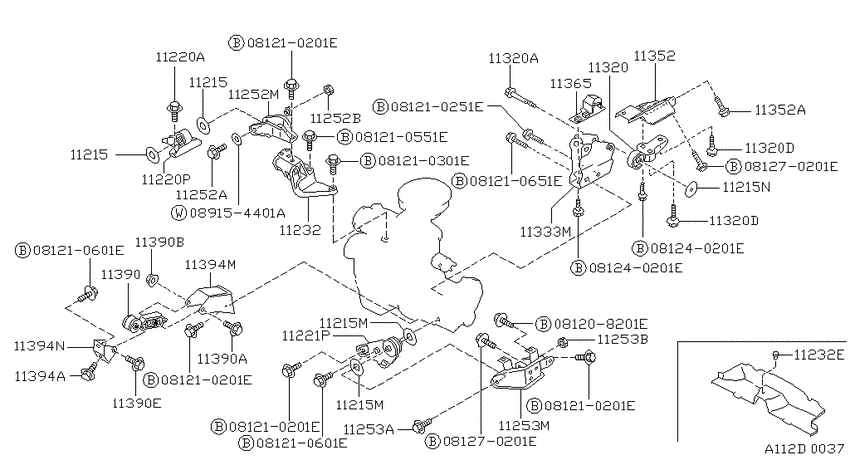

Engine & transmission mounting (1986-01-01 ~ ; E16I.MT.4WD) Diagram Nissan SENTRA/200SX
- Year
- 1986 - 1988
- Sales region
- U.S.A.
- Engine
- E16I
- drive
- 4WD
- transmission
- MT
- body
- W
- trim lvl
- XE
- emission
- CAL
- gears/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.05 |
||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.05 |
||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.05 |
||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.05 |
||
|
081210251E
|
081210251E
081210251E Bolt-hexagon |
081210251E |
from US $1.15 |
||
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
US $3.06 |
||
|
081210551E
|
081210551E
081210551E
Bolt-hexagon
|
081210551E |
— | ||
|
081210601E
|
081210601E
08121-0601E
Bolt-hexagon
|
08121-0601E |
— | ||
| replacement | |||||
|
081210601E
|
081210601E
08121-0602E Bolt-hexagon |
08121-0602E |
US $3.06 |
||
|
081210601E
|
081210601E
08121-0601E
Bolt-hexagon
|
08121-0601E |
— | ||
| replacement | |||||
|
081210601E
|
081210601E
08121-0602E Bolt-hexagon |
08121-0602E |
US $3.06 |
||
|
081210651E
|
081210651E
08121-0651E
Bolt-hexagon
|
08121-0651E |
— | ||
|
081240201E
|
081240201E
081240201E Bolt-hexagon |
081240201E |
US $1.11 |
||
|
081240201E
|
081240201E
081240201E Bolt-hexagon |
081240201E |
US $1.11 |
||
|
081270201E
|
081270201E
081270201E
Bolt-hexagon
|
081270201E |
— | ||
|
081270201E
|
081270201E
081270201E
Bolt-hexagon
|
081270201E |
— | ||
|
089154401A
|
089154401A
089154401A
WASHERPLAIN
|
089154401A |
— | ||
|
11215
|
11215
11215-50A05
Stopper-Engine Mounting
1988-07-01 ~ ; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11215-50A05 |
— | ||
|
11215
|
11215
11215-70A00 Stopper-Engine Mounting1986-08-01 ~ 1986-10-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11215-70A00 |
US $33.12 |
||
|
11215
|
11215
11215-01E01 STOPPER-ENGINE MOUNTING1986-08-01 ~ 1986-10-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11215-01E01 |
US $20.59 |
||
|
11215
|
11215
11215-50A06 Stopper-Engine Mounting1986-10-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11215-50A06 |
US $11.81 |
||
|
11215
|
11215
11215-70A01 Stopper-Engine Mounting, Rear1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11215-70A01 |
US $12.38 |
||
| replacement | |||||
|
11215
|
11215
11215-65E20
Stopper-engine mounting,rear
1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11215-65E20 |
— | ||
|
11215
|
11215
11215-50A05
Stopper-Engine Mounting
1988-07-01 ~ ; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11215-50A05 |
— | ||
|
11215
|
11215
11215-70A00 Stopper-Engine Mounting1986-08-01 ~ 1986-10-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11215-70A00 |
US $33.12 |
||
|
11215
|
11215
11215-01E01 STOPPER-ENGINE MOUNTING1986-08-01 ~ 1986-10-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11215-01E01 |
US $20.59 |
||
|
11215
|
11215
11215-50A06 Stopper-Engine Mounting1986-10-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11215-50A06 |
US $11.81 |
||
|
11215
|
11215
11215-70A01 Stopper-Engine Mounting, Rear1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11215-70A01 |
US $12.38 |
||
| replacement | |||||
|
11215
|
11215
11215-65E20
Stopper-engine mounting,rear
1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11215-65E20 |
— | ||
|
11215M
|
11215M
11215-01E01 STOPPER-ENGINE MOUNTING1986-08-01 ~ 1986-10-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11215-01E01 |
US $20.59 |
||
|
11215M
|
11215M
11215-50A06 Stopper-Engine Mounting1986-10-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11215-50A06 |
US $11.81 |
||
|
11215M
|
11215M
11215-01E01 STOPPER-ENGINE MOUNTING1986-08-01 ~ 1986-10-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11215-01E01 |
US $20.59 |
||
|
11215M
|
11215M
11215-50A06 Stopper-Engine Mounting1986-10-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11215-50A06 |
US $11.81 |
||
|
11215N
|
11215N
11215-70A01 Stopper-Engine Mounting, Rear1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11215-70A01 |
US $12.38 |
||
| replacement | |||||
|
11215N
|
11215N
11215-65E20
Stopper-engine mounting,rear
1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11215-65E20 |
— | ||
|
11220A
|
11220A
01125-00651 BOLT1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
01125-00651 |
US $3.46 |
||
|
11220P
|
11220P
11210-70A00 Insulator-Engine Mounting, Rh1986-08-01 ~ 1988-07-01; 4WD.E16I +4WD.GA16I; , |
11210-70A00 |
US $133.34 |
||
|
11220P
|
11220P
11210-83A00 Insulator-Engine Mounting, Rh1988-07-01 ~ ; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11210-83A00 |
US $133.34 |
||
|
11221P
|
11221P
11220-70A01 Insulator-Engine Mounting, Lh1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11220-70A01 |
US $101.09 |
||
|
11232
|
11232
11231-52A05 Bracket-Engine Mounting, Rh1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11231-52A05 |
US $62.50 |
||
|
11232
|
11232
11231-77A00 Bracket-Engine Mounting, Rh1988-07-01 ~ ; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11231-77A00 |
US $84.82 |
||
|
11232
|
11232
0165801501 PLUG1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
0165801501 |
US $3.06 |
||
|
11232E
|
11232E
0165801501 PLUG1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
0165801501 |
US $3.06 |
||
|
11252A
|
11252A
01125-00991 BOLT1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
01125-00991 |
US $4.30 |
||
|
11252B
|
11252B
0122500062 NUT1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
0122500062 |
from US $1.67 |
||
|
11252M
|
11252M
11252-50A05 Support-Engine Mounting, Rh1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11252-50A05 |
US $35.21 |
||
|
11252M
|
11252M
11252-77A00 Support-Engine Mounting, Rh1988-07-01 ~ ; 4WD.GA16I.MT.F5 +4WD.E16I; |
11252-77A00 |
US $82.80 |
||
|
11253A
|
11253A
01125-00631
BOLT
1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
01125-00631 |
— | ||
|
11253B
|
11253B
0122500062 NUT1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
0122500062 |
from US $1.67 |
||
|
11253M
|
11253M
11253-50A07 Bracket-Engine Mounting, Lh1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11253-50A07 |
US $31.68 |
||
|
11320
|
11320
11320-70A00 Insulator-Engine Mounting, Rear1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11320-70A00 |
US $132.19 |
||
| replacement | |||||
|
11320
|
11320
11320-72A01
Insulator-engine mounting,rear
1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11320-72A01 |
— | ||
|
11320
|
11320
11320-70A05 Insulator-Engine Mounting, Rear1988-07-01 ~ ; *4WD.GA16I.MT.F5 +*4WD.E16I; F/4WD-FULL TIME |
11320-70A05 |
US $130.18 |
||
|
11320
|
11320
01125-01011 BOLT1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
01125-01011 |
US $2.21 |
||
|
11320
|
11320
01125-01031 BOLT1988-07-01 ~ ; *4WD.GA16I.MT.F5 +*4WD.E16I; F/4WD-FULL TIME |
01125-01031 |
US $3.06 |
||
|
11320
|
11320
01125-01081 BOLT1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
01125-01081 |
US $2.45 |
||
|
11320A
|
11320A
01125-01011 BOLT1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
01125-01011 |
US $2.21 |
||
|
11320A
|
11320A
01125-01031 BOLT1988-07-01 ~ ; *4WD.GA16I.MT.F5 +*4WD.E16I; F/4WD-FULL TIME |
01125-01031 |
US $3.06 |
||
|
11320D
|
11320D
01125-01081 BOLT1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
01125-01081 |
US $2.45 |
||
|
11320D
|
11320D
01125-01081 BOLT1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
01125-01081 |
US $2.45 |
||
|
11333M
|
11333M
11332-70A00 Bracket-Engine Mounting, Rear1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11332-70A00 |
US $168.48 |
||
|
11333M
|
11333M
11332-70A02 Bracket-Engine Mounting, Rear1988-07-01 ~ ; *4WD.E16I +*4WD.GA16I; F/4WD-FULL TIME |
11332-70A02 |
US $174.24 |
||
|
11352
|
11352
11352-70A01 Support-Engine Mounting, Rear1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11352-70A01 |
US $68.11 |
||
|
11352
|
11352
01125-00651 BOLT1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
01125-00651 |
US $3.46 |
||
|
11352A
|
11352A
01125-00651 BOLT1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
01125-00651 |
US $3.46 |
||
|
11365
|
11365
11365-70A00 Arrester-Torque1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11365-70A00 |
US $44.06 |
||
|
11390
|
11390
11350-50A05 Buffer Assy-Engine Mounting1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11350-50A05 |
US $36.58 |
||
|
11390
|
11390
1135050A06 Buffer Assy-Engine Mounting1989-10-01 ~ ; 4WD.GA16I.MT.F5 +4WD.E16I; , |
1135050A06 |
US $59.62 |
||
|
11390
|
11390
01125-01031 BOLT1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
01125-01031 |
US $3.06 |
||
|
11390
|
11390
0122500062 NUT1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
0122500062 |
from US $1.67 |
||
|
11390
|
11390
01125-00881
BOLT
1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
01125-00881 |
— | ||
|
11390A
|
11390A
01125-01031 BOLT1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
01125-01031 |
US $3.06 |
||
|
11390B
|
11390B
0122500062 NUT1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
0122500062 |
from US $1.67 |
||
|
11390E
|
11390E
01125-00881
BOLT
1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
01125-00881 |
— | ||
|
11394A
|
11394A
01121-01671 BOLT1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
01121-01671 |
US $2.45 |
||
|
11394M
|
11394M
11356-70A00 Bracket-Buffer, Front1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11356-70A00 |
US $31.82 |
||
|
11394M
|
11394M
11356-83A00 Bracket-Buffer, Front1988-07-01 ~ ; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11356-83A00 |
US $31.82 |
||
|
11394N
|
11394N
11355-70A00 Support-Buffer, Front1986-08-01 ~ 1988-07-01; 4WD.GA16I.MT.F5 +4WD.E16I; , |
11355-70A00 |
US $15.55 |
||
