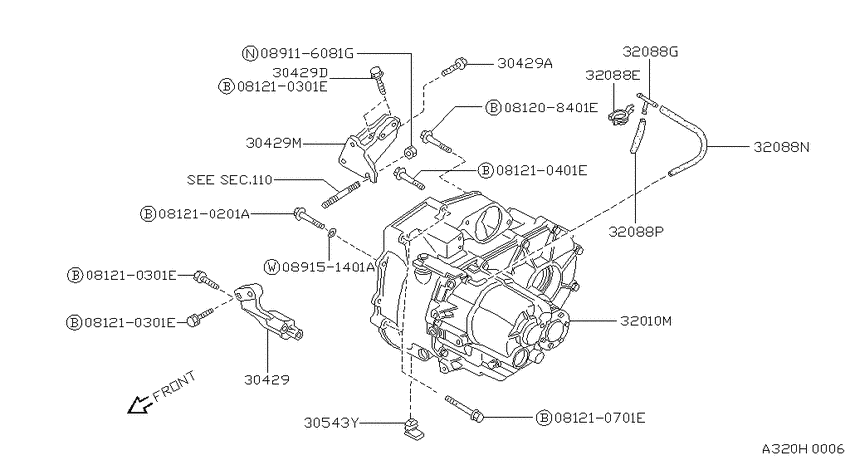

Manual transmission, transaxle & fitting (1988-07-01 ~ ; RS5F31A; 4WD.GA16I.MT.F5) Diagram Nissan SENTRA/200SX
- Year
- 1988 - 2011
- Sales region
- U.S.A.
- Engine
- GA16I
- drive
- 4WD
- transmission
- MT
- body
- W
- trim lvl
- XE
- emission
- CAL
- gears/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208401E
|
081208401E
08120-8401E
Bolt-hexagon
|
08120-8401E |
— | ||
|
081210201A
|
081210201A
08121-0201A
Bolt-hexagon
|
08121-0201A |
— | ||
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
from US $1.22 |
||
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
from US $1.22 |
||
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
from US $1.22 |
||
|
081210401E
|
081210401E
081210401E Bolt-hexagon |
081210401E |
US $1.11 |
||
|
081210701E
|
081210701E
081210701E
Bolt-hexagon
|
081210701E |
— | ||
|
089116081G
|
089116081G
08911-6081G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-6081G |
— | ||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
30429
|
30429
30431-83A00 Gusset-Transmission To Engine1988-07-01 ~ ; 4WD.GA16I.MT.F5; FOR FRONT |
30431-83A00 |
US $46.80 |
||
| replacement | |||||
|
30429
|
30429
30431-4M700 Gusset-Transmission To Engine1988-07-01 ~ ; 4WD.GA16I.MT.F5; FOR FRONT |
30431-4M700 |
US $46.80 |
||
|
30429
|
30429
01121-03911 BOLT-GUSSET1988-07-01 ~ ; 4WD.GA16I.MT.F5; , |
01121-03911 |
US $2.45 |
||
|
30429
|
30429
01121-03831 BOLT-GUSSET1988-07-01 ~ ; 4WD.GA16I.MT.F5; , |
01121-03831 |
US $4.18 |
||
|
30429
|
30429
30441-83A02 Gusset-Transmission To Engine1988-07-01 ~ ; 4WD.GA16I.MT.F5; FOR TRANSFER |
30441-83A02 |
US $31.10 |
||
|
30429A
|
30429A
01121-03911 BOLT-GUSSET1988-07-01 ~ ; 4WD.GA16I.MT.F5; , |
01121-03911 |
US $2.45 |
||
|
30429D
|
30429D
01121-03831 BOLT-GUSSET1988-07-01 ~ ; 4WD.GA16I.MT.F5; , |
01121-03831 |
US $4.18 |
||
|
30429M
|
30429M
30441-83A02 Gusset-Transmission To Engine1988-07-01 ~ ; 4WD.GA16I.MT.F5; FOR TRANSFER |
30441-83A02 |
US $31.10 |
||
|
30543Y
|
30543Y
30543-06R00 Grommet-Clutch Housing1988-07-01 ~ ; 4WD.GA16I.MT.F5; , |
30543-06R00 |
US $6.34 |
||
|
32010M
|
32010M
32010-83A08
Manual Transaxle
1988-07-01 ~ ; 4WD.GA16I.MT.F5; RS5F31A F/4WD-FULL TIME |
32010-83A08 |
— | ||
|
32088E
|
32088E
24220-83A00 Band-Breather Hose1988-07-01 ~ ; 4WD.GA16I.MT.F5; , |
24220-83A00 |
US $1.73 |
||
|
32088G
|
32088G
01692-00461 CONNECTOR-BREATHER HOSE1988-07-01 ~ ; 4WD.GA16I.MT.F5; , |
01692-00461 |
US $4.18 |
||
|
32088N
|
32088N
31098-06R04 Hose-Breather1988-07-01 ~ ; 4WD.GA16I.MT.F5; , |
31098-06R04 |
US $5.90 |
||
|
32088P
|
32088P
31067-W1701 Hose-Vacuum1988-12-01 ~ ; 4WD.GA16I.MT.F5; |
31067-W1701 |
US $28.80 |
||
| replacement | |||||
|
32088P
|
32088P
B2320AU370 Hose-Vacuum Control, B1988-12-01 ~ ; 4WD.GA16I.MT.F5; |
B2320AU370 |
from US $74.33 |
||
|
32088P
|
32088P
31098-83A00 Hose-Breather1988-07-01 ~ 1988-12-01; 4WD.GA16I.MT.F5; , |
31098-83A00 |
US $6.05 |
||
