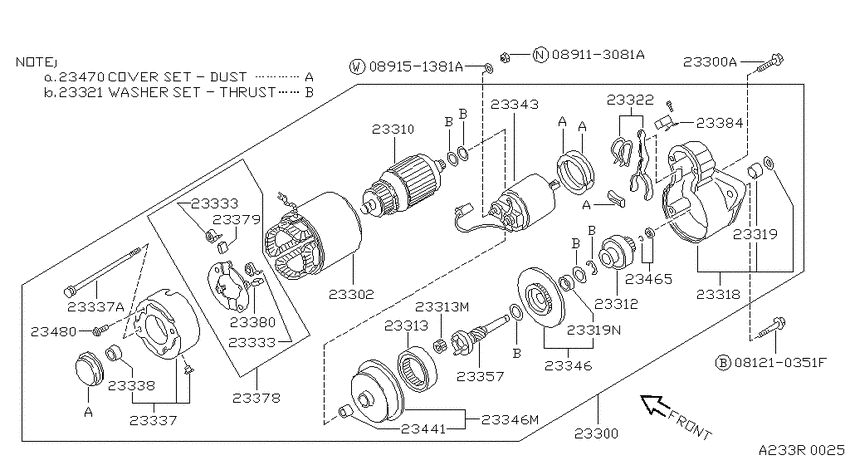

Starter motor (1988-07-01 ~ ; HITACHI; 4WD.GA16I.MT+GA16I.AT) Diagram Nissan SENTRA/200SX
- Year
- 1988 - 2011
- Sales region
- U.S.A.
- Engine
- GA16I
- drive
- 4WD
- transmission
- AT
- body
- W
- trim lvl
- XE
- emission
- CAL
- gears/shift type
- F3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089113081A
|
089113081A
08911-3081A
Nut-Wiper Arm
|
08911-3081A |
— | ||
|
23300
|
23300
23300-84A07
Motor Assy-Starter
1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI S114-520B |
23300-84A07 |
— | ||
| replacement | |||||
|
23300
|
23300
23300-50Y00 Motor Assy-Starter1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI S114-520B |
23300-50Y00 |
US $1,090.32 |
||
|
23300
|
23300
08121-0701F Bolt-hexagon1988-07-01 ~ ; 4WD.GA16I; M10X70 |
08121-0701F |
US $2.45 |
||
|
23300A
|
23300A
08121-0701F Bolt-hexagon1988-07-01 ~ ; 4WD.GA16I; M10X70 |
08121-0701F |
US $2.45 |
||
|
23302
|
23302
23302-77A00 Yoke Assy1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23302-77A00 |
US $230.40 |
||
|
23310
|
23310
23310-77A00 Armature Assy1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23310-77A00 |
US $318.60 |
||
|
23312
|
23312
23312-77A00 Pinion Assy1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23312-77A00 |
US $342.67 |
||
|
23313
|
23313
23361-42L60
Gear
1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23361-42L60 |
— | ||
|
23313
|
23313
23367-42L60 Planet Gear1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23367-42L60 |
US $11.09 |
||
|
23313M
|
23313M
23367-42L60 Planet Gear1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23367-42L60 |
US $11.09 |
||
|
23318
|
23318
23318-84A07 Case Assy-Gear1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23318-84A07 |
US $121.68 |
||
|
23319
|
23319
23338N3300 Metal-Rear Cover1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23338N3300 |
US $5.18 |
||
|
23319
|
23319
23319-42L60 Metal-Gear Case1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23319-42L60 |
US $11.66 |
||
|
23319N
|
23319N
23319-42L60 Metal-Gear Case1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23319-42L60 |
US $11.66 |
||
|
23321
|
23321
23369-42L60 Washer Set-Thrust1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23369-42L60 |
US $4.03 |
||
|
23322
|
23322
23322-42L60 Lever Set-Shift1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23322-42L60 |
US $13.10 |
||
|
23333
|
23333
23333-M8000 Spring-Brush1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23333-M8000 |
US $6.48 |
||
|
23333
|
23333
23333-M8000 Spring-Brush1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23333-M8000 |
US $6.48 |
||
|
23337
|
23337
23337-77A00 Cover Assy-Rear1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23337-77A00 |
US $51.55 |
||
|
23337
|
23337
23340N5900 Bolt-Through1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23340N5900 |
US $4.61 |
||
|
23337A
|
23337A
23340N5900 Bolt-Through1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23340N5900 |
US $4.61 |
||
|
23338
|
23338
23338-16E01 METAL-REAR COVER1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23338-16E01 |
US $7.49 |
||
|
23343
|
23343
2334384A07 Switch Assy-Magnetic1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
2334384A07 |
US $155.52 |
||
| replacement | |||||
|
23343
|
23343
23343-0M30A Switch Assy-Magnetic1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23343-0M30A |
US $155.52 |
||
|
23346
|
23346
23383-42L60 Bracket Assy-Center1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23383-42L60 |
US $103.82 |
||
|
23346
|
23346
23383-42L61 Bracket Assy-Center1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23383-42L61 |
US $75.46 |
||
|
23346M
|
23346M
23383-42L61 Bracket Assy-Center1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23383-42L61 |
US $75.46 |
||
|
23357
|
23357
23357-84A06
Shaft-Pinion
1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23357-84A06 |
— | ||
|
23378
|
23378
23378-77A01 Holder Assy-Brush1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23378-77A01 |
US $44.35 |
||
|
23379
|
23379
23379-M8001 Brush-Minus1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23379-M8001 |
US $6.19 |
||
|
23380
|
23380
23380-77A01 Brush-Plus1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23380-77A01 |
US $9.94 |
||
|
23384
|
23384
23384-84A01 Terminal Assy1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23384-84A01 |
US $12.38 |
||
|
23441
|
23441
23319-42L61 Metal-Gear Case1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23319-42L61 |
US $10.08 |
||
|
23465
|
23465
23465-80W00 Stopper Set-Pinion1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23465-80W00 |
US $7.49 |
||
|
23470
|
23470
23470-77A00 Cover Set-Dust1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23470-77A00 |
US $11.23 |
||
|
23480
|
23480
23480-M0100 Screw Set1988-07-01 ~ ; 4WD.GA16I.MT.F5 +GA16I.AT; HITACHI |
23480-M0100 |
US $4.18 |
||
