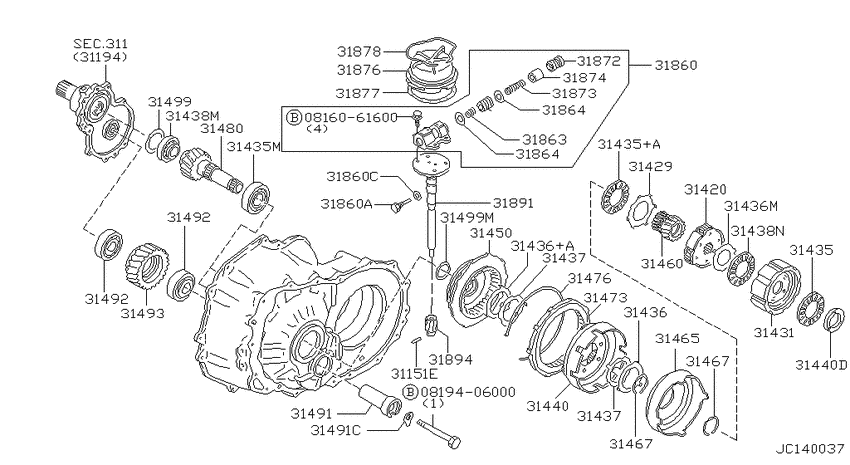

Governor,power train & planetary gear (1990-09-01 ~ 1992-08-01; RL3F01A; J/AT.F3) Diagram Nissan SENTRA/200SX
- Year
- 1990 - 1992
- Sales region
- U.S.A.
- Engine
- J/GA16DE
- transmission
- J/AT.F3
- body
- J/4S
- trim lvl
- STD
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0816061600
|
0816061600
08160-61600
Bolt-hexagon
|
08160-61600 |
— | ||
|
31151E
|
31151E
01523-00041 PIN-SPRING1990-09-01 ~ 1992-07-01; J/AT.F3; , |
01523-00041 |
US $2.49 |
||
|
31420
|
31420
31420-01X03
Carrier Assy-Front Planet
1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31420-01X03 |
— | ||
|
31429
|
31429
31434-01X01 Race-Bearing, Sun Gear1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31434-01X01 |
US $5.90 |
||
|
31431
|
31431
31430-01X02 Gear-Internal1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31430-01X02 |
US $97.34 |
||
|
31435
|
31435
31435-01X01 Bearing-Needle, Thrust1990-08-01 ~ 1992-08-01; U/AT.F3; , |
31435-01X01 |
US $4.18 |
||
|
31435
|
31435
31435-01X00 Bearing-Needle, Thrust1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31435-01X00 |
US $20.30 |
||
|
31435
|
31435
31435-01X01 Bearing-Needle, Thrust1990-08-01 ~ 1992-08-01; U/AT.F3; , |
31435-01X01 |
US $4.18 |
||
|
31435
|
31435
31408-01X00
Bearing-Roller, Output Shaft
1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31408-01X00 |
— | ||
|
31435+A
|
31435+A
31435-01X00 Bearing-Needle, Thrust1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31435-01X00 |
US $20.30 |
||
|
31435+A
|
31435+A
31435-01X01 Bearing-Needle, Thrust1990-08-01 ~ 1992-08-01; U/AT.F3; , |
31435-01X01 |
US $4.18 |
||
|
31435M
|
31435M
31408-01X00
Bearing-Roller, Output Shaft
1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31408-01X00 |
— | ||
|
31436
|
31436
31436-01X01 Race-Bearing1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31436-01X01 |
US $5.90 |
||
|
31436
|
31436
31436-01X01 Race-Bearing1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31436-01X01 |
US $5.90 |
||
|
31436
|
31436
31439-01X00 Race-Bearing1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31439-01X00 |
US $5.90 |
||
|
31436+A
|
31436+A
31436-01X01 Race-Bearing1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31436-01X01 |
US $5.90 |
||
|
31436M
|
31436M
31439-01X00 Race-Bearing1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31439-01X00 |
US $5.90 |
||
|
31437
|
31437
31437-01X01 Washer-Thrust1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31437-01X01 |
US $15.55 |
||
|
31437
|
31437
31437-01X01 Washer-Thrust1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31437-01X01 |
US $15.55 |
||
|
31438M
|
31438M
31489-01X00
Bearing-Roller, Output Shaft
1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31489-01X00 |
— | ||
|
31438N
|
31438N
31407-01X00 Bearing-Needle, Thrust1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31407-01X00 |
US $15.98 |
||
|
31440
|
31440
31440-01X02 Carrier Assy-Rear Planet1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31440-01X02 |
US $167.04 |
||
|
31440
|
31440
31508-01X02 Washer-Thrust1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31508-01X02 |
US $2.45 |
||
|
31440D
|
31440D
31508-01X02 Washer-Thrust1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31508-01X02 |
US $2.45 |
||
|
31450
|
31450
31450-01X02 Gear Assy-Internal1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31450-01X02 |
US $264.96 |
||
|
31460
|
31460
31460-01X03 Gear Assy-Sun1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31460-01X03 |
US $122.83 |
||
|
31465
|
31465
31465-01X01 Shell-Connecting1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31465-01X01 |
US $26.50 |
||
|
31467
|
31467
31506-01X01 Ring-Snap1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31506-01X01 |
US $1.73 |
||
|
31467
|
31467
31506-01X01 Ring-Snap1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31506-01X01 |
US $1.73 |
||
|
31473
|
31473
31473-01X02 Clutch Assy-One Way1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31473-01X02 |
US $201.60 |
||
|
31476
|
31476
31389-01X00 Ring-Snap1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31389-01X00 |
US $5.18 |
||
|
31480
|
31480
31481-01X67
Shaft Assy-Output
1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31481-01X67 |
— | ||
|
31491
|
31491
31491-01X02
Shaft-Idler Gear
1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31491-01X02 |
— | ||
|
31491
|
31491
31494-01X00 Washer1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31494-01X00 |
US $4.18 |
||
|
31491C
|
31491C
31494-01X00 Washer1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31494-01X00 |
US $4.18 |
||
|
31492
|
31492
31492-01X00 Bearing-Taper, Idler Gear1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31492-01X00 |
US $59.62 |
||
|
31492
|
31492
31492-01X00 Bearing-Taper, Idler Gear1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31492-01X00 |
US $59.62 |
||
|
31493
|
31493
31493-01X60 Gear-Idler1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31493-01X60 |
US $67.10 |
||
|
31499
|
31499
31499-01X00 Shim-Adjust, Output Shaft1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=0.11 |
31499-01X00 |
US $4.18 |
||
|
31499
|
31499
31499-01X01 Shim-Adjust, Output Shaft1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=0.13 |
31499-01X01 |
US $4.18 |
||
|
31499
|
31499
31499-01X02 Shim-Adjust, Output Shaft1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=0.15 |
31499-01X02 |
US $4.18 |
||
|
31499
|
31499
31499-01X03 Shim-Adjust, Output Shaft1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=0.17 |
31499-01X03 |
US $4.18 |
||
|
31499
|
31499
31499-01X04 Shim-Adjust, Output Shaft1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=0.19 |
31499-01X04 |
US $4.18 |
||
|
31499
|
31499
31499-01X05 Shim-Adjust, Output Shaft1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=0.30 |
31499-01X05 |
US $4.18 |
||
|
31499
|
31499
31499-01X06 Shim-Adjust, Output Shaft1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=0.40 |
31499-01X06 |
US $4.18 |
||
|
31499
|
31499
31499-01X07 Shim-Adjust, Output Shaft1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=0.50 |
31499-01X07 |
US $4.18 |
||
|
31499
|
31499
31499-01X08 Shim-Adjust, Output Shaft1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=0.60 |
31499-01X08 |
US $4.18 |
||
|
31499
|
31499
31499-01X09 Shim-Adjust, Output Shaft1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=0.70 |
31499-01X09 |
US $4.18 |
||
|
31499
|
31499
31499-01X10 Shim-Adjust, Output Shaft1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=0.80 |
31499-01X10 |
US $5.18 |
||
|
31499
|
31499
31499-01X11 Shim-Adjust, Output Shaft1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=0.90 |
31499-01X11 |
US $5.18 |
||
|
31499
|
31499
31499-01X12 Shim-Adjust, Output Shaft1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=1.00 |
31499-01X12 |
US $6.91 |
||
|
31499
|
31499
31484-01X00 Shim-Adjust, Idler Gear1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=0.3 |
31484-01X00 |
US $5.33 |
||
|
31499
|
31499
31484-01X01 Shim-Adjust, Idler Gear1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=0.5 |
31484-01X01 |
US $5.33 |
||
|
31499
|
31499
31484-01X02 Shim-Adjust, Idler Gear1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=0.7 |
31484-01X02 |
US $5.33 |
||
|
31499
|
31499
31484-01X03 Shim-Adjust, Idler Gear1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=0.9 |
31484-01X03 |
US $5.33 |
||
|
31499
|
31499
31484-01X04 Shim-Adjust, Idler Gear1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=1.1 |
31484-01X04 |
US $5.33 |
||
|
31499
|
31499
31484-01X05 Shim-Adjust, Idler Gear1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=1.3 |
31484-01X05 |
US $5.33 |
||
|
31499
|
31499
31484-01X06 Shim-Adjust, Idler Gear1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=1.5 |
31484-01X06 |
US $5.33 |
||
|
31499
|
31499
31484-01X07 Shim-Adjust, Idler Gear1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=1.7 |
31484-01X07 |
US $5.33 |
||
|
31499M
|
31499M
31484-01X00 Shim-Adjust, Idler Gear1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=0.3 |
31484-01X00 |
US $5.33 |
||
|
31499M
|
31499M
31484-01X01 Shim-Adjust, Idler Gear1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=0.5 |
31484-01X01 |
US $5.33 |
||
|
31499M
|
31499M
31484-01X02 Shim-Adjust, Idler Gear1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=0.7 |
31484-01X02 |
US $5.33 |
||
|
31499M
|
31499M
31484-01X03 Shim-Adjust, Idler Gear1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=0.9 |
31484-01X03 |
US $5.33 |
||
|
31499M
|
31499M
31484-01X04 Shim-Adjust, Idler Gear1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=1.1 |
31484-01X04 |
US $5.33 |
||
|
31499M
|
31499M
31484-01X05 Shim-Adjust, Idler Gear1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=1.3 |
31484-01X05 |
US $5.33 |
||
|
31499M
|
31499M
31484-01X06 Shim-Adjust, Idler Gear1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=1.5 |
31484-01X06 |
US $5.33 |
||
|
31499M
|
31499M
31484-01X07 Shim-Adjust, Idler Gear1990-09-01 ~ 1992-07-01; J/AT.F3; SELECT T=1.7 |
31484-01X07 |
US $5.33 |
||
|
31860
|
31860
31860-01X04 Governor Assy1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31860-01X04 |
US $86.83 |
||
|
31860
|
31860
31896-01X02 Screw1990-08-01 ~ 1992-08-01; U/AT.F3; , |
31896-01X02 |
US $1.73 |
||
|
31860
|
31860
31897-01X00 Washer-Seal1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31897-01X00 |
US $1.73 |
||
|
31860A
|
31860A
31896-01X02 Screw1990-08-01 ~ 1992-08-01; U/AT.F3; , |
31896-01X02 |
US $1.73 |
||
|
31860C
|
31860C
31897-01X00 Washer-Seal1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31897-01X00 |
US $1.73 |
||
|
31863
|
31863
31863-01X00 Spring-Primary, Governor1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31863-01X00 |
US $0.86 |
||
|
31864
|
31864
31864-01X00 Plate-Retainer1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31864-01X00 |
US $0.86 |
||
|
31864
|
31864
31864-01X00 Plate-Retainer1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31864-01X00 |
US $0.86 |
||
|
31872
|
31872
31872-01X00 Valve-Secondary, Governor1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31872-01X00 |
US $9.94 |
||
|
31873
|
31873
31873-01X00 Spring-Governor1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31873-01X00 |
US $1.73 |
||
|
31874
|
31874
31874-01X00 Guide-Spring Governor1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31874-01X00 |
US $1.73 |
||
|
31876
|
31876
31876-01X05
Cap-Governor
1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31876-01X05 |
— | ||
|
31877
|
31877
3187701X01 Seal-Ring, Governor1990-09-01 ~ 1992-07-01; J/AT.F3; , |
3187701X01 |
US $14.68 |
||
|
31878
|
31878
31506-01X00
Retainer-Snap, Governor
1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31506-01X00 |
— | ||
|
31891
|
31891
31891-01X03 Shaft Assy-Governor1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31891-01X03 |
US $52.70 |
||
|
31894
|
31894
31894-01X02
Gear-Governor
1990-09-01 ~ 1992-07-01; J/AT.F3; , |
31894-01X02 |
— |
