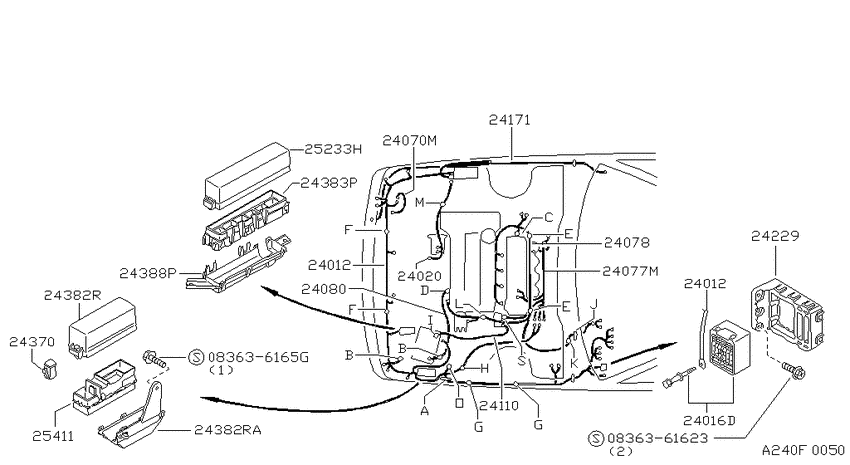

Wiring (1990-11-01 ~ 1993-07-01; ENGINE ROOM; J/C.J/GA16DE +J/C/T.J/GA16DE) Diagram Nissan SENTRA/200SX
- Year
- 1990 - 1993
- Sales region
- U.S.A.
- Engine
- J/GA16DE
- transmission
- J/MT.F5
- body
- J/C
- trim lvl
- XE
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836361623
|
0836361623
08363-61623
Болт
|
08363-61623 |
— | ||
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
24012
|
24012
24012-65Y10
Harness-Engine Room
1990-11-01 ~ 1992-07-01; +J/C.J/GA16DE.J/MT.F5 +J/CT.J/GA16DE.J/MT.F5; , |
24012-65Y10 |
— | ||
|
24012
|
24012
24012-89Y60
Harness-Engine Room
1992-07-01 ~ 1993-07-01; ,J/C.J/GA16DE.J/MT.F5 +J/C/T.J/GA16DE.J/MT.F5; , |
24012-89Y60 |
— | ||
|
24012
|
24012
24012-89Y61
Harness-Engine Room
1992-07-01 ~ 1993-07-01; .*J/C.J/GA16DE.J/MT.F5 +*J/C/T.J/GA16DE.J/MT.F5; F/ANTI SKID CONT-4WHL |
24012-89Y61 |
— | ||
|
24012
|
24012
24012-65Y10
Harness-Engine Room
1990-11-01 ~ 1992-07-01; +J/C.J/GA16DE.J/MT.F5 +J/CT.J/GA16DE.J/MT.F5; , |
24012-65Y10 |
— | ||
|
24012
|
24012
24012-89Y60
Harness-Engine Room
1992-07-01 ~ 1993-07-01; ,J/C.J/GA16DE.J/MT.F5 +J/C/T.J/GA16DE.J/MT.F5; , |
24012-89Y60 |
— | ||
|
24012
|
24012
24012-89Y61
Harness-Engine Room
1992-07-01 ~ 1993-07-01; .*J/C.J/GA16DE.J/MT.F5 +*J/C/T.J/GA16DE.J/MT.F5; F/ANTI SKID CONT-4WHL |
24012-89Y61 |
— | ||
|
24016D
|
24016D
24340-50Y01 Connector Assy1990-11-01 ~ 1993-07-01; J/C.J/GA16DE +J/C/T.J/GA16DE; , |
24340-50Y01 |
US $21.02 |
||
|
24020
|
24020
24076-65Y00
Harness-Alternator
1992-07-01 ~ 1993-07-01; J/C.J/GA16DE +J/C/T.J/GA16DE; , |
24076-65Y00 |
— | ||
|
24070M
|
24070M
24070-69Y00
Harness-Sub, Fog Lamp
1990-11-01 ~ 1993-07-01; *J/C.J/GA16DE +*J/C/T.J/GA16DE; %F/FOG LAMP-RECT,HALOGEN F/AIR SPOILER |
24070-69Y00 |
— | ||
|
24077M
|
24077M
24077-65Y00
Harness Assy-Engine
1990-11-01 ~ 1992-07-01; +J/C.J/GA16DE.J/MT.F5 +J/CT.J/GA16DE.J/MT.F5; , |
24077-65Y00 |
— | ||
|
24077M
|
24077M
24077-65Y60
Harness Assy-Engine
1992-07-01 ~ 1993-07-01; ,J/C.J/GA16DE.J/MT.F5 +J/C/T.J/GA16DE.J/MT.F5; , |
24077-65Y60 |
— | ||
|
24078
|
24078
24011-65Y00
Harness-Egi
1990-11-01 ~ 1992-07-01; J/C.J/GA16DE +J/CT.J/GA16DE; , |
24011-65Y00 |
— | ||
|
24078
|
24078
24011-65Y60
Harness-Egi
1992-07-01 ~ 1993-07-01; $J/C.FED.J/GA16DE +J/C/T.FED.J/GA16DE; , |
24011-65Y60 |
— | ||
|
24078
|
24078
B4111-U7600 Spring-Harness, Egi1992-07-01 ~ 1993-07-01; J/C.J/GA16DE +J/C/T.J/GA16DE; F/2POLE |
B4111-U7600 |
US $3.32 |
||
|
24078
|
24078
B4111-U7601 Spring-Harness, Egi1992-07-01 ~ 1993-07-01; J/C.J/GA16DE +J/C/T.J/GA16DE; F/7POLE |
B4111-U7601 |
US $2.45 |
||
|
24078
|
24078
B4111-U7602 Spring-Harness, Egi1992-07-01 ~ 1993-07-01; J/C.J/GA16DE +J/C/T.J/GA16DE; F/3POLE |
B4111-U7602 |
from US $3.31 |
||
|
24078
|
24078
B4111-U7603 Spring-Harness, Egi1992-07-01 ~ 1993-07-01; J/C.J/GA16DE +J/C/T.J/GA16DE; F/6POLE |
B4111-U7603 |
US $5.47 |
||
|
24078
|
24078
B4111-U7604 Spring-Harness, Egi1992-07-01 ~ 1993-07-01; J/C.J/GA16DE +J/C/T.J/GA16DE; F/4POLE |
B4111-U7604 |
US $4.46 |
||
|
24080
|
24080
24080-50Y01 Cable Assy-Battery Earth1990-11-01 ~ 1993-07-01; ,J/C.J/GA16DE.J/MT.F5 +J/C/T.J/GA16DE.J/MT.F5; , |
24080-50Y01 |
US $62.64 |
||
|
24110
|
24110
24110-65Y00
Cable Assy-Battery To Starter Motor
1992-07-01 ~ 1993-07-01; ,J/C.J/GA16DE.J/MT.F5 +J/C/T.J/GA16DE.J/MT.F5; , |
24110-65Y00 |
— | ||
|
24171
|
24171
24171-69Y00
Harness-Air Bag, Engine Room
1990-11-01 ~ 1992-07-01; .*J/C.J/GA16DE.J/MT.F5 +*J/C/T.J/GA16DE.J/MT.F5; AIR BAG F/ASCD |
24171-69Y00 |
— | ||
|
24171
|
24171
24171-69Y70
Harness-Air Bag, Engine Room
1992-07-01 ~ 1993-07-01; J/C.J/GA16DE +J/C/T.J/GA16DE; , |
24171-69Y70 |
— | ||
|
24229
|
24229
24356-50Y00 Bracket-Junction1990-11-01 ~ 1993-07-01; J/C.J/GA16DE +J/C/T.J/GA16DE; , |
24356-50Y00 |
US $14.69 |
||
|
24370
|
24370
2437089900 Connector Assy-Fusible Link1992-07-01 ~ 1993-07-01; J/C.J/GA16DE +J/C/T.J/GA16DE; 25A |
2437089900 |
US $10.80 |
||
|
24370
|
24370
2437089905 Connector Assy-Fusible Link1992-07-01 ~ 1993-07-01; J/C.J/GA16DE +J/C/T.J/GA16DE; 30A |
2437089905 |
from US $12.77 |
||
|
24382R
|
24382R
24382-50Y01 Cover-Relay Box1990-11-01 ~ 1993-07-01; J/C.J/GA16DE +J/C/T.J/GA16DE; F/FUSIBLE LINK |
24382-50Y01 |
US $38.30 |
||
|
24382R
|
24382R
24382-50Y10 Cover-Relay Box1992-07-01 ~ 1993-07-01; .*J/C.J/GA16DE.J/MT.F5 +*J/C/T.J/GA16DE.J/MT.F5; F/ANTI SKID CONT-4WHL |
24382-50Y10 |
from US $2.42 |
||
|
24382R
|
24382R
24382-50Y15 Housing-Fusible Link Holder1990-11-01 ~ 1993-07-01; J/C.J/GA16DE +J/C/T.J/GA16DE; , |
24382-50Y15 |
US $44.78 |
||
|
24382RA
|
24382RA
24382-50Y10 Cover-Relay Box1992-07-01 ~ 1993-07-01; .*J/C.J/GA16DE.J/MT.F5 +*J/C/T.J/GA16DE.J/MT.F5; F/ANTI SKID CONT-4WHL |
24382-50Y10 |
from US $2.42 |
||
|
24382RA
|
24382RA
24382-50Y15 Housing-Fusible Link Holder1990-11-01 ~ 1993-07-01; J/C.J/GA16DE +J/C/T.J/GA16DE; , |
24382-50Y15 |
US $44.78 |
||
|
24383P
|
24383P
2438351E00 HOUSING-RELAY BOX1992-07-01 ~ 1993-07-01; .*J/C.J/GA16DE.J/MT.F5 +*J/C/T.J/GA16DE.J/MT.F5; F/ANTI SKID CONT-4WHL |
2438351E00 |
from US $13.14 |
||
|
24383P
|
24383P
24383-51E01 HOUSING-RELAY BOX1990-11-01 ~ 1992-07-01; J/C.J/GA16DE +J/C/T.J/GA16DE; , |
24383-51E01 |
from US $13.39 |
||
|
24388P
|
24388P
24388-62J10
Bracket-Relay Box
1990-11-01 ~ 1993-07-01; J/C.J/GA16DE +J/C/T.J/GA16DE; , |
24388-62J10 |
— | ||
|
25233H
|
25233H
24382-65Y00
Cover-Relay Box
1990-11-01 ~ 1993-07-01; J/C.J/GA16DE +J/C/T.J/GA16DE; , |
24382-65Y00 |
— | ||
|
25411
|
25411
24380-50Y00 Holder-Fusible Link1990-11-01 ~ 1993-07-01; J/C.J/GA16DE +J/C/T.J/GA16DE; , |
24380-50Y00 |
US $31.68 |
