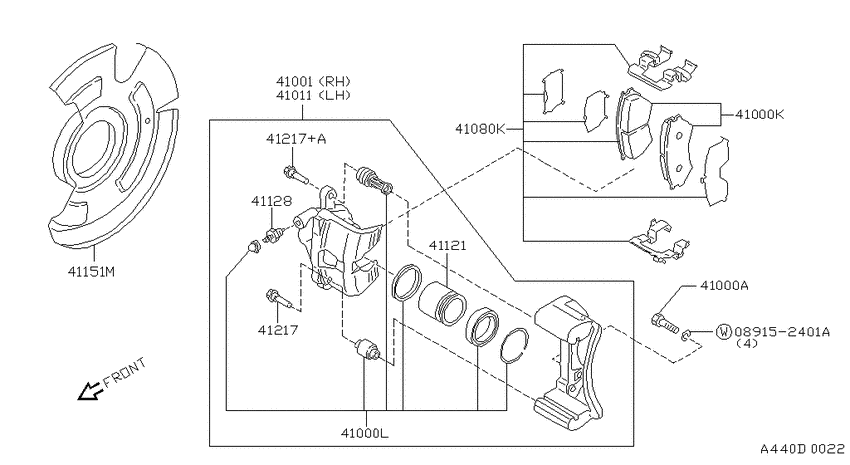

Front brake (1990-11-01 ~ 1993-07-01; J/SR20DE) Diagram Nissan SENTRA/200SX
- Year
- 1990 - 1993
- Sales region
- U.S.A.
- Engine
- J/SR20DE
- transmission
- J/MT.F5
- body
- J/C/T
- trim lvl
- SE
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $2.21 |
||
|
41000A
|
41000A
41250-01A00 Bolt1990-11-01 ~ ; J/SR20DE; , |
41250-01A00 |
from US $2.11 |
||
|
41000K
|
41000K
41060-54C88
Pad kit-disc brake
1990-11-01 ~ ; J/SR20DE; WITH SHIM COVER |
41060-54C88 |
— | ||
| replacement | |||||
|
41000K
|
41000K
41060-0N685
Pad Kit-Disc Brake, Front
1990-11-01 ~ ; J/SR20DE; WITH SHIM COVER |
41060-0N685 |
— | ||
|
41000L
|
41000L
41120-11L27
Seal Kit-Disc Brake
1990-11-01 ~ ; J/SR20DE; , |
41120-11L27 |
— | ||
|
41001
|
41001
41001-54C01 Caliper Assy-Front Rh, W/o Pads Or Shims1990-11-01 ~ 1991-07-01; J/SR20DE; , |
41001-54C01 |
US $335.59 |
||
| replacement | |||||
|
41001
|
41001
41001-0N600 Caliper Assy-Front Rh, W/o Pads Or Shims1990-11-01 ~ 1991-07-01; J/SR20DE; , |
41001-0N600 |
US $335.59 |
||
|
41001
|
41001
41001-54C02 Caliper Assy-Front Rh, W/o Pads Or Shims1991-07-01 ~ 1992-02-01; J/SR20DE; , |
41001-54C02 |
US $335.59 |
||
| replacement | |||||
|
41001
|
41001
41001-0N600 Caliper Assy-Front Rh, W/o Pads Or Shims1991-07-01 ~ 1992-02-01; J/SR20DE; , |
41001-0N600 |
US $335.59 |
||
|
41001
|
41001
41001-54C03 Caliper Assy-Front Rh, W/o Pads Or Shims1992-02-01 ~ ; J/SR20DE; , |
41001-54C03 |
US $335.59 |
||
| replacement | |||||
|
41001
|
41001
41001-0N600 Caliper Assy-Front Rh, W/o Pads Or Shims1992-02-01 ~ ; J/SR20DE; , |
41001-0N600 |
US $335.59 |
||
|
41011
|
41011
41011-54C01 Caliper Assy-Front Lh, W/o Pads Or Shims1990-11-01 ~ 1991-07-01; J/SR20DE; , |
41011-54C01 |
US $335.59 |
||
| replacement | |||||
|
41011
|
41011
41011-0N600 Caliper Assy-Front Lh, W/o Pads Or Shims1990-11-01 ~ 1991-07-01; J/SR20DE; , |
41011-0N600 |
US $335.59 |
||
|
41011
|
41011
41011-54C02 Caliper Assy-Front Lh, W/o Pads Or Shims1991-07-01 ~ 1992-02-01; J/SR20DE; , |
41011-54C02 |
US $335.59 |
||
| replacement | |||||
|
41011
|
41011
41011-0N600 Caliper Assy-Front Lh, W/o Pads Or Shims1991-07-01 ~ 1992-02-01; J/SR20DE; , |
41011-0N600 |
US $335.59 |
||
|
41011
|
41011
41011-54C03 Caliper Assy-Front Lh, W/o Pads Or Shims1992-02-01 ~ 1992-07-01; J/SR20DE; , |
41011-54C03 |
US $335.59 |
||
| replacement | |||||
|
41011
|
41011
41011-0N600 Caliper Assy-Front Lh, W/o Pads Or Shims1992-02-01 ~ 1992-07-01; J/SR20DE; , |
41011-0N600 |
US $335.59 |
||
|
41080K
|
41080K
41080-54C26 Hardware Kit-Front Disc Brake Pad1990-11-01 ~ ; J/SR20DE; , |
41080-54C26 |
US $51.70 |
||
|
41121
|
41121
4112111L01 Piston-Cylinder1990-11-01 ~ ; J/SR20DE; , |
4112111L01 |
US $68.11 |
||
|
41128
|
41128
41128-U3400
Screw-Bleeder
1990-11-01 ~ ; J/SR20DE; , |
41128-U3400 |
— | ||
| replacement | |||||
|
41128
|
41128
4112880Z0A Screw-Bleeder1990-11-01 ~ ; J/SR20DE; , |
4112880Z0A |
US $7.35 |
||
|
41151M
|
41151M
41150-54C00 Plate-Baffle1990-11-01 ~ ; J/SR20DE; F/RH |
41150-54C00 |
US $39.17 |
||
|
41151M
|
41151M
41160-54C00 Plate-Baffle1990-11-01 ~ ; J/SR20DE; F/LH |
41160-54C00 |
US $39.17 |
||
|
41217
|
41217
41133-54C00 Pin1990-11-01 ~ ; J/SR20DE; , |
41133-54C00 |
US $11.52 |
||
|
41217
|
41217
41134-54C00 Pin1990-11-01 ~ ; J/SR20DE; , |
41134-54C00 |
US $16.70 |
||
|
41217+A
|
41217+A
41134-54C00 Pin1990-11-01 ~ ; J/SR20DE; , |
41134-54C00 |
US $16.70 |
||
