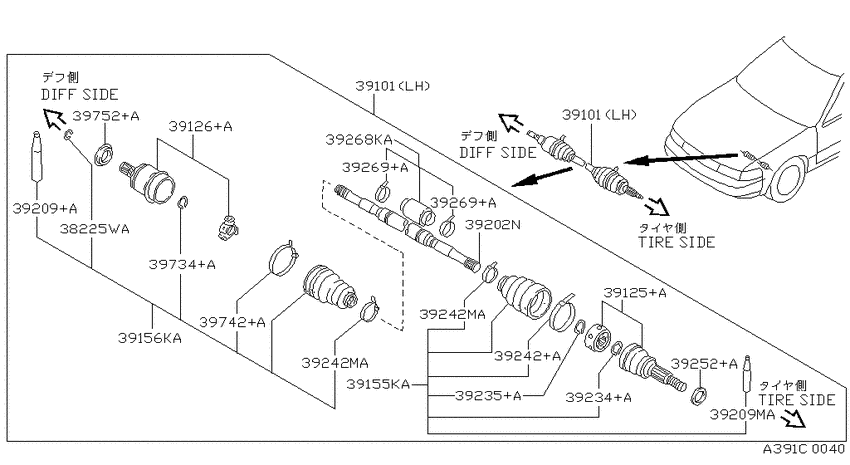

Front drive shaft (ff) (1990-11-01 ~ 1993-07-01; LH; J/SR20DE) Diagram Nissan SENTRA/200SX
- Year
- 1990 - 1993
- Sales region
- U.S.A.
- Engine
- J/SR20DE
- transmission
- J/MT.F5
- body
- J/C/T
- trim lvl
- SE
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
38225WA
|
38225WA
3822565A05 Clip-Drive Shaft1990-11-01 ~ ; J/SR20DE; , |
3822565A05 |
from US $0.57 |
||
|
39101
|
39101
39101-64Y00 Shaft Assy-Front Drive, Lh1990-11-01 ~ ; J/SR20DE.J/MT.F5; , |
39101-64Y00 |
US $1,009.61 |
||
|
39101
|
39101
39101-64Y10 Shaft Assy-Front Drive, Lh1990-11-01 ~ ; *J/SR20DE.J/MT.F5; F/ANTI SKID CONT-4WHL |
39101-64Y10 |
US $841.10 |
||
|
39101
|
39101
39101-64Y00 Shaft Assy-Front Drive, Lh1990-11-01 ~ ; J/SR20DE.J/MT.F5; , |
39101-64Y00 |
US $1,009.61 |
||
|
39101
|
39101
39101-64Y10 Shaft Assy-Front Drive, Lh1990-11-01 ~ ; *J/SR20DE.J/MT.F5; F/ANTI SKID CONT-4WHL |
39101-64Y10 |
US $841.10 |
||
|
39125+A
|
39125+A
39211-64Y00 Joint Assy-Outer1990-11-01 ~ ; J/SR20DE; , |
39211-64Y00 |
US $402.14 |
||
|
39125+A
|
39125+A
39211-64Y25 Joint Assy-Outer1990-11-01 ~ 1992-07-01; *J/SR20DE; F/ANTI SKID CONT-4WHL |
39211-64Y25 |
US $334.18 |
||
|
39126+A
|
39126+A
39711-64Y00 Joint Assy-Inner1990-11-01 ~ ; J/SR20DE; , |
39711-64Y00 |
US $363.91 |
||
|
39155KA
|
39155KA
39241-53J26
Repair Kit-Dust Boot, Outer
1990-11-01 ~ ; J/SR20DE; , |
39241-53J26 |
— | ||
| replacements | |||||
|
39155KA
|
39155KA
3924153J27 Repair Kit-Dust Boot, Outer1990-11-01 ~ ; J/SR20DE; , |
3924153J27 |
US $80.50 |
||
|
39155KA
|
39155KA
3924153J28 Repair Kit-Dust Boot, Outer1990-11-01 ~ ; J/SR20DE; , |
3924153J28 |
US $79 |
||
|
39155KA
|
39155KA
3923517R00 Ring-Stopper1990-11-01 ~ ; J/SR20DE; , |
3923517R00 |
US $3.46 |
||
|
39156KA
|
39156KA
3974164Y25 Repair Kit-Dust B00T, Inner1990-11-01 ~ ; J/SR20DE; , |
3974164Y25 |
US $80.50 |
||
|
39202N
|
39202N
39205-64Y00 Shaft-Front Drive, Lh1990-11-01 ~ ; J/SR20DE.J/MT.F5; , |
39205-64Y00 |
US $168.48 |
||
|
39209+A
|
39209+A
39709-64Y25 Grease-Inner1990-11-01 ~ 1992-07-01; J/SR20DE; , |
39709-64Y25 |
US $44.35 |
||
|
39209MA
|
39209MA
40099M0825 Grease-Outer1990-11-01 ~ 1992-07-01; J/SR20DE; , |
40099M0825 |
US $47.23 |
||
|
39234+A
|
39234+A
3923417R00 Ring-Snap, A1990-11-01 ~ ; J/SR20DE; , |
3923417R00 |
US $5.47 |
||
|
39235+A
|
39235+A
3923517R00 Ring-Stopper1990-11-01 ~ ; J/SR20DE; , |
3923517R00 |
US $3.46 |
||
|
39242+A
|
39242+A
39242-17R00 Band-Dust Cover, Outer1990-11-01 ~ ; J/SR20DE; , |
39242-17R00 |
US $7.92 |
||
|
39242MA
|
39242MA
39242-17R05 Band-Dust Cover, Shaft1990-11-01 ~ ; J/SR20DE; , |
39242-17R05 |
US $7.63 |
||
|
39242MA
|
39242MA
39242-17R05 Band-Dust Cover, Shaft1990-11-01 ~ ; J/SR20DE; , |
39242-17R05 |
US $7.63 |
||
|
39252+A
|
39252+A
39252-50Y00
Shield-Dust
1990-11-01 ~ 1992-07-01; J/SR20DE; , |
39252-50Y00 |
— | ||
| replacement | |||||
|
39252+A
|
39252+A
3925250Y6C Dust Shield1990-11-01 ~ 1992-07-01; J/SR20DE; , |
3925250Y6C |
US $5.42 |
||
|
39268KA
|
39268KA
39268-64Y26 Damper Kit-Dynamic, Front Drive Shaft1990-11-01 ~ ; J/SR20DE.J/MT.F5; , |
39268-64Y26 |
US $41.90 |
||
|
39269+A
|
39269+A
3926911A10 Band-Damper1990-11-01 ~ ; J/SR20DE; , |
3926911A10 |
US $9.50 |
||
|
39269+A
|
39269+A
3926911A10 Band-Damper1990-11-01 ~ ; J/SR20DE; , |
3926911A10 |
US $9.50 |
||
|
39734+A
|
39734+A
39708-64Y00 Ring-Snap1990-11-01 ~ ; J/SR20DE; , |
39708-64Y00 |
US $5.47 |
||
|
39742+A
|
39742+A
39742-64Y00 Band-Boot, Drive Shaft Inner1990-11-01 ~ ; J/SR20DE; , |
39742-64Y00 |
US $10.94 |
||
|
39752+A
|
39752+A
39752-64E00 SHIELD-DUST1990-11-01 ~ 1992-07-01; J/SR20DE; , |
39752-64E00 |
US $4.32 |
||
