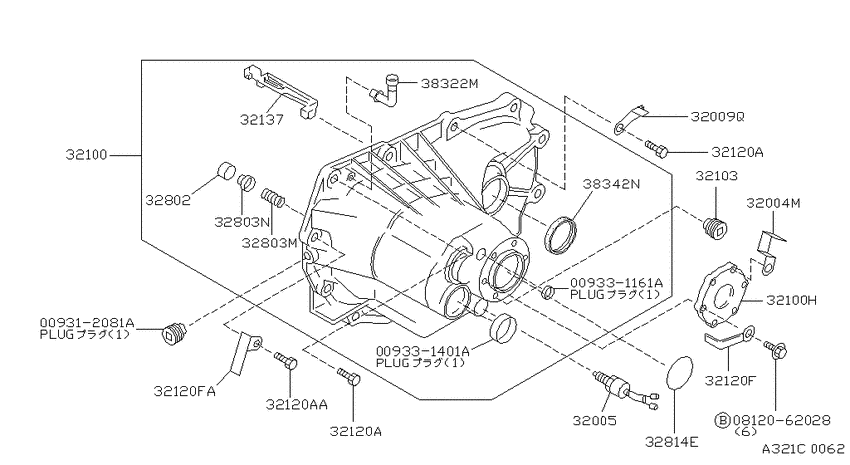

Transmission case & clutch release (1990-08-01 ~ ; TRANSMISSION CASE RS5F32V; U/SR20DE.U/MT.F5) Diagram Nissan SENTRA/200SX
- Year
- 1990 - 2011
- Sales region
- U.S.A.
- Engine
- U/SR20DE
- transmission
- U/MT.F5
- body
- U/2S
- trim lvl
- SR
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009312081A
|
009312081A
009312081A Plug-Drain |
009312081A |
US $3.06 |
||
|
009331161A
|
009331161A
009331161A
Plug-Welch
|
009331161A |
— | ||
|
009331401A
|
009331401A
009331401A Plug-Welch |
009331401A |
from US $1.13 |
||
|
0812062028
|
0812062028
08120-62028
Bolt-hexagon
|
08120-62028 |
— | ||
| replacement | |||||
|
0812062028
|
0812062028
081X0-62028 Bolt-hexagon |
081X0-62028 |
US $2.49 |
||
|
32004M
|
32004M
32004-58Y00 Bracket-Clip, Reverse Switch1990-08-01 ~ ; U/SR20DE.U/MT.F5; , |
32004-58Y00 |
US $4.18 |
||
|
32005
|
32005
32005-70E00 SWITCH ASSY-REVERSE LAMP1990-08-01 ~ 1993-11-01; U/SR20DE.U/MT.F5; , |
32005-70E00 |
US $51.98 |
||
| replacement | |||||
|
32005
|
32005
32005-70E2A Switch Assy-Reverse Lamp1990-08-01 ~ 1993-11-01; U/SR20DE.U/MT.F5; , |
32005-70E2A |
US $62.38 |
||
|
32005
|
32005
32005-70E10
SWITCH ASSY-REVERSE LAMP
1993-11-01 ~ ; U/SR20DE.U/MT.F5; , |
32005-70E10 |
— | ||
| replacement | |||||
|
32005
|
32005
32005-70E2A Switch Assy-Reverse Lamp1993-11-01 ~ ; U/SR20DE.U/MT.F5; , |
32005-70E2A |
US $62.38 |
||
|
32009Q
|
32009Q
32009-51J00 Bracket-Switch Connector1990-08-01 ~ 1992-08-01; U/SR20DE.U/MT.F5; , |
32009-51J00 |
US $0.86 |
||
|
32009Q
|
32009Q
32009-65Y00 Bracket-Switch Connector1992-08-01 ~ ; U/SR20DE.U/MT.F5; , |
32009-65Y00 |
US $0.86 |
||
|
32100
|
32100
32100-70E00 CASE ASSY-TRANSMISSION1990-08-01 ~ 1992-08-01; U/SR20DE.U/MT.F5; , |
32100-70E00 |
US $400.73 |
||
| replacement | |||||
|
32100
|
32100
32100-70E01
Case assy-transmission
1990-08-01 ~ 1992-08-01; U/SR20DE.U/MT.F5; , |
32100-70E01 |
— | ||
|
32100
|
32100
32100-80E00 CASE ASSY-TRANSMISSION1992-08-01 ~ 1994-07-01; U/SR20DE.U/MT.F5; , |
32100-80E00 |
US $400.73 |
||
|
32100
|
32100
32100-80E01 CASE ASSY-TRANSMISSION1994-07-01 ~ ; U/SR20DE.U/MT.F5; , |
32100-80E01 |
US $400.73 |
||
|
32100
|
32100
32131-50J00 Cover-Case1990-08-01 ~ ; U/SR20DE.U/MT.F5; SELECT T=20.78 |
32131-50J00 |
US $9.07 |
||
|
32100
|
32100
32131-50J01 Cover-Case1990-08-01 ~ ; U/SR20DE.U/MT.F5; SELECT T=20.83 |
32131-50J01 |
US $9.07 |
||
|
32100
|
32100
32131-50J02 Cover-Case1990-08-01 ~ ; U/SR20DE.U/MT.F5; SELECT T=20.88 |
32131-50J02 |
US $9.07 |
||
|
32100
|
32100
32131-50J03 Cover-Case1990-08-01 ~ ; U/SR20DE.U/MT.F5; SELECT T=20.93 |
32131-50J03 |
US $9.07 |
||
|
32100
|
32100
32131-50J04 Cover-Case1990-08-01 ~ ; U/SR20DE.U/MT.F5; SELECT T=20.98 |
32131-50J04 |
US $9.07 |
||
|
32100
|
32100
32131-50J05 Cover-Case1990-08-01 ~ ; U/SR20DE.U/MT.F5; SELECT T=21.03 |
32131-50J05 |
US $9.07 |
||
|
32100H
|
32100H
32131-50J00 Cover-Case1990-08-01 ~ ; U/SR20DE.U/MT.F5; SELECT T=20.78 |
32131-50J00 |
US $9.07 |
||
|
32100H
|
32100H
32131-50J01 Cover-Case1990-08-01 ~ ; U/SR20DE.U/MT.F5; SELECT T=20.83 |
32131-50J01 |
US $9.07 |
||
|
32100H
|
32100H
32131-50J02 Cover-Case1990-08-01 ~ ; U/SR20DE.U/MT.F5; SELECT T=20.88 |
32131-50J02 |
US $9.07 |
||
|
32100H
|
32100H
32131-50J03 Cover-Case1990-08-01 ~ ; U/SR20DE.U/MT.F5; SELECT T=20.93 |
32131-50J03 |
US $9.07 |
||
|
32100H
|
32100H
32131-50J04 Cover-Case1990-08-01 ~ ; U/SR20DE.U/MT.F5; SELECT T=20.98 |
32131-50J04 |
US $9.07 |
||
|
32100H
|
32100H
32131-50J05 Cover-Case1990-08-01 ~ ; U/SR20DE.U/MT.F5; SELECT T=21.03 |
32131-50J05 |
US $9.07 |
||
|
32103
|
32103
32103-01A01
Plug-Drain
1990-08-01 ~ ; U/SR20DE.U/MT.F5; , |
32103-01A01 |
— | ||
| replacements | |||||
|
32103
|
32103
3210301A0A
Plug-Drain
1990-08-01 ~ ; U/SR20DE.U/MT.F5; , |
3210301A0A |
— | ||
|
32103
|
32103
32103-01A02 Plug-Drain1990-08-01 ~ ; U/SR20DE.U/MT.F5; , |
32103-01A02 |
US $6.79 |
||
|
32120A
|
32120A
31377-31X03 Bolt1990-08-01 ~ ; U/SR20DE.U/MT.F5; , |
31377-31X03 |
US $2.45 |
||
|
32120A
|
32120A
31377-50J00 Bolt1990-08-01 ~ ; U/SR20DE.U/MT.F5; , |
31377-50J00 |
US $2.45 |
||
|
32120A
|
32120A
31377-31X03 Bolt1990-08-01 ~ ; U/SR20DE.U/MT.F5; , |
31377-31X03 |
US $2.45 |
||
|
32120A
|
32120A
31377-50J00 Bolt1990-08-01 ~ ; U/SR20DE.U/MT.F5; , |
31377-50J00 |
US $2.45 |
||
|
32120AA
|
32120AA
31377-50J00 Bolt1990-08-01 ~ ; U/SR20DE.U/MT.F5; , |
31377-50J00 |
US $2.45 |
||
|
32120F
|
32120F
24210-89963 Clip-Wiring Harness1990-08-01 ~ ; U/SR20DE.U/MT.F5; , |
24210-89963 |
US $3.46 |
||
|
32120F
|
32120F
24210-01X00 Clip1990-08-01 ~ ; U/SR20DE.U/MT.F5; , |
24210-01X00 |
US $5.04 |
||
|
32120FA
|
32120FA
24210-01X00 Clip1990-08-01 ~ ; U/SR20DE.U/MT.F5; , |
24210-01X00 |
US $5.04 |
||
|
32137
|
32137
32107-50J00 Gutter-Oil, Adapter1990-08-01 ~ 1994-07-01; U/SR20DE.U/MT.F5; , |
32107-50J00 |
US $4.03 |
||
|
32137
|
32137
32107-50J01 Gutter-Oil, Adapter1994-07-01 ~ ; U/SR20DE.U/MT.F5; , |
32107-50J01 |
US $4.18 |
||
|
32802
|
32802
32802-M8000 Bush-Fork Shaft1990-08-01 ~ ; U/SR20DE.U/MT.F5; , |
32802-M8000 |
US $8.87 |
||
|
32802
|
32802
32803-M8000 Bush-Fork Shaft1990-08-01 ~ ; U/SR20DE.U/MT.F5; , |
32803-M8000 |
US $2.45 |
||
|
32803M
|
32803M
32828-M8000 Spring-Support Fork Shaft1990-08-01 ~ ; U/SR20DE.U/MT.F5; , |
32828-M8000 |
US $0.86 |
||
|
32803N
|
32803N
32804-M8000 Holder-Spring1990-08-01 ~ ; U/SR20DE.U/MT.F5; , |
32804-M8000 |
US $0.86 |
||
|
32814E
|
32814E
32136-50J00 Seal-O Ring1990-08-01 ~ ; U/SR20DE.U/MT.F5; , |
32136-50J00 |
US $4.18 |
||
|
38322M
|
38322M
38322-50A02 Breather-Transmission Case1990-08-01 ~ 1992-08-01; U/SR20DE.U/MT.F5; , |
38322-50A02 |
US $19.15 |
||
|
38322M
|
38322M
38322-70A01 Breather-Transmission Case1992-08-01 ~ ; U/SR20DE.U/MT.F5; , |
38322-70A01 |
US $4.75 |
||
|
38342N
|
38342N
38342-31X02
Seal-Oil, Differential Transmission Case
1990-08-01 ~ ; U/SR20DE.U/MT.F5; , |
38342-31X02 |
— | ||
| replacement | |||||
|
38342N
|
38342N
383428E002 SEAL-OIL,DIFFERENTIAL TRANSMISSION CASE1990-08-01 ~ ; U/SR20DE.U/MT.F5; , |
383428E002 |
US $14.74 |
||
