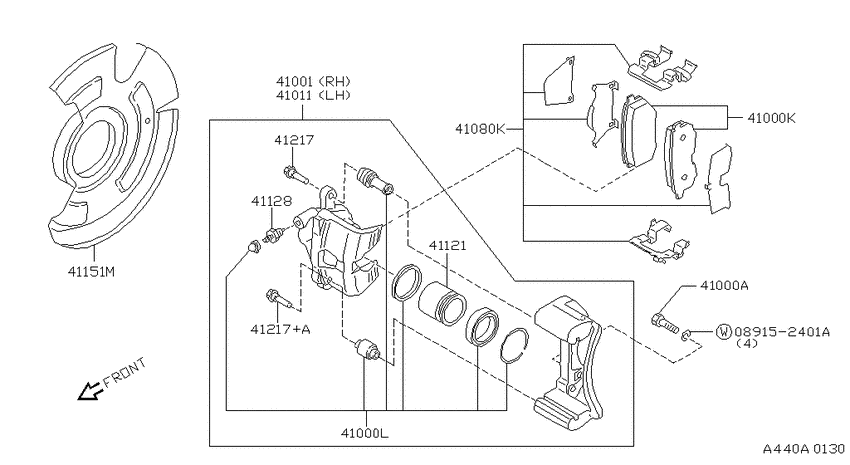

Front brake (1990-08-01 ~ ; U/SR20DE) Diagram Nissan SENTRA/200SX
- Year
- 1990 - 2011
- Sales region
- U.S.A.
- Engine
- U/SR20DE
- transmission
- U/AT.F4
- body
- U/2S
- trim lvl
- SR
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $2.21 |
||
|
41000A
|
41000A
41250-01A00 Bolt1990-08-01 ~ ; U/SR20DE; , |
41250-01A00 |
from US $2.11 |
||
|
41000K
|
41000K
41060-58Y85
Pad kit-disc brake
1990-08-01 ~ 1992-08-01; U/SR20DE; F/RH & LH |
41060-58Y85 |
— | ||
|
41000K
|
41000K
41060-58Y87
Pad Kit-Disc Brake, Front
1992-08-01 ~ ; U/SR20DE; F/RH & LH |
41060-58Y87 |
— | ||
|
41000K
|
41000K
41060-64Y85
Pad kit-disc brake
1990-08-01 ~ ; *U/SR20DE; F/RH & LH F/ANTI SKID CONT-4WHL |
41060-64Y85 |
— | ||
|
41000L
|
41000L
41120-76A25
Seal Kit-Disc Brake
1990-08-01 ~ ; U/SR20DE; , |
41120-76A25 |
— | ||
|
41001
|
41001
41001-58Y00 Caliper Assy-Front Rh, W/o Pads Or Shims1990-08-01 ~ ; U/SR20DE; , |
41001-58Y00 |
US $335.59 |
||
| replacement | |||||
|
41001
|
41001
D1001-58Y00
Caliper assy-front rh,w/o pads or shims
1990-08-01 ~ ; U/SR20DE; , |
D1001-58Y00 |
— | ||
|
41011
|
41011
41011-58Y00 Caliper Assy-Front Lh, W/o Pads Or Shims1990-08-01 ~ ; U/SR20DE; , |
41011-58Y00 |
US $335.59 |
||
|
41080K
|
41080K
4108058Y26 Hardware Kit-Front Disc Brake Pad1990-08-01 ~ ; U/SR20DE; , |
4108058Y26 |
US $50.98 |
||
|
41121
|
41121
41121-05A10 Piston-Cylinder1990-08-01 ~ ; U/SR20DE; , |
41121-05A10 |
US $50.69 |
||
|
41128
|
41128
41128-U3400
Screw-Bleeder
1990-08-01 ~ ; U/SR20DE; , |
41128-U3400 |
— | ||
| replacement | |||||
|
41128
|
41128
4112880Z0A Screw-Bleeder1990-08-01 ~ ; U/SR20DE; , |
4112880Z0A |
US $7.35 |
||
|
41151M
|
41151M
41150-0M001 Plate-Baffle1993-09-01 ~ ; U/SR20DE; F/RH |
41150-0M001 |
US $27.44 |
||
|
41151M
|
41151M
41150-50Y00
Plate-Baffle
1990-08-01 ~ 1993-09-01; U/SR20DE; F/RH |
41150-50Y00 |
— | ||
| replacement | |||||
|
41151M
|
41151M
41150-0M001 Plate-Baffle1990-08-01 ~ 1993-09-01; U/SR20DE; F/RH |
41150-0M001 |
US $27.44 |
||
|
41151M
|
41151M
41160-0M001
Plate-Baffle
1993-09-01 ~ ; U/SR20DE; F/LH |
41160-0M001 |
— | ||
|
41151M
|
41151M
41160-50Y00
Plate-Baffle
1990-08-01 ~ 1993-09-01; U/SR20DE; F/LH |
41160-50Y00 |
— | ||
| replacement | |||||
|
41151M
|
41151M
41160-0M001
Plate-Baffle
1990-08-01 ~ 1993-09-01; U/SR20DE; F/LH |
41160-0M001 |
— | ||
|
41217
|
41217
41140-D4401 Pin1990-08-01 ~ ; U/SR20DE; , |
41140-D4401 |
from US $7.84 |
||
|
41217
|
41217
44140V6701 Pin-Lock1990-08-01 ~ ; U/SR20DE; , |
44140V6701 |
US $9.69 |
||
|
41217+A
|
41217+A
44140V6701 Pin-Lock1990-08-01 ~ ; U/SR20DE; , |
44140V6701 |
US $9.69 |
||
