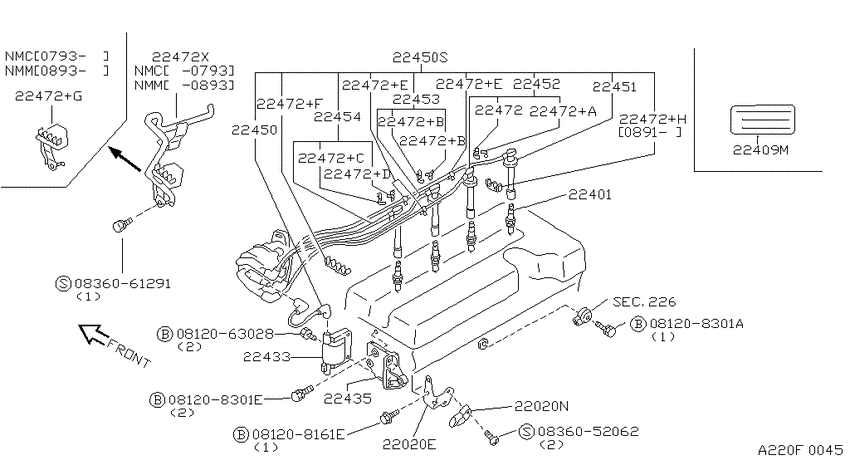

Ignition System (1990-08-01 ~ ; U/SR20DE) Diagram Nissan SENTRA/200SX
- Year
- 1990 - 2011
- Sales region
- U.S.A.
- Engine
- U/SR20DE
- transmission
- U/AT.F4
- body
- U/2S
- trim lvl
- SR
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812063028
|
0812063028
08120-63028
Bolt-hexagon
|
08120-63028 |
— | ||
|
081208161E
|
081208161E
081208161E Bolt-hexagon |
081208161E |
from US $0.57 |
||
|
081208301A
|
081208301A
081208301A
Bolt-hexagon
|
081208301A |
— | ||
|
081208301E
|
081208301E
08120-8301E
Bolt-hexagon
|
08120-8301E |
— | ||
|
0836052062
|
0836052062
0836052062
ｽｸﾘﾕ-,ﾏｼﾝ
|
0836052062 |
— | ||
|
0836061291
|
0836061291
08360-61291
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61291 |
— | ||
|
22020E
|
22020E
22435-64Y00 Bracket-Transistor Ignition1990-08-01 ~ 1993-08-01; U/SR20DE; , |
22435-64Y00 |
US $30.10 |
||
|
22020E
|
22020E
22435-78J00 Bracket-Transistor Ignition1993-08-01 ~ ; U/SR20DE; , |
22435-78J00 |
US $58.61 |
||
|
22020N
|
22020N
22020-53J10 Transistor Ignition Unit1990-08-01 ~ ; U/SR20DE; HANSHIN |
22020-53J10 |
US $116.64 |
||
|
22020N
|
22020N
2202053J20 Transistor Ignition Unit1990-08-01 ~ ; U/SR20DE; MITSUBISHI |
2202053J20 |
US $184.32 |
||
|
22401
|
22401
2240120J05 Plug-Spark1990-08-01 ~ ; U/SR20DE; BKR5E CONVENTIONAL TYPE |
2240120J05 |
from US $2.90 |
||
|
22401
|
22401
2240120J06 Plug-Spark1990-08-01 ~ ; U/SR20DE; BKR6E CONVENTIONAL TYPE |
2240120J06 |
US $5.94 |
||
|
22401
|
22401
22401-20J07 Plug-Spark1990-08-01 ~ ; U/SR20DE; BKR7E CONVENTIONAL TYPE |
22401-20J07 |
US $7.49 |
||
|
22401
|
22401
22401-27N15 Plug-Spark1990-08-01 ~ 1992-08-01; U/SR20DE; PFR5B-11 PLATINUM TIP TYPE |
22401-27N15 |
US $21.60 |
||
|
22401
|
22401
22401-27N16 Plug-Spark1990-08-01 ~ 1992-08-01; U/SR20DE; PFR6B-11 PLATINUM TIP TYPE |
22401-27N16 |
US $21.60 |
||
|
22401
|
22401
22401-27N17 Plug-Spark1990-08-01 ~ 1992-08-01; U/SR20DE; PFR7B-11 PLATINUM TIP TYPE |
22401-27N17 |
US $21.60 |
||
|
22401
|
22401
2240127N65 Spark Plug (NGK PFR5B-11)1992-08-01 ~ ; U/SR20DE; PFR5B-11 PLATINUM TIP TYPE |
2240127N65 |
US $21.60 |
||
|
22401
|
22401
2240127N66 Spark Plug (NGK PFR6B-11)1992-08-01 ~ ; U/SR20DE; PFR6B-11 PLATINUM TIP TYPE |
2240127N66 |
US $21.60 |
||
|
22401
|
22401
22401-27N67 Spark Plug (NGK PFR7B-11)1992-08-01 ~ ; U/SR20DE; PFR7B-11 PLATINUM TIP TYPE |
22401-27N67 |
US $21.60 |
||
|
22409M
|
22409M
22409-85M00
Label-Caution, Spark Plug
1990-08-01 ~ ; U/SR20DE; , |
22409-85M00 |
— | ||
|
22433
|
22433
2243353J20 Coil Assy-Ignition1990-08-01 ~ ; U/SR20DE; HANSHIN |
2243353J20 |
US $158.40 |
||
|
22433
|
22433
2243355S10 Coil Assy-Ignition1990-08-01 ~ ; U/SR20DE; MITSUBISHI |
2243355S10 |
US $119.95 |
||
|
22435
|
22435
22435-0E001 BRACKET-IGNITION COIL1991-12-01 ~ ; U/SR20DE; , |
22435-0E001 |
US $27.79 |
||
|
22435
|
22435
22435-53J01 Bracket-Ignition Coil1990-08-01 ~ 1991-12-01; U/SR20DE; , |
22435-53J01 |
US $25.06 |
||
|
22450
|
22450
2245053J01 Cable Assy-Ignition Coil To Distributor1990-08-01 ~ ; U/SR20DE; YAZAKI |
2245053J01 |
US $30.10 |
||
|
22450
|
22450
22450-53J25 Cable Set-High Tension1990-08-01 ~ 1991-08-01; U/SR20DE; , |
22450-53J25 |
US $175.68 |
||
| replacement | |||||
|
22450
|
22450
22450-0E025 CABLE SET-HIGH TENSION1990-08-01 ~ 1991-08-01; U/SR20DE; , |
22450-0E025 |
US $190.08 |
||
|
22450
|
22450
22450-53J27 Cable Set-High Tension1991-08-01 ~ 1992-04-01; U/SR20DE; YAZAKI |
22450-53J27 |
US $175.68 |
||
| replacement | |||||
|
22450
|
22450
22450-0E025 CABLE SET-HIGH TENSION1991-08-01 ~ 1992-04-01; U/SR20DE; YAZAKI |
22450-0E025 |
US $190.08 |
||
|
22450
|
22450
22450-53J85
Cable Set-High Tension
1992-04-01 ~ ; U/SR20DE; YAZAKI |
22450-53J85 |
— | ||
| replacement | |||||
|
22450
|
22450
22450-53J87
Cable set-high tension
1992-04-01 ~ ; U/SR20DE; YAZAKI |
22450-53J87 |
— | ||
|
22450S
|
22450S
22450-53J25 Cable Set-High Tension1990-08-01 ~ 1991-08-01; U/SR20DE; , |
22450-53J25 |
US $175.68 |
||
| replacement | |||||
|
22450S
|
22450S
22450-0E025 CABLE SET-HIGH TENSION1990-08-01 ~ 1991-08-01; U/SR20DE; , |
22450-0E025 |
US $190.08 |
||
|
22450S
|
22450S
22450-53J27 Cable Set-High Tension1991-08-01 ~ 1992-04-01; U/SR20DE; YAZAKI |
22450-53J27 |
US $175.68 |
||
| replacement | |||||
|
22450S
|
22450S
22450-0E025 CABLE SET-HIGH TENSION1991-08-01 ~ 1992-04-01; U/SR20DE; YAZAKI |
22450-0E025 |
US $190.08 |
||
|
22450S
|
22450S
22450-53J85
Cable Set-High Tension
1992-04-01 ~ ; U/SR20DE; YAZAKI |
22450-53J85 |
— | ||
| replacement | |||||
|
22450S
|
22450S
22450-53J87
Cable set-high tension
1992-04-01 ~ ; U/SR20DE; YAZAKI |
22450-53J87 |
— | ||
|
22451
|
22451
22451-53J02 Cable Assy-High Tension, No 11990-08-01 ~ 1991-08-01; U/SR20DE; YAZAKI |
22451-53J02 |
US $39.89 |
||
| replacement | |||||
|
22451
|
22451
22451-0E000 CABLE ASSY-HIGH TENSION,NO 11990-08-01 ~ 1991-08-01; U/SR20DE; YAZAKI |
22451-0E000 |
US $52.56 |
||
|
22451
|
22451
22451-53J04 Cable Assy-High Tension, No 11991-08-01 ~ 1992-04-01; U/SR20DE; YAZAKI |
22451-53J04 |
US $52.56 |
||
| replacement | |||||
|
22451
|
22451
22451-0E000 CABLE ASSY-HIGH TENSION,NO 11991-08-01 ~ 1992-04-01; U/SR20DE; YAZAKI |
22451-0E000 |
US $52.56 |
||
|
22451
|
22451
22451-53J05
Cable Assy-High Tension, No 1
1992-04-01 ~ ; U/SR20DE; YAZAKI |
22451-53J05 |
— | ||
| replacement | |||||
|
22451
|
22451
22451-53J07
Cable assy-high tension,no 1
1992-04-01 ~ ; U/SR20DE; YAZAKI |
22451-53J07 |
— | ||
|
22452
|
22452
22452-53J02 Cable Assy-High Tension, No 21990-08-01 ~ 1991-08-01; U/SR20DE; YAZAKI |
22452-53J02 |
US $39.89 |
||
| replacement | |||||
|
22452
|
22452
22452-0E000 CABLE ASSY-HIGH TENSION,NO 21990-08-01 ~ 1991-08-01; U/SR20DE; YAZAKI |
22452-0E000 |
US $52.56 |
||
|
22452
|
22452
22452-53J04 Cable Assy-High Tension, No 21991-08-01 ~ 1992-04-01; U/SR20DE; YAZAKI |
22452-53J04 |
US $52.56 |
||
| replacement | |||||
|
22452
|
22452
22452-0E000 CABLE ASSY-HIGH TENSION,NO 21991-08-01 ~ 1992-04-01; U/SR20DE; YAZAKI |
22452-0E000 |
US $52.56 |
||
|
22452
|
22452
22452-53J05
Cable Assy-High Tension, No 2
1992-04-01 ~ ; U/SR20DE; YAZAKI |
22452-53J05 |
— | ||
| replacement | |||||
|
22452
|
22452
22452-53J07
Cable assy-high tension,no 2
1992-04-01 ~ ; U/SR20DE; YAZAKI |
22452-53J07 |
— | ||
|
22453
|
22453
22453-53J02 Cable Assy-High Tension, No 31990-08-01 ~ 1991-08-01; U/SR20DE; YAZAKI |
22453-53J02 |
US $39.89 |
||
| replacement | |||||
|
22453
|
22453
22453-0E000 CABLE ASSY-HIGH TENSION,NO 31990-08-01 ~ 1991-08-01; U/SR20DE; YAZAKI |
22453-0E000 |
US $52.56 |
||
|
22453
|
22453
22453-53J04 Cable Assy-High Tension, No 31991-08-01 ~ 1992-04-01; U/SR20DE; YAZAKI |
22453-53J04 |
US $52.56 |
||
| replacement | |||||
|
22453
|
22453
22453-0E000 CABLE ASSY-HIGH TENSION,NO 31991-08-01 ~ 1992-04-01; U/SR20DE; YAZAKI |
22453-0E000 |
US $52.56 |
||
|
22453
|
22453
22453-53J05
Cable Assy-High Tension, No 3
1992-04-01 ~ ; U/SR20DE; YAZAKI |
22453-53J05 |
— | ||
| replacement | |||||
|
22453
|
22453
22453-53J07
Cable assy-high tension,no 3
1992-04-01 ~ ; U/SR20DE; YAZAKI |
22453-53J07 |
— | ||
|
22454
|
22454
22454-53J02 Cable Assy-High Tension, No 41990-08-01 ~ 1991-08-01; U/SR20DE; YAZAKI |
22454-53J02 |
US $39.89 |
||
| replacement | |||||
|
22454
|
22454
22454-0E000 CABLE ASSY-HIGH TENSION,NO 41990-08-01 ~ 1991-08-01; U/SR20DE; YAZAKI |
22454-0E000 |
US $52.56 |
||
|
22454
|
22454
22454-53J04 Cable Assy-High Tension, No 41991-08-01 ~ 1992-04-01; U/SR20DE; YAZAKI |
22454-53J04 |
US $52.56 |
||
| replacement | |||||
|
22454
|
22454
22454-0E000 CABLE ASSY-HIGH TENSION,NO 41991-08-01 ~ 1992-04-01; U/SR20DE; YAZAKI |
22454-0E000 |
US $52.56 |
||
|
22454
|
22454
22454-53J05
Cable Assy-High Tension, No 4
1992-04-01 ~ ; U/SR20DE; YAZAKI |
22454-53J05 |
— | ||
| replacement | |||||
|
22454
|
22454
22454-53J07
Cable assy-high tension,no 4
1992-04-01 ~ ; U/SR20DE; YAZAKI |
22454-53J07 |
— | ||
|
22472
|
22472
22472-53J02 Clamp-High Tension Cable1990-08-01 ~ 1991-08-01; U/SR20DE; , |
22472-53J02 |
US $3.89 |
||
| replacement | |||||
|
22472
|
22472
22452-0E000 CABLE ASSY-HIGH TENSION,NO 21990-08-01 ~ 1991-08-01; U/SR20DE; , |
22452-0E000 |
US $52.56 |
||
|
22472
|
22472
22472-53J08 Clamp-High Tension Cable1991-08-01 ~ ; U/SR20DE; , |
22472-53J08 |
US $4.32 |
||
|
22472
|
22472
22472-53J03 Clamp-High Tension Cable1990-08-01 ~ 1991-08-01; U/SR20DE; , |
22472-53J03 |
US $4.90 |
||
| replacement | |||||
|
22472
|
22472
22452-0E000 CABLE ASSY-HIGH TENSION,NO 21990-08-01 ~ 1991-08-01; U/SR20DE; , |
22452-0E000 |
US $52.56 |
||
|
22472
|
22472
22472-53J09 Clamp-High Tension Cable1991-08-01 ~ ; U/SR20DE; , |
22472-53J09 |
US $4.46 |
||
|
22472
|
22472
22472-53J02 Clamp-High Tension Cable1990-08-01 ~ 1991-08-01; U/SR20DE; , |
22472-53J02 |
US $3.89 |
||
| replacement | |||||
|
22472
|
22472
22452-0E000 CABLE ASSY-HIGH TENSION,NO 21990-08-01 ~ 1991-08-01; U/SR20DE; , |
22452-0E000 |
US $52.56 |
||
|
22472
|
22472
22472-53J08 Clamp-High Tension Cable1991-08-01 ~ ; U/SR20DE; , |
22472-53J08 |
US $4.32 |
||
|
22472
|
22472
22472-53J02 Clamp-High Tension Cable1990-08-01 ~ 1991-08-01; U/SR20DE; , |
22472-53J02 |
US $3.89 |
||
| replacement | |||||
|
22472
|
22472
22452-0E000 CABLE ASSY-HIGH TENSION,NO 21990-08-01 ~ 1991-08-01; U/SR20DE; , |
22452-0E000 |
US $52.56 |
||
|
22472
|
22472
22472-53J08 Clamp-High Tension Cable1991-08-01 ~ ; U/SR20DE; , |
22472-53J08 |
US $4.32 |
||
|
22472
|
22472
22472-53J04 Clamp-High Tension Cable1990-08-01 ~ 1991-08-01; U/SR20DE; , |
22472-53J04 |
US $3.89 |
||
| replacement | |||||
|
22472
|
22472
22454-0E000 CABLE ASSY-HIGH TENSION,NO 41990-08-01 ~ 1991-08-01; U/SR20DE; , |
22454-0E000 |
US $52.56 |
||
|
22472
|
22472
22472-53J07 Clamp-High Tension Cable1991-08-01 ~ ; U/SR20DE; , |
22472-53J07 |
US $4.46 |
||
|
22472
|
22472
22472-53J05 Clamp-High Tension Cable1990-08-01 ~ ; U/SR20DE; , |
22472-53J05 |
US $3.60 |
||
|
22472
|
22472
2247253J06 Clamp-High Tension Cable1990-08-01 ~ ; U/SR20DE; , |
2247253J06 |
US $3.60 |
||
|
22472
|
22472
22472-53J10 Clamp-High Tension Cable1993-08-01 ~ ; U/SR20DE; , |
22472-53J10 |
US $4.42 |
||
|
22472
|
22472
22472-0M800 Clamp-High Tension Cable1992-04-01 ~ ; U/SR20DE; , |
22472-0M800 |
US $4.61 |
||
|
22472
|
22472
22472-64Y00
Clamp-H/t With Aiv Pipe
1990-08-01 ~ 1993-08-01; U/SR20DE; , |
22472-64Y00 |
— | ||
|
22472+A
|
22472+A
22472-53J03 Clamp-High Tension Cable1990-08-01 ~ 1991-08-01; U/SR20DE; , |
22472-53J03 |
US $4.90 |
||
| replacement | |||||
|
22472+A
|
22472+A
22452-0E000 CABLE ASSY-HIGH TENSION,NO 21990-08-01 ~ 1991-08-01; U/SR20DE; , |
22452-0E000 |
US $52.56 |
||
|
22472+A
|
22472+A
22472-53J09 Clamp-High Tension Cable1991-08-01 ~ ; U/SR20DE; , |
22472-53J09 |
US $4.46 |
||
|
22472+B
|
22472+B
22472-53J02 Clamp-High Tension Cable1990-08-01 ~ 1991-08-01; U/SR20DE; , |
22472-53J02 |
US $3.89 |
||
| replacement | |||||
|
22472+B
|
22472+B
22452-0E000 CABLE ASSY-HIGH TENSION,NO 21990-08-01 ~ 1991-08-01; U/SR20DE; , |
22452-0E000 |
US $52.56 |
||
|
22472+B
|
22472+B
22472-53J08 Clamp-High Tension Cable1991-08-01 ~ ; U/SR20DE; , |
22472-53J08 |
US $4.32 |
||
|
22472+B
|
22472+B
22472-53J02 Clamp-High Tension Cable1990-08-01 ~ 1991-08-01; U/SR20DE; , |
22472-53J02 |
US $3.89 |
||
| replacement | |||||
|
22472+B
|
22472+B
22452-0E000 CABLE ASSY-HIGH TENSION,NO 21990-08-01 ~ 1991-08-01; U/SR20DE; , |
22452-0E000 |
US $52.56 |
||
|
22472+B
|
22472+B
22472-53J08 Clamp-High Tension Cable1991-08-01 ~ ; U/SR20DE; , |
22472-53J08 |
US $4.32 |
||
|
22472+C
|
22472+C
22472-53J02 Clamp-High Tension Cable1990-08-01 ~ 1991-08-01; U/SR20DE; , |
22472-53J02 |
US $3.89 |
||
| replacement | |||||
|
22472+C
|
22472+C
22452-0E000 CABLE ASSY-HIGH TENSION,NO 21990-08-01 ~ 1991-08-01; U/SR20DE; , |
22452-0E000 |
US $52.56 |
||
|
22472+C
|
22472+C
22472-53J08 Clamp-High Tension Cable1991-08-01 ~ ; U/SR20DE; , |
22472-53J08 |
US $4.32 |
||
|
22472+D
|
22472+D
22472-53J04 Clamp-High Tension Cable1990-08-01 ~ 1991-08-01; U/SR20DE; , |
22472-53J04 |
US $3.89 |
||
| replacement | |||||
|
22472+D
|
22472+D
22454-0E000 CABLE ASSY-HIGH TENSION,NO 41990-08-01 ~ 1991-08-01; U/SR20DE; , |
22454-0E000 |
US $52.56 |
||
|
22472+D
|
22472+D
22472-53J07 Clamp-High Tension Cable1991-08-01 ~ ; U/SR20DE; , |
22472-53J07 |
US $4.46 |
||
|
22472+E
|
22472+E
22472-53J05 Clamp-High Tension Cable1990-08-01 ~ ; U/SR20DE; , |
22472-53J05 |
US $3.60 |
||
|
22472+E
|
22472+E
22472-53J05 Clamp-High Tension Cable1990-08-01 ~ ; U/SR20DE; , |
22472-53J05 |
US $3.60 |
||
|
22472+F
|
22472+F
2247253J06 Clamp-High Tension Cable1990-08-01 ~ ; U/SR20DE; , |
2247253J06 |
US $3.60 |
||
|
22472+G
|
22472+G
22472-53J10 Clamp-High Tension Cable1993-08-01 ~ ; U/SR20DE; , |
22472-53J10 |
US $4.42 |
||
|
22472+H
|
22472+H
22472-0M800 Clamp-High Tension Cable1992-04-01 ~ ; U/SR20DE; , |
22472-0M800 |
US $4.61 |
||
|
22472X
|
22472X
22472-64Y00
Clamp-H/t With Aiv Pipe
1990-08-01 ~ 1993-08-01; U/SR20DE; , |
22472-64Y00 |
— | ||
