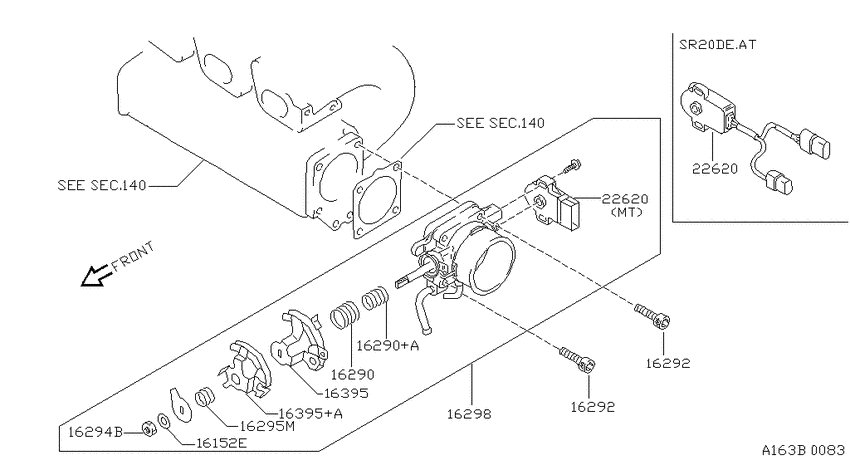

Throttle chamber (1994-11-01 ~ 1996-08-01; SR20DE) Diagram Nissan SENTRA/200SX
- Year
- 1997 - 2011
- Sales region
- U.S.A.
- Engine
- SR20DE
- transmission
- AT
- body
- C
- trim lvl
- SER
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16152E
|
16152E
16152-97E15 WASHER1994-11-01 ~ 1996-08-01; SR20DE; , |
16152-97E15 |
US $0.86 |
||
|
16290
|
16290
16160-02F00 Spring-Throttle Return1994-11-01 ~ 1996-08-01; SR20DE; , |
16160-02F00 |
US $8.93 |
||
|
16290
|
16290
16160-78J00
Spring-Throttle Return
1998-07-01 ~ ; 4S.SR20DE; , |
16160-78J00 |
— | ||
|
16290
|
16290
16160-02F02 Spring-Throttle Return1994-11-01 ~ 1996-08-01; SR20DE; , |
16160-02F02 |
US $11.23 |
||
|
16290
|
16290
16160-78J00
Spring-Throttle Return
1998-07-01 ~ ; 4S.SR20DE; , |
16160-78J00 |
— | ||
|
16290+A
|
16290+A
16160-02F02 Spring-Throttle Return1994-11-01 ~ 1996-08-01; SR20DE; , |
16160-02F02 |
US $11.23 |
||
|
16290+A
|
16290+A
16160-78J00
Spring-Throttle Return
1998-07-01 ~ ; 4S.SR20DE; , |
16160-78J00 |
— | ||
|
16292
|
16292
16122V5200 Bolt-Chamber1994-11-01 ~ 1996-08-01; SR20DE; , |
16122V5200 |
US $3.46 |
||
|
16292
|
16292
16122V5200 Bolt-Chamber1994-11-01 ~ 1996-08-01; SR20DE; , |
16122V5200 |
US $3.46 |
||
|
16294B
|
16294B
1607495E15 NUT1994-11-01 ~ 1996-08-01; SR20DE; , |
1607495E15 |
US $2.45 |
||
|
16295M
|
16295M
16160-17F05 Spring-Throttle Return1994-11-01 ~ 1996-08-01; SR20DE; , |
16160-17F05 |
US $7.78 |
||
|
16298
|
16298
16118-4M210
Throttle Body
1997-10-01 ~ 1998-07-01; SR20DE; , |
16118-4M210 |
— | ||
|
16298
|
16298
16118-94Y10
Chamber Assy-Throttle
1994-11-01 ~ 1996-08-01; SR20DE.AT; , |
16118-94Y10 |
— | ||
|
16395
|
16395
16134-94Y00
Lever-Throttle
1994-11-01 ~ 1996-08-01; SR20DE; , |
16134-94Y00 |
— | ||
|
16395
|
16395
16134-94Y10
Lever-Throttle
1994-11-01 ~ 1996-08-01; SR20DE; , |
16134-94Y10 |
— | ||
|
16395+A
|
16395+A
16134-94Y10
Lever-Throttle
1994-11-01 ~ 1996-08-01; SR20DE; , |
16134-94Y10 |
— | ||
|
22620
|
22620
22620-64Y02 Throttle Position Switch1994-11-01 ~ 1996-08-01; SR20DE.AT; , |
22620-64Y02 |
US $158.40 |
||
| replacement | |||||
|
22620
|
22620
22620-64Y05 Throttle Position Switch1994-11-01 ~ 1996-08-01; SR20DE.AT; , |
22620-64Y05 |
US $158.40 |
||
|
22620
|
22620
22620-65F20 Throttle Position Switch1997-10-01 ~ ; SR20DE.AT; , |
22620-65F20 |
US $86.98 |
||
|
22620
|
22620
22620-64Y02 Throttle Position Switch1994-11-01 ~ 1996-08-01; SR20DE.AT; , |
22620-64Y02 |
US $158.40 |
||
| replacement | |||||
|
22620
|
22620
22620-64Y05 Throttle Position Switch1994-11-01 ~ 1996-08-01; SR20DE.AT; , |
22620-64Y05 |
US $158.40 |
||
|
22620
|
22620
22620-65F20 Throttle Position Switch1997-10-01 ~ ; SR20DE.AT; , |
22620-65F20 |
US $86.98 |
||
