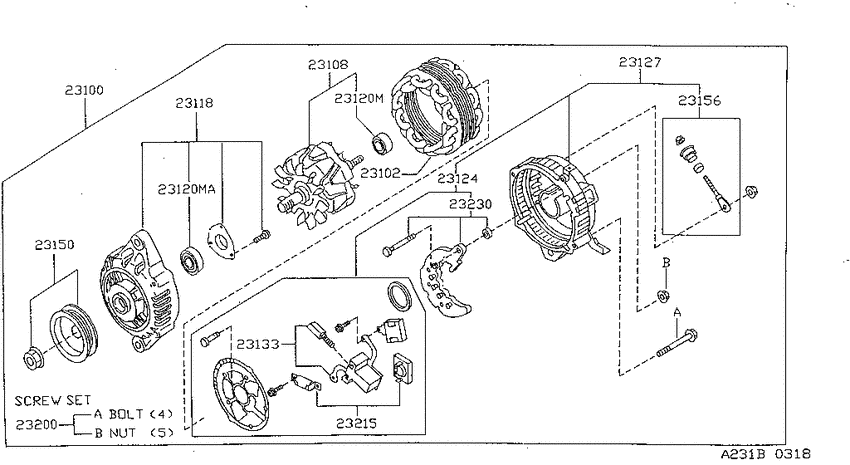

Alternator (1998-07-01 ~ ; SR20DE) Diagram Nissan SENTRA/200SX
- Year
- 1998 - 2011
- Sales region
- U.S.A.
- Engine
- SR20DE
- transmission
- MT
- body
- 4S
- trim lvl
- SE
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-0M810 Alternator Assy1998-07-01 ~ ; SR20DE; MITSUBISHI |
23100-0M810 |
US $1,414 |
||
|
23100
|
23100
0122100381 NUT1998-07-01 ~ ; SR20DE; , |
0122100381 |
from US $5.37 |
||
|
23102
|
23102
23102-85L10 Stator Assy1998-07-01 ~ ; SR20DE; MITSUBISHI |
23102-85L10 |
US $311.52 |
||
|
23108
|
23108
23108-0P610 Rotor Assy1998-07-01 ~ ; SR20DE; , |
23108-0P610 |
US $339.84 |
||
|
23118
|
23118
23118-64J15 Cover Assy-Front1998-07-01 ~ ; SR20DE; MITSUBISHI |
23118-64J15 |
US $136.80 |
||
|
23120M
|
23120M
23120-22J20 Bearing-Ball1998-07-01 ~ ; SR20DE; MITSUBISHI |
23120-22J20 |
from US $22.31 |
||
|
23120M
|
23120M
23120-30R10
Bearing-Ball
1998-07-01 ~ ; SR20DE; MITSUBISHI |
23120-30R10 |
— | ||
| replacement | |||||
|
23120M
|
23120M
2312051E10 BEARING-BALL1998-07-01 ~ ; SR20DE; MITSUBISHI |
2312051E10 |
from US $34.67 |
||
|
23124
|
23124
23124-2J011 Rectifier Assy1998-07-01 ~ ; SR20DE; MITSUBISHI |
23124-2J011 |
US $247.68 |
||
|
23127
|
23127
23127-0M811 Cover Assy-Rear1998-07-01 ~ ; SR20DE; , |
23127-0M811 |
US $744.82 |
||
|
23127
|
23127
23131-20P10 Bolt-Through1998-07-01 ~ ; SR20DE; MITSUBISHI |
23131-20P10 |
US $5.04 |
||
|
23150
|
23150
2315064J16 Pulley Assy1998-07-01 ~ ; SR20DE; MITSUBISHI |
2315064J16 |
US $133.78 |
||
|
23150
|
23150
23153-70T12 Plate-Terminal1998-07-01 ~ ; SR20DE; MITSUBISHI |
23153-70T12 |
US $4.42 |
||
|
23156
|
23156
231560M810 Terminal Assy-B1998-07-01 ~ ; SR20DE; MITSUBISHI |
231560M810 |
from US $6.07 |
||
|
23200
|
23200
23200-20P10 Screw Set1998-07-01 ~ ; SR20DE; MITSUBISHI |
23200-20P10 |
US $5.04 |
||
|
23215
|
23215
23215-0M011 Regulator Assy-Ic1998-07-01 ~ ; SR20DE; MITSUBISHI |
23215-0M011 |
US $352.58 |
||
|
23230
|
23230
23230-0M801
Diode Assy
1997-10-01 ~ ; 4S.SR20DE; , |
23230-0M801 |
— | ||
