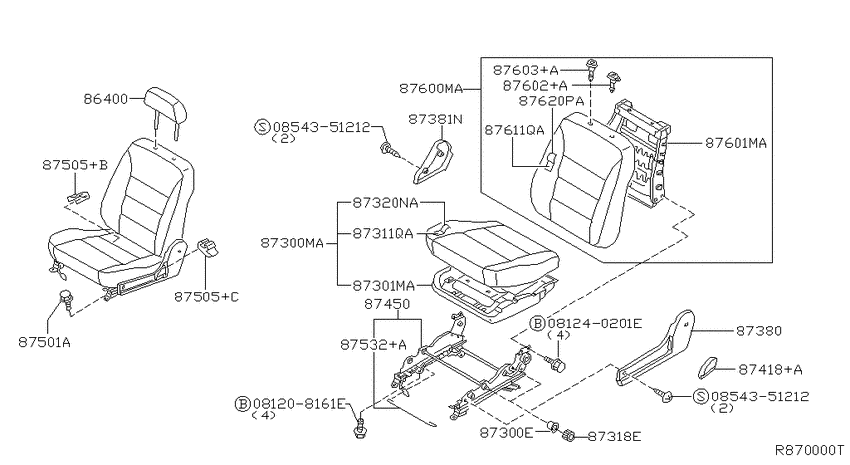

Front seat (2000-01-01 ~ 2001-08-01; LH SEAT; 4S) Diagram Nissan SENTRA/200SX
- Year
- 2000 - 2001
- Sales region
- U.S.A.
- Engine
- SR20DE
- transmission
- MT
- body
- 4S
- trim lvl
- SE
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208161E
|
081208161E
081208161E Bolt-hexagon |
081208161E |
from US $0.57 |
||
|
081240201E
|
081240201E
081240201E Bolt-hexagon |
081240201E |
US $1.11 |
||
|
0854351212
|
0854351212
08543-51212 ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ |
08543-51212 |
US $1.73 |
||
|
0854351212
|
0854351212
08543-51212 ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ |
08543-51212 |
US $1.73 |
||
|
86400
|
86400
86400-4M803
Head rest assy-front seat
2000-01-01 ~ 2001-08-01; *4S.SR20DE; , |
86400-4M803 |
— | ||
|
86400
|
86400
86400-5M000
Head rest assy-front seat
2000-01-01 ~ 2001-08-01; 4S.SR20DE +4S.(GXE+CA); , |
86400-5M000 |
— | ||
|
86400
|
86400
86400-5M004
Head rest assy-front seat
2000-01-01 ~ 2001-08-01; 4S.SR20DE +4S.(GXE+CA); , |
86400-5M004 |
— | ||
|
87300E
|
87300E
01535-0001U
Clip
2000-01-01 ~ 2001-08-01; *4S.SR20DE; , |
01535-0001U |
— | ||
|
87300MA
|
87300MA
87350-4M813
Cushion assy-front seat
2000-01-01 ~ 2001-08-01; *4S.SR20DE; , |
87350-4M813 |
— | ||
|
87300MA
|
87300MA
87350-4M873
Cushion assy-front seat
2000-01-01 ~ 2001-08-01; *4S.SR20DE; , |
87350-4M873 |
— | ||
|
87300MA
|
87300MA
87350-4Z313
Cushion assy-front seat
2001-06-01 ~ 2001-08-01; *4S.SR20DE; , |
87350-4Z313 |
— | ||
|
87300MA
|
87300MA
87350-4Z380
Cushion assy-front seat
2001-06-01 ~ 2001-08-01; *4S.SR20DE +*4S.(GXE+CA); , |
87350-4Z380 |
— | ||
|
87300MA
|
87300MA
87350-4Z384
Cushion assy-front seat
2001-06-01 ~ 2001-08-01; *4S.SR20DE +*4S.(GXE+CA); , |
87350-4Z384 |
— | ||
|
87300MA
|
87300MA
87350-5M010
Cushion assy-front seat
2000-01-01 ~ 2000-08-01; 4S.SR20DE +4S.(GXE+CA); , |
87350-5M010 |
— | ||
|
87300MA
|
87300MA
87350-5M014
Cushion assy-front seat
2000-01-01 ~ 2000-08-01; 4S.SR20DE +4S.(GXE+CA); , |
87350-5M014 |
— | ||
|
87300MA
|
87300MA
87350-5M070
Cushion assy-front seat
2000-01-01 ~ 2001-06-01; *4S.SR20DE +*4S.(GXE+CA); , |
87350-5M070 |
— | ||
|
87300MA
|
87300MA
87350-5M074
Cushion assy-front seat
2000-01-01 ~ 2001-06-01; *4S.SR20DE +*4S.(GXE+CA); , |
87350-5M074 |
— | ||
|
87301MA
|
87301MA
87351-4Z300
Frame assy-front seat cushion
2001-06-01 ~ 2001-08-01; *4S.SR20DE +*4S.(GXE+CA); , |
87351-4Z300 |
— | ||
|
87301MA
|
87301MA
87351-89900 Frame Assy-Front Seat Cushion2000-01-01 ~ 2001-08-01; *4S.SR20DE; , |
87351-89900 |
US $244.80 |
||
|
87311QA
|
87311QA
87361-5M002
Pad-front seat cushion
2000-01-01 ~ 2001-08-01; *4S.SR20DE; , |
87361-5M002 |
— | ||
|
87318E
|
87318E
87346-89901 Knob-Lifter Lever2000-01-01 ~ 2001-08-01; *4S.SR20DE; , |
87346-89901 |
US $6.48 |
||
|
87318E
|
87318E
87346-89903 ﾉﾌﾞ,ﾘﾌﾀ- ﾚﾊﾞ-2000-01-01 ~ 2001-08-01; 4S; , |
87346-89903 |
US $5.33 |
||
|
87318E
|
87318E
87346-89912 ﾉﾌﾞ,ﾘﾌﾀ- ﾚﾊﾞ-2000-01-01 ~ 2001-08-01; 4S; , |
87346-89912 |
US $5.33 |
||
|
87320NA
|
87320NA
87370-4M813
Trim assy-front seat cushion
2000-01-01 ~ 2001-08-01; *4S.SR20DE; , |
87370-4M813 |
— | ||
|
87320NA
|
87320NA
87370-4Z313
Trim assy-front seat cushion
2001-06-01 ~ 2001-08-01; *4S.SR20DE; , |
87370-4Z313 |
— | ||
|
87320NA
|
87320NA
87370-4Z380
Trim assy-front seat cushion
2001-06-01 ~ 2001-08-01; *4S.SR20DE +*4S.(GXE+CA); , |
87370-4Z380 |
— | ||
|
87320NA
|
87320NA
87370-4Z384
Trim assy-front seat cushion
2001-06-01 ~ 2001-08-01; *4S.SR20DE +*4S.(GXE+CA); , |
87370-4Z384 |
— | ||
|
87320NA
|
87320NA
87370-5M010
Trim assy-front seat cushion
2000-01-01 ~ 2001-07-01; 4S.SR20DE +4S.(GXE+CA); , |
87370-5M010 |
— | ||
|
87320NA
|
87320NA
87370-5M014
Trim assy-front seat cushion
2000-01-01 ~ 2001-08-01; 4S.SR20DE +4S.(GXE+CA); , |
87370-5M014 |
— | ||
|
87380
|
87380
87380-89914
Finisher assy-cushion,front seat lh
2000-01-01 ~ 2001-08-01; 4S; , |
87380-89914 |
— | ||
|
87380
|
87380
87380-89915
Finisher assy-cushion,front seat lh
2000-01-01 ~ 2001-08-01; 4S; , |
87380-89915 |
— | ||
|
87380
|
87380
87380-89916
Finisher assy-cushion,front seat lh
2000-01-01 ~ 2001-08-01; *4S.SR20DE; , |
87380-89916 |
— | ||
|
87381N
|
87381N
87381-89914
Finisher-cushion,front seat inner lh
2000-01-01 ~ 2001-08-01; 4S; , |
87381-89914 |
— | ||
|
87381N
|
87381N
87381-89915
Finisher-cushion,front seat inner lh
2000-01-01 ~ 2001-08-01; 4S; , |
87381-89915 |
— | ||
|
87381N
|
87381N
87381-89916
Finisher-cushion,front seat inner lh
2000-01-01 ~ 2001-08-01; *4S.SR20DE; , |
87381-89916 |
— | ||
|
87418+A
|
87418+A
87468-89901 Knob-Reclining Device2000-01-01 ~ 2001-08-01; *4S.SR20DE; , |
87468-89901 |
US $8.35 |
||
|
87418+A
|
87418+A
87468-89903 Knob-Reclining Device2000-01-01 ~ 2001-08-01; 4S; , |
87468-89903 |
US $4.18 |
||
|
87418+A
|
87418+A
87468-89912 ﾉﾌﾞ,ﾘｸﾗｲﾆﾝｸﾞ ﾃﾞｲﾊﾞｲｽ2000-01-01 ~ 2001-08-01; 4S; , |
87468-89912 |
US $4.18 |
||
|
87450
|
87450
87450-5M010
Adjuster assy-front seat,lh
2000-01-01 ~ 2001-08-01; *4S.SR20DE; , |
87450-5M010 |
— | ||
|
87450
|
87450
87450-5M060
Adjuster assy-front seat,lh
2000-01-01 ~ 2001-08-01; *4S.SR20DE; , |
87450-5M060 |
— | ||
|
87501A
|
87501A
86899-50J00 Bolt2000-01-01 ~ 2001-08-01; 4S; , |
86899-50J00 |
US $3.06 |
||
|
87505+B
|
87505+B
87558-5M000
Cover-seat slide
2000-01-01 ~ 2001-08-01; 4S; , |
87558-5M000 |
— | ||
|
87505+B
|
87505+B
87558-5M003
Cover-seat slide
2000-01-01 ~ 2001-08-01; 4S; , |
87558-5M003 |
— | ||
|
87505+B
|
87505+B
87558-5M004
Cover-seat slide
2000-01-01 ~ 2001-08-01; 4S; , |
87558-5M004 |
— | ||
|
87505+C
|
87505+C
87559-5M000
Cover-seat slide
2000-01-01 ~ 2001-08-01; 4S; , |
87559-5M000 |
— | ||
|
87505+C
|
87505+C
87559-5M003
Cover-seat slide
2000-01-01 ~ 2001-08-01; 4S; , |
87559-5M003 |
— | ||
|
87505+C
|
87505+C
87559-5M004
Cover-seat slide
2000-01-01 ~ 2001-08-01; 4S; , |
87559-5M004 |
— | ||
|
87532+A
|
87532+A
87532-0W720 Wire-Release2000-01-01 ~ 2001-06-01; *4S.SR20DE; , |
87532-0W720 |
US $5.33 |
||
|
87532+A
|
87532+A
87532-4Z300
Wire-release
2001-06-01 ~ 2001-08-01; *4S.SR20DE +*4S.(GXE+CA); , |
87532-4Z300 |
— | ||
|
87600MA
|
87600MA
87600-4M803
Back assy-front seat
2000-01-01 ~ 2001-08-01; *4S.SR20DE; , |
87600-4M803 |
— | ||
|
87600MA
|
87600MA
87600-5M000
Back assy-front seat
2000-01-01 ~ 2001-08-01; 4S.SR20DE +4S.(GXE+CA); , |
87600-5M000 |
— | ||
|
87600MA
|
87600MA
87600-5M004
Back assy-front seat
2000-01-01 ~ 2001-08-01; 4S.SR20DE +4S.(GXE+CA); , |
87600-5M004 |
— | ||
|
87601MA
|
87601MA
87651-89902 Frame Assy-Front Seat Back2000-01-01 ~ 2001-08-01; 4S; , |
87651-89902 |
US $226.08 |
||
|
87602+A
|
87602+A
87602-89900 Holder Assy-Headrest, Lock2000-01-01 ~ 2001-08-01; *4S.SR20DE; , |
87602-89900 |
US $4.18 |
||
|
87602+A
|
87602+A
8760289903 Holder Assy-Headrest, Lock2000-01-01 ~ 2001-08-01; 4S; , |
8760289903 |
US $4.18 |
||
|
87602+A
|
87602+A
87602-89912 Holder Assy-Headrest, Lock2000-01-01 ~ 2001-08-01; 4S; , |
87602-89912 |
US $4.18 |
||
|
87603+A
|
87603+A
87603-89900 Holder Assy-Headrest, Free2000-01-01 ~ 2001-08-01; *4S.SR20DE; , |
87603-89900 |
US $4.18 |
||
|
87603+A
|
87603+A
8760389903 Holder Assy-Headrest, Free2001-06-01 ~ 2001-08-01; *4S.SR20DE +*4S.(GXE+CA); , |
8760389903 |
US $2.45 |
||
|
87603+A
|
87603+A
87603-89912 Holder Assy-Headrest, Free2000-01-01 ~ 2001-08-01; 4S; , |
87603-89912 |
US $4.18 |
||
|
87611QA
|
87611QA
87611-5M002
Pad-front seat back
2000-01-01 ~ 2001-08-01; 4S; , |
87611-5M002 |
— | ||
|
87620PA
|
87620PA
87620-4M803
Trim assy-front seat back
2000-01-01 ~ 2001-08-01; *4S.SR20DE; , |
87620-4M803 |
— | ||
|
87620PA
|
87620PA
87620-5M000
Trim assy-front seat back
2000-01-01 ~ 2001-08-01; 4S.SR20DE +4S.(GXE+CA); , |
87620-5M000 |
— | ||
|
87620PA
|
87620PA
87620-5M004
Trim assy-front seat back
2000-01-01 ~ 2001-08-01; 4S.SR20DE +4S.(GXE+CA); , |
87620-5M004 |
— |
