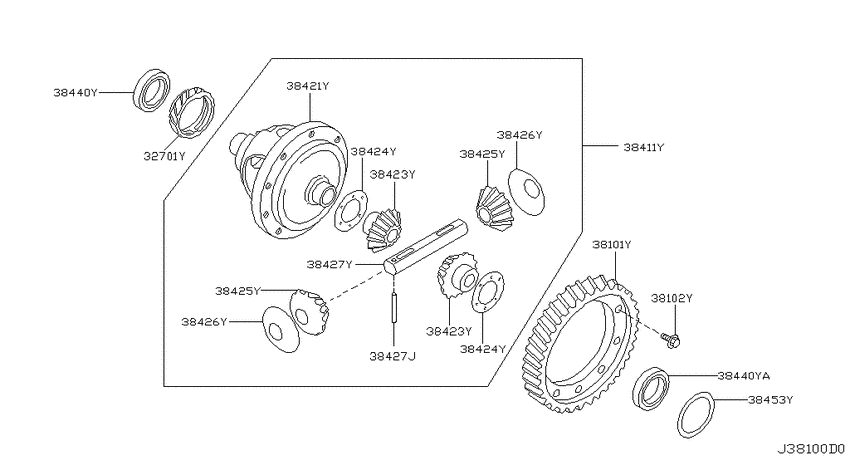

Front final drive (2001-10-01 ~ 2003-04-01; QR25DE.SER.MT) Diagram Nissan SENTRA/200SX
- Year
- 2001 - 2003
- Sales region
- U.S.A.
- Engine
- QR25DE
- transmission
- MT
- body
- 4S
- trim lvl
- SER
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32701Y
|
32701Y
32701-80X00 Gear-Drive, Speedometer2002-07-01 ~ 2003-04-01; QR25DE.MT; , |
32701-80X00 |
US $11.95 |
||
|
38101Y
|
38101Y
38101-8H506
Gear-Final Drive
2001-10-01 ~ 2002-07-01; QR25DE.SER.MT; , |
38101-8H506 |
— | ||
|
38102Y
|
38102Y
38102-8H500 Bolt-Drive Gear2001-10-01 ~ 2003-04-01; QR25DE.MT; , |
38102-8H500 |
US $2.45 |
||
|
38411Y
|
38411Y
38411-8H500 Case Compl-Differential2001-10-01 ~ 2003-04-01; QR25DE.SER.MT; , |
38411-8H500 |
US $774.55 |
||
|
38421Y
|
38421Y
38421-8H500 Case-Differential2001-10-01 ~ 2003-04-01; QR25DE.SER.MT; , |
38421-8H500 |
US $372.41 |
||
|
38423Y
|
38423Y
38423-81X00 Gear-Side2001-10-01 ~ 2003-04-01; QR25DE.SER.MT; , |
38423-81X00 |
US $100.80 |
||
|
38423Y
|
38423Y
38423-81X00 Gear-Side2001-10-01 ~ 2003-04-01; QR25DE.SER.MT; , |
38423-81X00 |
US $100.80 |
||
|
38424Y
|
38424Y
38424-81X00 Washer-Thrust, Side Gear2001-10-01 ~ 2003-04-01; QR25DE.SER.MT; SELECT L=0.75 |
38424-81X00 |
US $4.85 |
||
|
38424Y
|
38424Y
38424-81X01 Washer-Thrust, Side Gear2001-10-01 ~ 2003-04-01; QR25DE.SER.MT; SELECT L=0.80 |
38424-81X01 |
US $4.85 |
||
|
38424Y
|
38424Y
38424-81X02 Washer-Thrust, Side Gear2001-10-01 ~ 2003-04-01; QR25DE.SER.MT; SELECT L=0.85 |
38424-81X02 |
US $4.85 |
||
|
38424Y
|
38424Y
38424-81X03 Washer-Thrust, Side Gear2001-10-01 ~ 2003-04-01; QR25DE.SER.MT; SELECT L=0.90 |
38424-81X03 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-81X04 Washer-Thrust, Side Gear2001-10-01 ~ 2003-04-01; QR25DE.SER.MT; SELECT L=0.95 |
38424-81X04 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-81X00 Washer-Thrust, Side Gear2001-10-01 ~ 2003-04-01; QR25DE.SER.MT; SELECT L=0.75 |
38424-81X00 |
US $4.85 |
||
|
38424Y
|
38424Y
38424-81X01 Washer-Thrust, Side Gear2001-10-01 ~ 2003-04-01; QR25DE.SER.MT; SELECT L=0.80 |
38424-81X01 |
US $4.85 |
||
|
38424Y
|
38424Y
38424-81X02 Washer-Thrust, Side Gear2001-10-01 ~ 2003-04-01; QR25DE.SER.MT; SELECT L=0.85 |
38424-81X02 |
US $4.85 |
||
|
38424Y
|
38424Y
38424-81X03 Washer-Thrust, Side Gear2001-10-01 ~ 2003-04-01; QR25DE.SER.MT; SELECT L=0.90 |
38424-81X03 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-81X04 Washer-Thrust, Side Gear2001-10-01 ~ 2003-04-01; QR25DE.SER.MT; SELECT L=0.95 |
38424-81X04 |
US $4.18 |
||
|
38425Y
|
38425Y
38425-81X01 Pinion-Mate2001-10-01 ~ 2003-04-01; QR25DE.SER.MT; , |
38425-81X01 |
US $43.49 |
||
|
38425Y
|
38425Y
38425-81X01 Pinion-Mate2001-10-01 ~ 2003-04-01; QR25DE.SER.MT; , |
38425-81X01 |
US $43.49 |
||
|
38426Y
|
38426Y
38426-81X00 Washer-Thrust, Pinion Mate2001-10-01 ~ 2003-04-01; QR25DE.SER.MT; , |
38426-81X00 |
US $3.46 |
||
|
38426Y
|
38426Y
38426-81X00 Washer-Thrust, Pinion Mate2001-10-01 ~ 2003-04-01; QR25DE.SER.MT; , |
38426-81X00 |
US $3.46 |
||
|
38427J
|
38427J
38428U1500 Pin-Lock, Pinion Shaft2001-10-01 ~ 2003-04-01; QR25DE.SER.MT; , |
38428U1500 |
from US $0.50 |
||
|
38427Y
|
38427Y
38427-8H500 Shaft-Pinion Mate2001-10-01 ~ 2003-04-01; QR25DE.SER.MT; , |
38427-8H500 |
US $63.22 |
||
|
38440Y
|
38440Y
38440-8H500 Bearing-Differential Side2001-10-01 ~ 2003-04-01; QR25DE.MT; , |
38440-8H500 |
from US $29.86 |
||
|
38440Y
|
38440Y
38440-8H500 Bearing-Differential Side2001-10-01 ~ 2003-04-01; QR25DE.MT; , |
38440-8H500 |
from US $29.86 |
||
|
38440YA
|
38440YA
38440-8H500 Bearing-Differential Side2001-10-01 ~ 2003-04-01; QR25DE.MT; , |
38440-8H500 |
from US $29.86 |
||
|
38453Y
|
38453Y
31438-80X00 Shim-Adjust, Side Bearing2001-10-01 ~ 2003-04-01; QR25DE.MT; SELECT L=0.48 |
31438-80X00 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X01 Shim-Adjust, Side Bearing2001-10-01 ~ 2003-04-01; QR25DE.MT; SELECT L=0.52 |
31438-80X01 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X02 Shim-Adjust, Side Bearing2001-10-01 ~ 2003-04-01; QR25DE.MT; SELECT L=0.56 |
31438-80X02 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X03 Shim-Adjust, Side Bearing2001-10-01 ~ 2003-04-01; QR25DE.MT; SELECT L=0.60 |
31438-80X03 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X04 Shim-Adjust, Side Bearing2001-10-01 ~ 2003-04-01; QR25DE.MT; SELECT L=0.64 |
31438-80X04 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X05 Shim-Adjust, Side Bearing2001-10-01 ~ 2003-04-01; QR25DE.MT; SELECT L=0.68 |
31438-80X05 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X06 Shim-Adjust, Side Bearing2001-10-01 ~ 2003-04-01; QR25DE.MT; SELECT L=0.72 |
31438-80X06 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X07 Shim-Adjust, Side Bearing2001-10-01 ~ 2003-04-01; QR25DE.MT; SELECT L=0.76 |
31438-80X07 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X08 Shim-Adjust, Side Bearing2001-10-01 ~ 2003-04-01; QR25DE.MT; SELECT L=0.80 |
31438-80X08 |
from US $5.47 |
||
|
38453Y
|
38453Y
31438-80X09 Shim-Adjust, Side Bearing2001-10-01 ~ 2003-04-01; QR25DE.MT; SELECT L=0.84 |
31438-80X09 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X10 Shim-Adjust, Side Bearing2001-10-01 ~ 2003-04-01; QR25DE.MT; SELECT L=0.88 |
31438-80X10 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X11 Shim-Adjust, Side Bearing2001-10-01 ~ 2003-04-01; QR25DE.MT; SELECT L=0.92 |
31438-80X11 |
US $5.47 |
