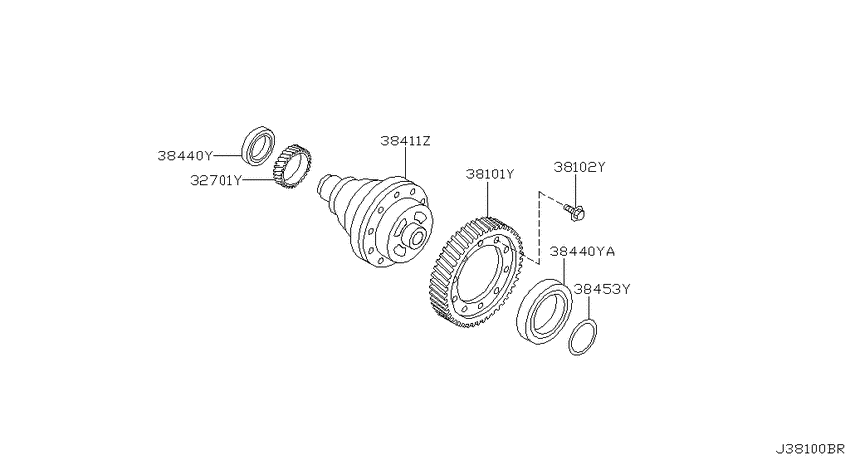

Front final drive (2003-04-01 ~ ; QR25DE.MT) Diagram Nissan SENTRA/200SX
- Year
- 2003 - 2011
- Sales region
- U.S.A.
- Engine
- QR25DE
- transmission
- MT
- body
- 4S
- trim lvl
- SERSPECV
- emission
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32701Y
|
32701Y
32701-80X00 Gear-Drive, Speedometer2003-04-01 ~ 2004-10-01; QR25DE.MT; , |
32701-80X00 |
US $11.95 |
||
|
32701Y
|
32701Y
32701-80X01 Gear-Drive, Speedometer2004-10-01 ~ ; QR25DE.MT; , |
32701-80X01 |
from US $11.51 |
||
|
38101Y
|
38101Y
38101-3A102
Gear-Final Drive
2003-04-01 ~ ; QR25DE.MT; , |
38101-3A102 |
— | ||
|
38102Y
|
38102Y
38102-8H500 Bolt-Drive Gear2003-04-01 ~ ; QR25DE.MT; , |
38102-8H500 |
US $2.45 |
||
|
38411Z
|
38411Z
38411-8U000
Case Compl-Differential
2003-04-01 ~ ; QR25DE.MT; , |
38411-8U000 |
— | ||
|
38440Y
|
38440Y
38440-8H500 Bearing-Differential Side2003-04-01 ~ ; QR25DE.MT; , |
38440-8H500 |
from US $29.80 |
||
|
38440Y
|
38440Y
38440-8H500 Bearing-Differential Side2003-04-01 ~ ; QR25DE.MT; , |
38440-8H500 |
from US $29.80 |
||
|
38440YA
|
38440YA
38440-8H500 Bearing-Differential Side2003-04-01 ~ ; QR25DE.MT; , |
38440-8H500 |
from US $29.80 |
||
|
38453Y
|
38453Y
31438-80X00 Shim-Adjust, Side Bearing2003-04-01 ~ ; QR25DE.MT; SELECT L=0.48 |
31438-80X00 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X01 Shim-Adjust, Side Bearing2003-04-01 ~ ; QR25DE.MT; SELECT L=0.52 |
31438-80X01 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X02 Shim-Adjust, Side Bearing2003-04-01 ~ ; QR25DE.MT; SELECT L=0.56 |
31438-80X02 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X03 Shim-Adjust, Side Bearing2003-04-01 ~ ; QR25DE.MT; SELECT L=0.60 |
31438-80X03 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X04 Shim-Adjust, Side Bearing2003-04-01 ~ ; QR25DE.MT; SELECT L=0.64 |
31438-80X04 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X05 Shim-Adjust, Side Bearing2003-04-01 ~ ; QR25DE.MT; SELECT L=0.68 |
31438-80X05 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X06 Shim-Adjust, Side Bearing2003-04-01 ~ ; QR25DE.MT; SELECT L=0.72 |
31438-80X06 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X07 Shim-Adjust, Side Bearing2003-04-01 ~ ; QR25DE.MT; SELECT L=0.76 |
31438-80X07 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X08 Shim-Adjust, Side Bearing2003-04-01 ~ ; QR25DE.MT; SELECT L=0.80 |
31438-80X08 |
from US $5.47 |
||
|
38453Y
|
38453Y
31438-80X09 Shim-Adjust, Side Bearing2003-04-01 ~ ; QR25DE.MT; SELECT L=0.84 |
31438-80X09 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X10 Shim-Adjust, Side Bearing2003-04-01 ~ ; QR25DE.MT; SELECT L=0.88 |
31438-80X10 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X11 Shim-Adjust, Side Bearing2003-04-01 ~ ; QR25DE.MT; SELECT L=0.92 |
31438-80X11 |
US $5.47 |
