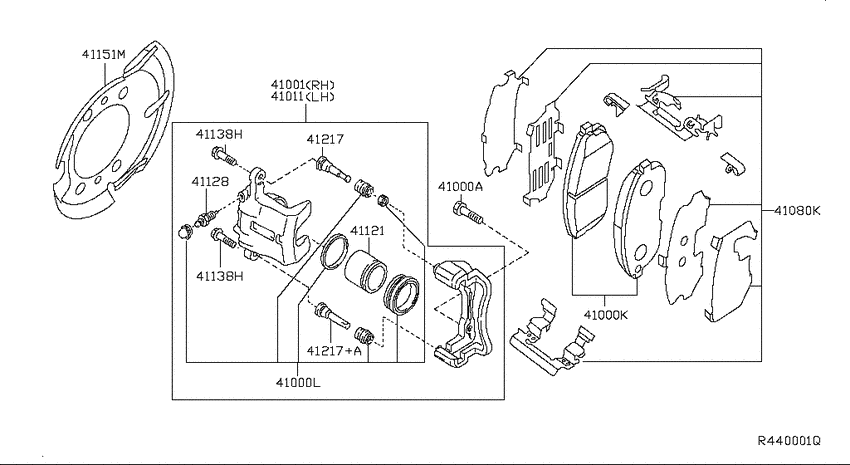

Front brake (2006-09-01 ~ 2008-09-01; MR20DE) Diagram Nissan SENTRA/200SX
- Year
- 2006 - 2008
- Sales region
- U.S.A.
- Engine
- MR20DE
- transmission
- CVT
- grade
- 2.0
- body
- 4S
- area
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41000A
|
41000A
41005-AU000 Bolt2006-09-01 ~ 2007-02-01; MR20DE; , |
41005-AU000 |
US $3.46 |
||
|
41000A
|
41000A
41005AU00A Bolt2007-03-01 ~ 2007-08-01; MR20DE; , |
41005AU00A |
from US $2.24 |
||
|
41000K
|
41000K
D1060-AC20A
Pad Kit-Disc Brake, Front
2007-08-01 ~ 2008-02-01; MR20DE; , |
D1060-AC20A |
— | ||
|
41000L
|
41000L
41120-2Y027
Seal Kit-Disc Brake
2006-09-01 ~ 2008-09-01; MR20DE; , |
41120-2Y027 |
— | ||
|
41001
|
41001
41001-ET000
Caliper Assy-Front Rh, W/o Pad & Shim
2006-09-01 ~ 2008-02-01; MR20DE; , |
41001-ET000 |
— | ||
|
41001
|
41001
41001-ET00A
Caliper Assy-Front Rh, W/o Pad & Shim
2008-02-01 ~ 2008-09-01; MR20DE; , |
41001-ET00A |
— | ||
|
41011
|
41011
41011-ET000
Caliper Assy-Front Lh, W/o Pad & Shim
2006-09-01 ~ 2008-02-01; MR20DE; , |
41011-ET000 |
— | ||
|
41011
|
41011
41011-ET00A
Caliper Assy-Front Lh, W/o Pad & Shim
2008-02-01 ~ 2008-09-01; MR20DE; , |
41011-ET00A |
— | ||
|
41080K
|
41080K
41080-ZB525
Hardware Kit-Front Disc Brake Pad
2006-09-01 ~ 2008-09-01; MR20DE; , |
41080-ZB525 |
— | ||
|
41121
|
41121
41121-5B600
Piston-Cylinder
2006-09-01 ~ 2008-09-01; MR20DE; , |
41121-5B600 |
— | ||
|
41128
|
41128
41128-4B000
Screw-Bleeder
2006-09-01 ~ 2008-02-01; MR20DE; , |
41128-4B000 |
— | ||
|
41128
|
41128
41128-JA00A
Screw-Bleeder
2008-02-01 ~ 2008-09-01; MR20DE; , |
41128-JA00A |
— | ||
|
41138H
|
41138H
44141-4B000
Bolt-Pin
2006-09-01 ~ 2008-02-01; MR20DE; , |
44141-4B000 |
— | ||
|
41138H
|
41138H
44141-JA00A
Bolt-Pin
2008-02-01 ~ 2008-09-01; MR20DE; , |
44141-JA00A |
— | ||
|
41138H
|
41138H
44141-4B000
Bolt-Pin
2006-09-01 ~ 2008-02-01; MR20DE; , |
44141-4B000 |
— | ||
|
41138H
|
41138H
44141-JA00A
Bolt-Pin
2008-02-01 ~ 2008-09-01; MR20DE; , |
44141-JA00A |
— | ||
|
41151M
|
41151M
41151-ET000
Baffle Plate
2006-09-01 ~ 2008-09-01; MR20DE; , |
41151-ET000 |
— | ||
|
41217
|
41217
44139-2Y000 Pin-Slide2006-09-01 ~ 2008-02-01; MR20DE; , |
44139-2Y000 |
US $15.12 |
||
|
41217
|
41217
44139-ZK80A Pin2008-02-01 ~ 2008-09-01; MR20DE; , |
44139-ZK80A |
US $10.12 |
||
|
41217
|
41217
44140N9500 Pin-Lock2006-09-01 ~ 2008-09-01; MR20DE; , |
44140N9500 |
from US $8.45 |
||
|
41217+A
|
41217+A
44140N9500 Pin-Lock2006-09-01 ~ 2008-09-01; MR20DE; , |
44140N9500 |
from US $8.45 |
