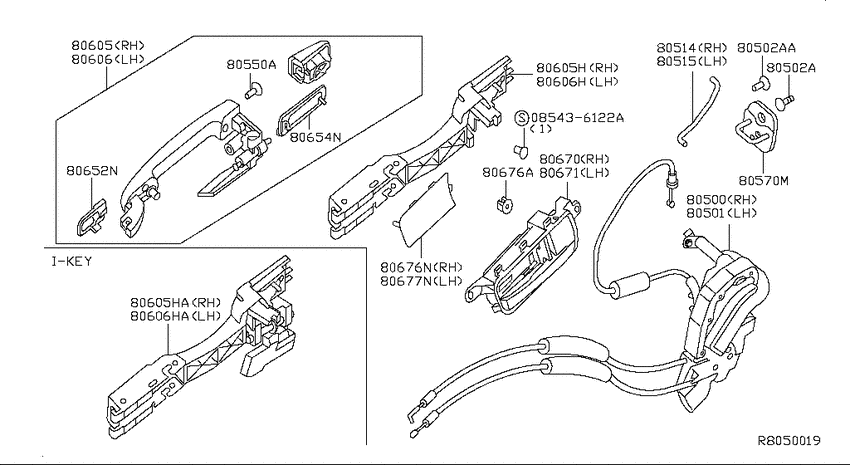

Front door lock & handle (2006-09-01 ~ 2008-09-01; 4S) Diagram Nissan SENTRA/200SX
- Year
- 2006 - 2008
- Sales region
- U.S.A.
- Engine
- MR20DE
- transmission
- CVT
- grade
- 2.0
- body
- 4S
- area
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
085436122A
|
085436122A
08543-6122A
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08543-6122A |
— | ||
|
80500
|
80500
80500-ET200
Lock & Remote Control Assy-Front Door, Rh
2006-09-01 ~ 2007-08-01; *4S.2.0; , |
80500-ET200 |
— | ||
|
80500
|
80500
80500-ET20A
Lock & remote control assy-front door,rh
2006-09-01 ~ 2007-08-01; 4S.2.0; , |
80500-ET20A |
— | ||
|
80501
|
80501
80501-ET200
Lock & remote control assy-front door,lh
2007-08-01 ~ 2008-09-01; 4S.2.0; , |
80501-ET200 |
— | ||
|
80502A
|
80502A
01433-00171 SCREW2006-09-01 ~ 2007-03-01; 4S; , |
01433-00171 |
from US $0.96 |
||
|
80502A
|
80502A
0143300181 SCREW2007-03-01 ~ 2008-09-01; 4S; , |
0143300181 |
US $2.45 |
||
|
80502A
|
80502A
80599-AX000 Screw2006-09-01 ~ 2007-03-01; 4S; , |
80599-AX000 |
US $2.45 |
||
|
80502A
|
80502A
80599AX00E Screw2007-03-01 ~ 2008-09-01; 4S; , |
80599AX00E |
US $2.45 |
||
|
80502AA
|
80502AA
80599-AX000 Screw2006-09-01 ~ 2007-03-01; 4S; , |
80599-AX000 |
US $2.45 |
||
|
80502AA
|
80502AA
80599AX00E Screw2007-03-01 ~ 2008-09-01; 4S; , |
80599AX00E |
US $2.45 |
||
|
80514
|
80514
80514-ET000
Rod-key lock,rh
2006-09-01 ~ 2008-09-01; 4S.2.0; , |
80514-ET000 |
— | ||
|
80515
|
80515
80515-ET000
Rod-Key Lock, Lh
2006-09-01 ~ 2008-09-01; 4S; , |
80515-ET000 |
— | ||
|
80550A
|
80550A
0114100471 BOLT2006-09-01 ~ 2007-08-01; *4S.2.0; , |
0114100471 |
US $2.45 |
||
|
80570M
|
80570M
80570-4Z000
Striker Assy-Front Door Lock
2006-09-01 ~ 2007-03-01; 4S; , |
80570-4Z000 |
— | ||
|
80570M
|
80570M
80570AA20A Striker Assy-Front Door Lock2007-03-01 ~ 2008-09-01; 4S; , |
80570AA20A |
from US $32.98 |
||
|
80605
|
80605
80606-ET00A
Handle Assy-Front Door Outside, Rh
2006-09-01 ~ 2008-09-01; *4S.2.0; , |
80606-ET00A |
— | ||
|
80605
|
80605
80606-ET00B
Handle Assy-Front Door Outside, Rh
2006-09-01 ~ 2008-09-01; *4S.2.0; , |
80606-ET00B |
— | ||
|
80605
|
80605
80606-ET00C
Handle assy-front door outside,rh
2006-09-01 ~ 2007-08-01; 4S.2.0; , |
80606-ET00C |
— | ||
|
80605
|
80605
80606-ET01A
Handle Assy-Front Door Outside, Rh
2006-09-01 ~ 2008-09-01; *4S.2.0; , |
80606-ET01A |
— | ||
|
80605
|
80605
80606-ET01B
Handle Assy-Front Door Outside, Rh
2006-09-01 ~ 2008-09-01; *4S.2.0; , |
80606-ET01B |
— | ||
|
80605
|
80605
80606-ET01C
Handle assy-front door outside,rh
2006-09-01 ~ 2007-08-01; 4S.2.0; , |
80606-ET01C |
— | ||
|
80605
|
80605
80606-ET02A
Handle Assy-Front Door Outside, Rh
2006-09-01 ~ 2008-09-01; *4S.2.0; , |
80606-ET02A |
— | ||
|
80605
|
80605
80606-ET02C
Handle assy-front door outside,rh
2006-09-01 ~ 2007-08-01; 4S.2.0; , |
80606-ET02C |
— | ||
|
80605
|
80605
80606-ET03A
Handle Assy-Front Door Outside, Rh
2006-09-01 ~ 2008-09-01; *4S.2.0; , |
80606-ET03A |
— | ||
|
80605
|
80605
80606-ET03C
Handle assy-front door outside,rh
2006-09-01 ~ 2007-08-01; 4S.2.0; , |
80606-ET03C |
— | ||
|
80605
|
80605
80606-ET04A
Handle Assy-Front Door Outside, Rh
2006-09-01 ~ 2008-09-01; *4S.2.0; , |
80606-ET04A |
— | ||
|
80605
|
80605
80606-ET04C
Handle assy-front door outside,rh
2006-09-01 ~ 2007-08-01; 4S.2.0; , |
80606-ET04C |
— | ||
|
80605
|
80605
80606-ET05A
Handle Assy-Front Door Outside, Rh
2006-09-01 ~ 2008-09-01; *4S.2.0; , |
80606-ET05A |
— | ||
|
80605
|
80605
80606-ET05C
Handle assy-front door outside,rh
2006-09-01 ~ 2007-08-01; 4S.2.0; , |
80606-ET05C |
— | ||
|
80605
|
80605
80606-ET06A
Handle Assy-Front Door Outside, Rh
2006-09-01 ~ 2008-09-01; *4S.2.0; , |
80606-ET06A |
— | ||
|
80605
|
80605
80606-ET06C
Handle assy-front door outside,rh
2006-09-01 ~ 2007-08-01; 4S.2.0; , |
80606-ET06C |
— | ||
|
80605
|
80605
80606-ET07A
Handle Assy-Front Door Outside, Rh
2006-09-01 ~ 2008-09-01; *4S.2.0; , |
80606-ET07A |
— | ||
|
80605
|
80605
80606-ET08A
Handle Assy-Front Door Outside, Rh
2007-08-01 ~ 2008-09-01; 4S.QR25DE +4S.(2.0+2.0S); , |
80606-ET08A |
— | ||
|
80605
|
80605
80606-ET08C
Handle assy-front door outside,rh
2006-09-01 ~ 2007-08-01; 4S.2.0; , |
80606-ET08C |
— | ||
|
80605
|
80605
80606-ET09A
Handle Assy-Front Door Outside, Rh
2006-09-01 ~ 2008-09-01; *4S.2.0; , |
80606-ET09A |
— | ||
|
80605
|
80605
80606-ET09C
Handle assy-front door outside,rh
2006-09-01 ~ 2007-08-01; 4S.2.0; , |
80606-ET09C |
— | ||
|
80605
|
80605
80610-ET00A
Bracket-Outside Handle, Rh
2006-09-01 ~ 2007-08-01; *4S.2.0; , |
80610-ET00A |
— | ||
|
80605H
|
80605H
80610-ET00A
Bracket-Outside Handle, Rh
2006-09-01 ~ 2007-08-01; *4S.2.0; , |
80610-ET00A |
— | ||
|
80606
|
80606
80607-ET00A
Handle Assy-Front Door Outside, Lh
2006-09-01 ~ 2007-08-01; 4S.2.0; , |
80607-ET00A |
— | ||
|
80606
|
80606
80607-ET00B
Handle Assy-Front Door Outside, Lh
2006-09-01 ~ 2008-09-01; *4S.2.0; , |
80607-ET00B |
— | ||
|
80606
|
80606
80607-ET01A
Handle Assy-Front Door Outside, Lh
2006-09-01 ~ 2008-09-01; *4S.2.0; , |
80607-ET01A |
— | ||
|
80606
|
80606
80607-ET01B
Handle Assy-Front Door Outside, Lh
2006-09-01 ~ 2008-09-01; *4S.2.0; , |
80607-ET01B |
— | ||
|
80606
|
80606
80607-ET02A
Handle Assy-Front Door Outside, Lh
2006-09-01 ~ 2007-08-01; 4S.2.0; , |
80607-ET02A |
— | ||
|
80606
|
80606
80607-ET03A
Handle Assy-Front Door Outside, Lh
2006-09-01 ~ 2007-08-01; 4S.2.0; , |
80607-ET03A |
— | ||
|
80606
|
80606
80607-ET04A
Handle Assy-Front Door Outside, Lh
2006-09-01 ~ 2007-08-01; 4S.2.0; , |
80607-ET04A |
— | ||
|
80606
|
80606
80607-ET05A
Handle Assy-Front Door Outside, Lh
2006-09-01 ~ 2007-08-01; 4S.2.0; , |
80607-ET05A |
— | ||
|
80606
|
80606
80607-ET06A
Handle Assy-Front Door Outside, Lh
2006-09-01 ~ 2007-08-01; 4S.2.0; , |
80607-ET06A |
— | ||
|
80606
|
80606
80607-ET07A
Handle Assy-Front Door Outside, Lh
2007-08-01 ~ 2008-09-01; 4S.QR25DE +4S.(2.0+2.0S); , |
80607-ET07A |
— | ||
|
80606
|
80606
80607-ET08A
Handle Assy-Front Door Outside, Lh
2006-09-01 ~ 2007-08-01; 4S.2.0; , |
80607-ET08A |
— | ||
|
80606
|
80606
80607-ET09A
Handle Assy-Front Door Outside, Lh
2006-09-01 ~ 2007-08-01; 4S.2.0; , |
80607-ET09A |
— | ||
|
80606
|
80606
80611-ET00A
Bracket-Outside Handle, Lh
2006-09-01 ~ 2007-08-01; *4S.2.0; , |
80611-ET00A |
— | ||
|
80606H
|
80606H
80611-ET00A
Bracket-Outside Handle, Lh
2006-09-01 ~ 2007-08-01; *4S.2.0; , |
80611-ET00A |
— | ||
|
80652N
|
80652N
80652-ET000 Gasket-Outside Handle, Front Door2006-09-01 ~ 2007-08-01; *4S.2.0; , |
80652-ET000 |
US $2.24 |
||
|
80654N
|
80654N
80654-ET000
Gasket-Outside Handle, Front Door
2006-09-01 ~ 2007-08-01; *4S.2.0; , |
80654-ET000 |
— | ||
|
80670
|
80670
80670-ET000
Handle Assy-Door Inside, Rh
2006-09-01 ~ 2008-09-01; 4S.2.0; , |
80670-ET000 |
— | ||
|
80670
|
80670
80670-ET001
Handle Assy-Door Inside, Rh
2006-09-01 ~ 2008-09-01; 4S.2.0; , |
80670-ET001 |
— | ||
|
80671
|
80671
80671-ET000
Handle Assy-Door Inside, Lh
2006-09-01 ~ 2008-09-01; 4S.2.0; , |
80671-ET000 |
— | ||
|
80671
|
80671
80671-ET001
Handle Assy-Door Inside, Lh
2006-09-01 ~ 2008-09-01; 4S.2.0; , |
80671-ET001 |
— | ||
|
80676A
|
80676A
0128100111 GROMMET-SCREW2006-09-01 ~ 2007-08-01; 4S.2.0; , |
0128100111 |
from US $0.85 |
||
|
80676N
|
80676N
80676-ET000
Cap-Inside Handle, Rh
2006-09-01 ~ 2007-08-01; 4S.2.0; , |
80676-ET000 |
— | ||
|
80676N
|
80676N
80676-ET001
Cap-Inside Handle, Rh
2006-09-01 ~ 2007-08-01; 4S.2.0; , |
80676-ET001 |
— | ||
|
80677N
|
80677N
80677-ET000
Cap-Inside Handle, Lh
2006-09-01 ~ 2007-08-01; 4S.2.0; , |
80677-ET000 |
— | ||
|
80677N
|
80677N
80677-ET001
Cap-Inside Handle, Lh
2006-09-01 ~ 2007-08-01; 4S.2.0; , |
80677-ET001 |
— |
