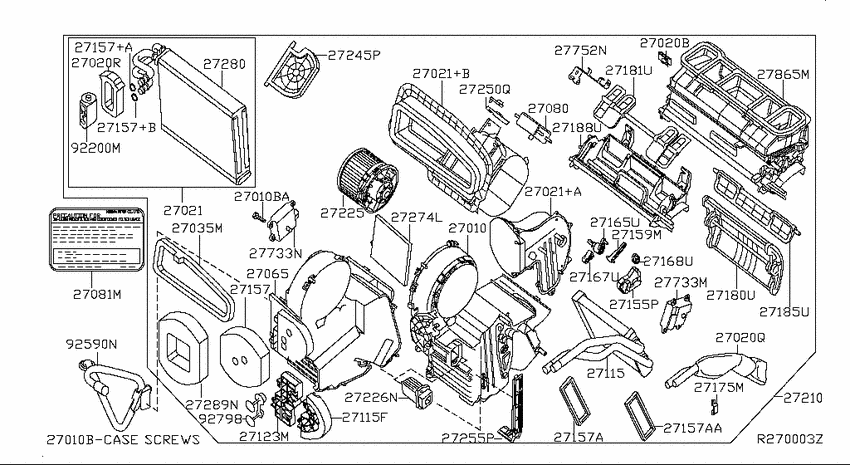

Heater & blower unit (2006-09-01 ~ 2008-09-01; HEATER-FR; 4S) Diagram Nissan SENTRA/200SX
- Year
- 2006 - 2008
- Sales region
- U.S.A.
- Engine
- MR20DE
- transmission
- CVT
- grade
- 2.0
- body
- 4S
- area
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27010
|
27010
27110-ET00A
Heating Unit Assy-Front
2006-09-01 ~ 2008-09-01; 4S; , |
27110-ET00A |
— | ||
|
27010
|
27010
27111-2Y000 Screw2007-08-01 ~ 2008-09-01; 4S; , |
27111-2Y000 |
US $1.73 |
||
|
27010
|
27010
27111-2Y002 Screw2006-09-01 ~ 2007-08-01; 4S; , |
27111-2Y002 |
US $0.86 |
||
|
27010B
|
27010B
27111-2Y000 Screw2007-08-01 ~ 2008-09-01; 4S; , |
27111-2Y000 |
US $1.73 |
||
|
27010B
|
27010B
27111-2Y002 Screw2006-09-01 ~ 2007-08-01; 4S; , |
27111-2Y002 |
US $0.86 |
||
|
27010BA
|
27010BA
27111-2Y002 Screw2006-09-01 ~ 2007-08-01; 4S; , |
27111-2Y002 |
US $0.86 |
||
|
27020B
|
27020B
0124100011 NUT2006-11-01 ~ 2008-09-01; 4S; , |
0124100011 |
from US $2.21 |
||
|
27020Q
|
27020Q
27153-ET000
Clip
2006-09-01 ~ 2008-09-01; 4S; , |
27153-ET000 |
— | ||
|
27020R
|
27020R
92565-EN000
Cover-Grommet
2006-09-01 ~ 2008-09-01; 4S; , |
92565-EN000 |
— | ||
|
27021
|
27021
27280-ET00A
Evaporator Assy-Front
2006-09-01 ~ 2007-08-01; 4S; , |
27280-ET00A |
— | ||
|
27021
|
27021
27280-ZE80A
Evaporator Assy-Front
2007-08-01 ~ 2008-09-01; 4S; , |
27280-ZE80A |
— | ||
|
27021
|
27021
27237-ET00A
Case-Blower
2006-09-01 ~ 2008-09-01; 4S; , |
27237-ET00A |
— | ||
|
27021
|
27021
27236-ET00A
Case-Blower
2006-09-01 ~ 2008-09-01; 4S; , |
27236-ET00A |
— | ||
|
27021+A
|
27021+A
27237-ET00A
Case-Blower
2006-09-01 ~ 2008-09-01; 4S; , |
27237-ET00A |
— | ||
|
27021+B
|
27021+B
27236-ET00A
Case-Blower
2006-09-01 ~ 2008-09-01; 4S; , |
27236-ET00A |
— | ||
|
27035M
|
27035M
28714-ET00A
Seal
2006-09-01 ~ 2008-09-01; 4S; , |
28714-ET00A |
— | ||
|
27065
|
27065
27235-ET000
Case Assy-Blower
2007-08-01 ~ 2008-09-01; 4S; , |
27235-ET000 |
— | ||
|
27065
|
27065
27235-ZJ60A
Case Assy-Blower
2006-09-01 ~ 2007-08-01; 4S; , |
27235-ZJ60A |
— | ||
|
27080
|
27080
27730ET00A Actuator-Air Intake Box2006-09-01 ~ 2008-09-01; 4S; , |
27730ET00A |
US $59 |
||
|
27081M
|
27081M
27081-EQ500 Label-Clean Filter2006-09-01 ~ 2008-09-01; 4S; , |
27081-EQ500 |
US $3.46 |
||
|
27115
|
27115
27140-ET00A
Core Assy-Front Heater
2006-09-01 ~ 2007-12-01; 4S; , |
27140-ET00A |
— | ||
|
27115
|
27115
27148-EN000 Support-Heater Core2006-09-01 ~ 2007-12-01; 4S; , |
27148-EN000 |
US $3.17 |
||
|
27115F
|
27115F
27148-EN000 Support-Heater Core2006-09-01 ~ 2007-12-01; 4S; , |
27148-EN000 |
US $3.17 |
||
|
27123M
|
27123M
27123-EN000
Case-Front Heater
2006-09-01 ~ 2007-12-01; 4S; , |
27123-EN000 |
— | ||
|
27155P
|
27155P
27155-CY000 Link-Main2006-09-01 ~ 2008-09-01; 4S; , |
27155-CY000 |
US $3.94 |
||
|
27157
|
27157
27174-EN000 Packing2006-09-01 ~ 2008-09-01; 4S; , |
27174-EN000 |
US $9.79 |
||
|
27157
|
27157
9247572L00 O Ring2006-09-01 ~ 2008-09-01; 4S; , |
9247572L00 |
from US $0.98 |
||
|
27157
|
27157
9247571L00 O Ring2006-09-01 ~ 2008-09-01; 4S; , |
9247571L00 |
from US $0.98 |
||
|
27157
|
27157
27174-ET00A
Packing
2006-09-01 ~ 2008-09-01; 4S; , |
27174-ET00A |
— | ||
|
27157
|
27157
27174-ET00B
Packing
2006-09-01 ~ 2008-09-01; 4S; , |
27174-ET00B |
— | ||
|
27157+A
|
27157+A
9247572L00 O Ring2006-09-01 ~ 2008-09-01; 4S; , |
9247572L00 |
from US $0.98 |
||
|
27157+B
|
27157+B
9247571L00 O Ring2006-09-01 ~ 2008-09-01; 4S; , |
9247571L00 |
from US $0.98 |
||
|
27157A
|
27157A
27174-ET00A
Packing
2006-09-01 ~ 2008-09-01; 4S; , |
27174-ET00A |
— | ||
|
27157A
|
27157A
27174-ET00B
Packing
2006-09-01 ~ 2008-09-01; 4S; , |
27174-ET00B |
— | ||
|
27157AA
|
27157AA
27174-ET00B
Packing
2006-09-01 ~ 2008-09-01; 4S; , |
27174-ET00B |
— | ||
|
27159M
|
27159M
27159-EN000 Link-Foot2006-09-01 ~ 2008-09-01; 4S; , |
27159-EN000 |
US $29.09 |
||
|
27165U
|
27165U
27165-EN000 Lever-Vent2006-09-01 ~ 2008-09-01; 4S; , |
27165-EN000 |
US $1.58 |
||
|
27167U
|
27167U
27167-CY000 Lever-Def2006-09-01 ~ 2008-09-01; 4S; , |
27167-CY000 |
US $1.73 |
||
|
27168U
|
27168U
27168-EN000 Lever-Foot2006-09-01 ~ 2008-09-01; 4S; , |
27168-EN000 |
US $3.17 |
||
|
27175M
|
27175M
27175-ET000
Bracket-front heater
2006-09-01 ~ 2008-09-01; 4S; , |
27175-ET000 |
— | ||
|
27180U
|
27180U
27180-AL500
Door-Front Heater
2006-09-01 ~ 2008-09-01; 4S; , |
27180-AL500 |
— | ||
| replacement | |||||
|
27180U
|
27180U
27180JD11A Door-Front Heater2006-09-01 ~ 2008-09-01; 4S; , |
27180JD11A |
US $111.73 |
||
|
27181U
|
27181U
27181-EN000 Door Assy-Vent, No.12006-09-01 ~ 2008-09-01; 4S; , |
27181-EN000 |
US $11.52 |
||
|
27185U
|
27185U
27185-EN000 Door Assy-Foot2006-09-01 ~ 2008-09-01; 4S; , |
27185-EN000 |
US $11.52 |
||
|
27188U
|
27188U
27188-CY000 Door Assy-Def2006-09-01 ~ 2008-09-01; 4S; , |
27188-CY000 |
US $12.10 |
||
|
27210
|
27210
27210-ET000
Blower Assy-Air Conditioner
2006-09-01 ~ 2007-08-01; 4S; , |
27210-ET000 |
— | ||
|
27210
|
27210
27210-ZE80A
Blower Assy-Air Conditioner
2007-08-01 ~ 2007-12-01; 4S; , |
27210-ZE80A |
— | ||
|
27210
|
27210
27210-ZJ60A
Blower Assy-Air Conditioner
2007-12-01 ~ 2008-09-01; 4S; , |
27210-ZJ60A |
— | ||
|
27225
|
27225
27225EN000
Motor Assy-Blower W/case
2006-09-01 ~ 2006-11-01; 4S; , |
27225EN000 |
— | ||
| replacement | |||||
|
27225
|
27225
27225-1VA0E Motor Assy-Blower W/case2006-09-01 ~ 2006-11-01; 4S; , |
27225-1VA0E |
US $238.92 |
||
|
27225
|
27225
27225-ET00A Motor Assy-Blower W/case2006-11-01 ~ 2008-09-01; 4S; , |
27225-ET00A |
US $284.10 |
||
|
27226N
|
27226N
2722670T03 Module Assy-Power2006-09-01 ~ 2008-09-01; 4S; , |
2722670T03 |
US $103.60 |
||
| replacement | |||||
|
27226N
|
27226N
27761-4BA0A Module Assy-Power2006-09-01 ~ 2008-09-01; 4S; , |
27761-4BA0A |
from US $163.03 |
||
|
27245P
|
27245P
27245-EN000 Door-Intake Blower, Front2006-09-01 ~ 2008-09-01; 4S; , |
27245-EN000 |
US $13.39 |
||
|
27250Q
|
27250Q
27253-ET00A
Lever
2006-09-01 ~ 2008-09-01; 4S; , |
27253-ET00A |
— | ||
|
27255P
|
27255P
27276EN000 Shaft-Door, Intake Blower2006-09-01 ~ 2008-09-01; 4S; , |
27276EN000 |
US $1.58 |
||
|
27274L
|
27274L
27277-EN000
Air Filter Kit-Air Conditioner
2006-09-01 ~ 2008-09-01; 4S; , |
27277-EN000 |
— | ||
|
27280
|
27280
27281EN000 Evapolator Assy-Front2006-09-01 ~ 2008-09-01; 4S; , |
27281EN000 |
US $181.44 |
||
|
27289N
|
27289N
27289-EN000 Grommet2006-09-01 ~ 2008-09-01; 4S; , |
27289-EN000 |
US $9.79 |
||
|
27733M
|
27733M
27731-EN000
Actuator Assy-Mode
2006-09-01 ~ 2008-09-01; 4S; , |
27731-EN000 |
— | ||
|
27733N
|
27733N
277328H300 Actuator Assy-Air Mix2006-09-01 ~ 2008-09-01; 4S; , |
277328H300 |
US $81.79 |
||
|
27752N
|
27752N
27752-ET00A
Bracket-Actuator
2006-09-01 ~ 2008-09-01; 4S; , |
27752-ET00A |
— | ||
|
27865M
|
27865M
27865-ET000
Adapter-Center Ventilator & Defroster
2006-09-01 ~ 2008-09-01; 4S; , |
27865-ET000 |
— | ||
|
92200M
|
92200M
922006N205 Valve Assy-Expansion2006-09-01 ~ 2008-09-01; 4S; , |
922006N205 |
from US $81.24 |
||
|
92590N
|
92590N
92590-ET000
Hose-drain
2006-09-01 ~ 2008-09-01; 4S; , |
92590-ET000 |
— | ||
|
92798
|
92798
927984M402 Seal2006-09-01 ~ 2008-09-01; 4S; , |
927984M402 |
US $0.86 |
||
