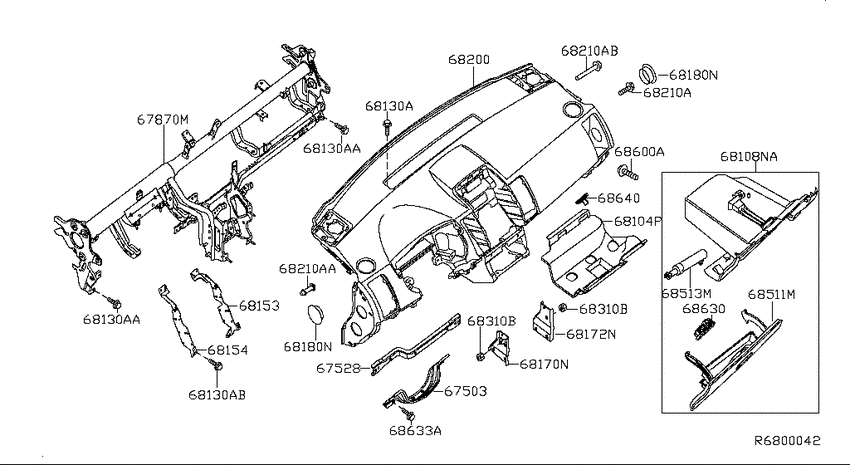

Instrument panel, pad & cluster lid (2006-09-01 ~ 2008-09-01; INST FITTING; 4S) Diagram Nissan SENTRA/200SX
- Year
- 2006 - 2008
- Sales region
- U.S.A.
- Engine
- MR20DE
- transmission
- CVT
- grade
- 2.0
- body
- 4S
- area
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67503
|
67503
67503-ET000
Protector Assy-Knee, Lh
2006-09-01 ~ 2008-09-01; 4S; , |
67503-ET000 |
— | ||
|
67528
|
67528
67528-ET000
Protector-Knee
2006-09-01 ~ 2008-09-01; 4S; , |
67528-ET000 |
— | ||
|
67870M
|
67870M
67870-ET000
Member Assy-Steering
2006-09-01 ~ 2006-11-01; 4S; , |
67870-ET000 |
— | ||
|
67870M
|
67870M
67870-ET00D
Member Assy-Steering
2006-11-01 ~ 2008-09-01; 4S; , |
67870-ET00D |
— | ||
|
68104P
|
68104P
68104-ET000
Panel-Instrument Under Cover
2006-09-01 ~ 2008-09-01; 4S; , |
68104-ET000 |
— | ||
|
68108NA
|
68108NA
68102-ET500
Panel-Instrument Lower, Assist
2006-09-01 ~ 2008-09-01; 4S; , |
68102-ET500 |
— | ||
|
68108NA
|
68108NA
68102-ET501
Panel-Instrument Lower, Assist
2006-09-01 ~ 2008-09-01; 4S; , |
68102-ET501 |
— | ||
|
68108NA
|
68108NA
68102-ET50C
Panel-Instrument Lower, Assist
2006-11-01 ~ 2007-08-01; 4S; , |
68102-ET50C |
— | ||
|
68130A
|
68130A
01125-03421 BOLT2006-09-01 ~ 2008-09-01; 4S; , |
01125-03421 |
US $1.93 |
||
|
68130A
|
68130A
01125-N8021 Bolt2006-09-01 ~ 2008-09-01; 4S; , |
01125-N8021 |
from US $0.87 |
||
|
68130A
|
68130A
01125-N004U
Bolt
2007-08-01 ~ 2008-09-01; 4S; , |
01125-N004U |
— | ||
|
68130AA
|
68130AA
01125-N8021 Bolt2006-09-01 ~ 2008-09-01; 4S; , |
01125-N8021 |
from US $0.87 |
||
|
68130AA
|
68130AA
01125-N8021 Bolt2006-09-01 ~ 2008-09-01; 4S; , |
01125-N8021 |
from US $0.87 |
||
|
68130AB
|
68130AB
01125-N004U
Bolt
2007-08-01 ~ 2008-09-01; 4S; , |
01125-N004U |
— | ||
|
68153
|
68153
28038-ET000
Bracket-Radio Mounting, Rh
2006-09-01 ~ 2008-09-01; 4S; , |
28038-ET000 |
— | ||
|
68154
|
68154
28039-ET000
Bracket-Radio Mounting, Lh
2006-09-01 ~ 2008-09-01; 4S; , |
28039-ET000 |
— | ||
|
68170N
|
68170N
68170-ET000
Stay Assy-Instrument, Driver
2006-09-01 ~ 2008-09-01; 4S; , |
68170-ET000 |
— | ||
|
68172N
|
68172N
68172-ET000
Stay Assy-Instrument, Assist
2006-09-01 ~ 2008-09-01; 4S; , |
68172-ET000 |
— | ||
|
68180N
|
68180N
681808J000 Cap-Bolt2006-09-01 ~ 2008-09-01; 4S; , |
681808J000 |
US $9.22 |
||
|
68180N
|
68180N
681808J000 Cap-Bolt2006-09-01 ~ 2008-09-01; 4S; , |
681808J000 |
US $9.22 |
||
|
68200
|
68200
68200-ET010
Panel & Pad Assy-Instrument
2006-09-01 ~ 2008-09-01; 4S.2.0; , |
68200-ET010 |
— | ||
|
68200
|
68200
68200-ET011
Panel & Pad Assy-Instrument
2006-09-01 ~ 2008-09-01; 4S.2.0; , |
68200-ET011 |
— | ||
|
68210A
|
68210A
67869-ET000 Bolt2006-09-01 ~ 2008-09-01; 4S; , |
67869-ET000 |
US $1.73 |
||
|
68210A
|
68210A
67869-ET010
Bolt
2006-09-01 ~ 2008-09-01; 4S; , |
67869-ET010 |
— | ||
|
68210A
|
68210A
67869-EN000 Bolt2006-09-01 ~ 2008-09-01; 4S; , |
67869-EN000 |
US $1.73 |
||
|
68210AA
|
68210AA
67869-ET010
Bolt
2006-09-01 ~ 2008-09-01; 4S; , |
67869-ET010 |
— | ||
|
68210AB
|
68210AB
67869-EN000 Bolt2006-09-01 ~ 2008-09-01; 4S; , |
67869-EN000 |
US $1.73 |
||
|
68310B
|
68310B
01225N8011 Nut2006-09-01 ~ 2008-09-01; 4S; , |
01225N8011 |
from US $0.70 |
||
|
68310B
|
68310B
01225N8011 Nut2006-09-01 ~ 2008-09-01; 4S; , |
01225N8011 |
from US $0.70 |
||
|
68511M
|
68511M
68510-ET500
Lid-Glove Box
2006-09-01 ~ 2008-09-01; 4S; , |
68510-ET500 |
— | ||
|
68511M
|
68511M
68510-ET501
Lid-Glove Box
2006-09-01 ~ 2008-09-01; 4S; , |
68510-ET501 |
— | ||
|
68511M
|
68511M
68510-ET50C
Lid-Glove Box
2006-11-01 ~ 2008-09-01; 4S; , |
68510-ET50C |
— | ||
|
68513M
|
68513M
68513-ET000
Damper Assy-Glove Box
2006-11-01 ~ 2008-09-01; 4S; , |
68513-ET000 |
— | ||
|
68600A
|
68600A
0145100581 SCREW2006-11-01 ~ 2008-09-01; 4S; , |
0145100581 |
from US $1.67 |
||
|
68600A
|
68600A
01454N5041 Bolt2006-09-01 ~ 2008-09-01; 4S; , |
01454N5041 |
from US $0.46 |
||
|
68630
|
68630
68630-ET50A
Lock Assy-Glove Box Lid
2006-09-01 ~ 2008-09-01; 4S; , |
68630-ET50A |
— | ||
|
68630
|
68630
68630-ET50B
Lock Assy-Glove Box Lid
2006-09-01 ~ 2008-09-01; 4S; , |
68630-ET50B |
— | ||
|
68630
|
68630
68630-ET50C
Lock Assy-Glove Box Lid
2006-09-01 ~ 2008-09-01; 4S; , |
68630-ET50C |
— | ||
|
68633A
|
68633A
01121-N6031 Bolt2006-09-01 ~ 2006-11-01; 4S; , |
01121-N6031 |
from US $1.39 |
||
|
68640
|
68640
68640-ET000
Striker-Glove Box Lid
2006-09-01 ~ 2008-09-01; 4S; , |
68640-ET000 |
— |
