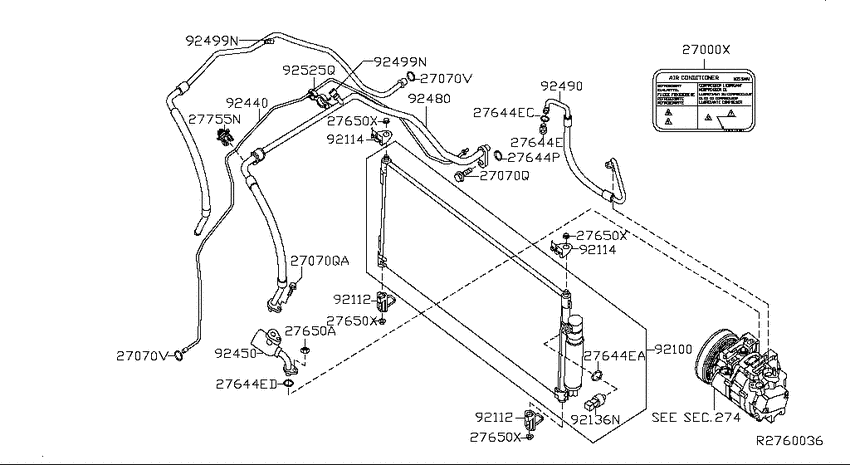

Condensor, liquid tank (2008-09-01 ~ ; 4S.QR25DE) Diagram Nissan SENTRA/200SX
- Year
- 2008 - 2010
- Sales region
- U.S.A.
- Engine
- QR25DE
- transmission
- 6MT
- grade
- SPECV
- body
- 4S
- area
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27000X
|
27000X
27090-8J000
Label-Caution, Air Conditioner
2008-09-01 ~ ; 4S.QR25DE; , |
27090-8J000 |
— | ||
|
27070Q
|
27070Q
01125N6011 Bolt2009-08-01 ~ ; 4S.QR25DE; , |
01125N6011 |
from US $2.21 |
||
|
27070Q
|
27070Q
01125-N6031 Bolt2008-09-01 ~ 2009-08-01; 4S.QR25DE; , |
01125-N6031 |
from US $1.39 |
||
|
27070Q
|
27070Q
01125N6021 Bolt2008-09-01 ~ ; 4S.QR25DE; , |
01125N6021 |
US $1.61 |
||
|
27070QA
|
27070QA
01125N6021 Bolt2008-09-01 ~ ; 4S.QR25DE; , |
01125N6021 |
US $1.61 |
||
|
27070V
|
27070V
92471-N8210
O Ring
2009-08-01 ~ ; 4S.QR25DE; , |
92471-N8210 |
— | ||
| replacement | |||||
|
27070V
|
27070V
92470HC050 O Ring2009-08-01 ~ ; 4S.QR25DE; , |
92470HC050 |
from US $0.85 |
||
|
27070V
|
27070V
92471-N8210
O Ring
2009-08-01 ~ ; 4S.QR25DE; , |
92471-N8210 |
— | ||
| replacement | |||||
|
27070V
|
27070V
92470HC050 O Ring2009-08-01 ~ ; 4S.QR25DE; , |
92470HC050 |
from US $0.85 |
||
|
274
|
Compressor
274
|
||||
|
274
|
Compressor
274
|
||||
|
27644E
|
27644E
92471-ET01A
Seal-O Ring
2008-09-01 ~ ; 4S.QR25DE; , |
92471-ET01A |
— | ||
|
27644E
|
27644E
92471-ET00A Seal-O Ring2008-09-01 ~ ; 4S.QR25DE; , |
92471-ET00A |
US $10.19 |
||
|
27644E
|
27644E
92472N8210 O Ring2008-09-01 ~ ; 4S.QR25DE; , |
92472N8210 |
from US $0.98 |
||
|
27644E
|
27644E
92474N8210 O Ring2008-09-01 ~ ; 4S.QR25DE; , |
92474N8210 |
from US $1.68 |
||
|
27644EA
|
27644EA
92471-ET00A Seal-O Ring2008-09-01 ~ ; 4S.QR25DE; , |
92471-ET00A |
US $10.19 |
||
|
27644EC
|
27644EC
92472N8210 O Ring2008-09-01 ~ ; 4S.QR25DE; , |
92472N8210 |
from US $0.98 |
||
|
27644ED
|
27644ED
92474N8210 O Ring2008-09-01 ~ ; 4S.QR25DE; , |
92474N8210 |
from US $1.68 |
||
|
27644P
|
27644P
92473N8210 O Ring2008-09-01 ~ ; 4S.QR25DE; , |
92473N8210 |
from US $1.41 |
||
|
27650A
|
27650A
01225N6011 Nut2008-09-01 ~ ; 4S.QR25DE; , |
01225N6011 |
from US $0.50 |
||
|
27650X
|
27650X
92118-ET000
Mounting-Rubber, Condenser Upper
2008-09-01 ~ ; 4S.QR25DE; , |
92118-ET000 |
— | ||
|
27650X
|
27650X
92118-ET000
Mounting-Rubber, Condenser Upper
2008-09-01 ~ ; 4S.QR25DE; , |
92118-ET000 |
— | ||
|
27650X
|
27650X
92118-ET000
Mounting-Rubber, Condenser Upper
2008-09-01 ~ ; 4S.QR25DE; , |
92118-ET000 |
— | ||
|
27650X
|
27650X
92118-ET000
Mounting-Rubber, Condenser Upper
2008-09-01 ~ ; 4S.QR25DE; , |
92118-ET000 |
— | ||
|
27755N
|
27755N
4627160U05 Clip2008-09-01 ~ ; 4S.QR25DE; , |
4627160U05 |
US $1.67 |
||
|
92100
|
92100
92100-ET000
Condenser & liquid tank assy
2008-09-01 ~ 2008-10-01; 4S.QR25DE; , |
92100-ET000 |
— | ||
|
92100
|
92100
92100-ZE80A
Condenser & liquid tank assy
2008-10-01 ~ ; 4S.QR25DE; , |
92100-ZE80A |
— | ||
|
92112
|
92112
92112-ET00A
Bracket assy-condenser
2008-09-01 ~ ; 4S.QR25DE; , |
92112-ET00A |
— | ||
|
92112
|
92112
92112-ET00A
Bracket assy-condenser
2008-09-01 ~ ; 4S.QR25DE; , |
92112-ET00A |
— | ||
|
92114
|
92114
92114-ET000
Bracket-condenser
2008-09-01 ~ ; 4S.QR25DE; , |
92114-ET000 |
— | ||
|
92114
|
92114
92114-ET000
Bracket-condenser
2008-09-01 ~ ; 4S.QR25DE; , |
92114-ET000 |
— | ||
|
92136N
|
92136N
92136-ET00A
Sensor assy-pressure
2008-09-01 ~ ; 4S.QR25DE; , |
92136-ET00A |
— | ||
|
92440
|
92440
92440-ET80A
Pipe-front cooler,high
2008-09-01 ~ 2009-04-01; 4S.QR25DE; , |
92440-ET80A |
— | ||
|
92440
|
92440
92440-ZE80B
Pipe-front cooler,high
2009-06-01 ~ 2009-08-01; 4S.QR25DE; , |
92440-ZE80B |
— | ||
|
92440
|
92440
92440-ZT52A
Pipe-front cooler,high
2010-02-01 ~ ; 4S.QR25DE; , |
92440-ZT52A |
— | ||
|
92450
|
92450
92450-ET80A
Pipe-front cooler,low
2008-09-01 ~ 2010-01-01; 4S.QR25DE; , |
92450-ET80A |
— | ||
|
92450
|
92450
92450-ZT50A
Pipe-front cooler,low
2010-01-01 ~ ; 4S.QR25DE; , |
92450-ZT50A |
— | ||
|
92480
|
92480
92480-ET80A
Hose-flexible,low
2008-09-01 ~ 2010-01-01; 4S.QR25DE; , |
92480-ET80A |
— | ||
|
92480
|
92480
92480-ZT52A
Hose-flexible,low
2010-01-01 ~ ; 4S.QR25DE; , |
92480-ZT52A |
— | ||
|
92490
|
92490
92490-ET80A
Hose-flexible,high
2008-09-01 ~ 2010-01-01; 4S.QR25DE; , |
92490-ET80A |
— | ||
|
92490
|
92490
92490-ZT51A
Hose-flexible,high
2010-01-01 ~ ; 4S.QR25DE; , |
92490-ZT51A |
— | ||
|
92499N
|
92499N
9249989921 Cap-Charge Valve2008-09-01 ~ ; 4S.QR25DE; , |
9249989921 |
US $3.37 |
||
|
92499N
|
92499N
9249989921 Cap-Charge Valve2008-09-01 ~ ; 4S.QR25DE; , |
9249989921 |
US $3.37 |
||
|
92525Q
|
92525Q
92551-64Y01 Clip2008-09-01 ~ ; 4S.QR25DE; , |
92551-64Y01 |
US $4.71 |
||
