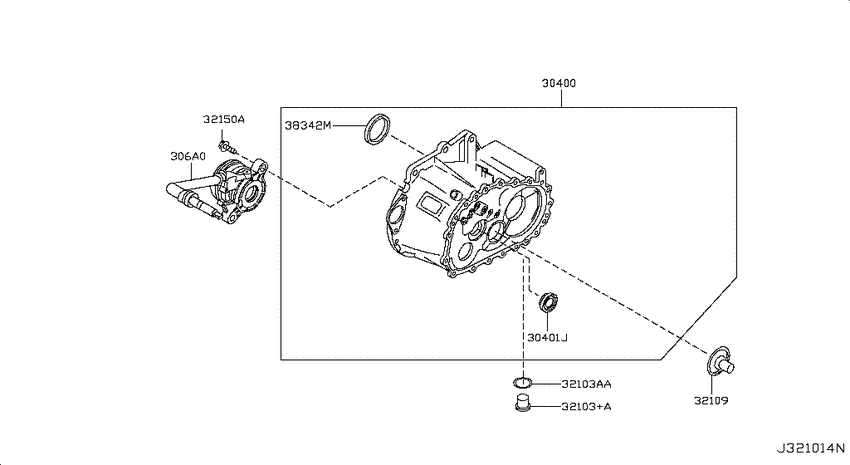

Transmission case & clutch release (2008-09-01 ~ 2009-08-01; CLUTCH HOUSING; QR25DE.6MT) Diagram Nissan SENTRA/200SX
- Year
- 2008 - 2010
- Sales region
- U.S.A.
- Engine
- QR25DE
- transmission
- 6MT
- grade
- SPECV
- body
- 4S
- area
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30400
|
30400
30400-JA60A
Housing Assy-Clutch
2008-09-01 ~ ; QR25DE.6MT; , |
30400-JA60A |
— | ||
|
30401J
|
30401J
321138H500 Seal-Oil, Input2008-09-01 ~ ; QR25DE.6MT; , |
321138H500 |
from US $2.74 |
||
|
306A0
|
306A0
306A0JA60B
Cyl Assy-Concentric Slave
2008-09-01 ~ 2010-02-01; QR25DE.6MT; , |
306A0JA60B |
— | ||
|
306A0
|
306A0
306A0-JA60C
Cyl Assy-Concentric Slave
2010-02-01 ~ ; QR25DE.6MT; , |
306A0-JA60C |
— | ||
| replacement | |||||
|
306A0
|
306A0
306A0-JA60E 306A0JA60E2010-02-01 ~ ; QR25DE.6MT; , |
306A0-JA60E |
from US $88.29 |
||
|
32103+A
|
32103+A
32103-4N21A
Plug-Drain
2008-09-01 ~ ; QR25DE.6MT; , |
32103-4N21A |
— | ||
| replacement | |||||
|
32103+A
|
32103+A
32103-1MG0B
Plug-Filler
2008-09-01 ~ ; QR25DE.6MT; , |
32103-1MG0B |
— | ||
|
32103AA
|
32103AA
110264N200 Gasket-Plug2008-09-01 ~ ; QR25DE.6MT; , |
110264N200 |
from US $2.72 |
||
|
32109
|
32109
32109-8H500 Channel-Oil, Main Shaft Front2008-09-01 ~ ; QR25DE.6MT; , |
32109-8H500 |
US $1.67 |
||
|
32109
|
32109
32109-8H510 Channel-Oil2008-09-01 ~ ; QR25DE.6MT; , |
32109-8H510 |
US $2.45 |
||
|
32150A
|
32150A
31377-JD00A Bolt2008-09-01 ~ ; QR25DE.6MT; , |
31377-JD00A |
from US $2.45 |
||
|
38342M
|
38342M
383428H501 Seal-Oil, Differential Clutch Housing2008-09-01 ~ ; QR25DE.6MT; , |
383428H501 |
from US $8.78 |
||
