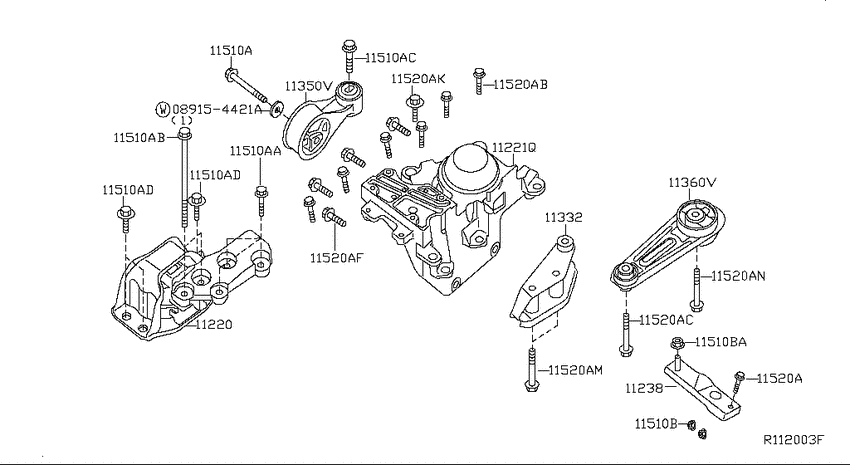

Engine & transmission mounting (2008-09-01 ~ ; QR25DE.CVT) Diagram Nissan SENTRA/200SX
- Year
- 2008 - 2010
- Sales region
- U.S.A.
- Engine
- QR25DE
- transmission
- CVT
- grade
- SER
- body
- 4S
- area
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089154421A
|
089154421A
089154421A Washer-Plain |
089154421A |
from US $0.52 |
||
|
11220
|
11220
11210-ET80A Insulator-Engine Mounting, Rh2008-09-01 ~ ; QR25DE.CVT; , |
11210-ET80A |
from US $145.43 |
||
|
11221Q
|
11221Q
11220-ET81B
Insulator-Engine Mounting, Lh
2008-09-01 ~ ; QR25DE.CVT; , |
11220-ET81B |
— | ||
|
11238
|
11238
11238-ET80A Stay-Engine Mounting2008-09-01 ~ ; QR25DE.CVT; , |
11238-ET80A |
US $7.06 |
||
|
11332
|
11332
11332-ET81A
Bracket-engine mounting,rear rh
2008-09-01 ~ ; QR25DE.CVT; , |
11332-ET81A |
— | ||
|
11350V
|
11350V
11350-ET80A Rod Assy-Torque2008-09-01 ~ ; QR25DE.CVT; , |
11350-ET80A |
US $71.28 |
||
|
11360V
|
11360V
11360JD00A Rod Assy-Torque2008-09-01 ~ ; QR25DE.CVT; , |
11360JD00A |
from US $60.86 |
||
|
11510A
|
11510A
11298EN013 Bolt2008-09-01 ~ ; QR25DE.CVT; , |
11298EN013 |
US $4.03 |
||
|
11510A
|
11510A
01125-N1211 Bolt2008-09-01 ~ ; QR25DE.CVT; , |
01125-N1211 |
US $3.46 |
||
|
11510A
|
11510A
11298-JA01B Bolt2008-09-01 ~ ; QR25DE.CVT; , |
11298-JA01B |
US $4.03 |
||
|
11510A
|
11510A
11298-JA01C Bolt2008-09-01 ~ ; QR25DE.CVT; , |
11298-JA01C |
US $3.46 |
||
|
11510A
|
11510A
11298-JD00A Bolt2008-09-01 ~ ; QR25DE.CVT; , |
11298-JD00A |
US $3.46 |
||
|
11510AA
|
11510AA
01125-N1211 Bolt2008-09-01 ~ ; QR25DE.CVT; , |
01125-N1211 |
US $3.46 |
||
|
11510AB
|
11510AB
11298-JA01B Bolt2008-09-01 ~ ; QR25DE.CVT; , |
11298-JA01B |
US $4.03 |
||
|
11510AC
|
11510AC
11298-JA01C Bolt2008-09-01 ~ ; QR25DE.CVT; , |
11298-JA01C |
US $3.46 |
||
|
11510AD
|
11510AD
11298-JD00A Bolt2008-09-01 ~ ; QR25DE.CVT; , |
11298-JD00A |
US $3.46 |
||
|
11510AD
|
11510AD
11298-JD00A Bolt2008-09-01 ~ ; QR25DE.CVT; , |
11298-JD00A |
US $3.46 |
||
|
11510B
|
11510B
01225N6011 Nut2008-09-01 ~ ; QR25DE.CVT; , |
01225N6011 |
from US $0.50 |
||
|
11510B
|
11510B
01225N8011 Nut2008-09-01 ~ ; QR25DE.CVT; , |
01225N8011 |
from US $0.70 |
||
|
11510BA
|
11510BA
01225N8011 Nut2008-09-01 ~ ; QR25DE.CVT; , |
01225N8011 |
from US $0.70 |
||
|
11520A
|
11520A
01125N6011 Bolt2008-09-01 ~ ; QR25DE.CVT; , |
01125N6011 |
US $2.21 |
||
|
11520A
|
11520A
01125-N1051 Bolt2008-09-01 ~ ; QR25DE.CVT; , |
01125-N1051 |
US $3.46 |
||
|
11520A
|
11520A
11298-JA01C Bolt2008-09-01 ~ ; QR25DE.CVT; , |
11298-JA01C |
US $3.46 |
||
|
11520A
|
11520A
01125N0121 Bolt2008-09-01 ~ ; QR25DE.CVT; , |
01125N0121 |
US $3.46 |
||
|
11520A
|
11520A
11298-JD01B Bolt2008-09-01 ~ ; QR25DE.CVT; , |
11298-JD01B |
US $3.46 |
||
|
11520A
|
11520A
11298EN013 Bolt2008-09-01 ~ ; QR25DE.CVT; , |
11298EN013 |
US $4.03 |
||
|
11520A
|
11520A
11298EN013 Bolt2008-09-01 ~ ; QR25DE.CVT; , |
11298EN013 |
US $4.03 |
||
|
11520AB
|
11520AB
01125-N1051 Bolt2008-09-01 ~ ; QR25DE.CVT; , |
01125-N1051 |
US $3.46 |
||
|
11520AC
|
11520AC
11298-JA01C Bolt2008-09-01 ~ ; QR25DE.CVT; , |
11298-JA01C |
US $3.46 |
||
|
11520AF
|
11520AF
01125N0121 Bolt2008-09-01 ~ ; QR25DE.CVT; , |
01125N0121 |
US $3.46 |
||
|
11520AK
|
11520AK
11298-JD01B Bolt2008-09-01 ~ ; QR25DE.CVT; , |
11298-JD01B |
US $3.46 |
||
|
11520AM
|
11520AM
11298EN013 Bolt2008-09-01 ~ ; QR25DE.CVT; , |
11298EN013 |
US $4.03 |
||
|
11520AN
|
11520AN
11298EN013 Bolt2008-09-01 ~ ; QR25DE.CVT; , |
11298EN013 |
US $4.03 |
