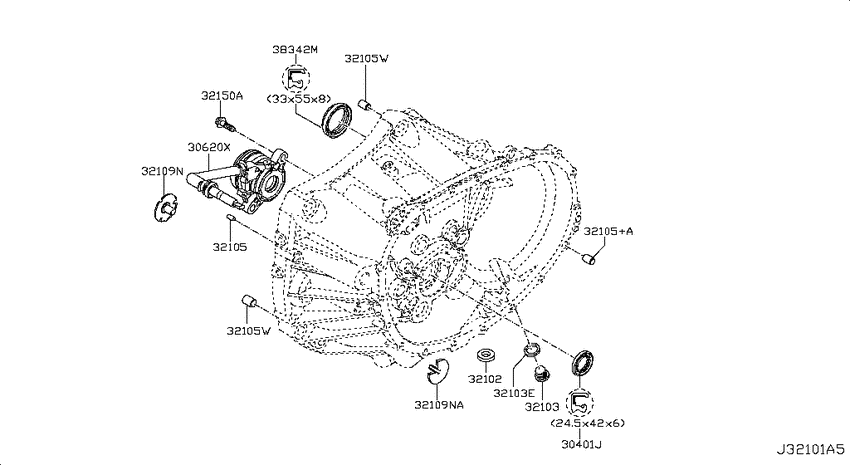

Transmission case & clutch release (2009-08-01 ~ ; CLUTCH HOUSING; MR20DE.6MT) Diagram Nissan SENTRA/200SX
- Year
- 2009 - 2010
- Sales region
- U.S.A.
- Engine
- MR20DE
- transmission
- 6MT
- grade
- 2.0
- body
- 4S
- area
- CAL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30401J
|
30401J
32113-00QAB Seal-Oil, Input2009-08-01 ~ ; MR20DE.6MT; , |
32113-00QAB |
from US $3.74 |
||
|
30620X
|
30620X
32150-00QAD Cylinder Assy-Clutch Operating2009-08-01 ~ ; MR20DE.6MT; , |
32150-00QAD |
US $148.32 |
||
|
32102
|
32102
32105-00QAA Magnet-Transmission2009-08-01 ~ ; MR20DE.6MT; , |
32105-00QAA |
US $4.18 |
||
|
32103
|
32103
1112800Q0B Plug-Drain2009-08-01 ~ ; MR20DE.6MT; , |
1112800Q0B |
from US $3.46 |
||
|
32103
|
32103
1102600QAB Seal-Oil, Drain Plug2009-08-01 ~ ; MR20DE.6MT; , |
1102600QAB |
US $1.67 |
||
|
32103E
|
32103E
1102600QAB Seal-Oil, Drain Plug2009-08-01 ~ ; MR20DE.6MT; , |
1102600QAB |
US $1.67 |
||
|
32105
|
32105
13266-00QAD Pin-Straight2009-08-01 ~ ; MR20DE.6MT; X=12.5 |
13266-00QAD |
US $10.37 |
||
|
32105
|
32105
04651-00QAB Pin-Straight2009-08-01 ~ ; MR20DE.6MT; X=16.5 |
04651-00QAB |
US $2.45 |
||
|
32105
|
32105
3210500QAC Washer-Seal2009-08-01 ~ ; MR20DE.6MT; X=18 |
3210500QAC |
US $4.18 |
||
|
32105
|
32105
30412-00QAB Pin-Dowel2009-08-01 ~ ; MR20DE.6MT; X=18 |
30412-00QAB |
US $3.46 |
||
|
32105+A
|
32105+A
04651-00QAB Pin-Straight2009-08-01 ~ ; MR20DE.6MT; X=16.5 |
04651-00QAB |
US $2.45 |
||
|
32105W
|
32105W
30412-00QAB Pin-Dowel2009-08-01 ~ ; MR20DE.6MT; X=18 |
30412-00QAB |
US $3.46 |
||
|
32105W
|
32105W
30412-00QAB Pin-Dowel2009-08-01 ~ ; MR20DE.6MT; X=18 |
30412-00QAB |
US $3.46 |
||
|
32109N
|
32109N
32106-00QAB Channel-Oil2009-08-01 ~ ; MR20DE.6MT; , |
32106-00QAB |
US $1.87 |
||
|
32109N
|
32109N
32109-00QAB Channel-Oil2009-08-01 ~ ; MR20DE.6MT; , |
32109-00QAB |
US $1.87 |
||
|
32109NA
|
32109NA
32109-00QAB Channel-Oil2009-08-01 ~ ; MR20DE.6MT; , |
32109-00QAB |
US $1.87 |
||
|
32150A
|
32150A
31377-00QAJ Bolt2009-08-01 ~ ; MR20DE.6MT; X=29 |
31377-00QAJ |
US $2.78 |
||
|
38342M
|
38342M
38189-00Q0A
Seal-Oil, Differential Clutch Housing
2009-08-01 ~ ; MR20DE.6MT; , |
38189-00Q0A |
— | ||
| replacement | |||||
|
38342M
|
38342M
38342-00Q0E Seal-Oil, Differential Clutch Housing2009-08-01 ~ ; MR20DE.6MT; , |
38342-00Q0E |
US $9.40 |
||
