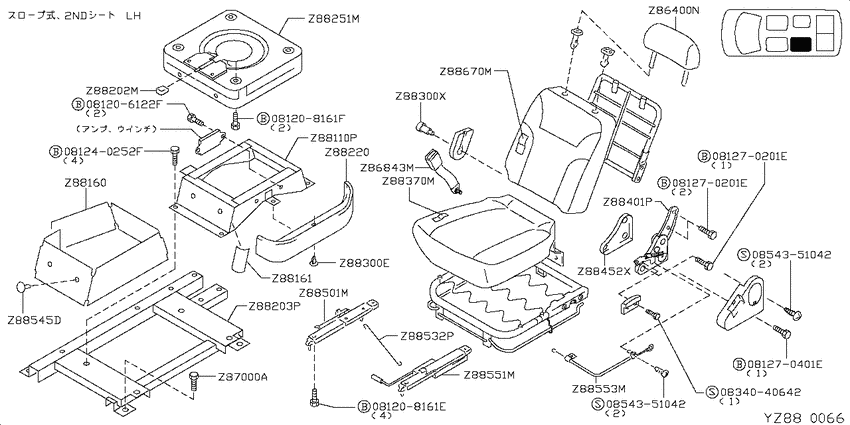

rear Сидение (2005-05-01 ~ ; "2ND シートLH(A&Bタイプ); ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ) Diagram Nissan SERENA
- Year
- 2005 - 2012
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- CVT
- grade
- 20S
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081206122F
|
081206122F
08120-6122F
Bolt-hexagon
|
08120-6122F |
— | ||
|
081208161E
|
081208161E
081208161E Bolt-hexagon |
081208161E |
from US $0.59 |
||
|
081208161F
|
081208161F
081208161F
Bolt-hexagon
|
081208161F |
— | ||
|
081240252F
|
081240252F
081240252F Bolt-hexagon |
081240252F |
US $3.18 |
||
|
081270201E
|
081270201E
081270201E
Bolt-hexagon
|
081270201E |
— | ||
|
081270201E
|
081270201E
081270201E
Bolt-hexagon
|
081270201E |
— | ||
|
081270401E
|
081270401E
08127-0401E
Bolt-hexagon
|
08127-0401E |
— | ||
|
0834040642
|
0834040642
0834040642
ｽｸﾘﾕ-,ﾏｼﾝ
|
0834040642 |
— | ||
|
0854351042
|
0854351042
0854351042
Bolt
|
0854351042 |
— | ||
|
0854351042
|
0854351042
0854351042
Bolt
|
0854351042 |
— | ||
|
Z86400N
|
Z86400N
88400-1A860 ﾍﾂﾄﾞﾚｽﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｼ-ﾄ0505--01 ~ 0706--01; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
88400-1A860 |
US $196.99 |
||
|
Z86400N
|
Z86400N
88400-1A863 ﾍﾂﾄﾞﾚｽﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｼ-ﾄ0706--01 ~ 0712--01; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ ﾀｲﾌﾟA&B |
88400-1A863 |
US $196.99 |
||
|
Z86400N
|
Z86400N
88400-1A864 ﾍﾂﾄﾞﾚｽﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｼ-ﾄ0712--01 ~ ; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ ﾀｲﾌﾟA,B |
88400-1A864 |
US $196.99 |
||
|
Z86400N
|
Z86400N
88400-CY000 Headrest Assy-Rear Seat0505--01 ~ 0706--01; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
88400-CY000 |
US $195.84 |
||
|
Z86843M
|
Z86843M
88842CX000 Belt Assy-Rear Seat Buckle0712--01 ~ ; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
88842CX000 |
US $32.11 |
||
|
Z87000A
|
Z87000A
87850-WL000 Bolt-Special0505--01 ~ ; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
87850-WL000 |
US $3.46 |
||
|
Z88110P
|
Z88110P
88120-1A295
ﾚﾂｸﾞ ｱﾂｾﾝﾌﾞﾘ-,ｾｶﾝﾄﾞ ｼ-ﾄ
0601--01 ~ 0606--01; W.(20S+20RS); &(G,P),ｱﾝｼｬﾝﾃ ｾｶﾝﾄﾞ ｼｰﾄ ﾀﾞｯﾁｬｸ ﾀｲﾌﾟ ｼﾖｳ |
88120-1A295 |
— | ||
|
Z88110P
|
Z88110P
88160-1A861
ﾚﾂｸﾞ ｱﾂｾﾝﾌﾞﾘ-,ｾｶﾝﾄﾞ ｼ-ﾄ
0505--01 ~ 0712--01; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ[K116] |
88160-1A861 |
— | ||
|
Z88110P
|
Z88110P
88160-1A865
ﾚﾂｸﾞ ｱﾂｾﾝﾌﾞﾘ-,ｾｶﾝﾄﾞ ｼ-ﾄ
0712--01 ~ ; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
88160-1A865 |
— | ||
|
Z88160
|
Z88160
88160-1A862
ｶ-ﾍﾟﾂﾄ,ﾚﾂｸﾞ 2nd ｼ-ﾄ
0505--01 ~ ; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
88160-1A862 |
— | ||
|
Z88161
|
Z88161
88160-1A863
ﾊﾟﾂﾁ,ｶ-ﾍﾟﾂﾄ ﾚﾂｸﾞ ｼ-ﾄ
0505--01 ~ ; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
88160-1A863 |
— | ||
|
Z88161
|
Z88161
88648CY00A Support-Rear Seat0505--01 ~ 0706--01; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ[D105] |
88648CY00A |
US $21.17 |
||
|
Z88202M
|
Z88202M
88102-5C000 Knob-Swivel Lever0505--01 ~ ; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
88102-5C000 |
US $4.18 |
||
|
Z88203P
|
Z88203P
88203-1A862 ﾍﾞ-ｽ ｱﾂｾﾝﾌﾞﾘ-,2nd ｼ-ﾄ lh0505--01 ~ 0712--01; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
88203-1A862 |
US $1,203.60 |
||
|
Z88203P
|
Z88203P
88203-1A863
ﾍﾞ-ｽ ｱﾂｾﾝﾌﾞﾘ-,2nd ｼ-ﾄ lh
0712--01 ~ ; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
88203-1A863 |
— | ||
|
Z88220
|
Z88220
88270-5C700 Cover-Leg, 2Nd Seat Lh Outer0505--01 ~ ; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
88270-5C700 |
US $35.42 |
||
|
Z88220
|
Z88220
88223-CY000 Cover-Leg, 2Nd Seat0505--01 ~ ; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
88223-CY000 |
US $46.66 |
||
|
Z88251M
|
Z88251M
88251-5C702 Swivel Assy-2Nd Seat, Lh0505--01 ~ ; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
88251-5C702 |
US $692.42 |
||
|
Z88300E
|
Z88300E
0155305413 CLIP-TRIM0706--01 ~ ; W.20S; #(G),ｱﾝｼｬﾝﾃ ｾｶﾝﾄﾞｼｰﾄ ﾀﾞｯﾁｬｸ ﾀｲﾌﾟ ｼﾖｳ |
0155305413 |
US $1.93 |
||
|
Z88300E
|
Z88300E
01553-05423 CLIP-TRIM0601--01 ~ 0606--01; W.(20S+20RS); ｱﾝｼｬﾝﾃ ｾｶﾝﾄﾞ ｼｰﾄ ﾀﾞｯﾁｬｸ ﾀｲﾌﾟ ｼﾖｳ |
01553-05423 |
US $1.73 |
||
|
Z88300E
|
Z88300E
0155305553 CLIP-TRIM0505--01 ~ ; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
0155305553 |
US $1.05 |
||
|
Z88300E
|
Z88300E
8492901F00 Clip-Harness0505--01 ~ ; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
8492901F00 |
US $1.24 |
||
|
Z88300X
|
Z88300X
01553-01112 CLIP0505--01 ~ ; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
01553-01112 |
US $1.82 |
||
|
Z88300X
|
Z88300X
0155301503 CLIP-TRIM0601--01 ~ 0606--01; W.(20S+20RS); ｱﾝｼｬﾝﾃ ｾｶﾝﾄﾞ ｼｰﾄ ﾀﾞｯﾁｬｸ ﾀｲﾌﾟ ｼﾖｳ |
0155301503 |
US $0.86 |
||
|
Z88370M
|
Z88370M
88370-1A860 ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ｾｶﾝﾄﾞ ｼ-ﾄ ｸﾂｼﾖﾝ lh0505--01 ~ 0712--01; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ[K116] |
88370-1A860 |
US $453.12 |
||
|
Z88370M
|
Z88370M
88370-1A861 ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ｾｶﾝﾄﾞ ｼ-ﾄ ｸﾂｼﾖﾝ lh0712--01 ~ ; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
88370-1A861 |
US $453.12 |
||
|
Z88401P
|
Z88401P
88451-5C701 Device Assy-Reclining, 2Nd Lh Seat Outer0505--01 ~ ; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
88451-5C701 |
US $78.19 |
||
|
Z88452X
|
Z88452X
88406-CX010 Cover-Reclining Device, Inner Rh0505--01 ~ ; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
88406-CX010 |
US $15.84 |
||
|
Z88501M
|
Z88501M
88500-CY000 Slide Assy-2Nd Seat, Rh0505--01 ~ ; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
88500-CY000 |
US $598.97 |
||
|
Z88501M
|
Z88501M
885525C700 Slide Assy-2Nd Lh Seat, Inner0505--01 ~ ; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
885525C700 |
US $73.30 |
||
|
Z88532P
|
Z88532P
88532-1A295
ﾜｲﾔ-,ﾚﾘ-ｽﾞ 2nd ｼ-ﾄ
0601--01 ~ 0606--01; W.(20S+20RS); $(G),ｱﾝｼｬﾝﾃ ｾｶﾝﾄﾞ ｼｰﾄ ﾀﾞｯﾁｬｸ ﾀｲﾌﾟ ｼﾖｳ |
88532-1A295 |
— | ||
|
Z88532P
|
Z88532P
88532-5C700 Wire-Release, 2Nd Seat Slide0505--01 ~ ; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
88532-5C700 |
US $4.18 |
||
|
Z88532P
|
Z88532P
88532-CX010 Wire-Release, 2Nd Seat Slide0601--01 ~ 0606--01; W.(20S+20RS); $(P),ｱﾝｼｬﾝﾃ ｾｶﾝﾄﾞ ｼｰﾄ ﾀﾞｯﾁｬｸ ﾀｲﾌﾟ ｼﾖｳ |
88532-CX010 |
US $11.66 |
||
|
Z88545D
|
Z88545D
01553-03713 CLIP0505--01 ~ ; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
01553-03713 |
from US $0.86 |
||
|
Z88551M
|
Z88551M
88550-CY000 New Genuine Part0505--01 ~ ; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
88550-CY000 |
US $598.97 |
||
|
Z88551M
|
Z88551M
885515C700 Slide Assy-2Nd Lh Seat Outer0505--01 ~ ; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
885515C700 |
US $73.30 |
||
|
Z88553M
|
Z88553M
88553-5C700 Wire-2Nd Seat Walkin, Lh0505--01 ~ ; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
88553-5C700 |
US $4.18 |
||
|
Z88670M
|
Z88670M
88670-1A860
ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ｾｶﾝﾄﾞ ｼ-ﾄ ﾊﾞﾂｸ lh
0505--01 ~ 0712--01; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
88670-1A860 |
— | ||
|
Z88670M
|
Z88670M
88670-1A861 ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ｾｶﾝﾄﾞ ｼ-ﾄ ﾊﾞﾂｸ lh0712--01 ~ ; W.2WD.20S; ﾁｪｱｷｬﾌﾞ ｽﾛｰﾌﾟ ﾀｲﾌﾟ ｼﾖｳ |
88670-1A861 |
US $515.42 |
