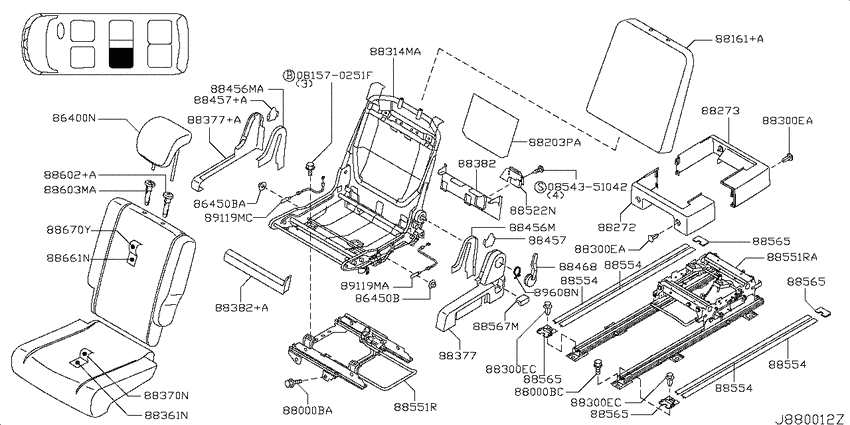

Rear seat (2007-12-01 ~ ; ~ﾘﾔ LH ｼｰﾄ(PAD&TRIM ﾍﾞｯﾀｲﾀｲﾌﾟ ﾃｰﾌﾞﾙ無); W) Diagram Nissan SERENA
- Year
- 2006 - 2012
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- CVT
- grade
- HWS
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081570251F
|
081570251F
081570251F BOLT |
081570251F |
from US $0.80 |
||
|
0854351042
|
0854351042
0854351042
Bolt
|
0854351042 |
— | ||
|
86400N
|
86400N
884001GK2A Headrest Assy-Rear Seat0712--01 ~ ; W.HWS |
884001GK2A |
US $214.56 |
||
|
86400N
|
86400N
88400CY50A Headrest Assy-Rear Seat0606--01 ~ 0712--01; W.HWS; HIGHWAY STAR |
88400CY50A |
US $214.56 |
||
|
86400N
|
86400N
88400CY74A Headrest Assy-Rear Seat0706--01 ~ 0712--01; *W.HWS |
88400CY74A |
US $214.56 |
||
|
86450B
|
86450B
87857ED000 Nut0606--01 ~ 0712--01; W.HWS |
87857ED000 |
US $1.73 |
||
|
86450B
|
86450B
87857ED000 Nut0611--01 ~ 0712--01; *W.(20RX+20G+HWS) |
87857ED000 |
US $1.73 |
||
|
86450B
|
86450B
87857-CY00A Nut0606--01 ~ 0712--01; *W.HWS; [D105] |
87857-CY00A |
US $1.73 |
||
|
86450B
|
86450B
87857-CY00A Nut0606--01 ~ 0712--01; *W.HWS; [D105] |
87857-CY00A |
US $1.73 |
||
|
86450B
|
86450B
87857ED000 Nut0712--01 ~ ; W |
87857ED000 |
US $1.73 |
||
|
86450BA
|
86450BA
87857ED000 Nut0611--01 ~ 0712--01; *W.(20RX+20G+HWS) |
87857ED000 |
US $1.73 |
||
|
88000BA
|
88000BA
0112100503 BOLT-SPECIAL0606--01 ~ 0712--01; W.HWS |
0112100503 |
US $2.45 |
||
|
88000BC
|
88000BC
87850-WL000 Bolt-Special0606--01 ~ 0712--01; W.HWS |
87850-WL000 |
US $3.46 |
||
|
88161+A
|
88161+A
88648CY00A Support-Rear Seat0606--01 ~ 0712--01; W.HWS; [D105] |
88648CY00A |
US $21.17 |
||
|
88203PA
|
88203PA
88640-CY00A Base Assy-2Nd Seat0606--01 ~ 0712--01; W.HWS |
88640-CY00A |
US $40.75 |
||
|
88203PA
|
88203PA
88640-CY70B Base Assy-2Nd Seat0706--01 ~ 0712--01; *W.(20RX+20G+HWS) |
88640-CY70B |
US $44.78 |
||
|
88272
|
88272
88270-CY000 Cover-Leg, 2Nd Seat Lh Front0601--01 ~ 0712--01; W.(20RX+20G+HWS) |
88270-CY000 |
US $67.25 |
||
|
88272
|
88272
88270CY001 Cover-Leg, 2Nd Seat Lh Front0601--01 ~ 0712--01; W.(20RX+20G+HWS) |
88270CY001 |
US $50.83 |
||
|
88273
|
88273
88271-CY000 Cover-Leg, 2Nd Seat Lh Rear0601--01 ~ 0712--01; W.(20RX+20G+HWS) |
88271-CY000 |
US $67.25 |
||
|
88273
|
88273
88271CY001 Cover-Leg, 2Nd Seat Lh Rear0601--01 ~ 0712--01; W.(20RX+20G+HWS) |
88271CY001 |
US $50.83 |
||
|
88273
|
88273
88271-CY70A Cover-Leg, 2Nd Seat Lh Rear0706--01 ~ 0712--01; *W.(20RX+20G+HWS) |
88271-CY70A |
US $67.25 |
||
|
88273
|
88273
88271-CY71A Cover-Leg, 2Nd Seat Lh Rear0706--01 ~ 0712--01; *W.(20RX+20G+HWS) |
88271-CY71A |
US $67.25 |
||
|
88300EA
|
88300EA
0155305413 CLIP-TRIM0606--01 ~ 0712--01; W.HWS |
0155305413 |
US $1.93 |
||
|
88300EA
|
88300EA
01553-05763 CLIP-TRIM0706--01 ~ 0712--01; *W.(20RX+HWS) |
01553-05763 |
US $1.73 |
||
|
88300EA
|
88300EA
0155305413 CLIP-TRIM0606--01 ~ 0712--01; W.HWS |
0155305413 |
US $1.93 |
||
|
88300EA
|
88300EA
01553-05763 CLIP-TRIM0706--01 ~ 0712--01; *W.(20RX+HWS) |
01553-05763 |
US $1.73 |
||
|
88300EC
|
88300EC
0155301733 CLIP-TRIM0606--01 ~ 0712--01; *W.HWS |
0155301733 |
US $0.97 |
||
|
88300EC
|
88300EC
0155301733 CLIP-TRIM0606--01 ~ 0712--01; *W.HWS |
0155301733 |
US $0.97 |
||
|
88314MA
|
88314MA
88364-CY000 Frame & Ajuster Assy Rear Seat Cushion0606--01 ~ 0712--01; W.HWS |
88364-CY000 |
US $521.09 |
||
|
88314MA
|
88314MA
88364-CY010 Frame & Ajuster Assy Rear Seat Cushion0601--01 ~ 0712--01; *W.(20RX+20G+HWS) |
88364-CY010 |
US $574.90 |
||
|
88314MA
|
88314MA
88364CY70A Frame & Ajuster Assy Rear Seat Cushion0706--01 ~ 0712--01; *W.(20RX+20G+HWS) |
88364CY70A |
US $574.90 |
||
|
88314MA
|
88314MA
88364-CY70C Frame & Ajuster Assy Rear Seat Cushion0706--01 ~ 0712--01; *W.(20RX+20G+HWS) |
88364-CY70C |
US $574.90 |
||
|
88361N
|
88361N
883611GK0A Pad Assy-2Nd Seat Cushion, Lh0712--01 ~ ; W |
883611GK0A |
US $224.64 |
||
|
88361N
|
88361N
88361-CY200 Pad Assy-2Nd Seat Cushion, Lh0606--01 ~ 0712--01; W.HWS |
88361-CY200 |
US $243.80 |
||
|
88370N
|
88370N
88370-1GK2A Trim Assy-2Nd Seat Cushion, Lh0712--01 ~ ; W.HWS; [D105] |
88370-1GK2A |
US $461.62 |
||
|
88370N
|
88370N
88370-CY50A Trim Assy-2Nd Seat Cushion, Lh0606--01 ~ 0712--01; W.HWS; [D105] |
88370-CY50A |
US $414.89 |
||
|
88370N
|
88370N
88370CY74A Trim Assy-2Nd Seat Cushion, Lh0706--01 ~ 0712--01; *W.HWS |
88370CY74A |
US $553.66 |
||
|
88377
|
88377
88380CY001 Finisher-Cushion, Rear Seat Lh0606--01 ~ 0712--01; W.HWS |
88380CY001 |
US $42.62 |
||
|
88377
|
88377
88381CY001 Finisher-Cushion, Rear Seat Lh0606--01 ~ 0712--01; W.HWS |
88381CY001 |
US $42.62 |
||
|
88377+A
|
88377+A
88381CY001 Finisher-Cushion, Rear Seat Lh0606--01 ~ 0712--01; W.HWS |
88381CY001 |
US $42.62 |
||
|
88382
|
88382
88382-CY001 New Genuine Part0606--01 ~ 0712--01; W.HWS |
88382-CY001 |
US $40.75 |
||
|
88382
|
88382
88382-CY71A New Genuine Part0706--01 ~ 0712--01; *W.(20RX+HWS) |
88382-CY71A |
US $44.78 |
||
|
88382
|
88382
88383-CY001 Finisher-Cushion Lh0606--01 ~ 0712--01; W.HWS |
88383-CY001 |
US $40.75 |
||
|
88382+A
|
88382+A
88383-CY001 Finisher-Cushion Lh0606--01 ~ 0712--01; W.HWS |
88383-CY001 |
US $40.75 |
||
|
88456M
|
88456M
88455-CY001 Cover-Reclining Device, Inner Lh0606--01 ~ 0712--01; W.HWS |
88455-CY001 |
US $25.63 |
||
|
88456M
|
88456M
88456-CY001 Cover-Reclining Device, Inner Lh0606--01 ~ 0712--01; W.HWS |
88456-CY001 |
US $25.63 |
||
|
88456MA
|
88456MA
88456-CY001 Cover-Reclining Device, Inner Lh0606--01 ~ 0712--01; W.HWS |
88456-CY001 |
US $25.63 |
||
|
88457
|
88457
88495-CY001 Cover-Reclining Device Arm, 2Nd Seat Lh0606--01 ~ 0712--01; W.HWS |
88495-CY001 |
US $8.06 |
||
|
88457
|
88457
88496-CY001 Cover-Reclining Device Arm, 2Nd Seat Lh0606--01 ~ 0712--01; W.HWS |
88496-CY001 |
US $8.06 |
||
|
88457+A
|
88457+A
88496-CY001 Cover-Reclining Device Arm, 2Nd Seat Lh0606--01 ~ 0712--01; W.HWS |
88496-CY001 |
US $8.06 |
||
|
88468
|
88468
88468CY001 Knob-Reclining Device Lever, Lh0606--01 ~ 0712--01; W.HWS |
88468CY001 |
US $8.06 |
||
|
88468
|
88468
88468-CY71A Knob-Reclining Device Lever, Lh0706--01 ~ 0712--01; *W.(20RX+HWS) |
88468-CY71A |
US $6.19 |
||
|
88522N
|
88522N
88524-CY001 Lever Assy-2Nd Seat Slide0606--01 ~ 0712--01; W.HWS |
88524-CY001 |
US $17.86 |
||
|
88522N
|
88522N
88524-CY71A Lever Assy-2Nd Seat Slide0706--01 ~ 0712--01; *W.(20RX+HWS) |
88524-CY71A |
US $13.54 |
||
|
88551R
|
88551R
88551-CY000 Slide Assy-2Nd Seat, Lh0606--01 ~ 0712--01; *W.HWS |
88551-CY000 |
US $168.48 |
||
|
88551R
|
88551R
885501GK0A New Genuine Part0712--01 ~ ; W |
885501GK0A |
US $661.27 |
||
|
88551R
|
88551R
88550-CY000 New Genuine Part0606--01 ~ 0712--01; W.HWS |
88550-CY000 |
US $598.97 |
||
|
88551R
|
88551R
88550CY70A New Genuine Part0706--01 ~ 0712--01; *W.(20RX+20G+HWS) |
88550CY70A |
US $661.27 |
||
|
88551RA
|
88551RA
885501GK0A New Genuine Part0712--01 ~ ; W |
885501GK0A |
US $661.27 |
||
|
88551RA
|
88551RA
88550-CY000 New Genuine Part0606--01 ~ 0712--01; W.HWS |
88550-CY000 |
US $598.97 |
||
|
88551RA
|
88551RA
88550CY70A New Genuine Part0706--01 ~ 0712--01; *W.(20RX+20G+HWS) |
88550CY70A |
US $661.27 |
||
|
88554
|
88554
88554CY00A Finisher-Slide Rail0601--01 ~ 0712--01; W.(20RX+20G+HWS) |
88554CY00A |
US $22.46 |
||
|
88554
|
88554
88554CY00B Finisher-Slide Rail0601--01 ~ 0712--01; W.(20RX+20G+HWS) |
88554CY00B |
US $22.46 |
||
|
88554
|
88554
88554CY00A Finisher-Slide Rail0601--01 ~ 0712--01; W.(20RX+20G+HWS) |
88554CY00A |
US $22.46 |
||
|
88554
|
88554
88554CY00B Finisher-Slide Rail0601--01 ~ 0712--01; W.(20RX+20G+HWS) |
88554CY00B |
US $22.46 |
||
|
88554
|
88554
88554CY00A Finisher-Slide Rail0601--01 ~ 0712--01; W.(20RX+20G+HWS) |
88554CY00A |
US $22.46 |
||
|
88554
|
88554
88554CY00B Finisher-Slide Rail0601--01 ~ 0712--01; W.(20RX+20G+HWS) |
88554CY00B |
US $22.46 |
||
|
88554
|
88554
88554CY00A Finisher-Slide Rail0601--01 ~ 0712--01; W.(20RX+20G+HWS) |
88554CY00A |
US $22.46 |
||
|
88554
|
88554
88554CY00B Finisher-Slide Rail0601--01 ~ 0712--01; W.(20RX+20G+HWS) |
88554CY00B |
US $22.46 |
||
|
88565
|
88565
88565CY000 Cover Slide Rail0601--01 ~ 0712--01; W.(20RX+20G+HWS) |
88565CY000 |
from US $8.54 |
||
|
88565
|
88565
88565WL001 Cover-Slide Rail0601--01 ~ 0712--01; W.(20RX+20G+HWS) |
88565WL001 |
US $8.35 |
||
|
88565
|
88565
88565CY000 Cover Slide Rail0601--01 ~ 0712--01; W.(20RX+20G+HWS) |
88565CY000 |
from US $8.54 |
||
|
88565
|
88565
88565WL001 Cover-Slide Rail0601--01 ~ 0712--01; W.(20RX+20G+HWS) |
88565WL001 |
US $8.35 |
||
|
88565
|
88565
88565CY000 Cover Slide Rail0601--01 ~ 0712--01; W.(20RX+20G+HWS) |
88565CY000 |
from US $8.54 |
||
|
88565
|
88565
88565WL001 Cover-Slide Rail0601--01 ~ 0712--01; W.(20RX+20G+HWS) |
88565WL001 |
US $8.35 |
||
|
88565
|
88565
88565CY000 Cover Slide Rail0601--01 ~ 0712--01; W.(20RX+20G+HWS) |
88565CY000 |
from US $8.54 |
||
|
88565
|
88565
88565WL001 Cover-Slide Rail0601--01 ~ 0712--01; W.(20RX+20G+HWS) |
88565WL001 |
US $8.35 |
||
|
88567M
|
88567M
88567-CY001 Knob Table-Lever0606--01 ~ 0712--01; W.HWS |
88567-CY001 |
US $6.19 |
||
|
88602+A
|
88602+A
87602-89900 Holder Assy-Headrest, Lock0606--01 ~ 0712--01; W.HWS |
87602-89900 |
US $4.18 |
||
|
88603MA
|
88603MA
87603-89900 Holder Assy-Headrest, Free0606--01 ~ 0712--01; *W.HWS |
87603-89900 |
US $4.18 |
||
|
88661N
|
88661N
88661-1GK0A Pad Assy-2Nd Seat Back, Lh0712--01 ~ ; W |
88661-1GK0A |
US $224.64 |
||
|
88661N
|
88661N
88661-CY200 Pad Assy-2Nd Seat Back, Lh0606--01 ~ 0712--01; W.HWS |
88661-CY200 |
US $243.80 |
||
|
88661N
|
88661N
88661-CY72A Pad Assy-2Nd Seat Back, Lh0706--01 ~ 0712--01; *W.(20RX+20G+HWS) |
88661-CY72A |
US $244.80 |
||
|
88670Y
|
88670Y
88670-1GK2A Trim Assy-2Nd Seat Back, Lh0712--01 ~ ; W.HWS; [D105] |
88670-1GK2A |
US $461.62 |
||
|
88670Y
|
88670Y
88670-1GK2C Trim Assy-2Nd Seat Back, Lh0712--01 ~ ; *W.HWS; [D105] |
88670-1GK2C |
US $461.62 |
||
|
88670Y
|
88670Y
88670-CY50A Trim Assy-2Nd Seat Back, Lh0606--01 ~ 0712--01; W.HWS; [D105] |
88670-CY50A |
US $414.89 |
||
|
88670Y
|
88670Y
88670-CY51A Trim Assy-2Nd Seat Back, Lh0606--01 ~ 0712--01; *W.HWS; [D105] |
88670-CY51A |
US $414.89 |
||
|
89119MA
|
89119MA
88582-CY000 Cable Assy-2Nd Seat0606--01 ~ 0712--01; W.HWS |
88582-CY000 |
US $25.63 |
||
|
89119MC
|
89119MC
88582-CY010 Cable Assy-2Nd Seat0606--01 ~ 0712--01; W.HWS |
88582-CY010 |
US $25.63 |
||
|
89608N
|
89608N
89608CY00A Pin-Snap0606--01 ~ 0712--01; W.HWS |
89608CY00A |
US $1.73 |
