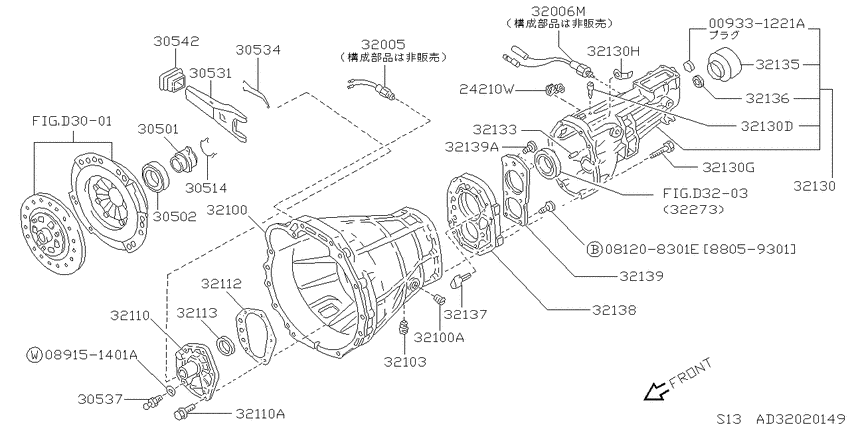

Transmission case (1991-01-01 ~ ; (SR20D+SR20DT).MT) Diagram Nissan SILVIA
- Year
- 1991 - 2012
- Sales region
- Japan
- Engine
- SR20D
- transmission
- MT
- grade
- JS
- body
- K
- Suspension
- 4WS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009331221A
|
009331221A
00933-1221A PLUG |
00933-1221A |
from US $0.63 |
||
|
081208301E
|
081208301E
08120-8301E
Bolt-hexagon
|
08120-8301E |
— | ||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
24210W
|
24210W
24220-V6600 Clip-Hose9101--01 ~ ; (SR20D+SR20DT).MT |
24220-V6600 |
US $4.42 |
||
|
30501
|
30501
30501-K0401 Sleeve-Clutch Release9101--01 ~ ; SR20D.MT +SR20DT.MT; ﾀﾞﾐ- |
30501-K0401 |
US $21.46 |
||
|
30501
|
30501
30501-S0100 Sleeve-Clutch Release8805--01 ~ 8909--01; F5 |
30501-S0100 |
US $23.33 |
||
| replacement | |||||
|
30501
|
30501
30501S0164 Sleeve-Clutch Release8805--01 ~ 8909--01; F5 |
30501S0164 |
US $23.29 |
||
|
30501
|
30501
30501-S0160
Sleeve-Clutch Release
8909--01 ~ 9101--01; F5 |
30501-S0160 |
— | ||
| replacement | |||||
|
30501
|
30501
30501S0164 Sleeve-Clutch Release8909--01 ~ 9101--01; F5 |
30501S0164 |
US $23.29 |
||
|
30502
|
30502
3050221000 Bearing-Clutch Release8805--01 ~ 8909--01; F5; [B106] |
3050221000 |
US $22.44 |
||
| replacement | |||||
|
30502
|
30502
30502-69F1A Bearing-Clutch Release8805--01 ~ 8909--01; F5; [B106] |
30502-69F1A |
from US $27.32 |
||
|
30514
|
30514
3051414600 Spring-Holder, Clutch Release Bearing8805--01 ~ ; F5 |
3051414600 |
from US $3.07 |
||
|
30531
|
30531
3053101S00 Lever-Withdrawal, Clutch8805--01 ~ ; F5 |
3053101S00 |
from US $36.60 |
||
|
30534
|
30534
30534E9000 Spring-Retainer, Withdrawal Lever8805--01 ~ ; F5 |
30534E9000 |
from US $1.54 |
||
|
30537
|
30537
3053703E00 PIN-BALL,WITHDRAWAL LEVER8806--01 ~ 9107--01; F5 |
3053703E00 |
US $5.81 |
||
|
30537
|
30537
305370H601 Pin-Ball, Withdrawal Lever9107--01 ~ ; F5; |
305370H601 |
from US $3.64 |
||
|
30537
|
30537
30537-21010 Pin-Ball, Withdrawal Lever8805--01 ~ 8806--01; F5 |
30537-21010 |
US $4.42 |
||
|
30542
|
30542
3054201S00 Cover-Dust, With drawal Lever8805--01 ~ 9307--01; F5 |
3054201S00 |
from US $10.14 |
||
|
32005
|
32005
32005-K1005
Switch Assy-Reverse Lamp
8805--01 ~ ; F5 |
32005-K1005 |
— | ||
| replacement | |||||
|
32005
|
32005
32005K106A Switch Assy-Reverse Lamp8805--01 ~ ; F5 |
32005K106A |
from US $23.98 |
||
|
32006M
|
32006M
32006-32G00
Switch Assy-Neutral Position
9101--01 ~ ; (SR20D+SR20DT).MT; |
32006-32G00 |
— | ||
| replacement | |||||
|
32006M
|
32006M
3200632G1A ﾆﾕ-ﾄﾗﾙ ｽｲﾂﾁassy9101--01 ~ ; (SR20D+SR20DT).MT; |
3200632G1A |
US $29.43 |
||
|
32006M
|
32006M
32006-K2405 Switch Assy-Neutral Position8805--01 ~ 9101--01; F5 |
32006-K2405 |
US $30.10 |
||
|
32100
|
32100
32101-50F00 Case Assy-Transmission9101--01 ~ ; (SR20D+SR20DT).MT |
32101-50F00 |
US $413.47 |
||
|
32100
|
32100
0164200021
PLUG-THREAD
8805--01 ~ 9309--01; F5 |
0164200021 |
— | ||
| replacement | |||||
|
32100
|
32100
33312-33G0B PLUG-THREAD8805--01 ~ 9309--01; F5 |
33312-33G0B |
US $4.85 |
||
|
32100
|
32100
31306-65F00 Plug-Thread9309--01 ~ ; (SR20D+SR20DT).MT |
31306-65F00 |
from US $2.68 |
||
|
32100A
|
32100A
0164200021
PLUG-THREAD
8805--01 ~ 9309--01; F5 |
0164200021 |
— | ||
| replacement | |||||
|
32100A
|
32100A
33312-33G0B PLUG-THREAD8805--01 ~ 9309--01; F5 |
33312-33G0B |
US $4.85 |
||
|
32100A
|
32100A
31306-65F00 Plug-Thread9309--01 ~ ; (SR20D+SR20DT).MT |
31306-65F00 |
from US $2.68 |
||
|
32103
|
32103
32103U8400
Plug-Drain
8805--01 ~ ; F5 |
32103U8400 |
— | ||
| replacement | |||||
|
32103
|
32103
32103-U840B Plug-Drain8805--01 ~ ; F5 |
32103-U840B |
US $7.35 |
||
|
32110
|
32110
32111E9803
Cover Assy-Front
8805--01 ~ ; F5 |
32111E9803 |
— | ||
| replacement | |||||
|
32110
|
32110
3211191P00 Cover Assy-Front8805--01 ~ ; F5 |
3211191P00 |
from US $40.45 |
||
|
32110
|
32110
32135-58S60 Bolt-Fixing, Front Cover8805--01 ~ ; F5 |
32135-58S60 |
US $1.73 |
||
|
32110A
|
32110A
32135-58S60 Bolt-Fixing, Front Cover8805--01 ~ ; F5 |
32135-58S60 |
US $1.73 |
||
|
32112
|
32112
32112-08U00
Gasket-Front Cover
9207--01 ~ ; (SR20D+SR20DT).MT |
32112-08U00 |
— | ||
| replacement | |||||
|
32112
|
32112
3211208U01 Gasket-Front Cover9207--01 ~ ; (SR20D+SR20DT).MT |
3211208U01 |
from US $6.96 |
||
|
32112
|
32112
32112-V5001
Gasket-Front Cover
8805--01 ~ 9101--01; F5 |
32112-V5001 |
— | ||
| replacement | |||||
|
32112
|
32112
3211208U01 Gasket-Front Cover8805--01 ~ 9101--01; F5 |
3211208U01 |
from US $6.96 |
||
|
32113
|
32113
32114Y4000 Seal-Oil, Front Cover8805--01 ~ ; F5 |
32114Y4000 |
from US $3.19 |
||
|
32130
|
32130
32130-44F00 Extension Assy-Rear8805--01 ~ 9101--01; F5 |
32130-44F00 |
US $344.09 |
||
|
32130
|
32130
32130-44F20 Extension Assy-Rear9308--01 ~ ; SR20D.MT |
32130-44F20 |
US $351.17 |
||
|
32130
|
32130
32130-50F00 Extension Assy-Rear9101--01 ~ 9308--01; (SR20D+SR20DT).MT |
32130-50F00 |
US $344.09 |
||
|
32130
|
32130
3832241G00 Breather9101--01 ~ ; (SR20D+SR20DT).MT |
3832241G00 |
US $11.08 |
||
|
32130
|
32130
38322-78000 Breather8805--01 ~ 9101--01; F5 |
38322-78000 |
from US $3.32 |
||
|
32130
|
32130
32152-50L00 Bolt8805--01 ~ ; F5 |
32152-50L00 |
US $2.45 |
||
|
32130
|
32130
24210-89944 Clamp9306--01 ~ ; (SR20D+SR20DT).MT |
24210-89944 |
US $3.46 |
||
|
32130
|
32130
33138-45G00 Clip8805--01 ~ 9306--01; F5 |
33138-45G00 |
US $3.89 |
||
|
32130D
|
32130D
3832241G00 Breather9101--01 ~ ; (SR20D+SR20DT).MT |
3832241G00 |
US $11.08 |
||
|
32130D
|
32130D
38322-78000 Breather8805--01 ~ 9101--01; F5 |
38322-78000 |
from US $3.32 |
||
|
32130G
|
32130G
32152-50L00 Bolt8805--01 ~ ; F5 |
32152-50L00 |
US $2.45 |
||
|
32130H
|
32130H
24210-89944 Clamp9306--01 ~ ; (SR20D+SR20DT).MT |
24210-89944 |
US $3.46 |
||
|
32130H
|
32130H
33138-45G00 Clip8805--01 ~ 9306--01; F5 |
33138-45G00 |
US $3.89 |
||
|
32133
|
32133
32106-20100 Pin-Dowel8805--01 ~ ; F5 |
32106-20100 |
US $1.73 |
||
|
32135
|
32135
32135-50F00 Cover-Dust, Sleeve Yoke9101--01 ~ 9308--01; (SR20D+SR20DT).MT |
32135-50F00 |
from US $41.57 |
||
|
32135
|
32135
32135-V5010 Cover-Dust, Sleeve Yoke8805--01 ~ 9101--01; F5 |
32135-V5010 |
US $12.20 |
||
| replacement | |||||
|
32135
|
32135
32135V501A Cover-Dust, Sleeve Yoke8805--01 ~ 9101--01; F5 |
32135V501A |
from US $12.90 |
||
|
32136
|
32136
32136U0100
Seal-Oil, Rear Extension
8805--01 ~ 9101--01; F5 |
32136U0100 |
— | ||
| replacement | |||||
|
32136
|
32136
32136-U010A Seal-Oil, Rear Extension8805--01 ~ 9101--01; F5 |
32136-U010A |
from US $4.92 |
||
|
32137
|
32137
32137-E9000 Gutter-Oil, Adapter8805--01 ~ ; F5 |
32137-E9000 |
from US $1.82 |
||
|
32138
|
32138
32138-55S13 Plate-Adapter8805--01 ~ 9306--01; F5; |
32138-55S13 |
US $76.61 |
||
|
32138
|
32138
32138-55S14 Plate-Adapter9306--01 ~ ; F5 |
32138-55S14 |
US $81.09 |
||
|
32139
|
32139
32139-36N00 Retainer-Bearing9301--01 ~ ; F5 |
32139-36N00 |
US $16.99 |
||
|
32139
|
32139
32139-55S01 Retainer-Bearing8805--01 ~ 9301--01; F5 |
32139-55S01 |
US $16.99 |
||
|
32139
|
32139
0114100021 BOLT-FIXING,RETAINER8805--01 ~ 9301--01; F5 |
0114100021 |
US $2.91 |
||
|
32139A
|
32139A
0114100021 BOLT-FIXING,RETAINER8805--01 ~ 9301--01; F5 |
0114100021 |
US $2.91 |
||
