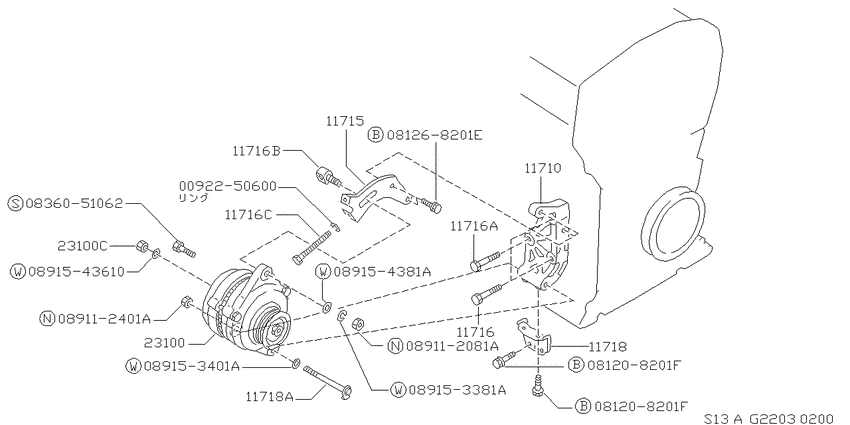

Alternator mounting (1991-01-01 ~ ; SR20D+SR20DT) Diagram Nissan SILVIA
- Year
- 1991 - 2012
- Sales region
- Japan
- Engine
- SR20D
- transmission
- AT
- grade
- JS
- body
- K
- Suspension
- 4WS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092250600
|
0092250600
00922-50600
ﾘﾝｸﾞ,ｽﾅﾂﾌﾟ
|
00922-50600 |
— | ||
|
081208201F
|
081208201F
081208201F Bolt-Fix, Under Guard |
081208201F |
US $0.61 |
||
|
081208201F
|
081208201F
081208201F Bolt-Fix, Under Guard |
081208201F |
US $0.61 |
||
|
081268201E
|
081268201E
08126-8201E
BOLTHEX
|
08126-8201E |
— | ||
|
0836051062
|
0836051062
08360-51062
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-51062 |
— | ||
|
089112081A
|
089112081A
089112081A NUTHEX |
089112081A |
from US $0.54 |
||
|
089112401A
|
089112401A
089112401A Nut |
089112401A |
from US $0.54 |
||
|
089153381A
|
089153381A
089153381A Washer |
089153381A |
from US $0.61 |
||
|
089153401A
|
089153401A
089153401A Washer-Spring |
089153401A |
US $0.63 |
||
|
0891543610
|
0891543610
08915-43610
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43610 |
— | ||
|
089154381A
|
089154381A
089154381A Washer-Plain |
089154381A |
US $0.54 |
||
|
11710
|
11710
11710-52F00 Bracket-Alternator9101--01 ~ ; SR20D +SR20DT |
11710-52F00 |
US $84.70 |
||
|
11715
|
11715
11715-52F00 Bar-Adjusting, Alternator9101--01 ~ ; SR20D +SR20DT |
11715-52F00 |
US $36.46 |
||
|
11716
|
11716
11916-40F03 Bolt9101--01 ~ ; SR20D +SR20DT |
11916-40F03 |
US $2.38 |
||
| replacement | |||||
|
11716
|
11716
11916-40F0C
Bolt
9101--01 ~ ; SR20D +SR20DT |
11916-40F0C |
— | ||
|
11716
|
11716
1191653Y03
Bolt
9101--01 ~ ; SR20D +SR20DT |
1191653Y03 |
— | ||
| replacements | |||||
|
11716
|
11716
11916-53Y0D
Bolt
9101--01 ~ ; SR20D +SR20DT |
11916-53Y0D |
— | ||
|
11716
|
11716
11916-53Y00 Bolt9101--01 ~ ; SR20D +SR20DT |
11916-53Y00 |
US $4.23 |
||
|
11716
|
11716
1171652F00 Bolt9101--01 ~ ; SR20D +SR20DT |
1171652F00 |
US $8.89 |
||
|
11716
|
11716
11717-52F00 Bolt9101--01 ~ ; SR20D +SR20DT |
11717-52F00 |
US $2.38 |
||
|
11716A
|
11716A
1191653Y03
Bolt
9101--01 ~ ; SR20D +SR20DT |
1191653Y03 |
— | ||
| replacements | |||||
|
11716A
|
11716A
11916-53Y0D
Bolt
9101--01 ~ ; SR20D +SR20DT |
11916-53Y0D |
— | ||
|
11716A
|
11716A
11916-53Y00 Bolt9101--01 ~ ; SR20D +SR20DT |
11916-53Y00 |
US $4.23 |
||
|
11716B
|
11716B
1171652F00 Bolt9101--01 ~ ; SR20D +SR20DT |
1171652F00 |
US $8.89 |
||
|
11716C
|
11716C
11717-52F00 Bolt9101--01 ~ ; SR20D +SR20DT |
11717-52F00 |
US $2.38 |
||
|
11718
|
11718
11710-52F10 Bracket-Alternator9101--01 ~ ; SR20D +SR20DT |
11710-52F10 |
US $77.56 |
||
|
11718
|
11718
11716-53J00
Bolt
9101--01 ~ ; SR20D +SR20DT |
11716-53J00 |
— | ||
| replacement | |||||
|
11718
|
11718
1171653J0A Bolt9101--01 ~ ; SR20D +SR20DT |
1171653J0A |
US $7.03 |
||
|
11718A
|
11718A
11716-53J00
Bolt
9101--01 ~ ; SR20D +SR20DT |
11716-53J00 |
— | ||
| replacement | |||||
|
11718A
|
11718A
1171653J0A Bolt9101--01 ~ ; SR20D +SR20DT |
1171653J0A |
US $7.03 |
||
|
23100
|
23100
23100-52F10 Alternator Assy9101--01 ~ 9212--01; SR20D +SR20DT; ﾐﾂﾋﾞｼ |
23100-52F10 |
US $1,330 |
||
|
23100
|
23100
23100-52F11 Alternator Assy9212--01 ~ ; SR20D +SR20DT; ﾐﾂﾋﾞｼ |
23100-52F11 |
US $1,456 |
||
|
23100
|
23100
01221-00241 NUT9101--01 ~ ; SR20D +SR20DT |
01221-00241 |
US $1.68 |
||
|
23100C
|
23100C
01221-00241 NUT9101--01 ~ ; SR20D +SR20DT |
01221-00241 |
US $1.68 |
||
