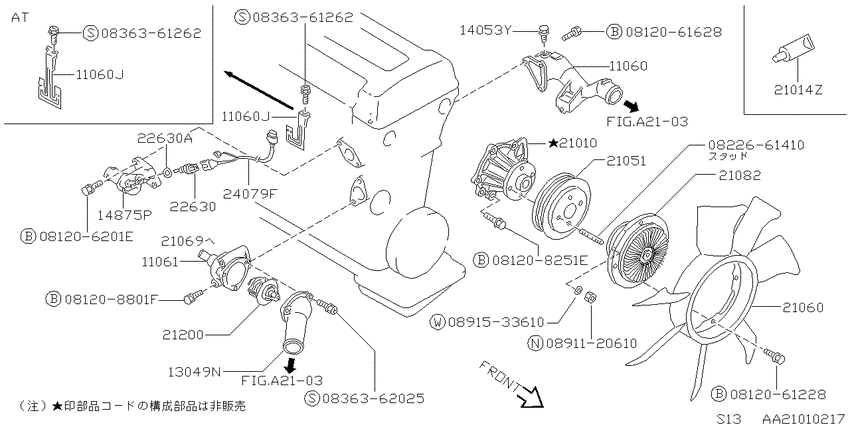

water pump & ｻ-ﾓｽﾀﾂﾄ (1991-01-01 ~ ; ｳｫｰﾀｰﾎﾟﾝﾌﾟ,ｸｰﾘﾝｸﾞﾌｧﾝ&ｻｰﾓｽﾀｯﾄ; SR20D+SR20DT) Diagram Nissan SILVIA
- Year
- 1991 - 2012
- Sales region
- Japan
- Engine
- SR20D
- transmission
- AT
- grade
- JS
- body
- K
- Suspension
- 4WS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
0812061628
|
0812061628
0812061628 Bolt-hexagon |
0812061628 |
from US $2.21 |
||
|
081206201E
|
081206201E
081206201E Bolt-hexagon |
081206201E |
from US $0.59 |
||
|
081208251E
|
081208251E
08120-8251E Bolt-hexagon |
08120-8251E |
from US $0.63 |
||
|
081208801F
|
081208801F
08120-8801F
Bolt-hexagon
|
08120-8801F |
— | ||
|
0822661410
|
0822661410
0822661410 STUD |
0822661410 |
from US $0.63 |
||
|
0836361262
|
0836361262
08363-61262
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61262 |
— | ||
|
0836361262
|
0836361262
08363-61262
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61262 |
— | ||
|
0836362025
|
0836362025
08363-62025
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-62025 |
— | ||
|
0891120610
|
0891120610
0891120610 NUTHEX |
0891120610 |
US $2.21 |
||
|
0891533610
|
0891533610
0891533610 WASHER-LOCK |
0891533610 |
US $1.93 |
||
|
11060
|
11060
11060-52F00 Outlet-Water9101--01 ~ ; SR20D +SR20DT |
11060-52F00 |
US $56.02 |
||
|
11060
|
11060
24210-52F21 Clip-Harness9101--01 ~ ; (SR20D+SR20DT).AT |
24210-52F21 |
US $5.62 |
||
|
11060J
|
11060J
24210-52F21 Clip-Harness9101--01 ~ ; (SR20D+SR20DT).AT |
24210-52F21 |
US $5.62 |
||
|
11060J
|
11060J
24210-52F21 Clip-Harness9101--01 ~ ; (SR20D+SR20DT).AT |
24210-52F21 |
US $5.62 |
||
|
11061
|
11061
11061-52F05
Housing-Thermostat
9101--01 ~ ; SR20D +SR20DT |
11061-52F05 |
— | ||
|
13049N
|
13049N
13049-52F00 Inlet-Water9101--01 ~ ; SR20D +SR20DT |
13049-52F00 |
US $58.62 |
||
|
14053Y
|
14053Y
14053-42L00
Plug Assy-Air Relief
9101--01 ~ ; SR20D +SR20DT |
14053-42L00 |
— | ||
| replacement | |||||
|
14053Y
|
14053Y
1405342L0A Plug Assy-Air Relief9101--01 ~ ; SR20D +SR20DT |
1405342L0A |
US $3.89 |
||
|
14875P
|
14875P
14075-52F00
Connector-Water Hose
9101--01 ~ ; SR20D +SR20DT |
14075-52F00 |
— | ||
|
21010
|
21010
21010-52F00 Pump Assy-Water9101--01 ~ ; SR20D +SR20DT; [B106] |
21010-52F00 |
US $198.72 |
||
|
21014Z
|
21014Z
A1121-10U15
Gasket-Liquid
9212--01 ~ ; SR20D +SR20DT; [K504] |
A1121-10U15 |
— | ||
|
21014Z
|
21014Z
KP510-00150 Gasket-Liquid9101--01 ~ 9212--01; SR20D +SR20DT; [K504] |
KP510-00150 |
US $29.51 |
||
|
21051
|
21051
21051-52F00 Pulley-Fan & Water Pump9101--01 ~ 9209--01; SR20D +SR20DT; ﾌｼﾞ ｷｺｳ |
21051-52F00 |
US $79.78 |
||
|
21051
|
21051
21051-52F01 Pulley-Fan & Water Pump9209--01 ~ ; SR20D +SR20DT; ﾌｼﾞ ｷｺｳ |
21051-52F01 |
US $79.78 |
||
|
21051
|
21051
21051-52F10 Pulley-Fan & Water Pump9101--01 ~ 9209--01; SR20D +SR20DT; ﾆﾎﾝ ｾｲｺｳ |
21051-52F10 |
US $79.78 |
||
|
21051
|
21051
21051-52F11 Pulley-Fan & Water Pump9209--01 ~ ; SR20D +SR20DT; ﾆﾎﾝ ｾｲｺｳ |
21051-52F11 |
US $114.91 |
||
|
21060
|
21060
21060-52F00 Fan-Cooling9101--01 ~ ; SR20D +SR20DT |
21060-52F00 |
US $97.20 |
||
|
21082
|
21082
21082-52F00 Coupling Assy-Fan9101--01 ~ ; SR20D +SR20DT; [B106] |
21082-52F00 |
US $525.34 |
||
|
21200
|
21200
21200-53J00
Thermostat Assy
9101--01 ~ ; SR20D +SR20DT; ﾌｼﾞ ﾄﾑｿﾝ |
21200-53J00 |
— | ||
| replacement | |||||
|
21200
|
21200
21200-0C82A Thermostat Assy9101--01 ~ ; SR20D +SR20DT; ﾌｼﾞ ﾄﾑｿﾝ |
21200-0C82A |
from US $17.72 |
||
|
21200
|
21200
21200-53J10 Thermostat Assy9101--01 ~ ; SR20D +SR20DT; ﾆﾎﾝ ｻ-ﾓｽﾀﾂﾄ |
21200-53J10 |
US $32.11 |
||
|
22630
|
22630
22630-51E00
ENGINE COOLANT TEMPERATURE SENSOR
9303--01 ~ ; SR20D +SR20DT |
22630-51E00 |
— | ||
| replacement | |||||
|
22630
|
22630
2263051E02 ENGINE COOLANT TEMPERATURE SENSOR9303--01 ~ ; SR20D +SR20DT |
2263051E02 |
from US $38.70 |
||
|
22630
|
22630
22630-V5010
Engine Coolant Temperature Sensor
9101--01 ~ 9303--01; SR20D +SR20DT |
22630-V5010 |
— | ||
| replacement | |||||
|
22630
|
22630
2263051E02 ENGINE COOLANT TEMPERATURE SENSOR9101--01 ~ 9303--01; SR20D +SR20DT |
2263051E02 |
from US $38.70 |
||
|
22630
|
22630
22636N4200 Gasket-Temperature Sensor9101--01 ~ ; SR20D +SR20DT |
22636N4200 |
from US $1.33 |
||
|
22630A
|
22630A
22636N4200 Gasket-Temperature Sensor9101--01 ~ ; SR20D +SR20DT |
22636N4200 |
from US $1.33 |
||
|
24079F
|
24079F
2407952F00 Harness-Glow Relay9101--01 ~ ; SR20D +SR20DT |
2407952F00 |
US $11.38 |
||
