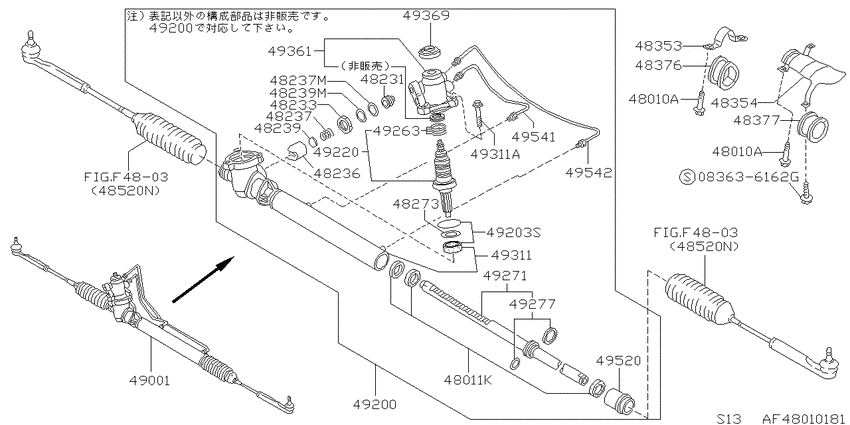

steering gear (1991-01-01 ~ ; (; K.4WS) Diagram Nissan SILVIA
- Year
- 1991 - 2012
- Sales region
- Japan
- Engine
- SR20D
- transmission
- AT
- grade
- JS
- body
- K
- Suspension
- 4WS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.34 |
||
|
48010A
|
48010A
54459-35F00 Bolt9101--01 ~ ; SR20D +SR20DT; |
54459-35F00 |
US $7.48 |
||
|
48010A
|
48010A
54459-35F00 Bolt9101--01 ~ ; SR20D +SR20DT; |
54459-35F00 |
US $7.48 |
||
|
48011K
|
48011K
4929735F25 Seal Kit-Housing, Power Steering Gear9101--01 ~ ; K.2WS +K.4WS; |
4929735F25 |
from US $26.62 |
||
|
48231
|
48231
48231-32R00 Screw-Adjust Retainer9101--01 ~ ; SR20D +SR20DT |
48231-32R00 |
US $5.68 |
||
|
48233
|
48233
48233-60A00 Nut9101--01 ~ ; SR20D +SR20DT |
48233-60A00 |
US $4.42 |
||
|
48236
|
48236
48236-35F00 Retainer-Power Steering Gear9101--01 ~ ; SR20D +SR20DT |
48236-35F00 |
US $15.12 |
||
|
48237
|
48237
48237-10V00 Spring-Retainer9101--01 ~ 9304--01; SR20D +SR20DT; ｾﾝﾀｸ L=24.9 |
48237-10V00 |
US $4.18 |
||
|
48237
|
48237
48237-10V01 Spring-Retainer9101--01 ~ 9304--01; SR20D +SR20DT; ｾﾝﾀｸ L=21.9 |
48237-10V01 |
US $4.18 |
||
|
48237
|
48237
48237-10V02 Spring-Retainer9101--01 ~ 9304--01; SR20D +SR20DT; ｾﾝﾀｸ L=27.9 |
48237-10V02 |
US $4.18 |
||
|
48237
|
48237
48237-10V03 Spring-Retainer9101--01 ~ 9304--01; SR20D +SR20DT; ｾﾝﾀｸ L=22.9 |
48237-10V03 |
US $4.18 |
||
|
48237
|
48237
48237-10V04 Spring-Retainer9101--01 ~ 9304--01; SR20D +SR20DT; ｾﾝﾀｸ L=23.9 |
48237-10V04 |
US $4.18 |
||
|
48237
|
48237
48237-10V05 Spring-Retainer9206--01 ~ 9304--01; SR20D +SR20DT; ｾﾝﾀｸ L=25.9 |
48237-10V05 |
US $5.18 |
||
|
48237
|
48237
48237-10V06 Spring-Retainer9206--01 ~ 9304--01; SR20D +SR20DT; ｾﾝﾀｸ L=26.9 |
48237-10V06 |
US $5.18 |
||
|
48237
|
48237
48237-4E100 SPRING-RETAINER9304--01 ~ ; SR20D +SR20DT; ｾﾝﾀｸ L=25.67 |
48237-4E100 |
US $5.42 |
||
|
48237
|
48237
48237-4E101 SPRING-RETAINER9304--01 ~ ; SR20D +SR20DT; ｾﾝﾀｸ L=22.67 |
48237-4E101 |
US $5.18 |
||
|
48237
|
48237
48237-4E102 SPRING-RETAINER9304--01 ~ ; SR20D +SR20DT; ｾﾝﾀｸ L=28.67 |
48237-4E102 |
US $5.18 |
||
|
48237
|
48237
48237-4E103 SPRING-RETAINER9304--01 ~ ; SR20D +SR20DT; ｾﾝﾀｸ L=23.67 |
48237-4E103 |
US $5.18 |
||
|
48237
|
48237
48237-4E104 SPRING-RETAINER9304--01 ~ ; SR20D +SR20DT; ｾﾝﾀｸ L=24.67 |
48237-4E104 |
US $5.18 |
||
|
48237
|
48237
48237-4E105 SPRING-RETAINER9304--01 ~ ; SR20D +SR20DT; ｾﾝﾀｸ L=26.67 |
48237-4E105 |
US $5.18 |
||
|
48237
|
48237
48237-4E106 SPRING-RETAINER9304--01 ~ ; SR20D +SR20DT; ｾﾝﾀｸ L=27.67 |
48237-4E106 |
US $5.18 |
||
|
48237
|
48237
48237-10V10 Spring-Retainer9101--01 ~ ; SR20D +SR20DT |
48237-10V10 |
US $4.42 |
||
|
48237M
|
48237M
48237-10V10 Spring-Retainer9101--01 ~ ; SR20D +SR20DT |
48237-10V10 |
US $4.42 |
||
|
48239
|
48239
48239-F6100 Seat-Spring Retainer Steering Gear9101--01 ~ 9304--01; SR20D +SR20DT |
48239-F6100 |
US $4.61 |
||
|
48239
|
48239
48239-F6110 Seat-Spring, Retainer Power Steering Gear9304--01 ~ ; SR20D +SR20DT |
48239-F6110 |
US $2.64 |
||
|
48239
|
48239
48239-60A00 Washer9101--01 ~ 9304--01; SR20D +SR20DT |
48239-60A00 |
US $2.59 |
||
|
48239
|
48239
4823960A10 Seat-Spring, Retainer Power Steering Gear9304--01 ~ ; SR20D +SR20DT |
4823960A10 |
US $2.64 |
||
|
48239M
|
48239M
48239-60A00 Washer9101--01 ~ 9304--01; SR20D +SR20DT |
48239-60A00 |
US $2.59 |
||
|
48239M
|
48239M
4823960A10 Seat-Spring, Retainer Power Steering Gear9304--01 ~ ; SR20D +SR20DT |
4823960A10 |
US $2.64 |
||
|
48273
|
48273
48273-10V00 Shim Adjust-Pinion Bearing9101--01 ~ ; SR20D +SR20DT; ｾﾝﾀｸ T=0.05 |
48273-10V00 |
US $4.85 |
||
|
48273
|
48273
48273-10V10 Shim Adjust-Pinion Bearing9202--01 ~ ; SR20D +SR20DT; ｾﾝﾀｸ T=0.10 |
48273-10V10 |
US $6.05 |
||
|
48353
|
48353
54449-35F01 Bracket9101--01 ~ ; SR20D +SR20DT; |
54449-35F01 |
US $12.47 |
||
|
48354
|
48354
54449-35F21 Bracket9101--01 ~ ; K.4WS; |
54449-35F21 |
US $16.56 |
||
|
48376
|
48376
5444439F00 Insulator9101--01 ~ ; K.4WS |
5444439F00 |
US $13.54 |
||
| replacement | |||||
|
48376
|
48376
5444461U00 Insulator9101--01 ~ ; K.4WS |
5444461U00 |
from US $12.90 |
||
|
48377
|
48377
5444535F00 Insulator-Steering Gear Housing9101--01 ~ ; SR20D +SR20DT |
5444535F00 |
US $13.94 |
||
|
49001
|
49001
49001-52F60 ｷﾞﾔ & ﾘﾝｹ-ｼﾞ,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9101--01 ~ ; K.4WS |
49001-52F60 |
US $1,652 |
||
|
49200
|
49200
49200-52F60 ｷﾞﾔ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9101--01 ~ ; K.4WS |
49200-52F60 |
US $1,380.60 |
||
|
49203S
|
49203S
49365-10V26 Seal Kit-Pinion, Power Steering Gear9101--01 ~ ; SR20D +SR20DT; |
49365-10V26 |
from US $7.35 |
||
|
49220
|
49220
49220-52F60 ﾋﾟﾆｵﾝ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9101--01 ~ ; K.4WS |
49220-52F60 |
US $214.56 |
||
|
49263
|
49263
49263-10V00 Ring-Worm, Flon9101--01 ~ ; SR20D +SR20DT |
49263-10V00 |
from US $5.46 |
||
|
49271
|
49271
49271-52F60 ﾗﾂｸ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ9101--01 ~ ; K.4WS |
49271-52F60 |
US $237.60 |
||
|
49277
|
49277
49277-16E10 SEAL SET-PISTON9101--01 ~ ; SR20D +SR20DT; |
49277-16E10 |
from US $15.56 |
||
|
49311
|
49311
49311-52F00 Housing & Cylinder Assy-Power Steering9101--01 ~ ; SR20D +SR20DT |
49311-52F00 |
US $177.12 |
||
|
49311
|
49311
01141-00281 BOLT9101--01 ~ ; SR20D +SR20DT |
01141-00281 |
US $0.86 |
||
|
49311A
|
49311A
01141-00281 BOLT9101--01 ~ ; SR20D +SR20DT |
01141-00281 |
US $0.86 |
||
|
49361
|
49361
49361-10V20
Housing Assy-Rear
9101--01 ~ ; SR20D +SR20DT |
49361-10V20 |
— | ||
|
49369
|
49369
49369-60U00 Cap-Rear Cover9101--01 ~ ; SR20D +SR20DT |
49369-60U00 |
from US $12.45 |
||
|
49520
|
49520
4952035F07 Cover Assy-Cylinder End9101--01 ~ ; SR20D +SR20DT |
4952035F07 |
US $58.46 |
||
|
49541
|
49541
4954135F00 Tube Assy-Cylinder9101--01 ~ ; SR20D +SR20DT |
4954135F00 |
US $5.62 |
||
|
49542
|
49542
4954235F00 Tube Assy-Cylinder9101--01 ~ ; SR20D +SR20DT |
4954235F00 |
US $5.62 |
||
