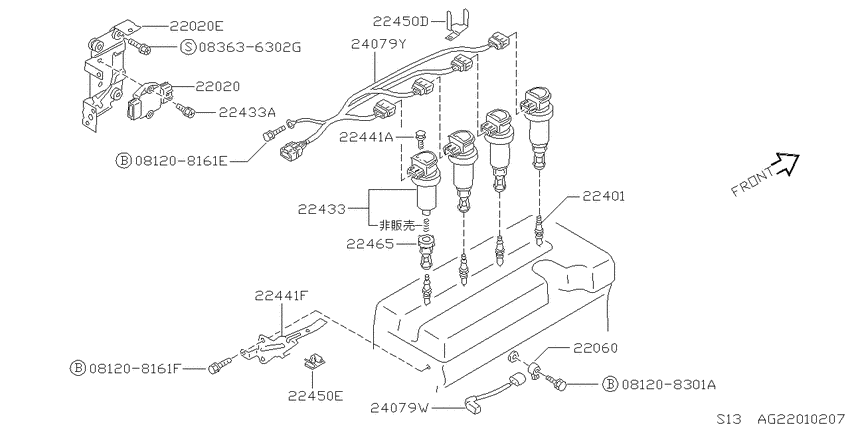

Ignition System (1991-01-01 ~ ; SR20DT) Diagram Nissan SILVIA
- Year
- 1991 - 2012
- Sales region
- Japan
- Engine
- SR20DT
- transmission
- AT
- grade
- KS
- body
- K
- Suspension
- 2WS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208161E
|
081208161E
081208161E Bolt-hexagon |
081208161E |
from US $0.57 |
||
|
081208161F
|
081208161F
081208161F
Bolt-hexagon
|
081208161F |
— | ||
|
081208301A
|
081208301A
081208301A
Bolt-hexagon
|
081208301A |
— | ||
|
083636302G
|
083636302G
08363-6302G ｽｸﾘﾕ-,ﾏｼﾝ |
08363-6302G |
US $2.36 |
||
|
22020
|
22020
22020-50F00 Power Transistor Assy9101--01 ~ ; SR20DT; ﾋﾀﾁ |
22020-50F00 |
US $497.02 |
||
|
22020
|
22020
22020-50F10 Power Transistor Assy9101--01 ~ ; SR20DT; ﾐﾂﾋﾞｼ |
22020-50F10 |
US $545.16 |
||
|
22020
|
22020
22435-50F00 Bracket-Transistor Ignition9101--01 ~ ; SR20DT |
22435-50F00 |
US $48.67 |
||
|
22020E
|
22020E
22435-50F00 Bracket-Transistor Ignition9101--01 ~ ; SR20DT |
22435-50F00 |
US $48.67 |
||
|
22060
|
22060
2206030P00 Knock Sensor9101--01 ~ ; SR20D +SR20DT |
2206030P00 |
from US $174.64 |
||
|
22401
|
22401
22401-53J15 Plug-Spark9101--01 ~ ; SR20DT; PFR5B ｾﾝﾀｸ ｼﾖｳ[B512] |
22401-53J15 |
US $21.60 |
||
|
22401
|
22401
22401-53J16 Plug-Spark9101--01 ~ ; SR20DT; PFR6B ｾﾝﾀｸ ｼﾖｳ[B512] |
22401-53J16 |
US $21.60 |
||
|
22401
|
22401
22401-53J17 Plug-Spark9101--01 ~ ; SR20DT; PFR7B ｾﾝﾀｸ ｼﾖｳ[B512] |
22401-53J17 |
US $21.60 |
||
|
22433
|
22433
22433-50F00 Coil Assy-Ignition9101--01 ~ 9107--01; SR20DT; ﾊﾝｼﾝ |
22433-50F00 |
US $144 |
||
|
22433
|
22433
22433-50F01 Coil Assy-Ignition9107--01 ~ ; SR20DT; ﾊﾝｼﾝ |
22433-50F01 |
US $174.24 |
||
|
22433
|
22433
22467-85M00 Screw9101--01 ~ ; SR20DT |
22467-85M00 |
US $1.73 |
||
| replacement | |||||
|
22433
|
22433
22467-1P100 Screw9101--01 ~ ; SR20DT |
22467-1P100 |
US $2.08 |
||
|
22433A
|
22433A
22467-85M00 Screw9101--01 ~ ; SR20DT |
22467-85M00 |
US $1.73 |
||
| replacement | |||||
|
22433A
|
22433A
22467-1P100 Screw9101--01 ~ ; SR20DT |
22467-1P100 |
US $2.08 |
||
|
22441A
|
22441A
22467-50F00 Screw9101--01 ~ ; SR20DT |
22467-50F00 |
US $3.31 |
||
|
22441F
|
22441F
24210-50F10 Clip-Harness9101--01 ~ ; SR20D +SR20DT |
24210-50F10 |
US $13.25 |
||
|
22450E
|
22450E
24346-79901 Clip9101--01 ~ ; SR20DT |
24346-79901 |
US $1.15 |
||
|
22465
|
22465
22465-50F00 Protector-Ignition Coil9101--01 ~ ; SR20DT |
22465-50F00 |
US $10.08 |
||
|
24079W
|
24079W
24079-0C810 Harness-Engine Sub9101--01 ~ ; SR20D +SR20DT |
24079-0C810 |
US $124.42 |
||
|
24079Y
|
24079Y
24079-50F00 Harness-Engine Sub9101--01 ~ ; SR20DT |
24079-50F00 |
US $131.47 |
||
