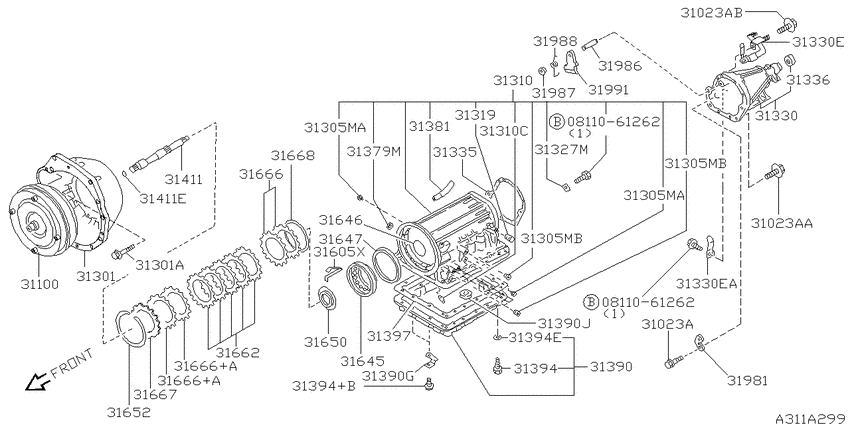

Torque converter,housing & case (1999-01-01 ~ ; SR20DET.AT.F4) Diagram Nissan SILVIA
- Year
- 1999 - 2012
- Sales region
- Japan
- Engine
- SR20DET
- transmission
- AT.F4
- grade
- R
- body
- K
- Suspension
- 2WS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811061262
|
0811061262
08110-61262
ﾎﾞﾙﾄ,ﾍｸｻｺﾞﾝ
|
08110-61262 |
— | ||
|
0811061262
|
0811061262
08110-61262
ﾎﾞﾙﾄ,ﾍｸｻｺﾞﾝ
|
08110-61262 |
— | ||
|
31023A
|
31023A
31377-41X00 Bolt9901--01 ~ ; AT.F4 |
31377-41X00 |
US $1.73 |
||
|
31023A
|
31023A
31377-41X19 Bolt9901--01 ~ ; AT.F4 |
31377-41X19 |
US $2.45 |
||
|
31023A
|
31023A
31377-41X21 Bolt9901--01 ~ ; AT.F4 |
31377-41X21 |
US $2.45 |
||
|
31023AA
|
31023AA
31377-41X19 Bolt9901--01 ~ ; AT.F4 |
31377-41X19 |
US $2.45 |
||
|
31023AB
|
31023AB
31377-41X21 Bolt9901--01 ~ ; AT.F4 |
31377-41X21 |
US $2.45 |
||
|
31100
|
31100
31100-43X78 Converter Assy-Torque9901--01 ~ ; SR20DET.AT.F4 |
31100-43X78 |
US $1,169.62 |
||
|
31301
|
31301
3130141X14 Housing-Converter9901--01 ~ ; AT.F4 |
3130141X14 |
US $515.42 |
||
|
31301
|
31301
31309-X6600 Bolt9901--01 ~ ; AT.F4 |
31309-X6600 |
US $2.45 |
||
|
31301A
|
31301A
31309-X6600 Bolt9901--01 ~ ; AT.F4 |
31309-X6600 |
US $2.45 |
||
|
31305MA
|
31305MA
31305-41X00 Plug-Thread9901--01 ~ ; AT.F4 |
31305-41X00 |
US $1.67 |
||
|
31305MA
|
31305MA
31305-41X00 Plug-Thread9901--01 ~ ; AT.F4 |
31305-41X00 |
US $1.67 |
||
|
31305MB
|
31305MB
31305-41X01 Plug-Thread9901--01 ~ ; AT.F4 |
31305-41X01 |
US $2.45 |
||
|
31305MB
|
31305MB
31305-41X01 Plug-Thread9901--01 ~ ; AT.F4 |
31305-41X01 |
US $2.45 |
||
|
31310
|
31310
31310-41X17 Case Assy-Automatic Transmission9901--01 ~ ; AT.F4 |
31310-41X17 |
US $538.08 |
||
|
31310
|
31310
31308-41X00 Pin-Dowel9901--01 ~ ; AT.F4 |
31308-41X00 |
US $2.45 |
||
|
31310C
|
31310C
31308-41X00 Pin-Dowel9901--01 ~ ; AT.F4 |
31308-41X00 |
US $2.45 |
||
|
31319
|
31319
31345-X6101 Plug9901--01 ~ ; AT.F4 |
31345-X6101 |
US $2.45 |
||
|
31327M
|
31327M
31327-41X00 Plate-Baffle9901--01 ~ ; AT.F4 |
31327-41X00 |
US $2.45 |
||
|
31330
|
31330
3133041X00
Extension Assy-Rear
9901--01 ~ ; AT.F4 |
3133041X00 |
— | ||
| replacement | |||||
|
31330
|
31330
31330-41X09 Extension Assy-Rear9901--01 ~ ; AT.F4 |
31330-41X09 |
US $226.44 |
||
|
31330
|
31330
31376-41X14 Clip-Harness9901--01 ~ ; AT.F4 |
31376-41X14 |
US $3.60 |
||
|
31330
|
31330
31376-41X05 Clip-Harness9901--01 ~ ; AT.F4 |
31376-41X05 |
US $2.45 |
||
|
31330E
|
31330E
31376-41X14 Clip-Harness9901--01 ~ ; AT.F4 |
31376-41X14 |
US $3.60 |
||
|
31330E
|
31330E
31376-41X05 Clip-Harness9901--01 ~ ; AT.F4 |
31376-41X05 |
US $2.45 |
||
|
31330EA
|
31330EA
31376-41X05 Clip-Harness9901--01 ~ ; AT.F4 |
31376-41X05 |
US $2.45 |
||
|
31335
|
31335
31338-41X01
Gasket-Extension
9901--01 ~ ; AT.F4 |
31338-41X01 |
— | ||
| replacement | |||||
|
31335
|
31335
31338-41X0A Gasket-Extension9901--01 ~ ; AT.F4 |
31338-41X0A |
US $7.76 |
||
|
31336
|
31336
3137541X06 Seal-Oil, Rear Extension9901--01 ~ ; AT.F4 |
3137541X06 |
from US $5.76 |
||
|
31379M
|
31379M
3137541X00 Seal-Oil9901--01 ~ ; AT.F4 |
3137541X00 |
from US $2.36 |
||
|
31381
|
31381
31381-41X01 Breather-Air9901--01 ~ ; AT.F4 |
31381-41X01 |
US $9.07 |
||
|
31390
|
31390
31390-41X00
Pan Assy-Oil
9901--01 ~ 9905--01; AT.F4 |
31390-41X00 |
— | ||
| replacement | |||||
|
31390
|
31390
31390-4AX0A Pan Assy-Oil9901--01 ~ 9905--01; AT.F4 |
31390-4AX0A |
US $27.04 |
||
|
31390
|
31390
3139041X06 Pan Assy-Oil9905--01 ~ ; AT.F4 |
3139041X06 |
US $48.82 |
||
|
31390
|
31390
21644-41X00 Bracket-Oil Cooler Tube9901--01 ~ ; AT.F4 |
21644-41X00 |
US $9.02 |
||
|
31390
|
31390
3137941X00 Magnet0110--01 ~ ; AT.F4 |
3137941X00 |
US $4.18 |
||
|
31390
|
31390
31392-X5100
Magnet
9901--01 ~ 0110--01; AT.F4 |
31392-X5100 |
— | ||
| replacement | |||||
|
31390
|
31390
313793AX0A Magnet9901--01 ~ 0110--01; AT.F4 |
313793AX0A |
from US $2.81 |
||
|
31390G
|
31390G
21644-41X00 Bracket-Oil Cooler Tube9901--01 ~ ; AT.F4 |
21644-41X00 |
US $9.02 |
||
|
31390J
|
31390J
3137941X00 Magnet0110--01 ~ ; AT.F4 |
3137941X00 |
US $4.18 |
||
|
31390J
|
31390J
31392-X5100
Magnet
9901--01 ~ 0110--01; AT.F4 |
31392-X5100 |
— | ||
| replacement | |||||
|
31390J
|
31390J
313793AX0A Magnet9901--01 ~ 0110--01; AT.F4 |
313793AX0A |
from US $2.81 |
||
|
31394
|
31394
3137731X06 Plug-Drain9901--01 ~ ; AT.F4 |
3137731X06 |
from US $4.09 |
||
|
31394
|
31394
3137741X06 Bolt9901--01 ~ ; AT.F4 |
3137741X06 |
US $2.45 |
||
|
31394
|
31394
1102601M02 Washer-Drain Plug9901--01 ~ ; AT.F4 |
1102601M02 |
from US $0.78 |
||
|
31394+B
|
31394+B
3137741X06 Bolt9901--01 ~ ; AT.F4 |
3137741X06 |
US $2.45 |
||
|
31394E
|
31394E
1102601M02 Washer-Drain Plug9901--01 ~ ; AT.F4 |
1102601M02 |
from US $0.78 |
||
|
31397
|
31397
3139741X04 Gasket-Oil Pan9901--01 ~ ; AT.F4 |
3139741X04 |
from US $21.20 |
||
|
31397
|
31397
31397-41X89 Gasket & Seal Kit-Auto Transmission9901--01 ~ ; AT.F4 |
31397-41X89 |
US $250.89 |
||
|
31411
|
31411
31411-41X03 Shaft-Input9901--01 ~ ; SR20DET.AT.F4 |
31411-41X03 |
US $77.33 |
||
|
31411
|
31411
31159-X6101 Seal-O Ring9901--01 ~ ; AT.F4 |
31159-X6101 |
US $3.31 |
||
|
31411E
|
31411E
31159-X6101 Seal-O Ring9901--01 ~ ; AT.F4 |
31159-X6101 |
US $3.31 |
||
|
31605X
|
31605X
31605-41X20 Spring9901--01 ~ ; AT.F4 |
31605-41X20 |
US $4.03 |
||
|
31645
|
31645
31645-41X02 Piston Assy-Low & Reverse Brake9901--01 ~ ; SR20DET.AT.F4 |
31645-41X02 |
US $22.46 |
||
|
31646
|
31646
31527-41X05 Seal-Lathe Cut Ring9901--01 ~ ; AT.F4 |
31527-41X05 |
US $4.03 |
||
|
31647
|
31647
31528-41X00 Seal-Lip9901--01 ~ ; AT.F4 |
31528-41X00 |
US $7.92 |
||
|
31650
|
31650
31655-41X00 Retainer-Low & Reverse Brake9901--01 ~ ; AT.F4 |
31655-41X00 |
US $10.51 |
||
|
31652
|
31652
31506-41X09 Ring-Snap9901--01 ~ ; AT.F4 |
31506-41X09 |
US $4.03 |
||
|
31662
|
31662
31532-41X69 Plate Assy-Drive9901--01 ~ ; SR20DET.AT.F4 |
31532-41X69 |
US $29.23 |
||
|
31662
|
31662
31532-41X69 Plate Assy-Drive9901--01 ~ ; AT.F4 |
31532-41X69 |
US $29.23 |
||
|
31666
|
31666
31666-41X02 Plate-Driven9901--01 ~ ; SR20DET.AT.F4 |
31666-41X02 |
US $19.87 |
||
|
31667
|
31667
31667-41X00 Plate-Retaining9901--01 ~ ; AT.F4; T=8.0 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-41X00 |
US $17.71 |
||
|
31667
|
31667
31667-41X01 Plate-Retaining9901--01 ~ ; AT.F4; T=8.2 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-41X01 |
US $17.71 |
||
|
31667
|
31667
31667-41X02 Plate-Retaining9901--01 ~ ; AT.F4; T=8.4 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-41X02 |
US $17.71 |
||
|
31667
|
31667
31667-41X03 Plate-Retaining9901--01 ~ ; AT.F4; T=8.6 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-41X03 |
US $17.42 |
||
|
31667
|
31667
31667-41X04 Plate-Retaining9901--01 ~ ; AT.F4; T=8.8 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-41X04 |
US $17.42 |
||
|
31667
|
31667
31667-41X05 Plate-Retaining9901--01 ~ ; AT.F4; T=9.0 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-41X05 |
US $17.42 |
||
|
31667
|
31667
31667-41X06 Plate-Retaining9901--01 ~ ; AT.F4; T=9.2 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-41X06 |
US $17.42 |
||
|
31667
|
31667
31667-41X07 Plate-Retaining9901--01 ~ ; AT.F4; T=7.6 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-41X07 |
US $17.42 |
||
|
31667
|
31667
31667-41X08 Plate-Retaining9901--01 ~ ; AT.F4; T=7.8 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-41X08 |
US $17.71 |
||
|
31667
|
31667
31667-41X09 Plate-Retaining9901--01 ~ ; SR20DET.AT.F4; T=9.4 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-41X09 |
US $17.71 |
||
|
31667
|
31667
31667-41X10 Plate-Retaining9901--01 ~ ; SR20DET.AT.F4; T=9.6 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-41X10 |
US $17.71 |
||
|
31667
|
31667
31667-41X13 Plate-Retaining0206--01 ~ ; SR20DET.AT.F4; T=7.2 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-41X13 |
US $17.42 |
||
|
31668
|
31668
31535-41X08 Plate-Dished9901--01 ~ ; AT.F4 |
31535-41X08 |
US $29.23 |
||
|
31981
|
31981
31981-41X02 Support-Parking Actuator9901--01 ~ ; AT.F4 |
31981-41X02 |
US $4.03 |
||
|
31986
|
31986
31986-41X00 Shaft-Parking Pawl9901--01 ~ ; AT.F4 |
31986-41X00 |
US $4.03 |
||
|
31987
|
31987
31437-41X00 Spacer-Parking Pawl9901--01 ~ ; AT.F4 |
31437-41X00 |
US $0.86 |
||
|
31988
|
31988
31988-41X00 Spring-Return Pawl9901--01 ~ ; AT.F4 |
31988-41X00 |
US $7.92 |
||
|
31991
|
31991
31991-41X01 Pawl-Parking9901--01 ~ ; AT.F4 |
31991-41X01 |
US $33.12 |
||
