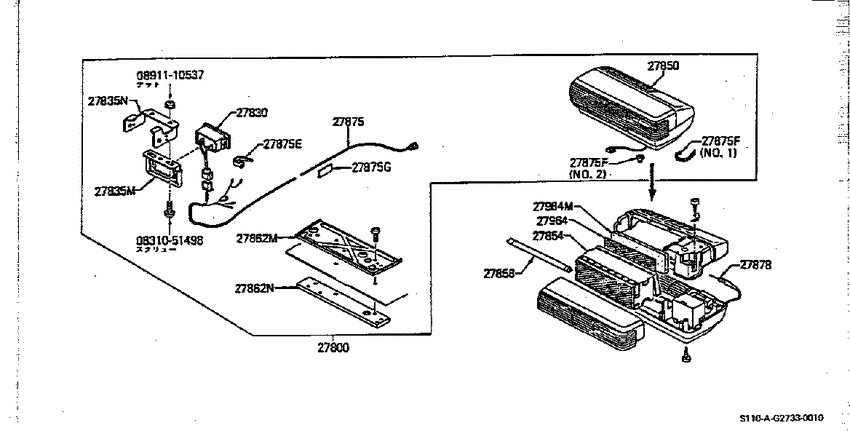

ｴｱ ﾌﾟﾘﾌｱｲﾔ (ﾋﾟﾕｱﾄﾛﾝ) (1981-02-01 ~ ; ピュアトロン MX 1; *K) Diagram Nissan SILVIA/GAZELLE
- Year
- 1979 - 1981
- Sales region
- Japan
- Engine
- Z20E
- transmission
- AT
- body
- K
- grade s
- ZSEL
- grade g
- XE1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0831051498
|
0831051498
08310-51498
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-51498 |
— | ||
|
0891110537
|
0891110537
0891110537 NUT |
0891110537 |
US $1.73 |
||
|
27800
|
27800
B7400-89900 Air Purifier Kit8102--01 ~ ; *K; KANTO[B517] |
B7400-89900 |
US $421.97 |
||
|
27830
|
27830
27030-W7000
Control Assy-Air Purifier
7903--01 ~ 8101--01; *K; KANTO[B208] |
27030-W7000 |
— | ||
|
27830
|
27830
27470-D8000 Control Assy-Air Purifier8102--01 ~ ; *K; KANTO |
27470-D8000 |
US $22.03 |
||
|
27830
|
27830
0894110500 FUSE7903--01 ~ 8101--01; *K; [B113] |
0894110500 |
US $0.58 |
||
|
27835M
|
27835M
27495-D8000
Bracket-Control, No 1
8102--01 ~ ; *K; KANTO[B208] |
27495-D8000 |
— | ||
|
27835N
|
27835N
27496-D8000
Bracket-Control, No 2
8102--01 ~ ; *K; KANTO[B208] |
27496-D8000 |
— | ||
|
27850
|
27850
27050-D8000
Air Purifier Assy
8102--01 ~ 8109--01; *K; KANTO[B208] |
27050-D8000 |
— | ||
|
27850
|
27850
27050-D8001
Air Purifier Assy
8110--01 ~ ; *K; KANT0[B208] |
27050-D8001 |
— | ||
|
27850
|
27850
27050-W7000
Air Purifier Assy
7903--01 ~ 8101--01; *K; KANTO[B208] |
27050-W7000 |
— | ||
|
27854
|
27854
27054-F2300 Collector Assy7903--01 ~ 8101--01; *K; KANTO |
27054-F2300 |
US $50.98 |
||
|
27854
|
27854
27055-D8000 Collector Assy8102--01 ~ ; *K |
27055-D8000 |
US $39.46 |
||
|
27858
|
27858
27058-F2300 Lamp Assy-U.v.r7903--01 ~ ; *K; KANTO |
27058-F2300 |
US $25.49 |
||
|
27862M
|
27862M
27062-D8000
Bracket-Air Purifier
8102--01 ~ 8109--01; *K; KANTO[B208] |
27062-D8000 |
— | ||
|
27862M
|
27862M
27062-D8001
Bracket-Air Purifier
8110--01 ~ ; *K; KANT0[B208] |
27062-D8001 |
— | ||
|
27862N
|
27862N
27065-D8000
Bracket-Air Purifier
8102--01 ~ ; *K; KANTO[B208] |
27065-D8000 |
— | ||
|
27862N
|
27862N
27065-D8001
Bracket-Air Purifier
8110--01 ~ ; *K; KANT0[B208] |
27065-D8001 |
— | ||
|
27875
|
27875
27074-W7000
Harness-Air Purifier
7903--01 ~ 8101--01; *K; KANTO[B208] |
27074-W7000 |
— | ||
|
27875
|
27875
27475-D8000
Harness-Air Purifier
8102--01 ~ 8109--01; *K; KANTO[B208] |
27475-D8000 |
— | ||
|
27875
|
27875
27475-D8001
Harness-Air Purifier
8110--01 ~ ; *K; KANT0[B208] |
27475-D8001 |
— | ||
|
27875
|
27875
24220-89920 Clip7903--01 ~ 8101--01; *K; RR |
24220-89920 |
US $4.03 |
||
|
27875
|
27875
24220-89963
Band-Hose
8102--01 ~ ; *K |
24220-89963 |
— | ||
|
27875
|
27875
24220-K0100 Clip7903--01 ~ 8101--01; *K; FRONT |
24220-K0100 |
US $3.31 |
||
|
27875
|
27875
92560-D8000
Grommet
8102--01 ~ ; *K; NO1,KANTO[B208] |
92560-D8000 |
— | ||
|
27875
|
27875
92560-D8010
Grommet
8102--01 ~ 8109--01; *K; NO2,KANTO[B208] |
92560-D8010 |
— | ||
|
27875
|
27875
92560-D8011
Grommet
8110--01 ~ ; *K; N02,KANT0[B421] |
92560-D8011 |
— | ||
|
27875
|
27875
24271-N7100
Protector-Flat Wire
7903--01 ~ ; *K; 100X50 S/#B4271-U0100 |
24271-N7100 |
— | ||
| replacement | |||||
|
27875
|
27875
B4271U0100 Spacer7903--01 ~ ; *K; 100X50 S/#B4271-U0100 |
B4271U0100 |
from US $3.68 |
||
|
27875
|
27875
B4271U0100 Spacer7903--01 ~ ; *K; 100X400 CUT USE |
B4271U0100 |
from US $3.68 |
||
|
27875E
|
27875E
24220-89920 Clip7903--01 ~ 8101--01; *K; RR |
24220-89920 |
US $4.03 |
||
|
27875E
|
27875E
24220-89963
Band-Hose
8102--01 ~ ; *K |
24220-89963 |
— | ||
|
27875E
|
27875E
24220-K0100 Clip7903--01 ~ 8101--01; *K; FRONT |
24220-K0100 |
US $3.31 |
||
|
27875F
|
27875F
92560-D8000
Grommet
8102--01 ~ ; *K; NO1,KANTO[B208] |
92560-D8000 |
— | ||
|
27875F
|
27875F
92560-D8010
Grommet
8102--01 ~ 8109--01; *K; NO2,KANTO[B208] |
92560-D8010 |
— | ||
|
27875F
|
27875F
92560-D8011
Grommet
8110--01 ~ ; *K; N02,KANT0[B421] |
92560-D8011 |
— | ||
|
27875F
|
27875F
92560-D8000
Grommet
8102--01 ~ ; *K; NO1,KANTO[B208] |
92560-D8000 |
— | ||
|
27875F
|
27875F
92560-D8010
Grommet
8102--01 ~ 8109--01; *K; NO2,KANTO[B208] |
92560-D8010 |
— | ||
|
27875F
|
27875F
92560-D8011
Grommet
8110--01 ~ ; *K; N02,KANT0[B421] |
92560-D8011 |
— | ||
|
27875G
|
27875G
24271-N7100
Protector-Flat Wire
7903--01 ~ ; *K; 100X50 S/#B4271-U0100 |
24271-N7100 |
— | ||
| replacement | |||||
|
27875G
|
27875G
B4271U0100 Spacer7903--01 ~ ; *K; 100X50 S/#B4271-U0100 |
B4271U0100 |
from US $3.68 |
||
|
27875G
|
27875G
B4271U0100 Spacer7903--01 ~ ; *K; 100X400 CUT USE |
B4271U0100 |
from US $3.68 |
||
|
27878
|
27878
27078-D8000
Needle Assy
8102--01 ~ ; *K; KANTO[B208] |
27078-D8000 |
— | ||
|
27878
|
27878
27078-F2300
Needle Assy
7903--01 ~ 8101--01; *K; KANTO |
27078-F2300 |
— | ||
|
27964
|
27964
27164-F2300 Filter-Air Purifier7903--01 ~ 8101--01; *K; KANTO |
27164-F2300 |
US $38.88 |
||
|
27964
|
27964
27165-D8000 Filter-Air Purifier8102--01 ~ ; *K; KANTO[B208] |
27165-D8000 |
US $5.76 |
||
|
27964
|
27964
27164-D8000 Filter-Carbon8102--01 ~ ; *K; F/CARBON,KANTO |
27164-D8000 |
US $14.11 |
||
|
27964
|
27964
27165-F2300 Filter-Carbon7903--01 ~ 8101--01; *K; F/CARBON,KANTO |
27165-F2300 |
US $21.89 |
||
|
27964M
|
27964M
27164-D8000 Filter-Carbon8102--01 ~ ; *K; F/CARBON,KANTO |
27164-D8000 |
US $14.11 |
||
|
27964M
|
27964M
27165-F2300 Filter-Carbon7903--01 ~ 8101--01; *K; F/CARBON,KANTO |
27165-F2300 |
US $21.89 |
||
