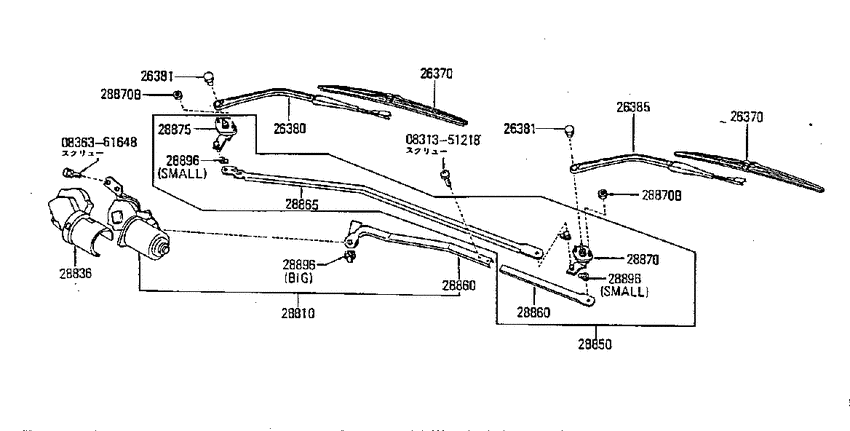

Windshield wiper (1979-03-01 ~ ; K) Diagram Nissan SILVIA/GAZELLE
- Year
- 1979 - 1981
- Sales region
- Japan
- Engine
- Z20E
- transmission
- AT
- body
- K
- grade s
- ZSEL
- grade g
- XE1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0831351218
|
0831351218
08313-51218
ｽｸﾘﾕ-,ﾏｼﾝ
|
08313-51218 |
— | ||
|
0836361648
|
0836361648
08363-61648
SCREW
|
08363-61648 |
— | ||
| replacement | |||||
|
0836361648
|
0836361648
083636162H SCREWMACHINE |
083636162H |
US $2.21 |
||
|
26370
|
26370
28890-N8222 Blade Assy-Windshield Wiper7903--01 ~ 8303--01; K-LS; JIDECO[B309] |
28890-N8222 |
US $33.12 |
||
|
26370
|
26370
28890-N8227 Blade Assy-Windshield Wiper8304--01 ~ ; K-LS; JIDECO[B309] |
28890-N8227 |
US $33.12 |
||
|
26370
|
26370
28890-N8222 Blade Assy-Windshield Wiper7903--01 ~ 8303--01; K-LS; JIDECO[B309] |
28890-N8222 |
US $33.12 |
||
|
26370
|
26370
28890-N8227 Blade Assy-Windshield Wiper8304--01 ~ ; K-LS; JIDECO[B309] |
28890-N8227 |
US $33.12 |
||
|
26380
|
26380
28880-N8200 Arm Assy-Windshield Wiper7903--01 ~ ; K-LS; BLACK[B309] |
28880-N8200 |
US $60.62 |
||
|
26381
|
26381
26381-H2300 Nut-Wiper Arm7903--01 ~ 7907--01; K-LS |
26381-H2300 |
US $4.90 |
||
|
26381
|
26381
26381-N4700 Nut-Wiper Arm7908--01 ~ ; K-LS |
26381-N4700 |
US $11.66 |
||
|
26381
|
26381
26381-H2300 Nut-Wiper Arm7903--01 ~ 7907--01; K-LS |
26381-H2300 |
US $4.90 |
||
|
26381
|
26381
26381-N4700 Nut-Wiper Arm7908--01 ~ ; K-LS |
26381-N4700 |
US $11.66 |
||
|
26385
|
26385
28885-N8200 Arm Assy-Windshield Wiper7903--01 ~ ; K-LS; BLACK[B309] |
28885-N8200 |
US $58.61 |
||
|
28810
|
28810
28810-N8210
Motor Assy-Windshield Wiper
7903--01 ~ 7907--01; K-LS |
28810-N8210 |
— | ||
|
28810
|
28810
28810-N8211 Motor Assy-Windshield Wiper7908--01 ~ ; K-LS |
28810-N8211 |
US $393.65 |
||
|
28836
|
28836
28817-N8200 Cover-Wiper Motor7903--01 ~ ; ALL |
28817-N8200 |
US $11.81 |
||
|
28850
|
28850
28840-N8200 Link Assy-Windshield Wiper7903--01 ~ ; K |
28840-N8200 |
US $111.89 |
||
|
28860
|
28860
28841-N8200 Link Assy-Connecting, No 17903--01 ~ ; K |
28841-N8200 |
US $15.12 |
||
|
28860
|
28860
28843-N8200 Link Assy-Connecting, No 17903--01 ~ 8006--01; K-LS; MOTOR SIDE |
28843-N8200 |
US $15.12 |
||
|
28860
|
28860
28841-N8200 Link Assy-Connecting, No 17903--01 ~ ; K |
28841-N8200 |
US $15.12 |
||
|
28860
|
28860
28843-N8200 Link Assy-Connecting, No 17903--01 ~ 8006--01; K-LS; MOTOR SIDE |
28843-N8200 |
US $15.12 |
||
|
28865
|
28865
28842-N8200 Link Assy-Connecting, No 27903--01 ~ 7907--01; ALL |
28842-N8200 |
US $15.12 |
||
|
28870
|
28870
28850-N8200 Pivot Assy-Wiper, No 17903--01 ~ ; K |
28850-N8200 |
US $48.67 |
||
|
28870
|
28870
01221-00021 NUT7903--01 ~ ; ALL |
01221-00021 |
US $1.73 |
||
|
28870B
|
28870B
01221-00021 NUT7903--01 ~ ; ALL |
01221-00021 |
US $1.73 |
||
|
28870B
|
28870B
01221-00021 NUT7903--01 ~ ; ALL |
01221-00021 |
US $1.73 |
||
|
28875
|
28875
28860-N8200 Pivot Assy-Wiper, No 27903--01 ~ ; K |
28860-N8200 |
US $48.67 |
||
|
28896
|
28896
28826-W1000 Retainer-Ball7903--01 ~ ; K; BIG MOTOR ARM ｸﾛ SMALL MOTOR ARM |
28826-W1000 |
US $3.46 |
||
|
28896
|
28896
28873-M0200 Retainer-Ball7903--01 ~ ; K; SMALL PIVOT ｼﾛ |
28873-M0200 |
US $3.31 |
||
|
28896
|
28896
28826-W1000 Retainer-Ball7903--01 ~ ; K; BIG MOTOR ARM ｸﾛ SMALL MOTOR ARM |
28826-W1000 |
US $3.46 |
||
|
28896
|
28896
28873-M0200 Retainer-Ball7903--01 ~ ; K; SMALL PIVOT ｼﾛ |
28873-M0200 |
US $3.31 |
||
|
28896
|
28896
28826-W1000 Retainer-Ball7903--01 ~ ; K; BIG MOTOR ARM ｸﾛ SMALL MOTOR ARM |
28826-W1000 |
US $3.46 |
||
|
28896
|
28896
28873-M0200 Retainer-Ball7903--01 ~ ; K; SMALL PIVOT ｼﾛ |
28873-M0200 |
US $3.31 |
||
