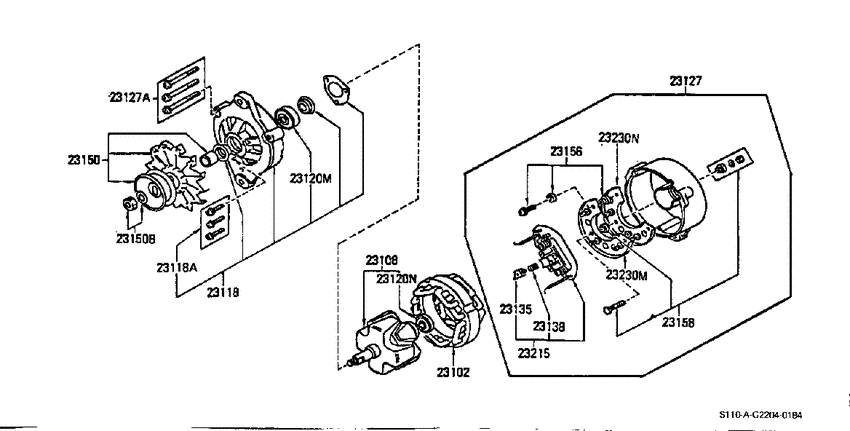

Alternator (1979-03-01 ~ 1979-07-01; 三菱,IC 50A; Z20E) Diagram Nissan SILVIA/GAZELLE
- Year
- 1981 - 2012
- Sales region
- Japan
- Engine
- Z20E
- transmission
- AT
- body
- HB
- grade s
- ZSEXG
- grade g
- XE2G
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23102
|
23102
23102-M5960
Stator Assy
7903--01 ~ 7907--01; *Z20E; HITACHI IC-60A |
23102-M5960 |
— | ||
|
23102
|
23102
23102-N9510 Stator Assy7903--01 ~ 7907--01; Z20E; MITSUBISHI IC-50A |
23102-N9510 |
US $208.80 |
||
|
23102
|
23102
23102-P3010
Stator Assy
7903--01 ~ 8006--01; *Z20E; MITSUBISHI IC-60A |
23102-P3010 |
— | ||
|
23102
|
23102
23102P3017 Stator Assy8208--01 ~ ; Z18S.AT+Z18E,Z20E *Z18S.MT; MITSUBISHI |
23102P3017 |
US $284.62 |
||
|
23102
|
23102
23102-Q4601 Stator Assy7908--01 ~ ; Z18S.AT+Z18E,Z20E *Z18S.MT; HITACHI IC-60A,60A |
23102-Q4601 |
US $321.43 |
||
|
23102
|
23102
23102-U0510 Stator Assy8006--01 ~ 8207--01; Z18S.AT+Z18E,Z20E *Z18S.MT; MITSUBISHI IC-60A |
23102-U0510 |
US $273.60 |
||
|
23102
|
23102
23102-W7100 Stator Assy7903--01 ~ 7907--01; Z20E; HITACHI IC-50A |
23102-W7100 |
US $210.24 |
||
|
23108
|
23108
23108-M5960 Rotor Assy7903--01 ~ 7907--01; *Z20E; HITACHI IC-60A |
23108-M5960 |
US $228.96 |
||
|
23108
|
23108
23108P3017 Rotor Assy8205--01 ~ ; Z18S.AT+Z18E,Z20E *Z18S.MT; MITSUBISHI |
23108P3017 |
US $407.81 |
||
|
23108
|
23108
23108-S6910 Rotor Assy7903--01 ~ 7907--01; Z20E; MITSUBISHI IC-50A |
23108-S6910 |
US $241.92 |
||
|
23108
|
23108
23108-U0510 Rotor Assy7903--01 ~ 7907--01; *Z20E; MITSUBISHI IC-60A |
23108-U0510 |
US $325.68 |
||
|
23108
|
23108
23108-V0100 Rotor Assy7908--01 ~ ; Z18E+Z20E; HITACHI IC-60A |
23108-V0100 |
US $407.81 |
||
|
23108
|
23108
23108-W7100
Rotor Assy
7903--01 ~ 7907--01; Z20E; HITACHI IC-50A |
23108-W7100 |
— | ||
|
23118
|
23118
23118-H7211
Cover Assy-Front
7903--01 ~ 7907--01; Z20E; MITSUBISHI IC-60A |
23118-H7211 |
— | ||
|
23118
|
23118
23118-N6100
Cover Assy-Front
7903--01 ~ 7907--01; *Z20E; HITACHI IC-60A |
23118-N6100 |
— | ||
|
23118
|
23118
23118-N9500
Cover Assy-Front
7903--01 ~ 7907--01; Z20E; HITACHI IC-50A |
23118-N9500 |
— | ||
|
23118
|
23118
23118-Q4610 Cover Assy-Front8006--01 ~ 8207--01; Z20E; MITSUBISHI IC-60A |
23118-Q4610 |
US $298.78 |
||
|
23118
|
23118
23118-U0515 Cover Assy-Front7903--01 ~ 8006--01; *Z20E; MITSUBISHI IC-60A |
23118-U0515 |
US $113.33 |
||
|
23118
|
23118
23118-W1705 Cover Assy-Front7908--01 ~ ; Z18E+Z20E; HITACHI IC-60A |
23118-W1705 |
US $156.96 |
||
|
23118
|
23118
23118-W5817 Cover Assy-Front8208--01 ~ ; Z18S.AT+Z18E,Z20E *Z18S.MT; MITSUBISHI |
23118-W5817 |
US $135.94 |
||
|
23118
|
23118
23115-A5510 Screw7903--01 ~ ; Z18,Z20E; MITSUBISHI |
23115-A5510 |
US $2.16 |
||
|
23118A
|
23118A
23115-A5510 Screw7903--01 ~ ; Z18,Z20E; MITSUBISHI |
23115-A5510 |
US $2.16 |
||
|
23120M
|
23120M
23120-61502 Bearing-Ball8105--01 ~ ; Z18S.AT+Z18E#+Z20E; HITACHI |
23120-61502 |
US $23.18 |
||
|
23120M
|
23120M
23120-65004
Bearing-Ball
7903--01 ~ 7907--01; *Z20E; HITACHI IC-60A |
23120-65004 |
— | ||
|
23120M
|
23120M
23120-P4500 Bearing-Ball7903--01 ~ 7907--01; Z20E; HITACHI IC-50A |
23120-P4500 |
US $23.18 |
||
|
23120M
|
23120M
23120-U0510
Bearing-Ball
7903--01 ~ 7907--01; Z20E; MITSUBISHI IC-50A |
23120-U0510 |
— | ||
|
23120M
|
23120M
23120-W7110 Bearing-Ball7908--01 ~ 8104--01; Z18E+Z20E; MITSUBISHI IC-60A |
23120-W7110 |
US $18.72 |
||
|
23120N
|
23120N
23120-14610 Bearing-Ball7903--01 ~ 7907--01; ALL; MITSUBISHI ALL |
23120-14610 |
US $16.63 |
||
|
23120N
|
23120N
23120-14801 Bearing-Ball7903--01 ~ 8104--01; ALL; HITACHI 50A,IC50A,60A,IC60A |
23120-14801 |
US $17.57 |
||
|
23120N
|
23120N
23120-P4510 Bearing-Ball8105--01 ~ ; Z18S.AT+Z18E,Z20E *Z18S.MT; MITSUBISHI IC-60A |
23120-P4510 |
US $11.38 |
||
|
23127
|
23127
23127-H7710
Cover Assy-Rear
7903--01 ~ 7907--01; Z20E; MITSUBISHI IC-50A |
23127-H7710 |
— | ||
|
23127
|
23127
23127-M5960
Cover Assy-Rear
7903--01 ~ 7907--01; *Z20E; HITACHI IC-60A |
23127-M5960 |
— | ||
|
23127
|
23127
23127-N9500
Cover Assy-Rear
7903--01 ~ 7907--01; Z20E; HITACHI IC-50A |
23127-N9500 |
— | ||
|
23127
|
23127
23127V0110 Cover Assy-Rear7903--01 ~ 8006--01; *Z20E; MITSUBISHI |
23127V0110 |
US $596.14 |
||
|
23127
|
23127
23127-W5806
Cover Assy-Rear
7908--01 ~ 8104--01; Z20E; HITACHI IC-60A |
23127-W5806 |
— | ||
|
23127
|
23127
23127-W5807
Cover Assy-Rear
8105--01 ~ ; Z18S.AT+Z18E,Z20E *Z18S.MT; HITACHI IC-60A |
23127-W5807 |
— | ||
|
23127
|
23127
23127-W5815
Cover Assy-Rear
8006--01 ~ 8104--01; Z18E+Z20E; MITSUBISHI IC-60A |
23127-W5815 |
— | ||
|
23127
|
23127
23127-W5817 Cover Assy-Rear8208--01 ~ ; Z18S.AT+Z18E,Z20E *Z18S.MT; MITSUBISHI |
23127-W5817 |
US $628.70 |
||
|
23127
|
23127
23131-P2500 Bolt-Through7903--01 ~ 7907--01; *Z20E; HITACHI IC-60A |
23131-P2500 |
US $3.31 |
||
|
23127
|
23127
23131-P2501 Bolt-Through7903--01 ~ 7907--01; Z20E; HITACHI IC-50A |
23131-P2501 |
US $3.31 |
||
|
23127
|
23127
23131-U0110 Bolt-Through7903--01 ~ 7907--01; Z20E; MITSUBISHI IC-50A |
23131-U0110 |
US $7.20 |
||
|
23127
|
23127
23131-U0510 Bolt-Through7903--01 ~ 8104--01; *Z20E; MITSUBISHI IC-60A |
23131-U0510 |
US $7.20 |
||
|
23127
|
23127
23131-W1700 Bolt-Through7908--01 ~ 8104--01; Z18E+Z20E; HITACHI IC-60A |
23131-W1700 |
US $4.42 |
||
|
23127A
|
23127A
23131-P2500 Bolt-Through7903--01 ~ 7907--01; *Z20E; HITACHI IC-60A |
23131-P2500 |
US $3.31 |
||
|
23127A
|
23127A
23131-P2501 Bolt-Through7903--01 ~ 7907--01; Z20E; HITACHI IC-50A |
23131-P2501 |
US $3.31 |
||
|
23127A
|
23127A
23131-U0110 Bolt-Through7903--01 ~ 7907--01; Z20E; MITSUBISHI IC-50A |
23131-U0110 |
US $7.20 |
||
|
23127A
|
23127A
23131-U0510 Bolt-Through7903--01 ~ 8104--01; *Z20E; MITSUBISHI IC-60A |
23131-U0510 |
US $7.20 |
||
|
23127A
|
23127A
23131-W1700 Bolt-Through7908--01 ~ 8104--01; Z18E+Z20E; HITACHI IC-60A |
23131-W1700 |
US $4.42 |
||
|
23138
|
23138
23138A5510 Spring-Brush7903--01 ~ ; Z18,Z20E; MITSUBISHI ALL |
23138A5510 |
US $1.87 |
||
|
23150
|
23150
23150-Q4603 Pulley Assy8006--01 ~ ; Z18S.AT+Z18E,Z20E *Z18S.MT; HITACHI IC-60A |
23150-Q4603 |
US $61.34 |
||
|
23150
|
23150
23150-U0511 Pulley Assy7903--01 ~ 8006--01; *Z20E; MITSUBISHI IC-60A |
23150-U0511 |
US $33.12 |
||
|
23150
|
23150
23150-U5800 Pulley Assy7903--01 ~ 8006--01; *Z20E; HITACHI IC-60A |
23150-U5800 |
US $73.58 |
||
|
23150
|
23150
23150-U5810 Pulley Assy7903--01 ~ 7907--01; Z20E; MITSUBISHI IC-50A |
23150-U5810 |
US $33.12 |
||
|
23150
|
23150
23150-U7500 Pulley Assy7903--01 ~ 7907--01; Z20E; HITACHI IC-50A |
23150-U7500 |
US $55.01 |
||
|
23150
|
23150
23150-W5817 Pulley Assy8208--01 ~ ; Z18S.AT+Z18E,Z20E *Z18S.MT; MITSUBISHI |
23150-W5817 |
US $27.36 |
||
|
23150
|
23150
23153-P4500 Nut Assy-Pulley7903--01 ~ 7907--01; Z20E; HITACHI IC-50A |
23153-P4500 |
US $4.18 |
||
|
23150
|
23150
23153-Q4601 Nut Assy-Pulley7908--01 ~ 8006--01; Z18E+Z20E; IC-60A |
23153-Q4601 |
US $4.18 |
||
|
23150
|
23150
23153-U0110 Nut Assy-Pulley7903--01 ~ ; ALL; MITSUBISHI AG2060N2 |
23153-U0110 |
US $1.73 |
||
|
23150
|
23150
23153-U5800
Nut Assy-Pulley
7903--01 ~ 7907--01; *Z20E; HITACHI IC-60A |
23153-U5800 |
— | ||
|
23150B
|
23150B
23153-P4500 Nut Assy-Pulley7903--01 ~ 7907--01; Z20E; HITACHI IC-50A |
23153-P4500 |
US $4.18 |
||
|
23150B
|
23150B
23153-Q4601 Nut Assy-Pulley7908--01 ~ 8006--01; Z18E+Z20E; IC-60A |
23153-Q4601 |
US $4.18 |
||
|
23150B
|
23150B
23153-U0110 Nut Assy-Pulley7903--01 ~ ; ALL; MITSUBISHI AG2060N2 |
23153-U0110 |
US $1.73 |
||
|
23150B
|
23150B
23153-U5800
Nut Assy-Pulley
7903--01 ~ 7907--01; *Z20E; HITACHI IC-60A |
23153-U5800 |
— | ||
|
23156
|
23156
23156-P2510 Terminal Assy-B7903--01 ~ 7907--01; Z20E; MITSUBISHI IC-50A |
23156-P2510 |
US $7.92 |
||
|
23156
|
23156
23156-W7110 Terminal Assy-B7908--01 ~ 8006--01; Z18E+Z20E; MITSUBISHI IC-60A |
23156-W7110 |
US $7.63 |
||
|
23158
|
23158
23158-P2501 Terminal Assy-E7903--01 ~ 7907--01; Z20E; HITACHI IC-50A |
23158-P2501 |
US $6.77 |
||
|
23158
|
23158
23158-U0110 Terminal Assy-E7903--01 ~ 7907--01; Z20E; MITSUBISHI IC-50A |
23158-U0110 |
US $2.16 |
||
|
23185
|
23185
23180-E6601
Screw
7903--01 ~ ; *Z20E; HITACHI |
23180-E6601 |
— | ||
|
23215
|
23215
23215-B9800
Regulator Assy-Ic
7903--01 ~ 7907--01; Z20E; HITACHI IC-50A |
23215-B9800 |
— | ||
|
23215
|
23215
23215-P2500
Regulator Assy-Ic
7903--01 ~ 7907--01; *Z20E; HITACHI IC-60A |
23215-P2500 |
— | ||
|
23215
|
23215
23215-P2510 Regulator Assy-Ic7903--01 ~ 7907--01; Z20E; MITSUBISHI IC-50A |
23215-P2510 |
US $339.84 |
||
|
23215
|
23215
23215-P3017 Regulator Assy-Ic8210--01 ~ ; Z18S.AT+Z18E,Z20E *Z18S.MT; MITSUBISHI |
23215-P3017 |
US $234.72 |
||
|
23215
|
23215
23215-Q4601
Regulator Assy-Ic
7908--01 ~ 8006--01; Z18E+Z20E; HITACHI IC-60A |
23215-Q4601 |
— | ||
|
23215
|
23215
23215-W7110 Regulator Assy-Ic7908--01 ~ 8006--01; Z18E+Z20E; MITSUBISHI IC-60A |
23215-W7110 |
US $228.96 |
||
|
23230M
|
23230M
23230-P2510
Diode Assy-Plus
7903--01 ~ 7907--01; Z20E; MITSUBISHI IC-50A |
23230-P2510 |
— | ||
|
23230M
|
23230M
23230-P3010 Diode Assy-Plus7903--01 ~ 7907--01; *Z20E; MITSUBISHI IC-60A |
23230-P3010 |
US $106.27 |
||
|
23230N
|
23230N
23230-P2511 Diode Assy-Minus7903--01 ~ 7907--01; Z20E; MITSUBISHI IC-50A |
23230-P2511 |
US $106.27 |
||
|
23230N
|
23230N
23230-P3011 Diode Assy-Minus7903--01 ~ 7907--01; *Z20E; MITSUBISHI IC-60A |
23230-P3011 |
US $106.27 |
