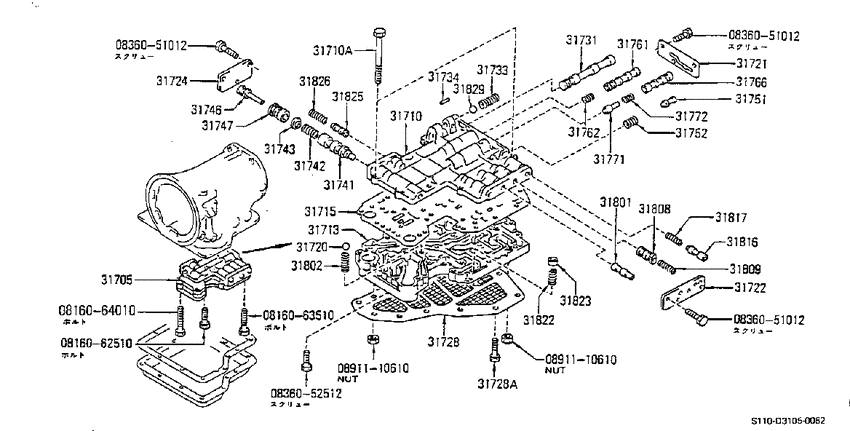

Control valve (atm) (1979-03-01 ~ ; AT) Diagram Nissan SILVIA/GAZELLE
- Year
- 1981 - 2012
- Sales region
- Japan
- Engine
- Z20E
- transmission
- AT
- body
- HB
- grade s
- ZSEXG
- grade g
- XE2G
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0816062510
|
0816062510
08160-62510
Bolt-hexagon
|
08160-62510 |
— | ||
|
0816063510
|
0816063510
08160-63510
Bolt-hexagon
|
08160-63510 |
— | ||
|
0816064010
|
0816064010
08160-64010
Bolt-hexagon
|
08160-64010 |
— | ||
|
0836051012
|
0836051012
08360-51012
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-51012 |
— | ||
|
0836051012
|
0836051012
08360-51012
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-51012 |
— | ||
|
0836051012
|
0836051012
08360-51012
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-51012 |
— | ||
|
0836052512
|
0836052512
08360-52512
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-52512 |
— | ||
|
0891110610
|
0891110610
0891110610 NUT |
0891110610 |
US $2.21 |
||
|
0891110610
|
0891110610
0891110610 NUT |
0891110610 |
US $2.21 |
||
|
31705
|
31705
31705-X0413 Valve Assy-Control8006--01 ~ 8104--01; Z18E,Z20E.AT |
31705-X0413 |
US $485.69 |
||
|
31705
|
31705
31705-X0702 Valve Assy-Control7903--01 ~ 7907--01; Z18E,Z20E.AT |
31705-X0702 |
US $511.18 |
||
|
31705
|
31705
31705-X2700 Valve Assy-Control7908--01 ~ 8006--01; Z20E.AT |
31705-X2700 |
US $444.62 |
||
|
31705
|
31705
31705-X6100 Valve Assy-Control8105--01 ~ ; 3N71B.Z20E |
31705-X6100 |
US $549.41 |
||
|
31710
|
31710
31710-X0410 Body Assy-Upper Control Valve7908--01 ~ 8006--01; Z18E.AT+Z20E.AT |
31710-X0410 |
US $100.94 |
||
|
31710
|
31710
31710-X4600 Body Assy-Upper Control Valve7903--01 ~ 7907--01; AT |
31710-X4600 |
US $100.94 |
||
|
31710
|
31710
31716-X0100 Bolt7903--01 ~ 7907--01; AT |
31716-X0100 |
US $1.73 |
||
|
31710A
|
31710A
31716-X0100 Bolt7903--01 ~ 7907--01; AT |
31716-X0100 |
US $1.73 |
||
|
31713
|
31713
31713-X0100 Body-Lower, Control Valve7903--01 ~ 7907--01; AT |
31713-X0100 |
US $64.51 |
||
|
31715
|
31715
31715-X0101 Plate-Separator7903--01 ~ 7907--01; Z18E,Z20E.AT |
31715-X0101 |
US $16.56 |
||
|
31715
|
31715
31715-X2700 Plate-Separator7908--01 ~ 8006--01; Z20E.AT |
31715-X2700 |
US $16.56 |
||
|
31715
|
31715
31715-X6100 Plate-Separator8105--01 ~ 8306--01; L3N71B.Z20E |
31715-X6100 |
US $27.36 |
||
|
31715
|
31715
31715-X6101 Plate-Separator8307--01 ~ ; L3N71B.Z20E |
31715-X6101 |
US $27.36 |
||
|
31720
|
31720
32720-36900 Ball-Steel7903--01 ~ 7907--01; AT |
32720-36900 |
US $0.82 |
||
|
31721
|
31721
31721-X0101
Plate-Side
7903--01 ~ 7907--01; AT |
31721-X0101 |
— | ||
|
31722
|
31722
31722-X0101 Plate-Side7903--01 ~ 7907--01; AT |
31722-X0101 |
US $7.34 |
||
|
31722
|
31722
31722-X3120 Plate-Side8006--01 ~ 8104--01; ALL |
31722-X3120 |
US $6.91 |
||
|
31724
|
31724
31724-X3101 Plate-Side7903--01 ~ 7907--01; AT |
31724-X3101 |
US $6.19 |
||
|
31728
|
31728
31728-X0100 Strainer Assy-Oil7903--01 ~ 7907--01; AT |
31728-X0100 |
US $8.50 |
||
|
31728
|
31728
01111-00371 SCREW7908--01 ~ ; Z18E.AT+Z20E.AT |
01111-00371 |
US $1.73 |
||
|
31728A
|
31728A
01111-00371 SCREW7908--01 ~ ; Z18E.AT+Z20E.AT |
01111-00371 |
US $1.73 |
||
|
31731
|
31731
31731-X0100 Valve-Manual7903--01 ~ 7907--01; AT |
31731-X0100 |
US $20.30 |
||
|
31733
|
31733
31733-X0100 Spring-Detent Manual7903--01 ~ 7907--01; AT |
31733-X0100 |
US $0.86 |
||
|
31734
|
31734
3287314600 Pin-Retainer, Speedometer Pinion7903--01 ~ 7907--01; AT |
3287314600 |
US $2.21 |
||
|
31741
|
31741
31741-X0100 Valve-Pressure Regulator7903--01 ~ 7907--01; AT |
31741-X0100 |
US $10.51 |
||
|
31742
|
31742
31742-X0100 Spring-Pressure Regulator7903--01 ~ 7907--01; AT |
31742-X0100 |
US $2.45 |
||
|
31743
|
31743
31743-X0100 Seat-Spring, Pressure Regulator7903--01 ~ 7907--01; AT |
31743-X0100 |
US $0.86 |
||
|
31746
|
31746
31746-X0100 Plug-Pressure Regulator7903--01 ~ 7907--01; AT |
31746-X0100 |
US $6.48 |
||
|
31746
|
31746
31746-Y1110 Plug-Pressure Regulator7908--01 ~ 8006--01; Z20E.AT |
31746-Y1110 |
US $9.94 |
||
|
31747
|
31747
31747-X0101 Sleeve-Plug, Pressure Regulator7903--01 ~ 7907--01; AT |
31747-X0101 |
US $12.96 |
||
|
31747
|
31747
31747-Y1110 Sleeve-Plug, Pressure Regulator7908--01 ~ 8006--01; Z20E.AT |
31747-Y1110 |
US $24.19 |
||
|
31751
|
31751
31751-X0100 Valve-Pressure Modifier7903--01 ~ 7907--01; AT |
31751-X0100 |
US $5.18 |
||
|
31752
|
31752
31752-X0100 Spring-Pressure Modifier7903--01 ~ 7907--01; AT |
31752-X0100 |
US $0.86 |
||
|
31761
|
31761
31761-X0100 Valve-1St & 2Nd Shift7903--01 ~ 7907--01; AT |
31761-X0100 |
US $10.80 |
||
|
31762
|
31762
31762-X0100 Spring-Valve, Shift7903--01 ~ 7907--01; AT |
31762-X0100 |
US $0.86 |
||
|
31766
|
31766
31766-X0100 Valve-2Nd & 3Rd Shift7903--01 ~ 7907--01; AT |
31766-X0100 |
US $8.06 |
||
|
31771
|
31771
31771-X0410 Plug-2Nd & 3Rd Shift7908--01 ~ 8006--01; Z18E.AT+Z20E.AT |
31771-X0410 |
US $5.18 |
||
|
31771
|
31771
31771-X4600 Plug-3Rd & 4Th Shift7903--01 ~ 7907--01; AT |
31771-X4600 |
US $6.34 |
||
|
31772
|
31772
31772-X0100 Spring-2Nd & 3Rd Shift7903--01 ~ 7907--01; AT |
31772-X0100 |
US $0.86 |
||
|
31801
|
31801
31801-X0101 Valve-Throttle Vacuum7903--01 ~ 7907--01; AT |
31801-X0101 |
US $5.33 |
||
|
31802
|
31802
31802-X0100 Spring-Throttle Relief7903--01 ~ 7907--01; AT |
31802-X0100 |
US $0.86 |
||
|
31808
|
31808
31808-X0100 Valve-Throttle Reverse7903--01 ~ 7907--01; AT |
31808-X0100 |
US $10.51 |
||
|
31809
|
31809
31809-X0100 Spring-Throttle Reverse7903--01 ~ 7907--01; AT |
31809-X0100 |
US $0.86 |
||
|
31816
|
31816
31816-X0100 Valve-Solenoid Down Shift7903--01 ~ 7907--01; AT |
31816-X0100 |
US $6.48 |
||
|
31817
|
31817
31817-X0100 Spring-Solenoid Down Shift7903--01 ~ 7907--01; AT |
31817-X0100 |
US $0.86 |
||
|
31822
|
31822
31822-X0101 Spring-Orifice Check7903--01 ~ 7907--01; AT |
31822-X0101 |
US $1.73 |
||
|
31823
|
31823
31823-X0100 Valve-Orifice Check7903--01 ~ 7907--01; Z18E,Z20E.AT |
31823-X0100 |
US $1.73 |
||
|
31823
|
31823
31823-X1200 Valve-Orifice Check7908--01 ~ 8006--01; Z20E.AT |
31823-X1200 |
US $2.45 |
||
|
31825
|
31825
31825-X0100 Valve-2Nd Lock7903--01 ~ 7907--01; AT |
31825-X0100 |
US $5.18 |
||
|
31826
|
31826
31826-X0100 Spring-2Nd Lock7903--01 ~ 7907--01; AT |
31826-X0100 |
US $0.86 |
||
|
31829
|
31829
32829-26760 Ball-Check7903--01 ~ 7907--01; AT |
32829-26760 |
from US $0.74 |
