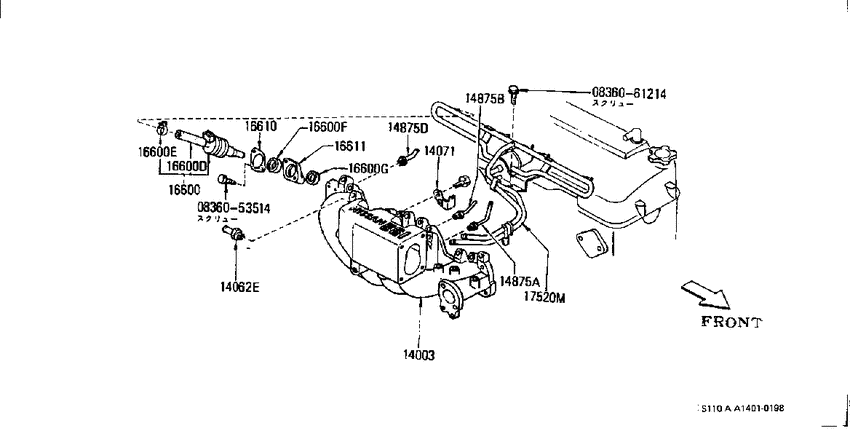

Manifold (1980-05-01 ~ ; "フューエル & パイピング パーツ; Z18E,Z20E) Diagram Nissan SILVIA/GAZELLE
- Year
- 1981 - 2012
- Sales region
- Japan
- Engine
- Z20E
- transmission
- AT
- body
- HB
- grade s
- ZSEXG
- grade g
- XE2G
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836053514
|
0836053514
08360-53514
Bolt
|
08360-53514 |
— | ||
|
0836061214
|
0836061214
08360-61214
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61214 |
— | ||
|
14003
|
14003
14003-N8400 Manifold-Intake7903--01 ~ 8006--01; Z18E,Z20E |
14003-N8400 |
US $753.31 |
||
|
14003
|
14003
14003-W1300 Manifold-Intake8006--01 ~ ; Z18E,Z20E |
14003-W1300 |
US $950.14 |
||
|
14003
|
14003
11023-W7060
Plug-Taper
8105--01 ~ ; Z18E#,Z20E |
11023-W7060 |
— | ||
|
14003
|
14003
11023-W7061 Plug-Taper7903--01 ~ 8104--01; Z18E,Z20E |
11023-W7061 |
US $21.60 |
||
|
14003
|
14003
11021-W7060 Plug-Taper7903--01 ~ ; Z18E,Z20E |
11021-W7060 |
US $4.03 |
||
|
14003
|
14003
11021-W7065 Plug-Taper7903--01 ~ ; Z18E,Z20E |
11021-W7065 |
US $4.03 |
||
|
14003
|
14003
14065-W1301 Stud-Manifold8112--01 ~ ; Z18E#,Z20E |
14065-W1301 |
US $2.45 |
||
|
14003
|
14003
14065-W1302 Stud-Fuel Pump8112--01 ~ ; Z18E#,Z20E |
14065-W1302 |
US $2.45 |
||
|
14062E
|
14062E
14875-W1301 Connector-Straight8006--01 ~ 8104--01; Z18E,Z20E |
14875-W1301 |
from US $10.08 |
||
|
14071
|
14071
16166-N8400 Bracket-Cable Holder7903--01 ~ ; Z18E,Z20E |
16166-N8400 |
US $8.93 |
||
|
14875A
|
14875A
14875-W1311 Connector-Straight8006--01 ~ ; Z18,Z20E |
14875-W1311 |
US $45.22 |
||
|
14875B
|
14875B
14875-W1312 Connector-Manifold8105--01 ~ ; Z18ET,Z20E,Z18E |
14875-W1312 |
US $12.38 |
||
|
14875B
|
14875B
16587-N8401
Connector-Manifold
7903--01 ~ 8104--01; Z18E,Z20E |
16587-N8401 |
— | ||
|
14875D
|
14875D
14875-W1312 Connector-Manifold8105--01 ~ ; Z18E,Z18ET,Z20E |
14875-W1312 |
US $12.38 |
||
|
16600
|
16600
16603-N7600
Injector Assy
7903--01 ~ 8006--01; Z20E; SELECT USE |
16603-N7600 |
— | ||
|
16600
|
16600
16603-N7610
Injector Assy
7903--01 ~ 8006--01; Z20E; SELECT USE |
16603-N7610 |
— | ||
|
16600
|
16600
16603-N7611 Injector Assy8102--01 ~ ; Z18E,Z20E; SELECT USE DKC YELLOW |
16603-N7611 |
US $236.16 |
||
|
16600
|
16600
16603-N7612 Injector Assy8102--01 ~ ; Z18E,Z20E; SELECT USE DKC BROWN |
16603-N7612 |
US $197.28 |
||
|
16600
|
16600
16603-N7660
Injector Assy
7903--01 ~ 8006--01; Z20E; SELECT USE |
16603-N7660 |
— | ||
|
16600
|
16600
16603-V0100
Injector Assy
8006--01 ~ ; Z18E,Z20E; SELECT USE |
16603-V0100 |
— | ||
|
16600
|
16600
16603-V0101 Injector Assy8102--01 ~ ; Z18E,Z20E; SELECT USE JECS YELLOW |
16603-V0101 |
US $236.16 |
||
| replacement | |||||
|
16600
|
16600
16603-N7611 Injector Assy8102--01 ~ ; Z18E,Z20E; SELECT USE JECS YELLOW |
16603-N7611 |
US $236.16 |
||
|
16600
|
16600
16603-V0102 Injector Assy8102--01 ~ ; Z18E,Z20E; SELECT USE JECS BROWN |
16603-V0102 |
US $197.28 |
||
|
16600
|
16600
16604-N7615 Hose-Injector7903--01 ~ ; Z18E,Z20E |
16604-N7615 |
US $17.57 |
||
|
16600
|
16600
16439-N4710
Clamp-Hose
7903--01 ~ ; Z20E |
16439-N4710 |
— | ||
| replacement | |||||
|
16600
|
16600
1643953A00 Clamp-Hose7903--01 ~ ; Z20E |
1643953A00 |
from US $2.37 |
||
|
16600
|
16600
16635N1400 Rubber-Insulator, Injector7903--01 ~ 8104--01; Z18E,Z20E |
16635N1400 |
from US $4.99 |
||
|
16600
|
16600
16636N1400 Rubber-Insulator, Injector7903--01 ~ 8104--01; Z18E,Z20E |
16636N1400 |
from US $5.42 |
||
|
16600D
|
16600D
16604-N7615 Hose-Injector7903--01 ~ ; Z18E,Z20E |
16604-N7615 |
US $17.57 |
||
|
16600E
|
16600E
16439-N4710
Clamp-Hose
7903--01 ~ ; Z20E |
16439-N4710 |
— | ||
| replacement | |||||
|
16600E
|
16600E
1643953A00 Clamp-Hose7903--01 ~ ; Z20E |
1643953A00 |
from US $2.37 |
||
|
16600F
|
16600F
16635N1400 Rubber-Insulator, Injector7903--01 ~ 8104--01; Z18E,Z20E |
16635N1400 |
from US $4.99 |
||
|
16600G
|
16600G
16636N1400 Rubber-Insulator, Injector7903--01 ~ 8104--01; Z18E,Z20E |
16636N1400 |
from US $5.42 |
||
|
16610
|
16610
16610-N1400 Holder-Injector7903--01 ~ 8104--01; Z18E,Z20E |
16610-N1400 |
from US $9.50 |
||
|
16611
|
16611
16612-N8500 Holder-Injector7904--01 ~ 8006--01; Z18E,Z20E |
16612-N8500 |
US $4.03 |
||
|
16611
|
16611
16612-W1300 Holder-Injector8006--01 ~ 8104--01; Z18E,Z20E |
16612-W1300 |
from US $9.02 |
||
|
17520M
|
17520M
17520-N8401
Pipe Assy-Fuel, A
7903--01 ~ 8006--01; Z18E,Z20E |
17520-N8401 |
— | ||
|
17520M
|
17520M
17520-W1301 Pipe Assy-Fuel, A8006--01 ~ 8104--01; Z18E,Z20E |
17520-W1301 |
US $240.48 |
||
|
17520M
|
17520M
17520-W1305 Pipe Assy-Fuel, A8209--01 ~ ; Z18E#,Z20E |
17520-W1305 |
US $240.48 |
||
