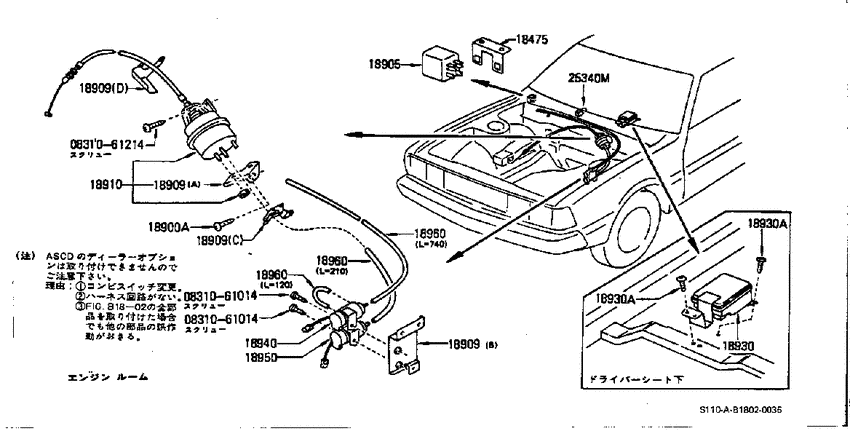

ﾁﾖ-ｸ & ｽﾛﾂﾄﾙ ｺﾝﾄﾛ-ﾙ (1981-05-01 ~ ; ZSEXG,XE2G･AT) Diagram Nissan SILVIA/GAZELLE
- Year
- 1981 - 2012
- Sales region
- Japan
- Engine
- Z20E
- transmission
- AT
- body
- HB
- grade s
- ZSEXG
- grade g
- XE2G
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0831061014
|
0831061014
08310-61014
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-61014 |
— | ||
|
0831061014
|
0831061014
08310-61014
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-61014 |
— | ||
|
0831061214
|
0831061214
08310-61214
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-61214 |
— | ||
|
18475
|
18475
25235-S5800 Bracket-Relay8105--01 ~ ; ZSEXG,XE2G.AT |
25235-S5800 |
US $6.05 |
||
|
18900A
|
18900A
01461-00061 SCREW8105--01 ~ ; ZSEXG,XE2G.AT; F/BRKT SERVO |
01461-00061 |
US $2.21 |
||
|
18905
|
18905
25230-89975
Relay Assy-Lamp Check
8105--01 ~ ; ZSEXG,XE2G.AT; F/ASCD JIDECO |
25230-89975 |
— | ||
| replacement | |||||
|
18905
|
18905
25230-89977 Relay8105--01 ~ ; ZSEXG,XE2G.AT; F/ASCD JIDECO |
25230-89977 |
US $48.78 |
||
|
18905
|
18905
25230-89977 Relay8105--01 ~ ; ZSEXG,XE2G.AT; F/ASCD NILES |
25230-89977 |
US $48.78 |
||
|
18909
|
18909
18914-N8400
Bracket-Servo Valve
8105--01 ~ ; ZSEXG,XE2G.AT; (A) |
18914-N8400 |
— | ||
|
18909
|
18909
18915-N8400
Bracket-Wire Clamp
8105--01 ~ ; ZSEXG,XE2G.AT; (D) |
18915-N8400 |
— | ||
|
18909
|
18909
18945-N8400
Bracket-Servo Valve
8105--01 ~ ; ZSEXG,XE2G.AT; (B) |
18945-N8400 |
— | ||
|
18909
|
18909
18947-N8400
Bracket-Servo Valve
8105--01 ~ ; ZSEXG,XE2G.AT; (C) |
18947-N8400 |
— | ||
|
18909
|
18909
18914-N8400
Bracket-Servo Valve
8105--01 ~ ; ZSEXG,XE2G.AT; (A) |
18914-N8400 |
— | ||
|
18909
|
18909
18915-N8400
Bracket-Wire Clamp
8105--01 ~ ; ZSEXG,XE2G.AT; (D) |
18915-N8400 |
— | ||
|
18909
|
18909
18945-N8400
Bracket-Servo Valve
8105--01 ~ ; ZSEXG,XE2G.AT; (B) |
18945-N8400 |
— | ||
|
18909
|
18909
18947-N8400
Bracket-Servo Valve
8105--01 ~ ; ZSEXG,XE2G.AT; (C) |
18947-N8400 |
— | ||
|
18909
|
18909
18914-N8400
Bracket-Servo Valve
8105--01 ~ ; ZSEXG,XE2G.AT; (A) |
18914-N8400 |
— | ||
|
18909
|
18909
18915-N8400
Bracket-Wire Clamp
8105--01 ~ ; ZSEXG,XE2G.AT; (D) |
18915-N8400 |
— | ||
|
18909
|
18909
18945-N8400
Bracket-Servo Valve
8105--01 ~ ; ZSEXG,XE2G.AT; (B) |
18945-N8400 |
— | ||
|
18909
|
18909
18947-N8400
Bracket-Servo Valve
8105--01 ~ ; ZSEXG,XE2G.AT; (C) |
18947-N8400 |
— | ||
|
18909
|
18909
18914-N8400
Bracket-Servo Valve
8105--01 ~ ; ZSEXG,XE2G.AT; (A) |
18914-N8400 |
— | ||
|
18909
|
18909
18915-N8400
Bracket-Wire Clamp
8105--01 ~ ; ZSEXG,XE2G.AT; (D) |
18915-N8400 |
— | ||
|
18909
|
18909
18945-N8400
Bracket-Servo Valve
8105--01 ~ ; ZSEXG,XE2G.AT; (B) |
18945-N8400 |
— | ||
|
18909
|
18909
18947-N8400
Bracket-Servo Valve
8105--01 ~ ; ZSEXG,XE2G.AT; (C) |
18947-N8400 |
— | ||
|
18910
|
18910
18910-N8400
Actuator Assy-Ascd
8105--01 ~ ; ZSEXG,XE2G.AT |
18910-N8400 |
— | ||
|
18930
|
18930
18930-N8400 Controller Assy-Ascd8105--01 ~ ; ZSEXG,XE2G.AT |
18930-N8400 |
US $586.22 |
||
|
18930
|
18930
01451-00171 SCREW8105--01 ~ ; ZSEXG,XE2G.AT; F/ASCD CONT AMP |
01451-00171 |
US $2.08 |
||
|
18930A
|
18930A
01451-00171 SCREW8105--01 ~ ; ZSEXG,XE2G.AT; F/ASCD CONT AMP |
01451-00171 |
US $2.08 |
||
|
18930A
|
18930A
01451-00171 SCREW8105--01 ~ ; ZSEXG,XE2G.AT; F/ASCD CONT AMP |
01451-00171 |
US $2.08 |
||
|
18940
|
18940
18940-N8400 Valve Assy-Servo8105--01 ~ ; ZSEXG,XE2G.AT |
18940-N8400 |
US $195.84 |
||
|
18950
|
18950
18950-W2402 Valve Assy-Solenoid8105--01 ~ ; ZSEXG,XE2G.AT |
18950-W2402 |
US $241.92 |
||
|
18960
|
18960
18961-N8400
Hose-Vacuum
8105--01 ~ ; ZSEXG,XE2G.AT; S/#A8961-N8500 USE CUT L=210 |
18961-N8400 |
— | ||
|
18960
|
18960
18961-W0500 Hose-Vacuum8105--01 ~ ; ZSEXG,XE2G.AT; S/#A8961-N8500 USE CUT L=120 |
18961-W0500 |
US $3.31 |
||
|
18960
|
18960
27733-Y0111
Hose-Vacuum
8105--01 ~ ; ZSEXG,XE2G.AT; "S/#B7796-89902 USE CUT L=740[A608] |
27733-Y0111 |
— | ||
|
18960
|
18960
18961-N8400
Hose-Vacuum
8105--01 ~ ; ZSEXG,XE2G.AT; S/#A8961-N8500 USE CUT L=210 |
18961-N8400 |
— | ||
|
18960
|
18960
18961-W0500 Hose-Vacuum8105--01 ~ ; ZSEXG,XE2G.AT; S/#A8961-N8500 USE CUT L=120 |
18961-W0500 |
US $3.31 |
||
|
18960
|
18960
27733-Y0111
Hose-Vacuum
8105--01 ~ ; ZSEXG,XE2G.AT; "S/#B7796-89902 USE CUT L=740[A608] |
27733-Y0111 |
— | ||
|
18960
|
18960
18961-N8400
Hose-Vacuum
8105--01 ~ ; ZSEXG,XE2G.AT; S/#A8961-N8500 USE CUT L=210 |
18961-N8400 |
— | ||
|
18960
|
18960
18961-W0500 Hose-Vacuum8105--01 ~ ; ZSEXG,XE2G.AT; S/#A8961-N8500 USE CUT L=120 |
18961-W0500 |
US $3.31 |
||
|
18960
|
18960
27733-Y0111
Hose-Vacuum
8105--01 ~ ; ZSEXG,XE2G.AT; "S/#B7796-89902 USE CUT L=740[A608] |
27733-Y0111 |
— | ||
|
25340M
|
25340M
25340-D1600 Switch-Speed Control8105--01 ~ ; ZSEXG,XE2G.AT |
25340-D1600 |
US $85.25 |
||
