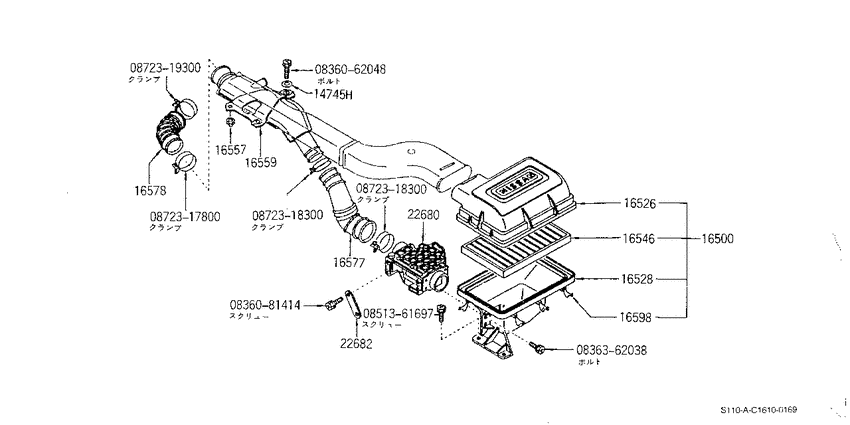

ｴｱ ｸﾘ-ﾅ- & ｴｱ ﾌﾛ- ﾒ-ﾀ- (1980-05-01 ~ ; Z18E,Z20E) Diagram Nissan SILVIA/GAZELLE
- Year
- 1981 - 2012
- Sales region
- Japan
- Engine
- Z20E
- transmission
- AT
- body
- HB
- grade s
- ZSEXG
- grade g
- XE2G
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836062048
|
0836062048
08360-62048
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-62048 |
— | ||
|
0836081414
|
0836081414
08360-81414
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-81414 |
— | ||
|
0836362038
|
0836362038
0836362038
SCREWMACHINE
|
0836362038 |
— | ||
|
0851361697
|
0851361697
08513-61697
SCREW
|
08513-61697 |
— | ||
|
0872317800
|
0872317800
08723-17800
CLAMP-HOSE
|
08723-17800 |
— | ||
| replacement | |||||
|
0872317800
|
0872317800
0155500313 CLAMP-HOSE |
0155500313 |
US $4.99 |
||
|
0872318300
|
0872318300
08723-18300
CLAMP-HOSE
|
08723-18300 |
— | ||
|
0872318300
|
0872318300
08723-18300
CLAMP-HOSE
|
08723-18300 |
— | ||
|
0872319300
|
0872319300
08723-19300
ｸﾗﾝﾌﾟ,ﾎ-ｽ
|
08723-19300 |
— | ||
|
14745H
|
14745H
16569-N8400
Mounting Rubber
7903--01 ~ 8006--01; Z18E,Z20E |
16569-N8400 |
— | ||
|
16500
|
16500
16500-05L00 Air Cleaner8307--01 ~ ; Z18E,Z20E |
16500-05L00 |
US $283.68 |
||
|
16500
|
16500
16500-N8400 Air Cleaner7903--01 ~ 8006--01; Z18E,Z20E |
16500-N8400 |
US $608.88 |
||
|
16500
|
16500
16500-V0100 Air Cleaner8006--01 ~ 8301--01; Z18E,Z20E |
16500-V0100 |
US $277.92 |
||
| replacement | |||||
|
16500
|
16500
16500-05L25 Air Cleaner8006--01 ~ 8301--01; Z18E,Z20E |
16500-05L25 |
US $180 |
||
|
16500
|
16500
16500-V2725 Air Cleaner8302--01 ~ 8306--01; Z18E,Z20E |
16500-V2725 |
US $180 |
||
| replacement | |||||
|
16500
|
16500
16500-05L25 Air Cleaner8302--01 ~ 8306--01; Z18E,Z20E |
16500-05L25 |
US $180 |
||
|
16500
|
16500
01436-00201 BOLT8105--01 ~ ; Z18E+Z20E |
01436-00201 |
US $1.73 |
||
|
16526
|
16526
16526-V0100 Air Cleaner Cover8006--01 ~ ; Z18E+Z20E |
16526-V0100 |
US $51.70 |
||
|
16528
|
16528
16528-V0100 Body Assy-Air Cleaner8006--01 ~ ; Z18E,Z20E |
16528-V0100 |
US $123.12 |
||
|
16546
|
16546
16546N4200 Element Assy-Air7903--01 ~ 8006--01; Z18E,Z20E; [B517] |
16546N4200 |
US $39.60 |
||
|
16546
|
16546
AY120NS001
Element Assy-Air
8006--01 ~ 8104--01; Z18E,Z20E |
AY120NS001 |
— | ||
| replacements | |||||
|
16546
|
16546
AY120NS00101 Element Assy-Air8006--01 ~ 8104--01; Z18E,Z20E |
AY120NS00101 |
US $29.76 |
||
|
16546
|
16546
AY120-NS063 Element Assy-Air8006--01 ~ 8104--01; Z18E,Z20E |
AY120-NS063 |
US $24.74 |
||
|
16557
|
16557
16569-N8400
Mounting Rubber
7903--01 ~ ; Z18E,Z20E |
16569-N8400 |
— | ||
|
16559
|
16559
16576-N8401 Pipe-Air Inlet7903--01 ~ 8006--01; Z18E,Z20E |
16576-N8401 |
US $301.61 |
||
|
16559
|
16559
16576-N8410
Pipe-Air Inlet
8006--01 ~ 8104--01; Z18E,Z20E |
16576-N8410 |
— | ||
|
16559
|
16559
16576-N8411 Pipe-Air Inlet8105--01 ~ ; Z18E+Z20E |
16576-N8411 |
US $288 |
||
|
16577
|
16577
16577-N8400 Duct Assy-Air7903--01 ~ 8404--01; Z18E,Z20E |
16577-N8400 |
US $66.67 |
||
|
16577
|
16577
16577-N8501 Duct Assy-Air8006--01 ~ ; Z18E,Z20E |
16577-N8501 |
US $71.57 |
||
|
16577
|
16577
16582-N8300
Clamp-Hose
7903--01 ~ ; Z18E,Z20E |
16582-N8300 |
— | ||
|
16578
|
16578
16578-N8400 Duct-Air7903--01 ~ 8006--01; Z20E |
16578-N8400 |
US $117.36 |
||
|
16578
|
16578
16578-N8410 Duct-Air8006--01 ~ ; Z20E |
16578-N8410 |
US $111.46 |
||
|
16598
|
16598
16598-V0100 Clip8006--01 ~ ; Z18E+Z20E |
16598-V0100 |
US $2.45 |
||
|
22680
|
22680
22680-N8401 Mass Air Flow7903--01 ~ 8006--01; Z20E |
22680-N8401 |
US $597.55 |
||
|
22680
|
22680
22680-W1400 Mass Air Flow8006--01 ~ ; Z18E+Z20E |
22680-W1400 |
US $661.27 |
||
|
22682
|
22682
22682-N8400
Mass Air Flow Bracket
7903--01 ~ 8006--01; Z18E,Z20E |
22682-N8400 |
— | ||
|
22682
|
22682
22682-V0100 Mass Air Flow Bracket8006--01 ~ ; Z18E,Z20E |
22682-V0100 |
US $12.10 |
||
