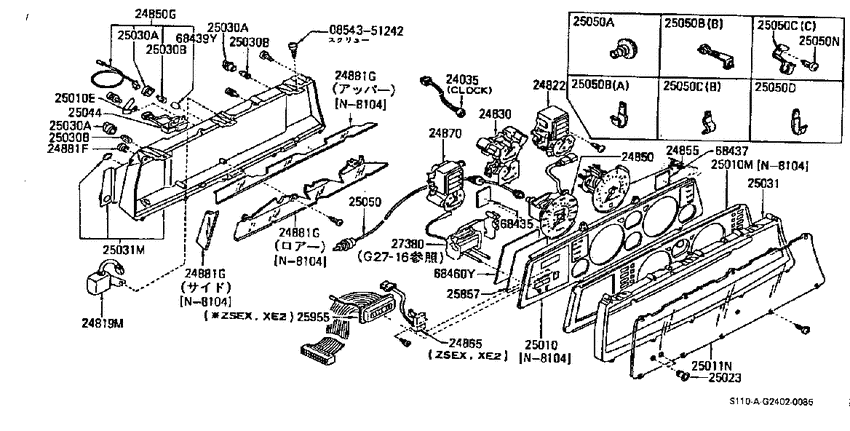

meter (1981-05-01 ~ ; アナログメーター; LSX#,ZSEX,ZSEXT,T2#,XE2,XE2T) Diagram Nissan SILVIA/GAZELLE
- Year
- 1979 - 2012
- Sales region
- Japan
- Engine
- Z18S
- transmission
- AT
- body
- K
- grade s
- LSX
- grade g
- T2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0854351242
|
0854351242
0854351242 SCREWTAPPING |
0854351242 |
from US $0.54 |
||
|
24035
|
24035
24858-N8560
Harness Assy-Meter
8006--01 ~ ; ALL-LS |
24858-N8560 |
— | ||
|
24822
|
24822
24822-N8201 Meter Assy-Volt7903--01 ~ 8006--01; !ALL-K.LS,LSL#,ZSEL ALL-K.T1#,XE1; [B208] |
24822-N8201 |
US $72 |
||
|
24822
|
24822
24822-N8270 Meter Assy-Volt8006--01 ~ 8104--01; !ALL-K.LS,LSL#,ZSEL ALL-K.T1#,XE1; [B208] |
24822-N8270 |
US $113.76 |
||
|
24830
|
24830
24825-N8200 Meter Assy-Water & Fuel7903--01 ~ 8005--01; LS,LSX,LSL,ZSEX T2,T1,XE2; KANTOUSEIKI |
24825-N8200 |
US $133.20 |
||
|
24830
|
24830
24825-N9763 Meter Assy-Water & Fuel8105--01 ~ ; Z18S; KANTOUSEIKI |
24825-N9763 |
US $185.76 |
||
|
24850
|
24850
24850-N8200 Speedometer Assy7903--01 ~ 8104--01; ALL |
24850-N8200 |
US $346.92 |
||
|
24850
|
24850
24850-N8260 Speedometer Assy8105--01 ~ ; Z18S,Z18E,ZSEX XE2,XE2T; ｱﾅﾛｸﾞ |
24850-N8260 |
US $346.92 |
||
|
24850
|
24850
25042-N8200 Socket Assy-Bulb7903--01 ~ 8104--01; LSX#,ZSEX,T2#,XE2; W/BULB F/FIBER SCOPE |
25042-N8200 |
US $74.02 |
||
|
24850G
|
24850G
25042-N8200 Socket Assy-Bulb7903--01 ~ 8104--01; LSX#,ZSEX,T2#,XE2; W/BULB F/FIBER SCOPE |
25042-N8200 |
US $74.02 |
||
|
24855
|
24855
24855-N8200 Tachometer Assy7903--01 ~ 8104--01; ALL; [B208] |
24855-N8200 |
US $230.40 |
||
|
24855
|
24855
24855-N8201 Tachometer Assy8105--01 ~ ; "ALL-*ZSEXG,ZSEXT ALL-*XE2G,XE2T; [B208] |
24855-N8201 |
US $358.25 |
||
|
24870
|
24870
24870-N8201
Meter Assy-Oil Pressure
7903--01 ~ 7907--01; !ALL-K.LS,LSL#,ZSEL ALL-K.T1#,XE1 |
24870-N8201 |
— | ||
|
24870
|
24870
24870-N8205 Meter Assy-Oil Pressure7908--01 ~ 8006--01; !ALL-K.LSL#,ZSEL, ALL-K.T1#,XE1 |
24870-N8205 |
US $61.63 |
||
|
24870
|
24870
24870-N8270 Meter Assy-Oil Pressure8006--01 ~ 8104--01; !ALL-K.LS,LSL#,ZSEL ALL-K.T1#,XE1 |
24870-N8270 |
US $70.56 |
||
|
24881F
|
24881F
25052-N8200
Grommet
7903--01 ~ ; LSX#,ZSEX,LS,T2#,XE2; WHITE |
25052-N8200 |
— | ||
|
24881G
|
24881G
25014-N8200
Finisher-Meter
7903--01 ~ 8104--01; LSX#,ZSEX,T2#,XE2; F/UPPER |
25014-N8200 |
— | ||
|
24881G
|
24881G
25014-N8201
Finisher-Meter
7903--01 ~ 8104--01; LSX#,ZSEX,T2#,XE2; F/LOWER |
25014-N8201 |
— | ||
|
24881G
|
24881G
25014-N8202
Finisher-Meter
7903--01 ~ 8104--01; LSX#,ZSEX,T2#,XE2; F/SIDE |
25014-N8202 |
— | ||
|
24881G
|
24881G
25014-N8200
Finisher-Meter
7903--01 ~ 8104--01; LSX#,ZSEX,T2#,XE2; F/UPPER |
25014-N8200 |
— | ||
|
24881G
|
24881G
25014-N8201
Finisher-Meter
7903--01 ~ 8104--01; LSX#,ZSEX,T2#,XE2; F/LOWER |
25014-N8201 |
— | ||
|
24881G
|
24881G
25014-N8202
Finisher-Meter
7903--01 ~ 8104--01; LSX#,ZSEX,T2#,XE2; F/SIDE |
25014-N8202 |
— | ||
|
24881G
|
24881G
25014-N8200
Finisher-Meter
7903--01 ~ 8104--01; LSX#,ZSEX,T2#,XE2; F/UPPER |
25014-N8200 |
— | ||
|
24881G
|
24881G
25014-N8201
Finisher-Meter
7903--01 ~ 8104--01; LSX#,ZSEX,T2#,XE2; F/LOWER |
25014-N8201 |
— | ||
|
24881G
|
24881G
25014-N8202
Finisher-Meter
7903--01 ~ 8104--01; LSX#,ZSEX,T2#,XE2; F/SIDE |
25014-N8202 |
— | ||
|
25010
|
25010
25017-N8200
Lid Assy-Cluster
7903--01 ~ 8002--01; LSX#,T2#; LESS MICON & WARNING |
25017-N8200 |
— | ||
|
25010
|
25010
25017-N8201
Lid Assy-Cluster
8003--01 ~ 8006--01; LSX#,T2#; LESS MICON & WARNING |
25017-N8201 |
— | ||
|
25010
|
25010
25017-N8270
Lid Assy-Cluster
8006--01 ~ ; LSX#,T2#; LESS MICON & WARNING |
25017-N8270 |
— | ||
|
25010
|
25010
25053-N8200 Clip-Harness7903--01 ~ ; ALL; F/SPEEDMETER |
25053-N8200 |
US $2.88 |
||
|
25010
|
25010
25016-N8200 Cover-Lid For Speedometer7903--01 ~ ; LSX#,ZSEX,T2#,XE2 |
25016-N8200 |
US $67.82 |
||
|
25010E
|
25010E
25053-N8200 Clip-Harness7903--01 ~ ; ALL; F/SPEEDMETER |
25053-N8200 |
US $2.88 |
||
|
25010M
|
25010M
25016-N8200 Cover-Lid For Speedometer7903--01 ~ ; LSX#,ZSEX,T2#,XE2 |
25016-N8200 |
US $67.82 |
||
|
25011N
|
25011N
25012-N8201 Cover-Lid, Lh7903--01 ~ 8104--01; LSX#,ZSEX,T2#,XE2 |
25012-N8201 |
US $61.63 |
||
|
25011N
|
25011N
25012-N8203 Cover-Lid, Lh8105--01 ~ ; LSX#,ZSEX,ZSEXT T2#,XE2,XE2T |
25012-N8203 |
US $61.63 |
||
|
25023
|
25023
24897-N8200 Grommet8105--01 ~ ; ALL-LS |
24897-N8200 |
US $4.75 |
||
|
25030A
|
25030A
26260-N8200 Socket Assy-Bulb7903--01 ~ ; ALL; F/12V/3.4W |
26260-N8200 |
US $10.54 |
||
|
25030A
|
25030A
26260-N8210 Socket Assy-Bulb7903--01 ~ ; ALL; F/12V/2W BLACK |
26260-N8210 |
US $1.73 |
||
|
25030A
|
25030A
26260-N8300 Socket Assy-Bulb7903--01 ~ ; ALL; F/12V/2.7W BROWN BLUE POINT |
26260-N8300 |
US $16.27 |
||
|
25030A
|
25030A
26260-N8200 Socket Assy-Bulb7903--01 ~ ; ALL; F/12V/3.4W |
26260-N8200 |
US $10.54 |
||
|
25030A
|
25030A
26260-N8210 Socket Assy-Bulb7903--01 ~ ; ALL; F/12V/2W BLACK |
26260-N8210 |
US $1.73 |
||
|
25030A
|
25030A
26260-N8300 Socket Assy-Bulb7903--01 ~ ; ALL; F/12V/2.7W BROWN BLUE POINT |
26260-N8300 |
US $16.27 |
||
|
25030A
|
25030A
26260-N8200 Socket Assy-Bulb7903--01 ~ ; ALL; F/12V/3.4W |
26260-N8200 |
US $10.54 |
||
|
25030A
|
25030A
26260-N8210 Socket Assy-Bulb7903--01 ~ ; ALL; F/12V/2W BLACK |
26260-N8210 |
US $1.73 |
||
|
25030A
|
25030A
26260-N8300 Socket Assy-Bulb7903--01 ~ ; ALL; F/12V/2.7W BROWN BLUE POINT |
26260-N8300 |
US $16.27 |
||
|
25030B
|
25030B
2626189902 Bulb-Control7903--01 ~ ; ALL; 12V 2.7W[B113] |
2626189902 |
US $0.88 |
||
|
25030B
|
25030B
26261-89906 Bulb8105--01 ~ ; ALL; 12V/2W |
26261-89906 |
US $0.97 |
||
|
25030B
|
25030B
26261-N8210
Bulb
7903--01 ~ ; ALL; 12V 2W SMALL TYPE |
26261-N8210 |
— | ||
|
25030B
|
25030B
AY08000064 Bulb7903--01 ~ ; ALL; 12V 3.4W BIG TIPE |
AY08000064 |
US $0.97 |
||
|
25030B
|
25030B
2626189902 Bulb-Control7903--01 ~ ; ALL; 12V 2.7W[B113] |
2626189902 |
US $0.88 |
||
|
25030B
|
25030B
26261-89906 Bulb8105--01 ~ ; ALL; 12V/2W |
26261-89906 |
US $0.97 |
||
|
25030B
|
25030B
26261-N8210
Bulb
7903--01 ~ ; ALL; 12V 2W SMALL TYPE |
26261-N8210 |
— | ||
|
25030B
|
25030B
AY08000064 Bulb7903--01 ~ ; ALL; 12V 3.4W BIG TIPE |
AY08000064 |
US $0.97 |
||
|
25030B
|
25030B
2626189902 Bulb-Control7903--01 ~ ; ALL; 12V 2.7W[B113] |
2626189902 |
US $0.88 |
||
|
25030B
|
25030B
26261-89906 Bulb8105--01 ~ ; ALL; 12V/2W |
26261-89906 |
US $0.97 |
||
|
25030B
|
25030B
26261-N8210
Bulb
7903--01 ~ ; ALL; 12V 2W SMALL TYPE |
26261-N8210 |
— | ||
|
25030B
|
25030B
AY08000064 Bulb7903--01 ~ ; ALL; 12V 3.4W BIG TIPE |
AY08000064 |
US $0.97 |
||
|
25031
|
25031
25031-N8210
Housing-Meter Comb, Upper
7903--01 ~ 8104--01; LSX#,ZSEX,T2#,XE2 |
25031-N8210 |
— | ||
|
25031
|
25031
25031-N8463
Housing-Meter Comb, Upper
8105--01 ~ ; LSX#,ZSEX,ZSEXT T2#,XE2,XE2T |
25031-N8463 |
— | ||
|
25031
|
25031
25032-N8203 Housing-Meter Comb, Lower7908--01 ~ 8006--01; ALL; HOUSING+PRINT+ TERMINAL |
25032-N8203 |
US $168.48 |
||
|
25031
|
25031
25032-N8228 Housing-Meter Comb, Lower7903--01 ~ 7907--01; (LSX#,ZSEX,T2#,XE2 HB.LSL#,ZSEL,T1#,TE1; !OIL METER+HOUSING+ PRINT+TERMINAL |
25032-N8228 |
US $101.81 |
||
|
25031
|
25031
25032-N8260 Housing-Meter Comb, Lower8006--01 ~ 8104--01; ALL; HOUSING+PRINT+ TERMINAL |
25032-N8260 |
US $168.48 |
||
|
25031M
|
25031M
25032-N8203 Housing-Meter Comb, Lower7908--01 ~ 8006--01; ALL; HOUSING+PRINT+ TERMINAL |
25032-N8203 |
US $168.48 |
||
|
25031M
|
25031M
25032-N8228 Housing-Meter Comb, Lower7903--01 ~ 7907--01; (LSX#,ZSEX,T2#,XE2 HB.LSL#,ZSEL,T1#,TE1; !OIL METER+HOUSING+ PRINT+TERMINAL |
25032-N8228 |
US $101.81 |
||
|
25031M
|
25031M
25032-N8260 Housing-Meter Comb, Lower8006--01 ~ 8104--01; ALL; HOUSING+PRINT+ TERMINAL |
25032-N8260 |
US $168.48 |
||
|
25044
|
25044
24840-N8200 Protector-Chattering7903--01 ~ ; ALL |
24840-N8200 |
US $67.82 |
||
|
25050
|
25050
25050-N8202
Shaft Assy-Flexible, Speedometer
7903--01 ~ 8104--01; AT |
25050-N8202 |
— | ||
|
25050
|
25050
25050-N8262
Shaft Assy-Flexible, Speedometer
8105--01 ~ ; AT |
25050-N8262 |
— | ||
|
25050
|
25050
25051-R5600 Grommet7903--01 ~ ; ALL |
25051-R5600 |
US $4.03 |
||
| replacement | |||||
|
25050
|
25050
25051-W5700
Grommet
7903--01 ~ ; ALL |
25051-W5700 |
— | ||
|
25050
|
25050
25052-H8500
Clip-Flexible Shaft
7903--01 ~ ; ALL; (B) |
25052-H8500 |
— | ||
|
25050
|
25050
24210-N5001 Clip-Wiring Harness8105--01 ~ ; ALL |
24210-N5001 |
US $4.03 |
||
|
25050
|
25050
24210-N6019 Clip-Flexible Shaft7903--01 ~ 7907--01; Z18.F5,AT+Z20E; (B) |
24210-N6019 |
US $4.03 |
||
| replacement | |||||
|
25050
|
25050
25052-V4000 Clip-Flexible Shaft7903--01 ~ 7907--01; Z18.F5,AT+Z20E; (B) |
25052-V4000 |
US $7.06 |
||
|
25050
|
25050
24210-N8224
Clip-Flexible Shaft
7903--01 ~ 7907--01; Z18.F5,AT+Z20E; (C) |
24210-N8224 |
— | ||
|
25050
|
25050
25059-U7400
Clip-Flexible Shaft
7903--01 ~ ; ALL |
25059-U7400 |
— | ||
|
25050
|
25050
01456-00041 SCREW7903--01 ~ ; ALL |
01456-00041 |
US $1.73 |
||
|
25050A
|
25050A
25051-R5600 Grommet7903--01 ~ ; ALL |
25051-R5600 |
US $4.03 |
||
| replacement | |||||
|
25050A
|
25050A
25051-W5700
Grommet
7903--01 ~ ; ALL |
25051-W5700 |
— | ||
|
25050B
|
25050B
25052-H8500
Clip-Flexible Shaft
7903--01 ~ ; ALL; (B) |
25052-H8500 |
— | ||
|
25050B
|
25050B
25052-H8500
Clip-Flexible Shaft
7903--01 ~ ; ALL; (B) |
25052-H8500 |
— | ||
|
25050C
|
25050C
24210-N5001 Clip-Wiring Harness8105--01 ~ ; ALL |
24210-N5001 |
US $4.03 |
||
|
25050C
|
25050C
24210-N6019 Clip-Flexible Shaft7903--01 ~ 7907--01; Z18.F5,AT+Z20E; (B) |
24210-N6019 |
US $4.03 |
||
| replacement | |||||
|
25050C
|
25050C
25052-V4000 Clip-Flexible Shaft7903--01 ~ 7907--01; Z18.F5,AT+Z20E; (B) |
25052-V4000 |
US $7.06 |
||
|
25050C
|
25050C
24210-N8224
Clip-Flexible Shaft
7903--01 ~ 7907--01; Z18.F5,AT+Z20E; (C) |
24210-N8224 |
— | ||
|
25050D
|
25050D
25059-U7400
Clip-Flexible Shaft
7903--01 ~ ; ALL |
25059-U7400 |
— | ||
|
25050N
|
25050N
01456-00041 SCREW7903--01 ~ ; ALL |
01456-00041 |
US $1.73 |
||
|
27380
|
27380
25820-N8270 Clock Assy8006--01 ~ 8104--01; LSX#,ZSEX,T2#,XE2; LESS MICON[B208] |
25820-N8270 |
US $230.40 |
||
|
27380
|
27380
25820-N8400 Clock Assy7903--01 ~ 8006--01; LSX#,ZSEX,T2#,XE2; LUMI DIGITAL[B208] |
25820-N8400 |
US $259.20 |
||
|
68435
|
68435
25048-N8201
ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ
7903--01 ~ 8003--01; ZSEX,XE2,T2#,LSX#.; LESS MOGI |
25048-N8201 |
— | ||
|
68435
|
68435
25048-N8207
ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ
8004--01 ~ ; ZSEX,XE2,T2#,LSX#.; LESS MOGI |
25048-N8207 |
— | ||
|
68435
|
68435
25048-N8209
ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ
8105--01 ~ ; 'LSX#,ZSEX,ZSEXT+K.LSL+T2#,XE2,XE2T+K.T1; EXH TEMP BELT BRAKE DOOR |
25048-N8209 |
— | ||
|
68437
|
68437
25049-N8201
ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ
7903--01 ~ 8003--01; LSX#,ZSEX,T2#,XE2; LESS MOGI |
25049-N8201 |
— | ||
|
68437
|
68437
25049-N8204
ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ
8004--01 ~ ; LSX#,ZSEX,T2#,XE2; LESS MOGI |
25049-N8204 |
— | ||
|
68437
|
68437
25049-N8463
ﾚﾝｽﾞ,ﾜ-ﾆﾝｸﾞ ﾗﾝﾌﾟ
8105--01 ~ ; 'LSX#,ZSEX,ZSEXT+K.LSL+T2#,XE2,XE2T+K.T1; HEAD TAIL STOP R.DEF |
25049-N8463 |
— | ||
|
68439Y
|
68439Y
25043-N8200 Socket Assy-Bulb7903--01 ~ ; ALL; GREEN |
25043-N8200 |
US $7.92 |
||
| replacement | |||||
|
68439Y
|
68439Y
B5M43N8200
ｿｹﾂﾄ&ﾊﾞﾙﾌﾞ ｱﾂｼｰ
7903--01 ~ ; ALL; GREEN |
B5M43N8200 |
— | ||
|
68460Y
|
68460Y
24879-N8383
ﾏｽｸ,ｸﾛﾂｸ
8105--01 ~ ; LSX#,ZSEX,ZSEXT T2#,XE2,XE2T; LESS MICON |
24879-N8383 |
— | ||
