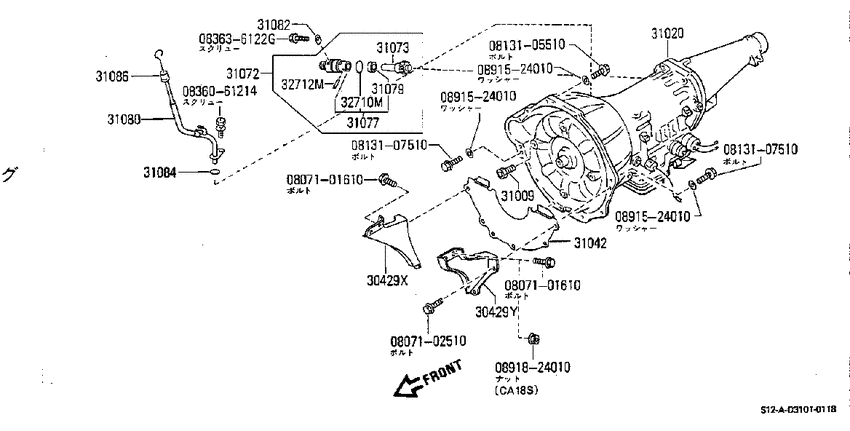

AT transmission & transaxle assembly (1983-08-01 ~ 1986-02-01; &アッセンブリー&フィッティング パーツ; 3N71B) Diagram Nissan SILVIA/GAZELLE
- Year
- 1984 - 1986
- Sales region
- Japan
- Engine
- CA18E
- transmission
- AT
- grade
- CTM
- body
- K
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
0807102510
|
0807102510
08071-02510
ボルト,ヘクサゴン
|
08071-02510 |
— | ||
0836061214
|
0836061214
08360-61214
スクリユ-,マシン
|
08360-61214 |
— | ||
083636122G
|
083636122G
083636122G スクリユ-,マシン |
083636122G |
US $2.11 |
||
0891524010
|
0891524010
08915-24010
ワツシヤ-,スプリング
|
08915-24010 |
— | ||
0891524010
|
0891524010
08915-24010
ワツシヤ-,スプリング
|
08915-24010 |
— | ||
0891524010
|
0891524010
08915-24010
ワツシヤ-,スプリング
|
08915-24010 |
— | ||
0891824010
|
0891824010
08918-24010
ナツト,ヘクサゴン
|
08918-24010 |
— | ||
30429X
|
30429X
30429-W4400
Gusset-Transmission To Engine
8308--01 ~ ; AT; RH ヨウ |
30429-W4400 |
— | ||
30429Y
|
30429Y
30430-49L00 Gusset-Transmission To Engine8501--01 ~ ; AT; LH ヨウ |
30430-49L00 |
US $59.22 |
||
30429Y
|
30429Y
30430-W4400 Gusset-Transmission To Engine8308--01 ~ 8501--01; AT; LH ヨウ |
30430-W4400 |
US $60.48 |
||
31009
|
31009
31009-01X00 Bolt-Self Lock8308--01 ~ ; AT |
31009-01X00 |
US $4.06 |
||
31020
|
31020
31020-X6506
Transmission Assy-Automatic
8308--01 ~ 8602--01; CA18S,CA18E.AT; L3N71B |
31020-X6506 |
— | ||
31042
|
31042
30422-W4400 Cover-Dust8308--01 ~ ; AT |
30422-W4400 |
US $60.62 |
||
replacement | |||||
31042
|
31042
C0422-W4400
Cover-dust
8308--01 ~ ; AT |
C0422-W4400 |
— | ||
31072
|
31072
32702-V1019 Pinion Assy-Speedometer8308--01 ~ 8602--01; CA18E.AT; ホワイト 19T |
32702-V1019 |
US $26.32 |
||
31073
|
31073
32703-V1019 Pinion-Speedometer8308--01 ~ 8602--01; CA18E.AT; 19T |
32703-V1019 |
from US $24.22 |
||
31077
|
31077
32707-V1016 Sleeve Assy-Speedometer Pinion8308--01 ~ 8602--01; (CA18S+CA18E).AT CA18ET.AT |
32707-V1016 |
US $17.08 |
||
31079
|
31079
3270914600 Seal-Oil, Speedometer Pinion8308--01 ~ 8606--01; AT |
3270914600 |
US $1.53 |
||
31079
|
31079
3270958S00 Seal-Oil, Speedometer Pinion8606--01 ~ ; AT |
3270958S00 |
from US $0.87 |
||
31080
|
31080
31080-02F00 Pipe Assy-Oil Charging8308--01 ~ 8602--01; (CA18S,CA18E).AT |
31080-02F00 |
US $43.54 |
||
31080
|
31080
31080-04F00 Pipe Assy-Oil Charging8602--01 ~ ; AT |
31080-04F00 |
US $56.70 |
||
31082
|
31082
32718-14600
Plate-Lock, Speedometer Pinion
8308--01 ~ ; AT |
32718-14600 |
— | ||
replacement | |||||
31082
|
31082
3271814601 Plate-Lock8308--01 ~ ; AT |
3271814601 |
US $2.25 |
||
31084
|
31084
31084-20300 Seal-O Ring8308--01 ~ ; AT |
31084-20300 |
US $1.54 |
||
31086
|
31086
31086-30F00 Gauge Assy-Oil Level8702--01 ~ ; AT |
31086-30F00 |
US $20.02 |
||
31086
|
31086
31086-P2601 Gauge Assy-Oil Level8308--01 ~ 8602--01; (CA18,CA18E).AT |
31086-P2601 |
US $17.22 |
||
replacement | |||||
31086
|
31086
31086-P2602 Gauge Assy-Oil Level8308--01 ~ 8602--01; (CA18,CA18E).AT |
31086-P2602 |
US $15.12 |
||
31086
|
31086
31086-V2701 Gauge Assy-Oil Level8602--01 ~ 8702--01; AT |
31086-V2701 |
US $31.36 |
||
replacement | |||||
31086
|
31086
31086-V2702 Gauge Assy-Oil Level8602--01 ~ 8702--01; AT |
31086-V2702 |
US $22.12 |
||
32710M
|
32710M
32710P9000 Seal-O Ring, Speedometer Pinion8308--01 ~ ; AT |
32710P9000 |
US $1.68 |
||
32712M
|
32712M
3287314600 Pin-Retainer, Speedometer Pinion8308--01 ~ ; AT |
3287314600 |
US $2.11 |
