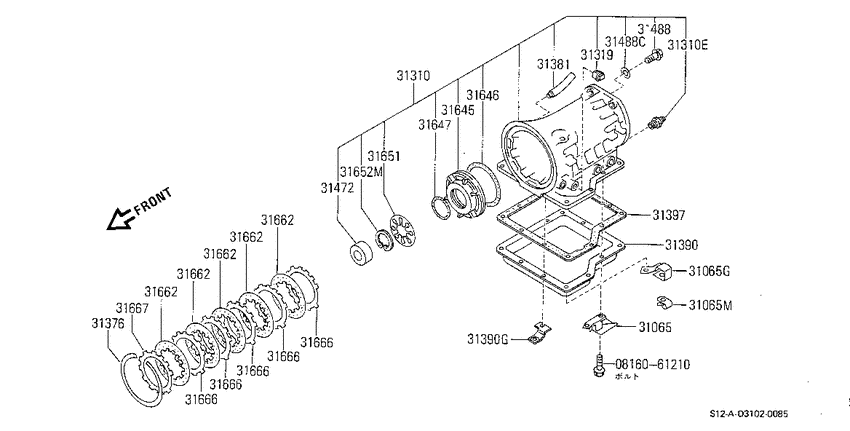

ﾄﾙｸ ｺﾝﾊﾞ-ﾀ- & ｹ-ｽ (1983-08-01 ~ 1986-02-01; ケースパーツ; 3N71B) Diagram Nissan SILVIA/GAZELLE
- Year
- 1984 - 1986
- Sales region
- Japan
- Engine
- CA18E
- transmission
- AT
- grade
- CTM
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0816061210
|
0816061210
08160-61210
Bolt-hexagon
|
08160-61210 |
— | ||
| replacement | |||||
|
0816061210
|
0816061210
08110-61225
Bolt-hexagon
|
08110-61225 |
— | ||
|
31065
|
31065
31065-A4000 Clamp-Vacuum Tube8308--01 ~ ; AT |
31065-A4000 |
US $11.23 |
||
|
31065
|
31065
31955-X6300
Bracket-Governor Tube Clip
8308--01 ~ 8602--01; CA18S,CA18E.AT |
31955-X6300 |
— | ||
|
31065
|
31065
31956-X6300 Clip-Governor Tube8308--01 ~ 8602--01; CA18S,CA18E.AT |
31956-X6300 |
US $2.45 |
||
|
31065G
|
31065G
31955-X6300
Bracket-Governor Tube Clip
8308--01 ~ 8602--01; CA18S,CA18E.AT |
31955-X6300 |
— | ||
|
31065M
|
31065M
31956-X6300 Clip-Governor Tube8308--01 ~ 8602--01; CA18S,CA18E.AT |
31956-X6300 |
US $2.45 |
||
|
31310
|
31310
31310-X6151 Case Assy-Automatic Transmission8308--01 ~ 8602--01; CA18S,CA18E.AT |
31310-X6151 |
US $538.08 |
||
|
31310
|
31310
31303-X6100 Connector8308--01 ~ 8602--01; CA18S,CA18E.AT |
31303-X6100 |
US $10.22 |
||
|
31310E
|
31310E
31303-X6100 Connector8308--01 ~ 8602--01; CA18S,CA18E.AT |
31303-X6100 |
US $10.22 |
||
|
31319
|
31319
31319-X0100 Plug-Thread, Square Head8308--01 ~ ; AT |
31319-X0100 |
US $2.45 |
||
|
31319
|
31319
31319-X0100 Plug-Thread, Square Head8308--01 ~ 8602--01; AT |
31319-X0100 |
US $2.45 |
||
|
31376
|
31376
31376-X0100 Ring-Snap, Low & Reverse Brake8308--01 ~ ; AT |
31376-X0100 |
US $5.18 |
||
|
31381
|
31381
31381-X0100 Breather-Air8308--01 ~ ; AT |
31381-X0100 |
US $2.45 |
||
| replacement | |||||
|
31381
|
31381
31381-41X0A
Breather-air
8308--01 ~ ; AT |
31381-41X0A |
— | ||
|
31390
|
31390
31390-X0102 Pan Assy-Oil8308--01 ~ 8602--01; CA18S,CA18E.AT |
31390-X0102 |
US $26.50 |
||
|
31390
|
31390
31390-X8601 Pan Assy-Oil8602--01 ~ ; AT |
31390-X8601 |
US $26.50 |
||
|
31390
|
31390
01125-01151 BOLT8607--01 ~ 8704--01; AT |
01125-01151 |
US $1.73 |
||
|
31390
|
31390
01125-01281 BOLT8704--01 ~ ; AT; |
01125-01281 |
US $1.73 |
||
|
31390
|
31390
21644-F5100 Bracket-Oil Cooler Tube8308--01 ~ 8602--01; CA18S,CA18E.AT |
21644-F5100 |
US $5.04 |
||
|
31390
|
31390
21644-V3100 Bracket-Oil Cooler Tube8602--01 ~ ; AT |
21644-V3100 |
US $9.94 |
||
|
31390G
|
31390G
21644-F5100 Bracket-Oil Cooler Tube8308--01 ~ 8602--01; CA18S,CA18E.AT |
21644-F5100 |
US $5.04 |
||
|
31390G
|
31390G
21644-V3100 Bracket-Oil Cooler Tube8602--01 ~ ; AT |
21644-V3100 |
US $9.94 |
||
|
31397
|
31397
31397-X0102 Gasket-Oil Pan8308--01 ~ ; AT |
31397-X0102 |
US $13.82 |
||
| replacement | |||||
|
31397
|
31397
31397X0103 Gasket-Oil Pan8308--01 ~ ; AT |
31397X0103 |
from US $13.82 |
||
|
31397
|
31397
31397-X0189 Gasket & Seal Kit-Auto Transmission8308--01 ~ 8602--01; (CA18S,CA18E).AT |
31397-X0189 |
US $195.84 |
||
| replacement | |||||
|
31397
|
31397
C1397-X018K
Gasket & seal kit-auto transmission
8308--01 ~ 8602--01; (CA18S,CA18E).AT |
C1397-X018K |
— | ||
|
31397
|
31397
31397-X8786
Gasket & Seal Kit-Auto Transmission
8602--01 ~ ; AT |
31397-X8786 |
— | ||
| replacement | |||||
|
31397
|
31397
31397X8789 Gasket & Seal Kit-Auto Transmission8602--01 ~ ; AT |
31397X8789 |
US $245.34 |
||
|
31472
|
31472
31472-X0100 Race-Inner8308--01 ~ ; AT |
31472-X0100 |
US $26.50 |
||
|
31488
|
31488
31488-F0600 Bolt8308--01 ~ ; AT |
31488-F0600 |
US $1.73 |
||
|
31488
|
31488
31484-X0100 Washer-Plain8308--01 ~ ; AT |
31484-X0100 |
US $0.86 |
||
|
31488C
|
31488C
31484-X0100 Washer-Plain8308--01 ~ ; AT |
31484-X0100 |
US $0.86 |
||
|
31645
|
31645
31644-X0101
Piston Assy-Low & Reverse Brake
8308--01 ~ ; AT |
31644-X0101 |
— | ||
|
31646
|
31646
31646-X0100 Seal-Lathe Cut Ring8308--01 ~ ; AT |
31646-X0100 |
US $4.18 |
||
|
31647
|
31647
31647-X0100 Seal-O Ring8308--01 ~ ; AT |
31647-X0100 |
US $1.73 |
||
|
31651
|
31651
31651-X0101 Spring-Piston Return8308--01 ~ ; AT |
31651-X0101 |
US $5.18 |
||
|
31652M
|
31652M
31652-X0101 Ring-Snap8308--01 ~ ; AT |
31652-X0101 |
US $2.45 |
||
|
31662
|
31662
31662-X0102
Plate Assy-Drive
8308--01 ~ ; AT |
31662-X0102 |
— | ||
|
31662
|
31662
31662-X0102
Plate Assy-Drive
8308--01 ~ ; AT |
31662-X0102 |
— | ||
|
31662
|
31662
31662-X0102
Plate Assy-Drive
8308--01 ~ ; AT |
31662-X0102 |
— | ||
|
31662
|
31662
31662-X0102
Plate Assy-Drive
8308--01 ~ ; AT |
31662-X0102 |
— | ||
|
31662
|
31662
31662-X0102
Plate Assy-Drive
8308--01 ~ ; AT |
31662-X0102 |
— | ||
|
31666
|
31666
31666-X0100 Plate-Driven8308--01 ~ ; AT |
31666-X0100 |
US $20.30 |
||
| replacement | |||||
|
31666
|
31666
31666-X0101 Plate-Driven8308--01 ~ ; AT |
31666-X0101 |
US $20.30 |
||
|
31666
|
31666
31666-X0100 Plate-Driven8308--01 ~ ; AT |
31666-X0100 |
US $20.30 |
||
| replacement | |||||
|
31666
|
31666
31666-X0101 Plate-Driven8308--01 ~ ; AT |
31666-X0101 |
US $20.30 |
||
|
31666
|
31666
31666-X0100 Plate-Driven8308--01 ~ ; AT |
31666-X0100 |
US $20.30 |
||
| replacement | |||||
|
31666
|
31666
31666-X0101 Plate-Driven8308--01 ~ ; AT |
31666-X0101 |
US $20.30 |
||
|
31666
|
31666
31666-X0100 Plate-Driven8308--01 ~ ; AT |
31666-X0100 |
US $20.30 |
||
| replacement | |||||
|
31666
|
31666
31666-X0101 Plate-Driven8308--01 ~ ; AT |
31666-X0101 |
US $20.30 |
||
|
31666
|
31666
31666-X0100 Plate-Driven8308--01 ~ ; AT |
31666-X0100 |
US $20.30 |
||
| replacement | |||||
|
31666
|
31666
31666-X0101 Plate-Driven8308--01 ~ ; AT |
31666-X0101 |
US $20.30 |
||
|
31667
|
31667
31667-X0500 Plate-Retaining8308--01 ~ 8602--01; AT; ｾﾝﾀｸ T=7.8 |
31667-X0500 |
US $12.96 |
||
|
31667
|
31667
31667-X0501 Plate-Retaining8308--01 ~ 8602--01; AT; ｾﾝﾀｸ T=8.0 |
31667-X0501 |
US $12.96 |
||
|
31667
|
31667
31667-X0502 Plate-Retaining8308--01 ~ 8602--01; AT; ｾﾝﾀｸ T=8.2 |
31667-X0502 |
US $12.96 |
||
|
31667
|
31667
31667-X0503 Plate-Retaining8308--01 ~ 8602--01; AT; ｾﾝﾀｸ T=8.4 |
31667-X0503 |
US $12.96 |
||
|
31667
|
31667
31667-X0504 Plate-Retaining8308--01 ~ 8602--01; AT; ｾﾝﾀｸ T=8.6 |
31667-X0504 |
US $12.96 |
||
|
31667
|
31667
31667-X0505 Plate-Retaining8308--01 ~ 8602--01; AT; ｾﾝﾀｸ T=8.8 |
31667-X0505 |
US $12.96 |
||
