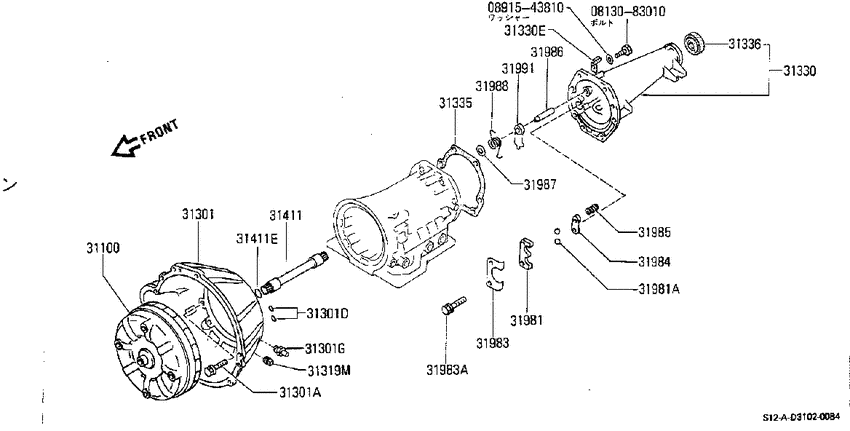

ﾄﾙｸ ｺﾝﾊﾞ-ﾀ- & ｹ-ｽ (1983-08-01 ~ 1986-02-01; コンバーター&エクステンション; 3N71B) Diagram Nissan SILVIA/GAZELLE
- Year
- 1984 - 1986
- Sales region
- Japan
- Engine
- CA18E
- transmission
- AT
- grade
- CTM
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0813083010
|
0813083010
08130-83010 Bolt-hexagon |
08130-83010 |
US $3.46 |
||
|
0891543810
|
0891543810
08915-43810
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43810 |
— | ||
|
31100
|
31100
31100-X6619 Converter Assy-Torque8308--01 ~ 8410--01; CA18S,CA18E.AT |
31100-X6619 |
US $899.16 |
||
|
31100
|
31100
31100-X6621 Converter Assy-Torque8410--01 ~ 8602--01; CA18S,CA18E.AT |
31100-X6621 |
US $899.16 |
||
|
31301
|
31301
31300-X6500
Housing-Converter
8308--01 ~ 8602--01; CA18S,CA18E.AT |
31300-X6500 |
— | ||
|
31301
|
31301
31309-X6600 Bolt8308--01 ~ 8602--01; CA18S,CA18E.AT |
31309-X6600 |
US $2.45 |
||
|
31301
|
31301
31309-X8600 Bolt8602--01 ~ ; AT |
31309-X8600 |
US $4.18 |
||
|
31301
|
31301
31954-X6100 Seal-Oil8308--01 ~ 8602--01; AT |
31954-X6100 |
US $2.45 |
||
|
31301
|
31301
31303-X6100 Connector8308--01 ~ 8602--01; CA18S,CA18E.AT |
31303-X6100 |
US $10.22 |
||
|
31301A
|
31301A
31309-X6600 Bolt8308--01 ~ 8602--01; CA18S,CA18E.AT |
31309-X6600 |
US $2.45 |
||
|
31301A
|
31301A
31309-X8600 Bolt8602--01 ~ ; AT |
31309-X8600 |
US $4.18 |
||
|
31301D
|
31301D
31954-X6100 Seal-Oil8308--01 ~ 8602--01; AT |
31954-X6100 |
US $2.45 |
||
|
31301G
|
31301G
31303-X6100 Connector8308--01 ~ 8602--01; CA18S,CA18E.AT |
31303-X6100 |
US $10.22 |
||
|
31319M
|
31319M
31319-X0100 Plug-Thread, Square Head8308--01 ~ 8602--01; AT |
31319-X0100 |
US $2.45 |
||
|
31330
|
31330
31330-X0303 Extension Assy-Rear8308--01 ~ 8602--01; CA18S,CA18E.AT |
31330-X0303 |
US $126.72 |
||
|
31330
|
31330
31330-X8000 Extension Assy-Rear8602--01 ~ ; AT |
31330-X8000 |
US $161.28 |
||
|
31330
|
31330
24210-U7001 Clip-Harness8308--01 ~ 8602--01; CA18S,CA18E.AT |
24210-U7001 |
US $4.18 |
||
|
31330E
|
31330E
24210-U7001 Clip-Harness8308--01 ~ 8602--01; CA18S,CA18E.AT |
24210-U7001 |
US $4.18 |
||
|
31335
|
31335
31335-X0100 Gasket-Extension8308--01 ~ ; AT |
31335-X0100 |
US $4.18 |
||
| replacement | |||||
|
31335
|
31335
31338-X0100 Gasket-Extension8308--01 ~ ; AT |
31338-X0100 |
US $4.18 |
||
|
31336
|
31336
31336-X8000 Seal-Oil, Rear Extension8308--01 ~ ; AT |
31336-X8000 |
US $7.63 |
||
|
31411
|
31411
31411-X6600 Shaft-Input8308--01 ~ 8602--01; CA18S,CA18E.AT |
31411-X6600 |
US $41.76 |
||
|
31411
|
31411
31159-X6101 Seal-O Ring8308--01 ~ 8602--01; AT |
31159-X6101 |
US $3.31 |
||
|
31411E
|
31411E
31159-X6101 Seal-O Ring8308--01 ~ 8602--01; AT |
31159-X6101 |
US $3.31 |
||
|
31981
|
31981
31981-X0100 Support-Parking Actuator8308--01 ~ 8401--01; AT |
31981-X0100 |
US $29.81 |
||
|
31981
|
31981
31981-X0102 Support-Parking Actuator8401--01 ~ ; AT |
31981-X0102 |
US $30.38 |
||
|
31981
|
31981
31357-20300 Ball-Steel8308--01 ~ ; AT |
31357-20300 |
US $0.86 |
||
|
31981A
|
31981A
31357-20300 Ball-Steel8308--01 ~ ; AT |
31357-20300 |
US $0.86 |
||
|
31983
|
31983
31983-X0100 Plate-Retaining, Parking8308--01 ~ ; AT |
31983-X0100 |
US $0.86 |
||
|
31983
|
31983
01125-00021 BOLT8308--01 ~ ; AT |
01125-00021 |
US $2.45 |
||
|
31983A
|
31983A
01125-00021 BOLT8308--01 ~ ; AT |
01125-00021 |
US $2.45 |
||
|
31984
|
31984
31984-E8000 Retainer-Spring, Parking8308--01 ~ 8401--01; AT |
31984-E8000 |
US $4.18 |
||
|
31984
|
31984
31984-X8000 Retainer-Spring, Parking8401--01 ~ ; AT |
31984-X8000 |
US $4.18 |
||
|
31985
|
31985
31985-E8000 Spring-Ball, Parking8308--01 ~ 8401--01; AT |
31985-E8000 |
US $1.73 |
||
|
31985
|
31985
31985-X0100 Spring-Ball, Parking8401--01 ~ ; AT |
31985-X0100 |
US $1.73 |
||
|
31986
|
31986
31986-20300 Shaft-Parking Pawl8308--01 ~ ; AT |
31986-20300 |
US $2.45 |
||
|
31987
|
31987
31987-X0100 Spacer-Parking Pawl8308--01 ~ ; AT |
31987-X0100 |
US $1.73 |
||
|
31988
|
31988
31988-X0100 Spring-Return Pawl8308--01 ~ ; AT |
31988-X0100 |
US $1.73 |
||
|
31991
|
31991
31991-E8000 Pawl-Parking8308--01 ~ 8412--01; AT |
31991-E8000 |
US $33.55 |
||
|
31991
|
31991
31991-X0100 Pawl-Parking8401--01 ~ ; AT |
31991-X0100 |
US $12.82 |
||
