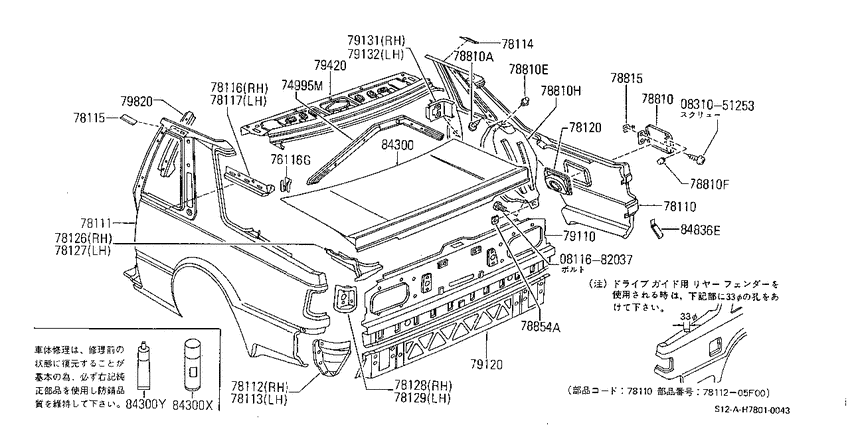

Rear body panel (1983-08-01 ~ ; K) Diagram Nissan SILVIA/GAZELLE
- Year
- 1984 - 1986
- Sales region
- Japan
- Engine
- CA18E
- transmission
- AT
- grade
- CTM
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811682037
|
0811682037
08116-82037
Bolt-hexagon
|
08116-82037 |
— | ||
|
0831051253
|
0831051253
08310-51253
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-51253 |
— | ||
|
74995M
|
74995M
79452-01F00 ﾌﾞﾗｹﾂﾄ,ﾎﾞ-ﾄﾞ8308--01 ~ ; K; BRACE |
79452-01F00 |
US $106.85 |
||
| replacement | |||||
|
74995M
|
74995M
79452-01F99
Bracket-board
8308--01 ~ ; K; BRACE |
79452-01F99 |
— | ||
|
76116G
|
76116G
79428-K0100
ﾌﾂｸ,ﾘﾔ ｹﾞ-ﾄ rh
8308--01 ~ ; K; SEATBACK |
79428-K0100 |
— | ||
|
78110
|
78110
78112-01F00
ﾌｴﾝﾀﾞ-,ﾘﾔ rh
8308--01 ~ 8602--01; K |
78112-01F00 |
— | ||
|
78110
|
78110
78112-33F30 ﾌｴﾝﾀﾞ-,ﾘﾔ rh8602--01 ~ ; K |
78112-33F30 |
US $1,064.83 |
||
|
78110
|
78110
76862-01F00
ｼ-ﾙ ﾗﾊﾞ-
8308--01 ~ ; K; RH INSUL |
76862-01F00 |
— | ||
|
78110
|
78110
76863-01F00
ｼ-ﾙ ﾗﾊﾞ-
8308--01 ~ ; K; LH INSUL |
76863-01F00 |
— | ||
|
78111
|
78111
78113-01F00
ﾌｴﾝﾀﾞ-,ﾘﾔ lh
8308--01 ~ 8602--01; K |
78113-01F00 |
— | ||
|
78111
|
78111
78113-33F30 ﾌｴﾝﾀﾞ-,ﾘﾔ lh8602--01 ~ ; K |
78113-33F30 |
US $1,064.83 |
||
|
78112
|
78112
78142-01F00 ｺﾈｸﾀ-,ﾘﾔ ﾌｴﾝﾀﾞ- rh8308--01 ~ ; K |
78142-01F00 |
US $19.01 |
||
|
78113
|
78113
78143-01F00 ｺﾈｸﾀ-,ﾘﾔ ﾌｴﾝﾀﾞ- lh8308--01 ~ ; K |
78143-01F00 |
US $19.01 |
||
|
78114
|
78114
78192-01F00 ﾋﾟﾗ- ｱﾂｾﾝﾌﾞﾘ-,ﾃ-ﾙ rh8308--01 ~ ; K |
78192-01F00 |
US $5.18 |
||
|
78115
|
78115
78193-01F00 ﾋﾟﾗ- ｱﾂｾﾝﾌﾞﾘ-,ﾃ-ﾙ lh8308--01 ~ ; K |
78193-01F00 |
US $5.18 |
||
|
78116
|
78116
78162-01F00 ｴｸｽﾃﾝｼﾖﾝ,ﾘﾔ ﾌｴﾝﾀﾞ- rh8308--01 ~ ; K |
78162-01F00 |
US $13.39 |
||
|
78117
|
78117
78163-01F00 ｴｸｽﾃﾝｼﾖﾝ,ﾘﾔ ﾌｴﾝﾀﾞ- lh8308--01 ~ ; K |
78163-01F00 |
US $13.39 |
||
|
78120
|
78120
78120-01F00 ﾍﾞ-ｽ,ﾌｲﾗ- ﾘﾂﾄﾞ8308--01 ~ 8602--01; K |
78120-01F00 |
US $44.06 |
||
|
78126
|
78126
78132-01F00 ｺ-ﾅ-,ﾘﾔ ﾌｴﾝﾀﾞ- rh8308--01 ~ ; K |
78132-01F00 |
US $24.05 |
||
|
78127
|
78127
78133-01F00 ｺ-ﾅ-,ﾘﾔ ﾌｴﾝﾀﾞ- lh8308--01 ~ ; K |
78133-01F00 |
US $24.05 |
||
|
78128
|
78128
78142-30F00 ﾌﾞﾗｹﾂﾄ,ﾘﾔ ｺﾝﾋﾞﾈ-ｼﾖﾝ ﾗﾝﾌﾟ rh8602--01 ~ ; K |
78142-30F00 |
US $19.01 |
||
|
78128
|
78128
78152-01F00 ﾌﾞﾗｹﾂﾄ,ﾘﾔ ｺﾝﾋﾞﾈ-ｼﾖﾝ ﾗﾝﾌﾟ rh8308--01 ~ 8602--01; K |
78152-01F00 |
US $16.27 |
||
|
78129
|
78129
78143-30F00 ﾌﾞﾗｹﾂﾄ,ﾘﾔ ｺﾝﾋﾞﾈ-ｼﾖﾝ ﾗﾝﾌﾟ lh8602--01 ~ ; K |
78143-30F00 |
US $19.01 |
||
|
78129
|
78129
78153-01F00 ﾌﾞﾗｹﾂﾄ,ﾘﾔ ｺﾝﾋﾞﾈ-ｼﾖﾝ ﾗﾝﾌﾟ lh8308--01 ~ 8602--01; K |
78153-01F00 |
US $16.27 |
||
|
78810
|
78810
78830-01F01 ﾘﾂﾄﾞ,ｶﾞｽ ﾌｲﾗ-8308--01 ~ ; ALL |
78830-01F01 |
US $34.99 |
||
|
78810
|
78810
01461-00041 SCREW8308--01 ~ ; ALL; SELECT USE |
01461-00041 |
US $1.73 |
||
|
78810
|
78810
64822-M3000 Screw8308--01 ~ ; ALL |
64822-M3000 |
US $1.73 |
||
|
78810
|
78810
0165800141 BUMPER-LID8308--01 ~ ; ALL |
0165800141 |
US $2.45 |
||
|
78810
|
78810
76890-01F00 ﾌﾟﾛﾃｸﾀ-,ﾌﾕ-ｴﾙ ﾌｲﾗ-8308--01 ~ ; ALL |
76890-01F00 |
US $36.72 |
||
|
78810A
|
78810A
01461-00041 SCREW8308--01 ~ ; ALL; SELECT USE |
01461-00041 |
US $1.73 |
||
|
78810E
|
78810E
64822-M3000 Screw8308--01 ~ ; ALL |
64822-M3000 |
US $1.73 |
||
|
78810F
|
78810F
0165800141 BUMPER-LID8308--01 ~ ; ALL |
0165800141 |
US $2.45 |
||
|
78810H
|
78810H
76890-01F00 ﾌﾟﾛﾃｸﾀ-,ﾌﾕ-ｴﾙ ﾌｲﾗ-8308--01 ~ ; ALL |
76890-01F00 |
US $36.72 |
||
|
78815
|
78815
78836-01F00 ｽﾌﾟﾘﾝｸﾞ,ｶﾞｽ ﾌｲﾗ- ﾘﾂﾄﾞ8308--01 ~ ; ALL |
78836-01F00 |
US $5.18 |
||
|
78854A
|
78854A
01241-00021 NUT8308--01 ~ ; ALL |
01241-00021 |
US $2.45 |
||
|
79110
|
79110
79110-02F00 ﾊﾟﾈﾙ,ﾘﾔ ｱﾂﾊﾟ-8308--01 ~ 8602--01; K-RL,RX(CA18S) |
79110-02F00 |
US $358.25 |
||
|
79110
|
79110
79110-30F30 ﾊﾟﾈﾙ,ﾘﾔ ｱﾂﾊﾟ-8602--01 ~ ; K |
79110-30F30 |
US $358.25 |
||
|
79120
|
79120
79122-01F00 ﾊﾟﾈﾙ,ﾘﾔ ﾛｱ8308--01 ~ ; K |
79122-01F00 |
US $159.84 |
||
|
79131
|
79131
78180-06F00 ｽﾃ-,ﾘﾔ ﾊﾟﾈﾙ rh8308--01 ~ 8602--01; K |
78180-06F00 |
US $9.07 |
||
|
79132
|
79132
78181-06F00 ｽﾃ-,ﾘﾔ ﾊﾟﾈﾙ lh8308--01 ~ 8602--01; K |
78181-06F00 |
US $9.07 |
||
|
79420
|
79420
79420-01F00 ｼｴﾙﾌ,ﾊﾟ-ｾﾙ8308--01 ~ ; K |
79420-01F00 |
US $349.75 |
||
|
79820
|
79820
78170-01F00 ｴｸｽﾃﾝｼﾖﾝ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｴﾝﾄﾞ8308--01 ~ ; K; UPR RH |
78170-01F00 |
US $33.84 |
||
|
79820
|
79820
78171-01F00 ｴｸｽﾃﾝｼﾖﾝ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｴﾝﾄﾞ8308--01 ~ ; K; UPR LH |
78171-01F00 |
US $33.84 |
||
|
84300
|
84300
84300-01F00 ﾘﾂﾄﾞ,ﾄﾗﾝｸ8308--01 ~ ; K |
84300-01F00 |
US $661.27 |
||
| replacement | |||||
|
84300
|
84300
H4300-01F00
Lid-trunk
8308--01 ~ ; K |
H4300-01F00 |
— | ||
|
84300
|
84300
KA390-18090
Metal Keep Wax
8308--01 ~ ; ALL; [K504] |
KA390-18090 |
— | ||
|
84300
|
84300
KA360-16570
Paint Sealer
8308--01 ~ ; ALL; [K504] |
KA360-16570 |
— | ||
|
84300X
|
84300X
KA390-18090
Metal Keep Wax
8308--01 ~ ; ALL; [K504] |
KA390-18090 |
— | ||
|
84300Y
|
84300Y
KA360-16570
Paint Sealer
8308--01 ~ ; ALL; [K504] |
KA360-16570 |
— | ||
|
84836E
|
84836E
24200-89918 Clip8308--01 ~ ; K |
24200-89918 |
US $1.58 |
||
